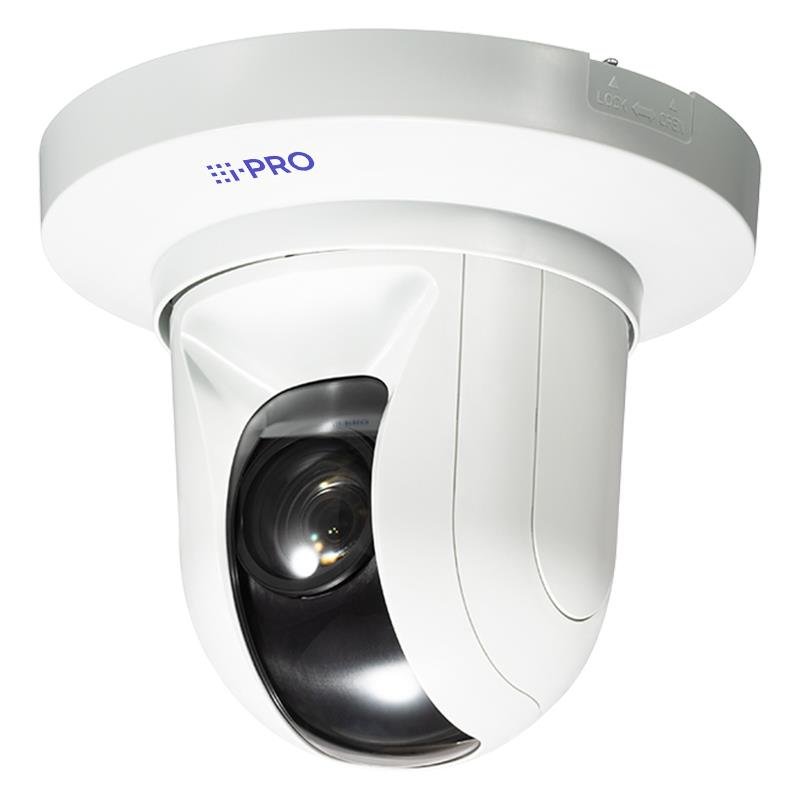

NET CAMERA 5MP PTZ AI INDOOR/WV-S61501-Z1 I-PRO

NET CAMERA 5MP PTZ AI INDOOR/WV-S61501-Z1 I-PRO
NET CAMERA 5MP PTZ AI INDOOR/WV-S61501-Z1 I-PRO
  • Connectivity technology: Wired
  • Zoom capability: Yes
  • Maximum resolution: 3072 x 2304
  • Total megapixels: 5
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
113,767ден.
  • Достапност:
  • Бренд: I-PRO
  • Шифра: 454025
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: i-PRO S-series PTZ camera with AI Engine. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Turret. Minimum illumination: 0.004 lx, Tilt angle range: -30 - 90°, Tilt preset speed: 300 °/sec. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 10x, Digital zoom: 160x, Focal length range: 4.7 - 47 mm
  • Vendor Homepage: https://i-pro.com/products_and_solutions/en/surveillance/products/wv-s61501-z1
  • Name: NET CAMERA 5MP PTZ AI INDOOR/WV-S61501-Z1 I-PRO
  • Category Code: FNC
  • Form factor: Turret
  • Mounting type: Ceiling
  • Product colour: White
  • Housing material: Acrylonitrile butadiene styrene (ABS)/Aluminium/Polycarbonate (PC)
  • Fog proof: Yes
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Indoor
  • PTZ control: Yes
  • Auto pan mode: Yes
  • Auto patrol mode: Yes
  • Preset points: Yes
  • Dynamic range: 132
  • Languages support: English/French/German/Italian/Japanese/Portuguese/Russian/Simplified Chinese/Spanish
  • Camera pan control: Yes
  • Camera tilt control: Yes
  • Minimum illumination: 0.004
  • Tilt angle range: -30 - 90
  • Tilt manual speed: 0.065 - 150
  • Tilt preset speed: 300
  • Pan range: 0 - 350
  • Pan manual speed: 0.065 - 150
  • Pan preset speed: 350
  • White balance: ATW/AWC
  • Camera shutter speed: 1/4000 - 16/30
  • Number of Privacy masking areas: 32
  • Optical sensor size: 1/2.8
  • Sensor type: CMOS
  • Zoom capability: Yes
  • Optical zoom: 10
  • Digital zoom: 160
  • Focal length range: 4.7 - 47
  • Auto focus: Yes
  • Maximum aperture number: 1.6
  • Detect distance (tele): 1134.5
  • Detect distance (wide): 110.8
  • Identify distance (tele): 113.4
  • Identify distance (wide): 11.1
  • Normal focusing range: 1.5
  • Observe distance (tele): 453.8
  • Observe distance (wide): 44.3
  • Recognize distance (tele): 226.9
  • Recognize distance (wide): 22.2
  • Night vision: Yes
  • Maximum resolution: 3072 x 2304
  • Total megapixels: 5
  • Video formats supported: H.264/H.265/M-JPEG
  • Supported graphics resolutions: 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2560 x 1440/2560 x 1920/3072 x 1728/3072 x 2304/320 x 180/320 x 240/400 x 300/640 x 360/800 x 600 (SVGA)
  • Noise reduction: Yes
  • Back Light Compensation (BLC): Yes
  • Highlight Compensation (HLC): Yes
  • Image stabilizer: Yes
  • Audio detection: Yes
  • Ethernet LAN: Yes
  • Ethernet interface type: Fast Ethernet
  • Networking standards: IEEE 802.1x/IEEE 802.3af
  • Supported network protocols: IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, SFTP, MQTT, LLDP IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPn
  • Number of simultaneous live view channels: 14
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
  • Maximum memory card size: 512
  • Ethernet LAN (RJ-45) ports: 1
  • Microphone in: Yes
  • Alarm input channels: 3
  • Alert notification type: E-mail
  • Intelligent Video Surveillance (IVS) system features: Face detection/Human detection/Scene change/Vehicle detection
  • Privacy protection: Yes
  • Security algorithms: FIPS 140-2/HTTPS
  • Video motion detection: Yes
  • Web browser: Yes
  • Behavior analysis: Scene change detection
  • Power source type: DC,PoE
  • Power consumption (typical): 11.6
  • Power consumption (Power over Ethernet (PoE)): 12.95
  • DC output voltage: 12
  • DC output current: 0.97
  • Waste Electrical and Electronic Equipment (WEEE) compliance: Yes
  • Operating temperature (T-T): -10 - 50
  • Storage temperature (T-T): -30 - 60
  • Operating relative humidity (H-H): 10 - 90
  • Storage relative humidity (H-H): 10 - 95
  • Mobile operating systems supported: Android/iOS/iOS 8.0/iPadOS
  • Height: 155
  • Diameter: 117
  • Weight: 1200
  • Compliance certificates: CE/Federal Communications Commission (FCC)/National Defense Authorization Act (NDAA)/UKCA/UL
  • Number of cameras: 1
  • Audio input: 3.5mm
  • Audio output: 3.5mm
  • Browser supported: Microsoft Edge, Firefox, Google Chrome
  • Data transfer rate: 100
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.001734
  • Unit Calculated Weight: 1.5
Specifications
Alarm input channels3
Alert notification typeE-mail
Audio detectionYes
Audio input3.5mm
Audio output3.5mm
Auto focusYes
Auto pan modeYes
Auto patrol modeYes
Back Light Compensation (BLC)Yes
Behavior analysisScene change detection
Browser supportedMicrosoft Edge, Firefox, Google Chrome
Camera pan controlYes
Camera shutter speed1/4000 - 16/30
Camera tilt controlYes
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)/MicroSDHC/MicroSDXC
Compliance certificatesCE/Federal Communications Commission (FCC)/National Defense Authorization Act (NDAA)/UKCA/UL
Connectivity technologyWired
DC output current0.97
DC output voltage12
Detect distance (tele)1134.5
Detect distance (wide)110.8
Diameter117
Digital zoom160
Dynamic range132
Ethernet interface typeFast Ethernet
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Focal length range4.7 - 47
Fog proofYes
Form factorTurret
Height155
Highlight Compensation (HLC)Yes
Housing materialAcrylonitrile butadiene styrene (ABS)/Aluminium/Polycarbonate (PC)
Identify distance (tele)113.4
Identify distance (wide)11.1
Image stabilizerYes
Intelligent Video Surveillance (IVS) system featuresFace detection/Human detection/Scene change/Vehicle detection
Languages supportEnglish/French/German/Italian/Japanese/Portuguese/Russian/Simplified Chinese/Spanish
Maximum aperture number1.6
Maximum memory card size512
Maximum resolution3072 x 2304
Microphone inYes
Minimum illumination0.004
Mobile operating systems supportedAndroid/iOS/iOS 8.0/iPadOS
Mounting typeCeiling
Networking standardsIEEE 802.1x/IEEE 802.3af
Night visionYes
Noise reductionYes
Normal focusing range1.5
Number of cameras1
Number of Privacy masking areas32
Number of simultaneous live view channels14
Observe distance (tele)453.8
Observe distance (wide)44.3
Operating relative humidity (H-H)10 - 90
Operating temperature (T-T)-10 - 50
Optical sensor size1/2.8
Optical zoom10
Pan manual speed0.065 - 150
Pan preset speed350
Pan range0 - 350
Placement supportedIndoor
Power consumption (Power over Ethernet (PoE))12.95
Power consumption (typical)11.6
Power source typeDC,PoE
Preset pointsYes
Privacy protectionYes
Product colourWhite
PTZ controlYes
Recognize distance (tele)226.9
Recognize distance (wide)22.2
Security algorithmsFIPS 140-2/HTTPS
Sensor typeCMOS
Storage relative humidity (H-H)10 - 95
Storage temperature (T-T)-30 - 60
Summaryi-PRO S-series PTZ camera with AI Engine. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Turret. Minimum illumination: 0.004 lx, Tilt angle range: -30 - 90°, Tilt preset speed: 300 °/sec. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 10x, Digital zoom: 160x, Focal length range: 4.7 - 47 mm
Supported graphics resolutions1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2560 x 1440/2560 x 1920/3072 x 1728/3072 x 2304/320 x 180/320 x 240/400 x 300/640 x 360/800 x 600 (SVGA)
Supported network protocolsIPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, SFTP, MQTT, LLDP IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPn
Tilt angle range-30 - 90
Tilt manual speed0.065 - 150
Tilt preset speed300
Total megapixels5
TypeIP security camera
Video formats supportedH.264/H.265/M-JPEG
Video motion detectionYes
Waste Electrical and Electronic Equipment (WEEE) complianceYes
Web browserYes
Weight1200
White balanceATW/AWC
Zoom capabilityYes
Specs
Category CodeFNC
Data transfer rate100
Description

S-series models come standard with AI automatic tracking. It can automatically detect, zoom, and track intruders in a wide area,
thereby supporting surveillance operators in many scenes. It also achieves the industry’s highest level of drive durability to withstand
high-speed and high-frequency camera movement by the automatic monitoring function.

AI monitoring camera, standard with AI Auto-tracking
- AI analysis functionality is standard on the camera side to promote automated surveillance. Accurately detects people and vehicles and automatically zooms in on intruders. Support surveillance operators to ensure that no tracked object is missed.
Additional applications can be installed (up to two applications) to expand analysis functions such as AI privacy guard, person/vehicle
attribute detection, etc.

Highly durable pan-tilt drive unit Reduced maintenance costs
- High durability gear drive achieves PAN and TILT drive durability (3.7 million movements). Low failure rate even with high
frequency drive and reduced maintenance cost by minimizing the maintenance cycle.

Easy installation
- S-series compact PTZ cameras can be installed discreetly and easily on low ceilings.
- Easy kitting packaging" allows the camera to be set up without removing it from the box during kitting prior to installation.
- The addition of a diverse lineup of mounting brackets and optional PoE injectors enables flexible installation regardless of the location of new or existing installations.

High security standard
- Highest level of security. In addition to digital certificates issued by a third-party organization (GlobalSign®),
FIPS 140-2 Level 3 certified EdgeLock® SE050F secure element (NXP® Semiconductors) is embeded.

  • 5MP
  • 10x optical zoom
  • Intelligent Auto (with AI Engine)
  • Super Dynamic 132dB
  • Color night vision (0.007 to 0.11 lx)
  • Durable Pan/Tilt gear mechanism
  • Built-in FIPS 140-2 Level 3 Certified SecureElement
  • (EdgeLock® SE050F NXP® Semiconductors)
  • NDAA Compliant
