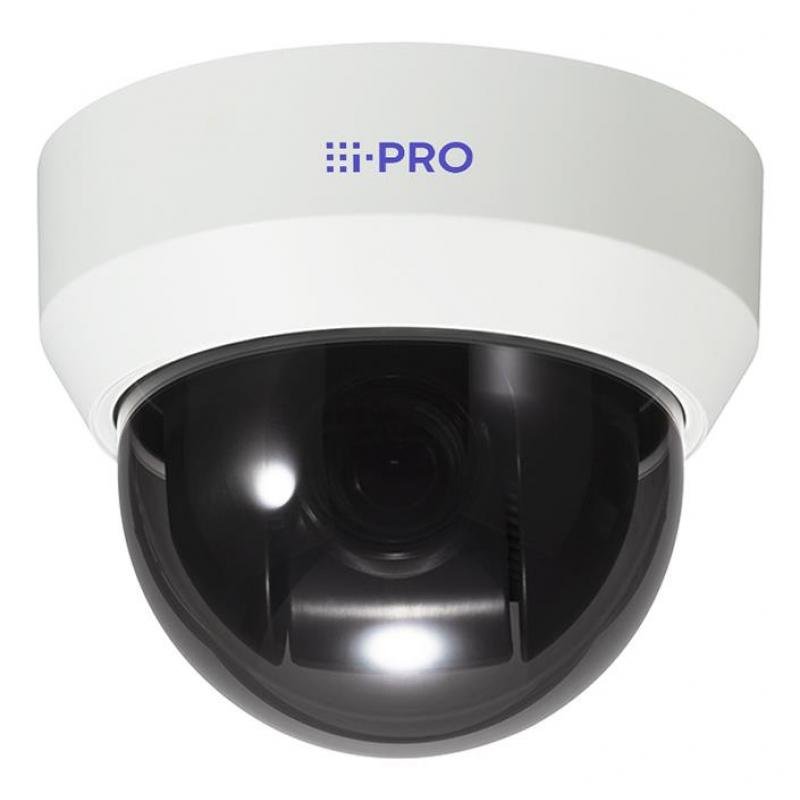

NET CAMERA 5MP PTZ AI OUTDOOR/VANDAL WV-S65501-Z1G I-PRO

NET CAMERA 5MP PTZ AI OUTDOOR/VANDAL WV-S65501-Z1G I-PRO
NET CAMERA 5MP PTZ AI OUTDOOR/VANDAL WV-S65501-Z1G I-PRO
  • Connectivity technology: Wired
  • Zoom capability: Yes
  • Maximum resolution: 3072 x 1728
  • Total megapixels: 5
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
128,705ден.
  • Достапност:
  • Бренд: I-PRO
  • Шифра: 454057
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: i-PRO WV-S65501-Z1G. Placement supported: Outdoor, Connectivity technology: Wired, Languages support: German, English, Spanish, French, Italian, Japanese, Portuguese, Russian. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Minimum illumination: 0.22 lx, Lens viewing angle, horizontal: 360°, Lens viewing angle, vertical: -15 - 195°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). White balance (panoramic camera): ATW, AWC
  • Vendor Homepage: https://i-pro.com/products_and_solutions/en/surveillance/products/wv-s65501-z1g
  • Name: NET CAMERA 5MP PTZ AI OUTDOOR/VANDAL WV-S65501-Z1G I-PRO
  • Category Code: FNC
  • Form factor: Dome
  • Mounting type: Ceiling
  • Product colour: White
  • Housing material: Aluminium/Polycarbonate (PC)
  • Protection features: Corrosion resistant/Wind resistant
  • International Protection (IP) code: IP66
  • IK code: IK10
  • Connectivity technology: Wired
  • Placement supported: Outdoor
  • PTZ control: Yes
  • Auto pan mode: Yes
  • Day/night mode: Yes
  • Alarm input/output: Yes
  • Dynamic range: 132
  • Languages support: English/French/German/Italian/Japanese/Portuguese/Russian/Spanish
  • Number of languages: 9
  • Minimum illumination: 0.22
  • Lens viewing angle, horizontal: 360
  • Lens viewing angle, vertical: -15 - 195
  • Tilt angle range: -15 - 195
  • Tilt preset speed: 500
  • Tilt speed: 150
  • Pan range: 0 - 360
  • Pan preset speed: 500
  • Pan speed: 150
  • White balance: ATW/AWC
  • Camera shutter speed: 1/10000 - 16/30
  • Optical sensor size: 1/2.8
  • Sensor type: CMOS
  • White balance (panoramic camera): ATW/AWC
  • Zoom capability: Yes
  • Optical zoom: 10
  • Digital zoom: 160
  • Focal length range: 4.7 - 47
  • Auto focus: Yes
  • Maximum aperture number: 3
  • Minimum aperture number: 1.6
  • Detect distance (tele): 1134.5
  • Detect distance (wide): 110.8
  • Identify distance (tele): 113.4
  • Identify distance (wide): 11.1
  • Normal focusing range: 1.5
  • Observe distance (tele): 453.8
  • Observe distance (wide): 44.3
  • Recognize distance (tele): 226.9
  • Recognize distance (wide): 22.2
  • Night vision: Yes
  • Maximum resolution: 3072 x 1728
  • Total megapixels: 5
  • Video formats supported: H.264/H.265/M-JPEG
  • Frame rate: 30
  • Noise reduction: Yes
  • Back Light Compensation (BLC): Yes
  • Bit rate control: Variable Bit Rate (VBR)
  • Highlight Compensation (HLC): Yes
  • Image quality adjustment: Automatic gain control (AGC)/Brightness
  • Image stabilizer: Yes
  • Audio system full duplex: Yes
  • Audio formats supported: AAC-LC/G.711/G.726
  • Voice codecs: AGC
  • Ethernet LAN: Yes
  • Supported network protocols: IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, SFTP, MQTT, LLDP IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPn
  • Number of users: 14
  • Streaming method: Multicast/Unicast
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
  • Maximum memory card size: 512
  • Ethernet LAN (RJ-45) ports: 1
  • Microphone in: Yes
  • Alert notification type: E-mail
  • Intelligent Video Surveillance (IVS) system features: Face detection/Human detection/Vehicle detection
  • Security algorithms: FIPS 140-2
  • Video motion detection: Yes
  • Web browser: Yes
  • Behavior analysis: Scene change detection
  • Power source type: DC,PoE
  • Power consumption: 350
  • Power consumption (typical): 18.9
  • DC output voltage: 12,54
  • DC output current: 1.3
  • Operating temperature (T-T): -30 - 55
  • Storage temperature (T-T): -20 - 55
  • Operating relative humidity (H-H): 10 - 100
  • Mobile operating systems supported: Android/iOS
  • Width: 165
  • Depth: 165
  • Height: 139
  • Weight: 1600
  • Compliance certificates: CE/cUL/Federal Communications Commission (FCC)/UL
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.012
  • Unit Calculated Weight: 2
Specifications
Alarm input/outputYes
Alert notification typeE-mail
Audio formats supportedAAC-LC/G.711/G.726
Audio system full duplexYes
Auto focusYes
Auto pan modeYes
Back Light Compensation (BLC)Yes
Behavior analysisScene change detection
Bit rate controlVariable Bit Rate (VBR)
Camera shutter speed1/10000 - 16/30
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)/MicroSDHC/MicroSDXC
Compliance certificatesCE/cUL/Federal Communications Commission (FCC)/UL
Connectivity technologyWired
Day/night modeYes
DC output current1.3
DC output voltage12,54
Depth165
Detect distance (tele)1134.5
Detect distance (wide)110.8
Digital zoom160
Dynamic range132
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Focal length range4.7 - 47
Form factorDome
Frame rate30
Height139
Highlight Compensation (HLC)Yes
Housing materialAluminium/Polycarbonate (PC)
Identify distance (tele)113.4
Identify distance (wide)11.1
IK codeIK10
Image quality adjustmentAutomatic gain control (AGC)/Brightness
Image stabilizerYes
Intelligent Video Surveillance (IVS) system featuresFace detection/Human detection/Vehicle detection
International Protection (IP) codeIP66
Languages supportEnglish/French/German/Italian/Japanese/Portuguese/Russian/Spanish
Lens viewing angle, horizontal360
Lens viewing angle, vertical-15 - 195
Maximum aperture number3
Maximum memory card size512
Maximum resolution3072 x 1728
Microphone inYes
Minimum aperture number1.6
Minimum illumination0.22
Mobile operating systems supportedAndroid/iOS
Mounting typeCeiling
Night visionYes
Noise reductionYes
Normal focusing range1.5
Number of languages9
Number of users14
Observe distance (tele)453.8
Observe distance (wide)44.3
Operating relative humidity (H-H)10 - 100
Operating temperature (T-T)-30 - 55
Optical sensor size1/2.8
Optical zoom10
Pan preset speed500
Pan range0 - 360
Pan speed150
Placement supportedOutdoor
Power consumption (typical)18.9
Power source typeDC,PoE
Product colourWhite
Protection featuresCorrosion resistant/Wind resistant
PTZ controlYes
Recognize distance (tele)226.9
Recognize distance (wide)22.2
Security algorithmsFIPS 140-2
Sensor typeCMOS
Storage temperature (T-T)-20 - 55
Streaming methodMulticast/Unicast
Summaryi-PRO WV-S65501-Z1G. Placement supported: Outdoor, Connectivity technology: Wired, Languages support: German, English, Spanish, French, Italian, Japanese, Portuguese, Russian. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Minimum illumination: 0.22 lx, Lens viewing angle, horizontal: 360°, Lens viewing angle, vertical: -15 - 195°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). White balance (panoramic camera): ATW, AWC
Supported network protocolsIPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, SFTP, MQTT, LLDP IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPn
Tilt angle range-15 - 195
Tilt preset speed500
Tilt speed150
Total megapixels5
Video formats supportedH.264/H.265/M-JPEG
Video motion detectionYes
Voice codecsAGC
Web browserYes
Weight1600
White balanceATW/AWC
White balance (panoramic camera)ATW/AWC
Width165
Zoom capabilityYes
Specs
Category CodeFNC
Description

S-series models come standard with AI automatic tracking. It can automatically detect, zoom, and track intruders in a wide area,
thereby supporting surveillance operators in many scenes. It also achieves the industry’s highest level of drive durability to withstand
high-speed and high-frequency camera movement by the automatic monitoring function.

AI monitoring camera, standard with AI Auto-tracking
- AI analysis functionality is standard on the camera side to promote automated surveillance. Accurately detects people and vehicles and automatically zooms in on intruders. Support surveillance operators to ensure that no tracked object is missed.
Additional applications can be installed (up to two applications) to expand analysis functions such as AI privacy guard, person/vehicle
attribute detection, etc.

Highly durable pan-tilt drive unit Reduced maintenance costs
- High durability gear drive achieves PAN and TILT drive durability (3.7 million movements). Low failure rate even with high frequency drive and reduced maintenance cost by minimizing the maintenance cycle.

Easy installation
- S-series compact PTZ cameras can be installed discreetly and easily on low ceilings.
- Easy kitting packaging allows the camera to be set up without removing it from the box during kitting prior to installation.
- The 10x models of the S-Series outdoor DOME are shipped with a waterproof LAN extension cable installed.
The DOME can be installed without opening the DOME at sites where conventional pigtails are used.
- The addition of a diverse lineup of mounting brackets and optional PoE injectors enables flexible installation regardless of the location of new or existing installations.

High security standard
- Highest level of security. In addition to digital certificates issued by a third-party organization (GlobalSign®),
FIPS 140-2 Level 3 certified EdgeLock® SE050F secure element (NXP® Semiconductors) is embeded.

  • 5MP
  • 10x optical zoom
  • Intelligent Auto (with AI Engine)
  • Super Dynamic 132dB
  • Color night vision (0.020 to 0.32 lx)
  • Durable Pan/Tilt gear mechanism
  • IP66, IK10 certified
  • Built-in FIPS 140-2 Level 3 Certified SecureElement
  • (EdgeLock® SE050F NXP® Semiconductors)
  • NDAA Compliant

NameNET CAMERA 5MP PTZ AI OUTDOOR/VANDAL WV-S65501-Z1G I-PRO
PictureUrlhttps://static.elko.cloud/ProductImages/2d1a52e2-46a9-42cf-b596-53724b4643a7.Jpeg
Power consumption350
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/2d1a52e2-46a9-42cf-b596-53724b4643a7.Jpeg
Unit Calculated Volume0.012
Unit Calculated Weight2
Units per Shipping Box1
Vendor Homepagehttps://i-pro.com/products_and_solutions/en/surveillance/products/wv-s65501-z1g
