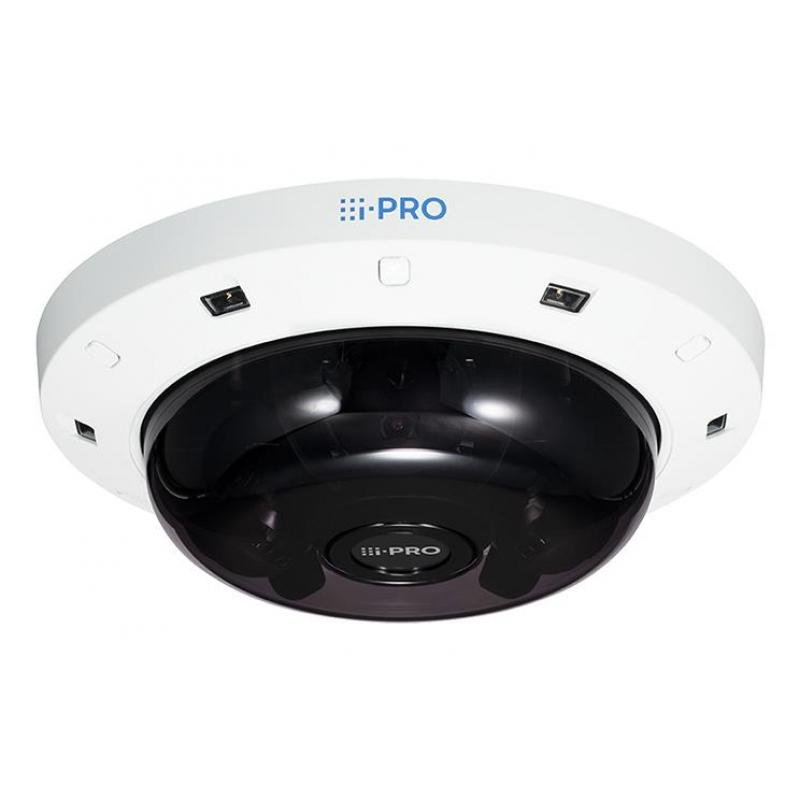

NET CAMERA 6MP AI OUTDOOR/VANDAL WV-S8563LG I-PRO

NET CAMERA 6MP AI OUTDOOR/VANDAL WV-S8563LG I-PRO
NET CAMERA 6MP AI OUTDOOR/VANDAL WV-S8563LG I-PRO
  • Connectivity technology: Wired
  • Zoom capability: Yes
  • Maximum resolution: 3328 x 1872
  • Total megapixels: 19
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
140,633ден.
  • Достапност:
  • Бренд: I-PRO
  • Шифра: 453963
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: i-PRO WV-S8563LG. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Minimum illumination: 0.24 lx, Lens viewing angle, horizontal: 108°, Lens viewing angle, vertical: 56°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 1x, Detect distance: 48.4 m, Observe distance: 19.3 m
  • Vendor Homepage: https://i-pro.com/products_and_solutions/en/surveillance/products/wv-s8563lg
  • Name: NET CAMERA 6MP AI OUTDOOR/VANDAL WV-S8563LG I-PRO
  • Category Code: FNC
  • Form factor: Dome
  • Mounting type: Ceiling
  • Product colour: White
  • Housing material: Aluminium/Polycarbonate (PC)
  • Protection features: Corrosion resistant
  • International Protection (IP) code: IP66, IP67
  • IK code: IK10
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Outdoor
  • Day/night mode: Yes
  • Infrared (IR) cut-off filter: Yes
  • Alarm input/output: Yes
  • Dynamic range: 120
  • Languages support: English/French/German/Italian/Japanese/Portuguese/Russian/Simplified Chinese/Spanish
  • Number of languages: 9
  • Minimum illumination: 0.24
  • Lens viewing angle, horizontal: 108
  • Lens viewing angle, vertical: 56
  • Tilt angle range: 10 - 105
  • Pan range: 125 - 125
  • White balance: ATW/AWC
  • Camera shutter speed: 1/10000 - 16/25
  • Number of Privacy masking areas: 8
  • Number of sensors: 3
  • Optical sensor size: 1/2.8
  • Sensor type: CMOS
  • Zoom capability: Yes
  • Optical zoom: 1
  • Detect distance: 48.4
  • Observe distance: 19.3
  • Recognize distance: 9.7
  • Focal length range: 3.1
  • Identify distance: 4.8
  • Maximum aperture number: 1.4
  • Normal focusing range: 3
  • Night vision: Yes
  • Night vision distance: 30
  • LED type: IR
  • Maximum resolution: 3328 x 1872
  • Total megapixels: 19
  • Video compression formats: H.264/H.265/M-JPEG
  • Frame rate: 15
  • Noise reduction: Yes
  • Back Light Compensation (BLC): Yes
  • Highlight Compensation (HLC): Yes
  • Image quality adjustment: Automatic gain control (AGC)
  • Audio system full duplex: Yes
  • Audio formats supported: AAC-LC/G.711/G.726
  • Audio detection: Yes
  • Ethernet LAN: Yes
  • Networking standards: IEEE 802.1x/IEEE 802.3at
  • Supported network protocols: IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiServ, LLDP, MQTT IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGMP,
  • Number of users: 24
  • Streaming method: Multicast/Unicast
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC/SD/SDHC/SDXC
  • Maximum memory card size: 512
  • Ethernet LAN (RJ-45) ports: 1
  • Microphone in: Yes
  • Alert notification type: E-mail
  • Security algorithms: FIPS 140-2
  • Video motion detection: Yes
  • Web browser: Yes
  • Behavior analysis: Scene change detection
  • Power source type: DC,PoE
  • Power consumption: 470
  • Power consumption (typical): 25.4
  • DC output voltage: 54
  • Operating temperature (T-T): -40 - 60
  • Storage temperature (T-T): -20 - 60
  • Operating relative humidity (H-H): 10 - 100
  • Height: 90
  • Diameter: 300
  • Weight: 3100
  • Compliance certificates: CE/Federal Communications Commission (FCC)/National Defense Authorization Act (NDAA)
  • Number of cameras: 1
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.015
  • Unit Calculated Weight: 4
Specifications
Alarm input/outputYes
Alert notification typeE-mail
Audio detectionYes
Audio formats supportedAAC-LC/G.711/G.726
Audio system full duplexYes
Back Light Compensation (BLC)Yes
Behavior analysisScene change detection
Camera shutter speed1/10000 - 16/25
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)/MicroSDHC/MicroSDXC/SD/SDHC/SDXC
Compliance certificatesCE/Federal Communications Commission (FCC)/National Defense Authorization Act (NDAA)
Connectivity technologyWired
Day/night modeYes
DC output voltage54
Detect distance48.4
Diameter300
Dynamic range120
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Focal length range3.1
Form factorDome
Frame rate15
Height90
Highlight Compensation (HLC)Yes
Housing materialAluminium/Polycarbonate (PC)
Identify distance4.8
IK codeIK10
Image quality adjustmentAutomatic gain control (AGC)
Infrared (IR) cut-off filterYes
International Protection (IP) codeIP66, IP67
Languages supportEnglish/French/German/Italian/Japanese/Portuguese/Russian/Simplified Chinese/Spanish
LED typeIR
Lens viewing angle, horizontal108
Lens viewing angle, vertical56
Maximum aperture number1.4
Maximum memory card size512
Maximum resolution3328 x 1872
Microphone inYes
Minimum illumination0.24
Mounting typeCeiling
Networking standardsIEEE 802.1x/IEEE 802.3at
Night visionYes
Night vision distance30
Noise reductionYes
Normal focusing range3
Number of cameras1
Number of languages9
Number of Privacy masking areas8
Number of sensors3
Number of users24
Observe distance19.3
Operating relative humidity (H-H)10 - 100
Operating temperature (T-T)-40 - 60
Optical sensor size1/2.8
Optical zoom1
Pan range125 - 125
Placement supportedOutdoor
Power consumption (typical)25.4
Power source typeDC,PoE
Product colourWhite
Protection featuresCorrosion resistant
Recognize distance9.7
Security algorithmsFIPS 140-2
Sensor typeCMOS
Storage temperature (T-T)-20 - 60
Streaming methodMulticast/Unicast
Summaryi-PRO WV-S8563LG. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Minimum illumination: 0.24 lx, Lens viewing angle, horizontal: 108°, Lens viewing angle, vertical: 56°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 1x, Detect distance: 48.4 m, Observe distance: 19.3 m
Supported network protocolsIPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiServ, LLDP, MQTT IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGMP,
Tilt angle range10 - 105
Total megapixels19
TypeIP security camera
Video compression formatsH.264/H.265/M-JPEG
Video motion detectionYes
Web browserYes
Weight3100
White balanceATW/AWC
Zoom capabilityYes
Specs
Category CodeFNC
Description

- The thinnest multi-directional camera (3.5 inches/90 mm)
It can be fitted in not only outside, but it also is fitted in inside the facility.
(Low profile/Blends in seamlessly with environment)
Even though it is rated IK10, it achieves the light weight body.

- A variety kinds of AI Apps selection
It can install and use up to 4 different types of AI Apps all together. Using AI processor which identifies object as people or vehicle,
it will reduce false alarm compared to conventional model. As result, it can be used many industries.
Also, new multi-directional has IR-LED function which will increase AI intruder detection accuracy in the low light environment.

- Easy installation

Just 1 LAN cable covers 3 directions.
Thin and hook architecture make easy installation
Continuous view assistance by using smartphone navigates you the best angle position.
You can change angle by using motorized zoom after installation.

- High security standard

Highest level of security. In addition to digital certificates issued by a third-party organization (GlobalSign®),
FIPS 140-2 Level 3 certified EdgeLock® SE050F secure element (NXP® Semiconductors) is embeded.

  • 3 x 6MP(19MP) 3328x1872 up to 15fps
  • 270° coverage with one IP address
  • Intelligent Auto (with AI Engine)
  • Super Dynamic 120dB
  • Color night vision (0.084 to 0.12 lx)
  • Smart Coding (with AI Engine)
  • Built-in 360° IR LED
  • Continuous view assistance
  • Wide range tilt angle adjustment mechanism
  • Built-in FIPS 140-2 Level 3 Certified Secure Element
  • (EdgeLock® SE050F NXP® Semiconductors)
  • NDAA Compliant

NameNET CAMERA 6MP AI OUTDOOR/VANDAL WV-S8563LG I-PRO
PictureUrlhttps://static.elko.cloud/ProductImages/11867ba6-e2c3-4f00-b54e-016f0ec92176.Jpeg
Power consumption470
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/11867ba6-e2c3-4f00-b54e-016f0ec92176.Jpeg
Unit Calculated Volume0.015
Unit Calculated Weight4
Units per Shipping Box1
Vendor Homepagehttps://i-pro.com/products_and_solutions/en/surveillance/products/wv-s8563lg
