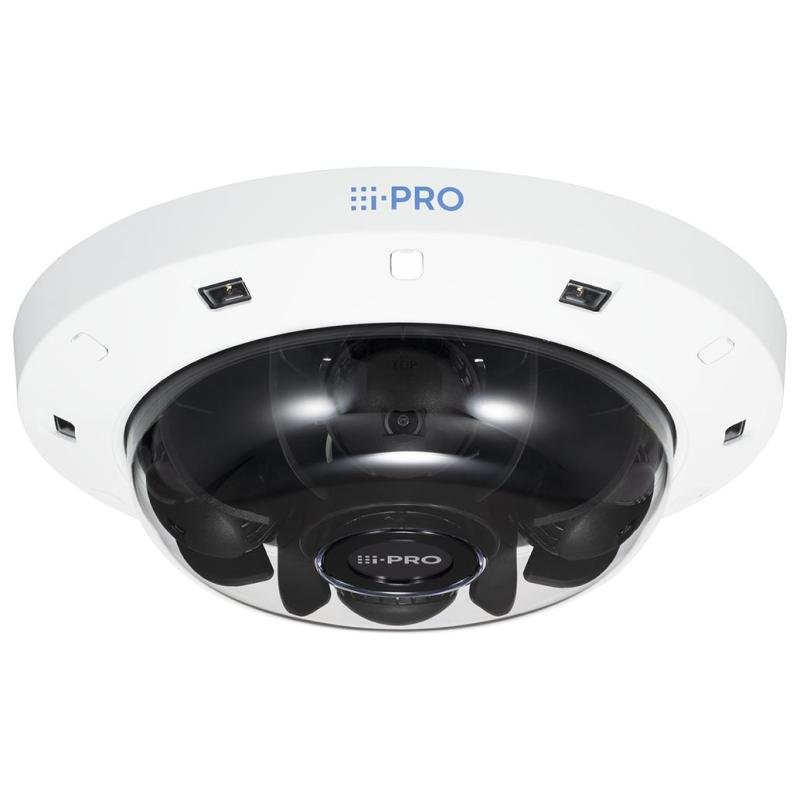

NET CAMERA 6MP AI OUTDOOR/VANDAL WV-S8564L I-PRO

NET CAMERA 6MP AI OUTDOOR/VANDAL WV-S8564L I-PRO
NET CAMERA 6MP AI OUTDOOR/VANDAL WV-S8564L I-PRO
  • Connectivity technology: Wired
  • Maximum resolution: 3328 x 1872
  • Total megapixels: 25
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
153,139ден.
  • Достапност:
  • Бренд: I-PRO
  • Шифра: 453952
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: i-PRO WV-S8564L. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Angle of rotation: 270°, Lens viewing angle, horizontal: 108°, Lens viewing angle, vertical: 56°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 1x, Detect distance: 48.4 m, Observe distance: 19.3 m
  • Vendor Homepage: https://i-pro.com/products_and_solutions/en/surveillance/products/wv-s8564l
  • Name: NET CAMERA 6MP AI OUTDOOR/VANDAL WV-S8564L I-PRO
  • Category Code: FNC
  • Form factor: Dome
  • Mounting type: Ceiling
  • Product colour: White
  • Housing material: Aluminium/Polycarbonate (PC)/Stainless steel
  • Protection features: Corrosion resistant/Dust resistant/Shock resistant/Water resistant
  • International Protection (IP) code: IP66, IP67
  • IK code: IK10
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Outdoor
  • Dynamic range: 120
  • Languages support: English/French/German/Italian/Japanese/Portuguese/Russian/Spanish/Traditional Chinese
  • Number of languages: 9
  • Camera pan control: Yes
  • Minimum illumination: 0
  • Angle of rotation: 270
  • Lens viewing angle, horizontal: 108
  • Lens viewing angle, vertical: 56
  • Tilt angle range: 10 - 105
  • Pan range: -125 - 125
  • White balance: ATW/AWC/Natural
  • Camera shutter speed: 1/10000 - 16/30
  • Number of Privacy masking areas: 8
  • Number of sensors: 4
  • Optical sensor size: 1/2.8
  • Sensor type: CMOS
  • Optical zoom: 1
  • Detect distance: 48.4
  • Observe distance: 19.3
  • Recognize distance: 9.7
  • Maximum aperture number: 1.4
  • Closest focusing distance: 3
  • Fixed focal length: 3.1
  • Night vision: Yes
  • Night vision distance: 40
  • LED type: IR
  • Maximum resolution: 3328 x 1872
  • Total megapixels: 25
  • Video compression formats: H.264/H.265/M-JPEG
  • Supported graphics resolutions: 1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/2560 x 1440/320 x 180/640 x 360
  • Frame rate: 15
  • Noise reduction: Yes
  • Back Light Compensation (BLC): Yes
  • Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR),Variable Bit Rate (VBR)
  • Highlight Compensation (HLC): Yes
  • Image quality adjustment: Brightness
  • Privacy masking: Yes
  • Audio system full duplex: Yes
  • Voice codecs: AAC/G.711/G.726
  • Audio detection: Yes
  • Ethernet LAN: Yes
  • Ethernet interface type: Gigabit Ethernet
  • Networking standards: IEEE 802.3at
  • Supported network protocols: IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, SFTP, MQTT, LLDP IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP,
  • Number of users: 24
  • Card reader integrated: Yes
  • Compatible memory cards: SD/SDHC/SDXC
  • Maximum memory card size: 512
  • Ethernet LAN (RJ-45) ports: 1
  • Microphone in: Yes
  • Headphone outputs: 1
  • Alarm input channels: 3
  • Alert notification type: E-mail,Push notification
  • HTTPS encryption: Yes
  • Intelligent Video Surveillance (IVS) system features: Face detection/Human detection/Scene change/Vehicle detection
  • Security algorithms: 802.1x RADIUS/FIPS 140-2
  • Video motion detection: Yes
  • Web browser: Yes
  • Power source type: DC,PoE
  • Power consumption: 240
  • Power consumption (max): 12
  • Power consumption (Power over Ethernet (PoE)): 11.5
  • DC output voltage: 12
  • DC output current: 1
  • Operating temperature (T-T): -20 - 60
  • Storage temperature (T-T): -40 - 60
  • Operating relative humidity (H-H): 10 - 100
  • Height: 90
  • Diameter: 300
  • Weight: 3300
  • Number of cameras: 1
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.015
  • Unit Calculated Weight: 4
Specifications
Alarm input channels3
Alert notification typeE-mail,Push notification
Angle of rotation270
Audio detectionYes
Audio system full duplexYes
Back Light Compensation (BLC)Yes
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR),Variable Bit Rate (VBR)
Camera pan controlYes
Camera shutter speed1/10000 - 16/30
Card reader integratedYes
Closest focusing distance3
Compatible memory cardsSD/SDHC/SDXC
Connectivity technologyWired
DC output current1
DC output voltage12
Detect distance48.4
Diameter300
Dynamic range120
Ethernet interface typeGigabit Ethernet
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Fixed focal length3.1
Form factorDome
Frame rate15
Headphone outputs1
Height90
Highlight Compensation (HLC)Yes
Housing materialAluminium/Polycarbonate (PC)/Stainless steel
HTTPS encryptionYes
IK codeIK10
Image quality adjustmentBrightness
Intelligent Video Surveillance (IVS) system featuresFace detection/Human detection/Scene change/Vehicle detection
International Protection (IP) codeIP66, IP67
Languages supportEnglish/French/German/Italian/Japanese/Portuguese/Russian/Spanish/Traditional Chinese
LED typeIR
Lens viewing angle, horizontal108
Lens viewing angle, vertical56
Maximum aperture number1.4
Maximum memory card size512
Maximum resolution3328 x 1872
Microphone inYes
Minimum illumination0
Mounting typeCeiling
Networking standardsIEEE 802.3at
Night visionYes
Night vision distance40
Noise reductionYes
Number of cameras1
Number of languages9
Number of Privacy masking areas8
Number of sensors4
Number of users24
Observe distance19.3
Operating relative humidity (H-H)10 - 100
Operating temperature (T-T)-20 - 60
Optical sensor size1/2.8
Optical zoom1
Pan range-125 - 125
Placement supportedOutdoor
Power consumption (max)12
Power consumption (Power over Ethernet (PoE))11.5
Power source typeDC,PoE
Privacy maskingYes
Product colourWhite
Protection featuresCorrosion resistant/Dust resistant/Shock resistant/Water resistant
Recognize distance9.7
Security algorithms802.1x RADIUS/FIPS 140-2
Sensor typeCMOS
Storage temperature (T-T)-40 - 60
Summaryi-PRO WV-S8564L. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Angle of rotation: 270°, Lens viewing angle, horizontal: 108°, Lens viewing angle, vertical: 56°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 1x, Detect distance: 48.4 m, Observe distance: 19.3 m
Supported graphics resolutions1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/2560 x 1440/320 x 180/640 x 360
Supported network protocolsIPv6: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, SFTP, MQTT, LLDP IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP,
Tilt angle range10 - 105
Total megapixels25
TypeIP security camera
Video compression formatsH.264/H.265/M-JPEG
Video motion detectionYes
Voice codecsAAC/G.711/G.726
Web browserYes
Weight3300
White balanceATW/AWC/Natural
Specs
Category CodeFNC
Description

- The thinnest multi-directional camera (3.5 inches/90 mm)
It can be fitted in not only outside, but it also is fitted in inside the facility.
(Low profile/Blends in seamlessly with environment)
Even though it is rated IK10, it achieves the light weight body.

- A variety kinds of AI Apps selection
It can install and use up to 4 different types of AI Apps all together. Using AI processor which identifies object as people or vehicle,
it will reduce false alarm compared to conventional model. As result, it can be used many industries.
Also, new multi-directional has IR-LED function which will increase AI intruder detection accuracy in the low light environment.

- Easy installation

Just 1 LAN cable covers 4 directions.
Thin and hook architecture make easy installation
Continuous view assistance by using smartphone navigates you the best angle position.
You can change angle by using motorized zoom after installation.*4MP model only
- High security standard

Highest level of security. In addition to digital certificates issued by a third-party organization (GlobalSign®),
FIPS 140-2 Level 3 certified EdgeLock® SE050F secure element (NXP® Semiconductors) is embeded.

  • 4 x 6MP(25MP) 3328x1872 up to 15fps
  • 360° coverage with one IP address
  • Intelligent Auto (with AI Engine)
  • Super Dynamic 120dB
  • Color night vision (0.084 to 0.12 lx)
  • Smart Coding (with AI Engine)
  • Built-in 360° IR LED
  • Continuous view assistance
  • Wide range tilt angle adjustment mechanism
  • Built-in FIPS 140-2 Level 3 Certified Secure Element
  • (EdgeLock® SE050F NXP® Semiconductors)
  • NDAA Compliant

NameNET CAMERA 6MP AI OUTDOOR/VANDAL WV-S8564L I-PRO
PictureUrlhttps://static.elko.cloud/ProductImages/61970ef1-5d6b-4cc7-819a-937db6465b34.Jpeg
Power consumption240
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/61970ef1-5d6b-4cc7-819a-937db6465b34.Jpeg
Unit Calculated Volume0.015
Unit Calculated Weight4
Units per Shipping Box1
Vendor Homepagehttps://i-pro.com/products_and_solutions/en/surveillance/products/wv-s8564l
