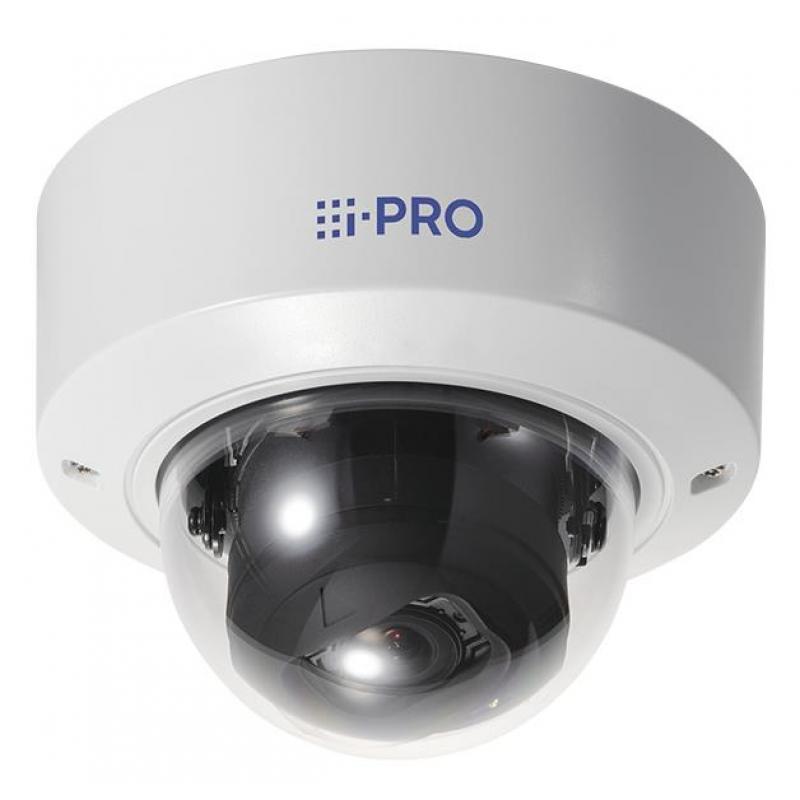

NET CAMERA 6MP DOME AI INDOOR/VANDAL WV-S22600-V2L I-PRO

NET CAMERA 6MP DOME AI INDOOR/VANDAL WV-S22600-V2L I-PRO
NET CAMERA 6MP DOME AI INDOOR/VANDAL WV-S22600-V2L I-PRO
  • Connectivity technology: Wired
  • Zoom capability: Yes
  • Maximum resolution: 3328 x 1872
  • Total megapixels: 6
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
70,993ден.
  • Достапност:
  • Бренд: I-PRO
  • Шифра: 454074
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: i-PRO WV-S22600-V2L. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.04 lx, Angle of rotation: 270°, Lens viewing angle, horizontal: 52 - 101°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Optical zoom: 2x, Focal length range: 4.3 - 8.6 mm, Focus: Motorized
  • Vendor Homepage: https://i-pro.com/products_and_solutions/en/surveillance/products/wv-s22600-v2l
  • Name: NET CAMERA 6MP DOME AI INDOOR/VANDAL WV-S22600-V2L I-PRO
  • Category Code: FNC
  • Form factor: Dome
  • Mounting type: Ceiling
  • Product colour: Black/White
  • Housing material: Aluminium/Polycarbonate (PC)
  • Protection features: Shock resistant/Vandal proof
  • IK code: IK10
  • Fog proof: Yes
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Indoor
  • Day/night mode: Yes
  • Alarm input/output: Yes
  • Dynamic range: 132
  • Languages support: English/French/German/Italian/Japanese/Portuguese/Russian/Spanish
  • Number of languages: 9
  • Certification: UL (UL62368-1), c-UL (CSA C22.2 No.62368-1), CE, IEC62368-1, FCC (Part15 ClassA), ICES-003 ClassA, EN55032 ClassB, EN55035
  • Camera tilt control: Yes
  • Minimum illumination: 0.04
  • Angle of rotation: 270
  • Lens viewing angle, horizontal: 52 - 101
  • Lens viewing angle, vertical: 29 - 55
  • White balance: ATW/AWC
  • Camera shutter speed: 16/30 - 1/10000
  • Number of Privacy masking areas: 8
  • Number of sensors: 1
  • Optical sensor size: 1/1.8
  • Sensor type: CMOS
  • Zoom capability: Yes
  • Optical zoom: 2
  • Focal length range: 4.3 - 8.6
  • Auto focus: Yes
  • Focus: Motorized
  • Maximum aperture number: 2.4
  • Minimum aperture number: 1.5
  • Detect distance (tele): 136.5
  • Detect distance (wide): 54.9
  • Identify distance (tele): 13.6
  • Identify distance (wide): 5.5
  • Normal focusing range: 1
  • Observe distance (tele): 54.6
  • Observe distance (wide): 21.9
  • Recognize distance (tele): 27.3
  • Recognize distance (wide): 11
  • Night vision: Yes
  • Night vision distance: 50
  • LED type: IR
  • Maximum resolution: 3328 x 1872
  • Total megapixels: 6
  • Video compression formats: H.264/H.265
  • Supported graphics resolutions: 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2048 x 1536 (QXGA)/320 x 180/320 x 288 (QVGA)/640 x 360/640 x 480 (VGA)
  • Frame rate: 30
  • Noise reduction: Yes
  • Gain control type: Auto
  • Back Light Compensation (BLC): Yes
  • Bit rate control: Variable Bit Rate (VBR)
  • Highlight Compensation (HLC): Yes
  • Image quality adjustment: Automatic gain control (AGC)
  • Text caption overlay: Yes
  • Audio system full duplex: Yes
  • Audio formats supported: AAC-LC/G.711/G.726
  • Audio detection: Yes
  • Ethernet LAN: Yes
  • Ethernet interface type: Fast Ethernet
  • Networking standards: IEEE 802.3af
  • Supported network protocols: IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X,DiffServ, SFTP, MQTT, LLDP IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP,
  • Number of users: 14
  • Streaming method: Multicast/Unicast
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
  • Maximum memory card size: 512
  • Ethernet LAN (RJ-45) ports: 1
  • Microphone in: Yes
  • Alert notification type: E-mail
  • Intelligent Video Surveillance (IVS) system features: Face detection/Vehicle detection
  • Video motion detection: Yes
  • Web browser: Yes
  • Behavior analysis: Scene change detection
  • Power source type: DC,PoE
  • Power consumption: 240
  • Power consumption (typical): 12
  • Power consumption (Power over Ethernet (PoE)): 11.5
  • DC output voltage: 12,48
  • Operating temperature (T-T): -10 - 50
  • Storage temperature (T-T): 0 - 50
  • Operating relative humidity (H-H): 10 - 90
  • Mobile operating systems supported: Android/iOS
  • Width: 129.5
  • Depth: 129.5
  • Height: 102.5
  • Weight: 800
  • Compliance certificates: CE/cUL/National Defense Authorization Act (NDAA)/UL
  • Number of cameras: 1
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.001734
  • Unit Calculated Weight: 1
Specifications
Alarm input/outputYes
Alert notification typeE-mail
Angle of rotation270
Audio detectionYes
Audio formats supportedAAC-LC/G.711/G.726
Audio system full duplexYes
Auto focusYes
Back Light Compensation (BLC)Yes
Behavior analysisScene change detection
Bit rate controlVariable Bit Rate (VBR)
Camera shutter speed16/30 - 1/10000
Camera tilt controlYes
Card reader integratedYes
CertificationUL (UL62368-1), c-UL (CSA C22.2 No.62368-1), CE, IEC62368-1, FCC (Part15 ClassA), ICES-003 ClassA, EN55032 ClassB, EN55035
Compatible memory cardsMicroSD (TransFlash)/MicroSDHC/MicroSDXC
Compliance certificatesCE/cUL/National Defense Authorization Act (NDAA)/UL
Connectivity technologyWired
Day/night modeYes
DC output voltage12,48
Depth129.5
Detect distance (tele)136.5
Detect distance (wide)54.9
Dynamic range132
Ethernet interface typeFast Ethernet
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Focal length range4.3 - 8.6
FocusMotorized
Fog proofYes
Form factorDome
Frame rate30
Gain control typeAuto
Height102.5
Highlight Compensation (HLC)Yes
Housing materialAluminium/Polycarbonate (PC)
Identify distance (tele)13.6
Identify distance (wide)5.5
IK codeIK10
Image quality adjustmentAutomatic gain control (AGC)
Intelligent Video Surveillance (IVS) system featuresFace detection/Vehicle detection
Languages supportEnglish/French/German/Italian/Japanese/Portuguese/Russian/Spanish
LED typeIR
Lens viewing angle, horizontal52 - 101
Lens viewing angle, vertical29 - 55
Maximum aperture number2.4
Maximum memory card size512
Maximum resolution3328 x 1872
Microphone inYes
Minimum aperture number1.5
Minimum illumination0.04
Mobile operating systems supportedAndroid/iOS
Mounting typeCeiling
Networking standardsIEEE 802.3af
Night visionYes
Night vision distance50
Noise reductionYes
Normal focusing range1
Number of cameras1
Number of languages9
Number of Privacy masking areas8
Number of sensors1
Number of users14
Observe distance (tele)54.6
Observe distance (wide)21.9
Operating relative humidity (H-H)10 - 90
Operating temperature (T-T)-10 - 50
Optical sensor size1/1.8
Optical zoom2
Placement supportedIndoor
Power consumption (Power over Ethernet (PoE))11.5
Power consumption (typical)12
Power source typeDC,PoE
Product colourBlack/White
Protection featuresShock resistant/Vandal proof
Recognize distance (tele)27.3
Recognize distance (wide)11
Sensor typeCMOS
Storage temperature (T-T)0 - 50
Streaming methodMulticast/Unicast
Summaryi-PRO WV-S22600-V2L. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.04 lx, Angle of rotation: 270°, Lens viewing angle, horizontal: 52 - 101°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Optical zoom: 2x, Focal length range: 4.3 - 8.6 mm, Focus: Motorized
Supported graphics resolutions1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2048 x 1536 (QXGA)/320 x 180/320 x 288 (QVGA)/640 x 360/640 x 480 (VGA)
Supported network protocolsIPv6: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X,DiffServ, SFTP, MQTT, LLDP IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP,
Text caption overlayYes
Total megapixels6
TypeIP security camera
Video compression formatsH.264/H.265
Video motion detectionYes
Web browserYes
Weight800
White balanceATW/AWC
Width129.5
Zoom capabilityYes
Specs
Category CodeFNC
Description

The 5MP/6MP/4K varifocal lens model, a high-resolution network camera will be added to the lineup of the well-established new S series. Equipped with an AI processor, it can run up to three AI analytics applications (AI apps) simultaneously, which significantly improve the detection rate of people and vehicles and can be used in a wide range of surveillance scenes. It realizes high-quality and clearer images even in low-light and wide-range shooting scenes. With the released of total 34 models, including fixed focus, black body, smoke dome, and derivative models such as heavy salt damage resistant models, to support a wide variety of security monitoring applications.

3 AI Apps operation at same time

Up to 3 AI apps can be operated at the same time from the wide variety. Using AI processor which identifies object as people or vehicle, it will reduce false alarm compared to conventional model. As result, it can be used many industries.

High image quality / High compression

Our original smart coding technology compatible with H.264 and H.265 delivers high-resolution video at high image quality and low bit rate. Achieved useful images by combining with highly visible images by the intelligent auto (iA) function.

Easy setting and installation

Easy Kitting Package enabling installers to configure cameras easily while keeping the unit in the box. The grommet on the outdoor model can reduce the time and effort required for installation. User-friendly GUI (setting while watching Live view, etc.) allows you to set comfortably. iCT tool allows you to set multiple cameras, apps, and recorders all at once, reducing the camera setting time.

High security standard

Highest level of security. In addition to digital certificates issued by a third-party organization (GlobalSign®),
FIPS 140-2 Level 3 certified EdgeLock® SE050F secure element (NXP® Semiconductors) is embeded.

  • 6MP
  • Intelligent Auto (with AI Engine)
  • Super Dynamic 132dB
  • Color night vision (0.04 to 0.06 lx)
  • Smart Coding (with AI Engine)
  • Built-in IR LED
  • Vandal Resistant
  • Built-in FIPS 140-2 Level 3 Certified Secure Element
  • (EdgeLock® SE050F NXP® Semiconductors)
  • NDAA Compliant

NameNET CAMERA 6MP DOME AI INDOOR/VANDAL WV-S22600-V2L I-PRO
PictureUrlhttps://static.elko.cloud/ProductImages/d488d8fd-c899-4491-a26a-cc151d982e8c.Jpeg
Power consumption240
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/d488d8fd-c899-4491-a26a-cc151d982e8c.Jpeg
Unit Calculated Volume0.001734
Unit Calculated Weight1
Units per Shipping Box1
Vendor Homepagehttps://i-pro.com/products_and_solutions/en/surveillance/products/wv-s22600-v2l
