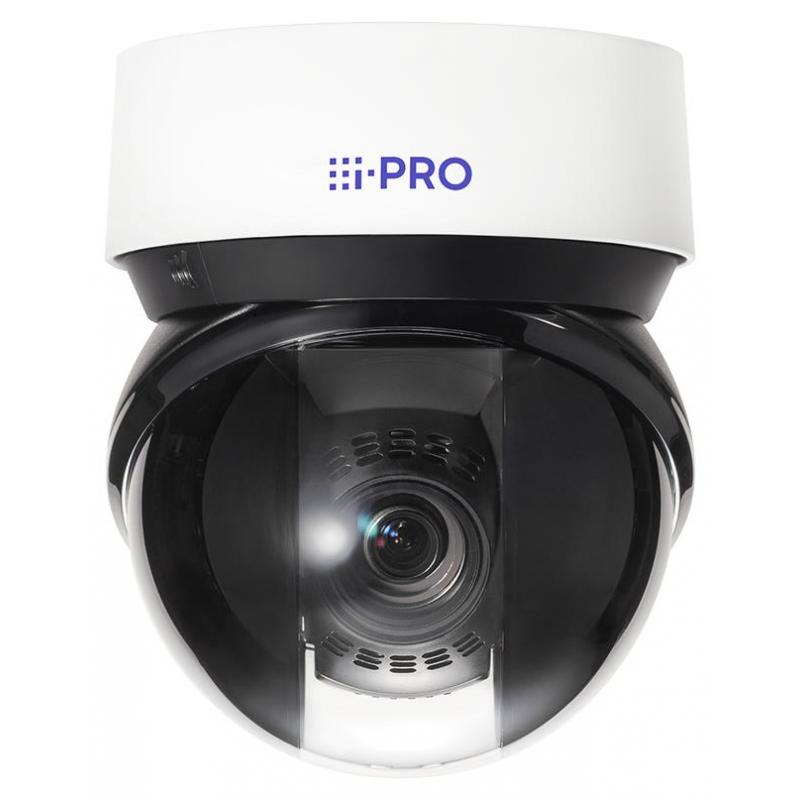

NET CAMERA 6MP PTZ AI OUTDOOR/VANDAL WV-S66600-Z3L I-PRO

Technical Specifications

• Summary: i-PRO WV-S66600-Z3L. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Spherical. Angle of rotation: 270°, Lens viewing angle, horizontal: 2.5 - 62°, Lens viewing angle, vertical: 1.4 - 37°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 30x, Focal length range: 4.5 - 135 mm, Focus: Motorized
• Vendor Homepage: https://i-pro.com/products_and_solutions/en/surveillance/products/wv-s66600-z3l
• Name: NET CAMERA 6MP PTZ AI OUTDOOR/VANDAL WV-S66600-Z3L I-PRO
• Category Code: FNC
• Form factor: Spherical
• Mounting type: Ceiling
• Product colour: White
• Housing material: Aluminium/Polycarbonate (PC)/Stainless steel
• International Protection (IP) code: IP66
• IK code: IK10
• Type: IP security camera
• Connectivity technology: Wired
• Placement supported: Outdoor
• PTZ control: Yes
• Auto-tracking: Yes
• Dynamic range: 132
• Languages support: English/French/German/Italian/Japanese/Portuguese/Russian/Spanish/Traditional Chinese
• Number of languages: 9
• Camera pan control: Yes
• Camera tilt control: Yes
• Minimum illumination: 0
• Angle of rotation: 270
• Lens viewing angle, horizontal: 2.5 - 62
• Lens viewing angle, vertical: 1.4 - 37
• Tilt angle range: -20 - 90
• Tilt manual speed: 0.065 - 150
• Tilt preset speed: 500
• Tilt speed: 500
• Pan range: 0 - 360
• Pan manual speed: 0.065 - 150
• Pan preset speed: 700
• Pan speed: 700
• White balance: ATW/AWC
• Camera shutter speed: 1/30 - 1/10000
• Number of Privacy masking areas: 32
• Number of sensors: 1
• Optical sensor size: 1/2.8
• Sensor type: CMOS
• Optical zoom: 30
• Focal length range: 4.5 - 135
• Focus: Motorized
• Minimum aperture number: 1.8
• Closest focusing distance: 3
• Detect distance (tele): 3050.4
• Detect distance (wide): 110.8
• Identify distance (tele): 305
• Identify distance (wide): 11.1
• Observe distance (tele): 1220.2
• Observe distance (wide): 44.3
• Recognize distance (tele): 610.1
• Recognize distance (wide): 22.2
• Night vision: Yes
• Night vision distance: 280
• LED type: IR
• Maximum resolution: 3328 x 1872
• Total megapixels: 6
• Video compression formats: H.264/H.265/M-JPEG
• Supported graphics resolutions: 1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/2560 x 1440/320 x 180/640 x 360
• Frame rate: 30
• Noise reduction: Yes
• Back Light Compensation (BLC): Yes
• Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
• Highlight Compensation (HLC): Yes
• Image stabilizer: Yes
• Privacy masking: Yes
• Audio system full duplex: Yes
• Voice codecs: AAC/G.711/G.726
• Audio detection: Yes
• Ethernet LAN: Yes
• Networking standards: IEEE 802.3bt
• Supported network protocols: IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, SFTP, MQTT, LLDP IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP,
• Number of users: 14
• Card reader integrated: Yes
• Compatible memory cards: SD/SDHC/SDXC
• Maximum memory card size: 512
• Ethernet LAN (RJ-45) ports: 1
• Composite video out: 1
• Microphone in: Yes
• Headphone outputs: 1
• Alarm input channels: 3
• Alert notification type: E-mail,Push notification
• Digest authentication: Yes
• HTTPS encryption: Yes
• Intelligent Video Surveillance (IVS) system features: Face detection/Human detection/Scene change/Vehicle detection
• Security algorithms: 802.1x RADIUS/FIPS 140-2
• Video motion detection: Yes
• Web browser: Yes
• Power source type: DC,PoE
• Power consumption: 850
• Power consumption (max): 45.9
• DC output voltage: 54
• Operating temperature (T-T): -30 - 60
• Storage temperature (T-T): -50 - 60
• Operating relative humidity (H-H): 10 - 100
• Height: 205
• Diameter: 167
• Weight: 3000
• Number of cameras: 1
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.015
• Unit Calculated Weight: 4
