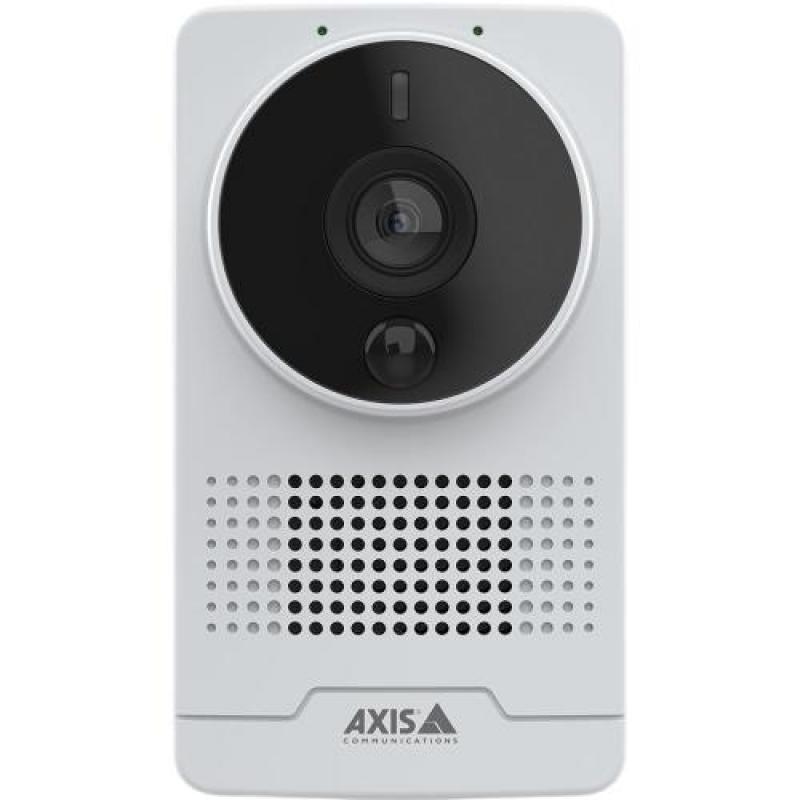

NET CAMERA M1075-L 1080P BOX/02350-001 AXIS

NET CAMERA M1075-L 1080P BOX/02350-001 AXIS
NET CAMERA M1075-L 1080P BOX/02350-001 AXIS
  • Connectivity technology: Wired
  • Maximum resolution: 1920 x 1080
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
26,313ден.
  • Достапност:
  • Бренд: AXIS
  • Шифра: 396007
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Axis 02350-001. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: White, Form factor: Box. Minimum illumination: 0.03 lx, Lens viewing angle, horizontal: 103°, Lens viewing angle, vertical: 55°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9"). Focal length range: 3.16 mm, Fixed focal length: 2 mm
  • Vendor Homepage: https://www.axis.com/products/axis-m1075-l#part-numbers
  • Name: NET CAMERA M1075-L 1080P BOX/02350-001 AXIS
  • Category Code: FNC
  • Model: M1075-L
  • Form factor: Box
  • Mounting type: Wall
  • Product colour: White
  • Housing material: Aluminium/Plastic
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Indoor
  • Wide Dynamic Range (WDR): Yes
  • Day/night mode: Yes
  • Certification: EMC EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A, VCCI Class A Safety CAN/CSA C22.2 No. 62368-1 ed. 3, IEC/EN/UL 62368-1 ed. 3, IEC 624
  • Minimum illumination: 0.03
  • Lens viewing angle, horizontal: 103
  • Lens viewing angle, vertical: 55
  • Camera shutter speed: 1/19000 - 1/5
  • Optical sensor size: 1/2.9
  • Progressive scan: Yes
  • Sensor type: CMOS
  • Focal length range: 3.16
  • Fixed focal length: 2
  • Night vision: Yes
  • LED type: IR
  • Maximum resolution: 1920 x 1080
  • Video formats supported: H.264
  • Video compression formats: H.264/H.265/MPEG4
  • Frame rate: 30
  • Video streaming: Yes
  • Privacy masking: Yes
  • Audio system full duplex: Yes
  • Built-in microphone: Yes
  • Ethernet LAN: Yes
  • Ethernet interface type: Fast Ethernet
  • Networking standards: IEEE 802.1x/IEEE 802.3af/IEEE 802.3at
  • Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, NTP, NTS, RTSP, RTCP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, SSH, SIP, LLDP
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC/SD
  • Flash memory: 512
  • Internal memory: 1024
  • Ethernet LAN (RJ-45) ports: 1
  • USB port: Yes
  • HTTPS encryption: Yes
  • Security algorithms: EAP-TLS/TLS
  • Power source type: PoE
  • Power consumption (typical): 5.4
  • Power consumption (max): 12.95
  • DC output voltage: 12
  • Operating temperature (T-T): 0 - 35
  • Storage temperature (T-T): -40 - 65
  • Operating relative humidity (H-H): 10 - 85
  • Storage relative humidity (H-H): 5 - 95
  • Width: 93
  • Depth: 60
  • Height: 105
  • Weight: 153
  • Number of cameras: 1
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.001008
  • Unit Calculated Weight: 0.5
Specifications
Audio system full duplexYes
Built-in microphoneYes
Camera shutter speed1/19000 - 1/5
Card reader integratedYes
CertificationEMC EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A, VCCI Class A Safety CAN/CSA C22.2 No. 62368-1 ed. 3, IEC/EN/UL 62368-1 ed. 3, IEC 624
Compatible memory cardsMicroSD (TransFlash)/MicroSDHC/MicroSDXC/SD
Connectivity technologyWired
Day/night modeYes
DC output voltage12
Depth60
Ethernet interface typeFast Ethernet
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Fixed focal length2
Flash memory512
Focal length range3.16
Form factorBox
Frame rate30
Height105
Housing materialAluminium/Plastic
HTTPS encryptionYes
Internal memory1024
LED typeIR
Lens viewing angle, horizontal103
Lens viewing angle, vertical55
Maximum resolution1920 x 1080
Minimum illumination0.03
Mounting typeWall
Networking standardsIEEE 802.1x/IEEE 802.3af/IEEE 802.3at
Night visionYes
Number of cameras1
Operating relative humidity (H-H)10 - 85
Operating temperature (T-T)0 - 35
Optical sensor size1/2.9
Placement supportedIndoor
Power consumption (max)12.95
Power consumption (typical)5.4
Power source typePoE
Privacy maskingYes
Product colourWhite
Progressive scanYes
Security algorithmsEAP-TLS/TLS
Sensor typeCMOS
Storage relative humidity (H-H)5 - 95
Storage temperature (T-T)-40 - 65
SummaryAxis 02350-001. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: White, Form factor: Box. Minimum illumination: 0.03 lx, Lens viewing angle, horizontal: 103°, Lens viewing angle, vertical: 55°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9"). Focal length range: 3.16 mm, Fixed focal length: 2 mm
Supported network protocolsIPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, NTP, NTS, RTSP, RTCP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, SSH, SIP, LLDP
TypeIP security camera
USB portYes
Video compression formatsH.264/H.265/MPEG4
Video formats supportedH.264
Video streamingYes
Weight153
Wide Dynamic Range (WDR)Yes
Width93
Specs
Category CodeFNC
Description

AXIS M1075-L offers excellent two-way audio communication and an IR-corrected lens to deliver professional-quality video both day-and-night. It includes a tally LED to indicate video streaming or recording. And, a passive infrared (PIR) sensor can detect movement even in total darkness. This compact camera includes a deep learning processing unit enabling advanced features and powerful analytics based on deep learning on the edge. Built-in cybersecurity features prevent unauthorized access and safeguard your system. Furthermore, it includes a HDMI port and with support for Session Initiation Protocol (SIP), it’s easy to integrate with IP-systems. Optional wireless kit available.

  • Built-in privacy features; Day-and-night with IR illumination; HDMI output; PIR sensor for motion detection; Two-way audio communication

ModelM1075-L
