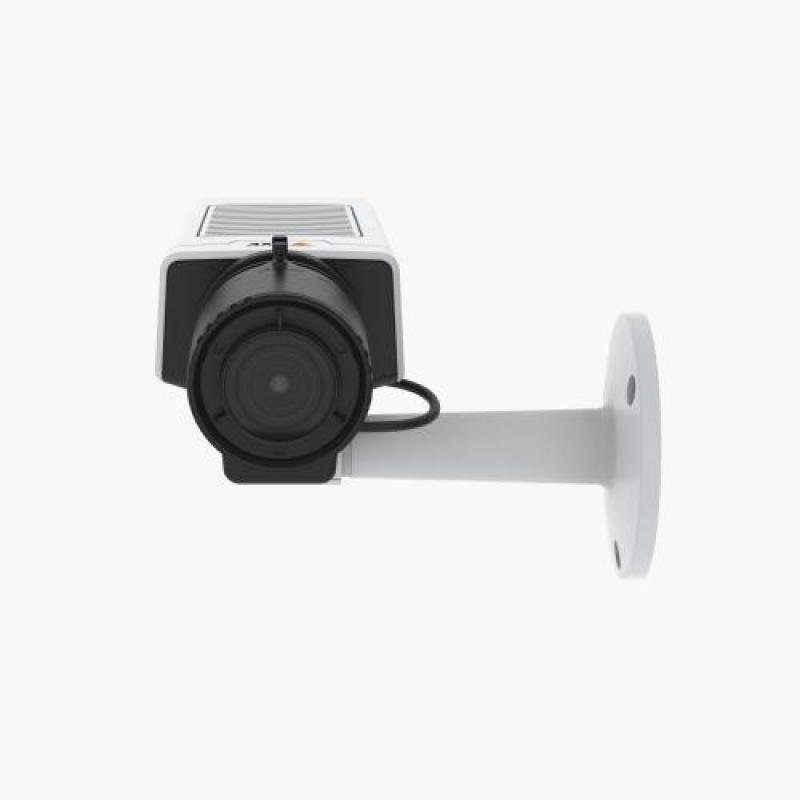

NET CAMERA M1137 MK II 5MP BOX/02484-001 AXIS

NET CAMERA M1137 MK II 5MP BOX/02484-001 AXIS
NET CAMERA M1137 MK II 5MP BOX/02484-001 AXIS
  • Connectivity technology: Wired
  • Maximum resolution: 2592 x 1944
  • Total megapixels: 5
Врз основа на 0 коментари. - Напиши коментар
41,360ден.
  • Достапност:
  • Бренд: AXIS
  • Шифра: 400078
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Axis 02484-001. Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: Black, White, Form factor: Box. Minimum illumination: 0.17 lx, Lens viewing angle, horizontal: 112°, Lens viewing angle, vertical: 82°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Focal length range: 2.8 - 13 mm
  • Vendor Homepage: https://www.axis.com/products/axis-m1137-mk-ii#support-and-resources
  • Name: NET CAMERA M1137 MK II 5MP BOX/02484-001 AXIS
  • Category Code: FNC
  • Model: M1137 Mk II
  • Form factor: Box
  • Mounting type: Wall
  • Product colour: Black/White
  • Connectivity technology: Wired
  • Placement supported: Indoor & outdoor
  • Wide Dynamic Range (WDR): Yes
  • Day/night mode: Yes
  • Minimum illumination: 0.17
  • Lens viewing angle, horizontal: 112
  • Lens viewing angle, vertical: 82
  • Camera shutter speed: 1/33500 - 1/5
  • Optical sensor size: 1/2.7
  • Sensor type: CMOS
  • Focal length range: 2.8 - 13
  • Night vision: Yes
  • Maximum resolution: 2592 x 1944
  • Total megapixels: 5
  • Video formats supported: H.264/H.265
  • Video compression formats: MPEG4
  • Supported graphics resolutions: 160 x 120
  • Frame rate: 30
  • Networking standards: IEEE 802.3af/IEEE 802.3at
  • Flash memory: 512
  • Power source type: DC,PoE
  • Power consumption (typical): 4.4
  • Power consumption (max): 6.6
  • Power consumption (Power over Ethernet (PoE)): 4.5
  • DC output voltage: 10,12,15,16,24,28
  • Operating temperature (T-T): -20 - 50
  • Storage temperature (T-T): -40 - 65
  • Operating relative humidity (H-H): 10 - 85
  • Storage relative humidity (H-H): 5 - 95
  • Width: 70
  • Depth: 179
  • Height: 59
  • Width (with stand): 70
  • Depth (with stand): 179
  • Height (with stand): 179
  • Number of cameras: 1
  • Harmonized System (HS) code: 85258900
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.0024
  • Unit Calculated Weight: 0.5
Specifications
Camera shutter speed1/33500 - 1/5
Connectivity technologyWired
Day/night modeYes
DC output voltage10,12,15,16,24,28
Depth179
Depth (with stand)179
Flash memory512
Focal length range2.8 - 13
Form factorBox
Frame rate30
Harmonized System (HS) code85258900
Height59
Height (with stand)179
Lens viewing angle, horizontal112
Lens viewing angle, vertical82
Maximum resolution2592 x 1944
Minimum illumination0.17
Mounting typeWall
Networking standardsIEEE 802.3af/IEEE 802.3at
Night visionYes
Number of cameras1
Operating relative humidity (H-H)10 - 85
Operating temperature (T-T)-20 - 50
Optical sensor size1/2.7
Placement supportedIndoor & outdoor
Power consumption (max)6.6
Power consumption (Power over Ethernet (PoE))4.5
Power consumption (typical)4.4
Power source typeDC,PoE
Product colourBlack/White
Sensor typeCMOS
Storage relative humidity (H-H)5 - 95
Storage temperature (T-T)-40 - 65
SummaryAxis 02484-001. Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: Black, White, Form factor: Box. Minimum illumination: 0.17 lx, Lens viewing angle, horizontal: 112°, Lens viewing angle, vertical: 82°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Focal length range: 2.8 - 13 mm
Supported graphics resolutions160 x 120
Total megapixels5
Video compression formatsMPEG4
Video formats supportedH.264/H.265
Wide Dynamic Range (WDR)Yes
Width70
Width (with stand)70
Specs
Category CodeFNC
Description

AXIS M1137 Mk II is an affordable, compact box camera that’s easy to install and operate. It supports PoE and redundant DC power to ensure your data is safeguarded in the event of a power outage. Featuring Axis Lightfinder and Axis Forensic WDR, it delivers true colors and great details in challenging light or near darkness. The camera's CS-mount enables flexibility for exchangeable lenses. And a built-in microphone allows you to record video with sound. With AXIS Object Analytics preinstalled, it’s possible to detect and classify humans and vehicles. Furthermore, Axis Zipstream with H.264/H.265 significantly lowers bandwidth and storage requirements.

  • AXIS Object Analytics; Built-in microphone for audio recording; Compact and flexible design; Lightfinder and Forensic WDR; Remote zoom and focus with i-CS

ModelM1137 Mk II
NameNET CAMERA M1137 MK II 5MP BOX/02484-001 AXIS
PictureUrlhttps://static.elko.cloud/ProductImages/c656da81-730d-44a4-b7b0-5f579c31cb1e.Jpeg
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/c656da81-730d-44a4-b7b0-5f579c31cb1e.Jpeg
Unit Calculated Volume0.0024
Unit Calculated Weight0.5
Units per Shipping Box1
Vendor Homepagehttps://www.axis.com/products/axis-m1137-mk-ii#support-and-resources
