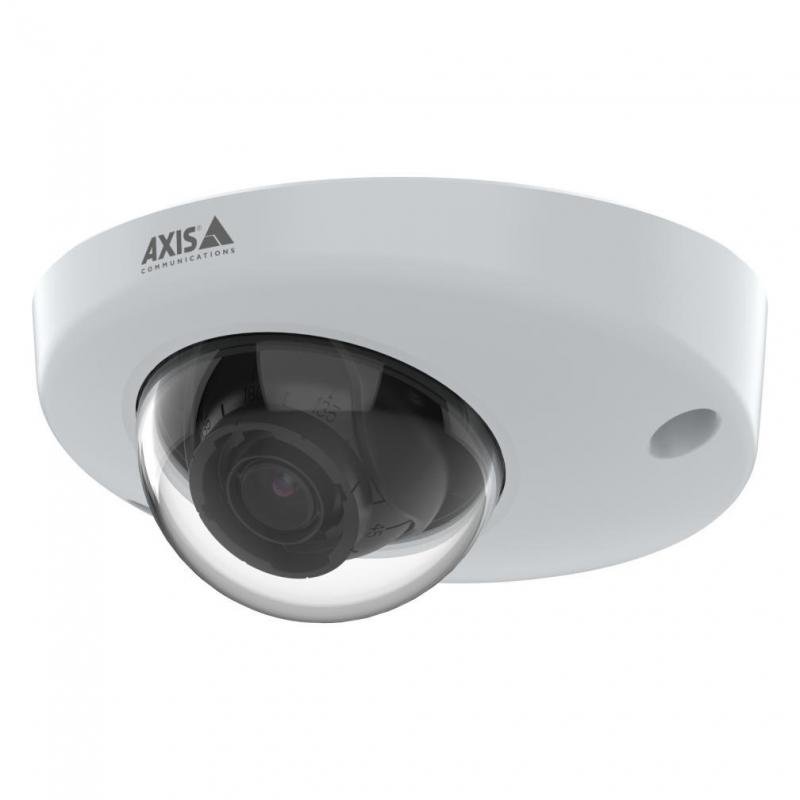

NET CAMERA M3905-R DOME/02501-001 AXIS

NET CAMERA M3905-R DOME/02501-001 AXIS
NET CAMERA M3905-R DOME/02501-001 AXIS
  • Connectivity technology: Wired
  • Maximum resolution: 1920 x 1080
  • Total megapixels: 2
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
25,647ден.
  • Достапност:
  • Бренд: AXIS
  • Шифра: 395997
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Axis 02501-001. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Minimum illumination: 0.04 lx, Angle of rotation: 250°, Lens viewing angle, horizontal: 88°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9"). Lens diameter: 3.6 mm, Closest focusing distance: 0.3 m
  • Vendor Homepage: https://www.axis.com/products/axis-m3905-r#technical-specifications
  • Name: NET CAMERA M3905-R DOME/02501-001 AXIS
  • Category Code: FNC
  • Model: M3905-R
  • Form factor: Dome
  • Mounting type: Ceiling
  • Product colour: White
  • Housing material: Aluminium/Polycarbonate (PC)
  • International Protection (IP) code: IP66, IP67
  • IK code: IK10
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Indoor
  • PTZ control: Yes
  • PTZ modes: Digital PTZ
  • Tour recording: Yes
  • Preset points: Yes
  • Wide Dynamic Range (WDR): Yes
  • Built-in processor: Yes
  • Processor model: S6LM55
  • Languages support: Czech/Dutch/English/Finnish/French/German/Italian/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Swedish/Thai/Traditional Chinese/Turkish/Vietnamese
  • Number of languages: 18
  • Camera pan control: Yes
  • Camera tilt control: Yes
  • Minimum illumination: 0.04
  • Angle of rotation: 250
  • Lens viewing angle, horizontal: 88
  • Lens viewing angle, vertical: 47
  • Tilt angle range: 15 - 90
  • Pan range: -30 - 30
  • Camera shutter speed: 1/19000 - 1/5
  • Number of sensors: 1
  • Optical sensor size: 1/2.9
  • Sensor type: CMOS
  • Number of lenses: 1
  • Lens diameter: 3.6
  • Maximum aperture number: 2
  • Closest focusing distance: 0.3
  • Maximum resolution: 1920 x 1080
  • Total megapixels: 2
  • Video compression formats: AVC/H.264/H.265/HEVC/M-JPEG/MPEG4
  • Frame rate: 30
  • Video streaming: Yes
  • Noise reduction: Yes
  • Noise reduction technology: 2D noise reduction,3D noise reduction
  • Image quality adjustment: Brightness/Contrast/Mirror/Sharpness
  • Ethernet LAN: Yes
  • Ethernet interface type: Fast Ethernet
  • Networking standards: IEEE 802.3af/IEEE 802.3at
  • Supported network protocols: IPv4, IPv6 USGv6, HTTP, HTTPSc , HTTP/2, TLSc , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, LLDP,
  • Streaming method: Multicast
  • Flash memory: 512
  • Internal memory: 1024
  • Password protection: Yes
  • Digest authentication: Yes
  • HTTPS encryption: Yes
  • IP address filtering: Yes
  • Pixel counter: Yes
  • Security algorithms: 802.1x RADIUS
  • Power source type: PoE
  • Power consumption (max): 3.8
  • Power consumption (Power over Ethernet (PoE)): 2.2
  • Operating temperature (T-T): -30 - 55
  • Storage temperature (T-T): -40 - 65
  • Operating relative humidity (H-H): 10 - 100
  • Height: 50
  • Diameter: 110
  • Weight: 241
  • Compliance certificates: CE/KC/REACH/RoHS/Trade Agreements Act (TAA)/UKCA/WEEE
  • Sustainability compliance: Yes
  • Number of cameras: 1
  • Manual: Yes
  • Doesnt contain: BFR/PVC
  • Units per Pallet: 0
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.001655
  • Unit Calculated Weight: 0.37
Specifications
Angle of rotation250
Built-in processorYes
Camera pan controlYes
Camera shutter speed1/19000 - 1/5
Camera tilt controlYes
Closest focusing distance0.3
Compliance certificatesCE/KC/REACH/RoHS/Trade Agreements Act (TAA)/UKCA/WEEE
Connectivity technologyWired
Diameter110
Digest authenticationYes
Doesn\'t containBFR/PVC
Ethernet interface typeFast Ethernet
Ethernet LANYes
Flash memory512
Form factorDome
Frame rate30
Height50
Housing materialAluminium/Polycarbonate (PC)
HTTPS encryptionYes
IK codeIK10
Image quality adjustmentBrightness/Contrast/Mirror/Sharpness
Internal memory1024
International Protection (IP) codeIP66, IP67
IP address filteringYes
Languages supportCzech/Dutch/English/Finnish/French/German/Italian/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Swedish/Thai/Traditional Chinese/Turkish/Vietnamese
Lens diameter3.6
Lens viewing angle, horizontal88
Lens viewing angle, vertical47
ManualYes
Maximum aperture number2
Maximum resolution1920 x 1080
Minimum illumination0.04
Mounting typeCeiling
Networking standardsIEEE 802.3af/IEEE 802.3at
Noise reductionYes
Noise reduction technology2D noise reduction,3D noise reduction
Number of cameras1
Number of languages18
Number of lenses1
Number of sensors1
Operating relative humidity (H-H)10 - 100
Operating temperature (T-T)-30 - 55
Optical sensor size1/2.9
Pan range-30 - 30
Password protectionYes
Pixel counterYes
Placement supportedIndoor
Power consumption (max)3.8
Power consumption (Power over Ethernet (PoE))2.2
Power source typePoE
Preset pointsYes
Processor modelS6LM55
Product colourWhite
PTZ controlYes
PTZ modesDigital PTZ
Security algorithms802.1x RADIUS
Sensor typeCMOS
Storage temperature (T-T)-40 - 65
Streaming methodMulticast
SummaryAxis 02501-001. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Minimum illumination: 0.04 lx, Angle of rotation: 250°, Lens viewing angle, horizontal: 88°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9"). Lens diameter: 3.6 mm, Closest focusing distance: 0.3 m
Supported network protocolsIPv4, IPv6 USGv6, HTTP, HTTPSc , HTTP/2, TLSc , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, LLDP,
Sustainability complianceYes
Tilt angle range15 - 90
Total megapixels2
Tour recordingYes
TypeIP security camera
Video compression formatsAVC/H.264/H.265/HEVC/M-JPEG/MPEG4
Video streamingYes
Weight241
Wide Dynamic Range (WDR)Yes
Specs
Category CodeFNC
Description

This compact and discreet 2 MP onboard camera complies with transportation-industry regulations including fire-safety for buses. It can withstand vibrations and a wide range of temperatures. Additionally, with AXIS TP3826-E housing this dome camera can be mounted on the outside of a bus. Thanks to Lightfinder and Forensic WDR, it provides details even in challenging light conditions. And with traffic light mode it can distinguish the color of traffic lights in dark scenes. Optional M12 lenses are available to adjust field of view for customized monitoring purposes.

  • 88° Horizontal field of view; Compact, rugged design; Lightfinder and Forensic WDR; Traffic Light mode; Zipstream

ModelM3905-R
NameNET CAMERA M3905-R DOME/02501-001 AXIS
PictureUrlhttps://static.elko.cloud/ProductImages/60ddbd94-5b17-4469-af8d-57a416ffd16e.Jpeg
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/60ddbd94-5b17-4469-af8d-57a416ffd16e.Jpeg
Unit Calculated Volume0.001655
Unit Calculated Weight0.37
Units per Pallet0
Units per Shipping Box1
Vendor Homepagehttps://www.axis.com/products/axis-m3905-r#technical-specifications
