NET CAMERA M4216-LV DOME/02113-001 AXIS

NET CAMERA M4216-LV DOME/02113-001 AXIS
NET CAMERA M4216-LV DOME/02113-001 AXIS
  • Connectivity technology: Wired
  • Zoom capability: Yes
  • Maximum resolution: 2304 x 1728
  • Total megapixels: 4
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
39,335ден.
  • Достапност:
  • Бренд: AXIS
  • Шифра: 363245
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Axis 02113-001. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Minimum illumination: 0.18 lx, Tilt angle range: -40 - 65°, Pan range: -180 - 180°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Focal length range: 3 - 6 mm
  • Vendor Homepage: https://www.axis.com/products/axis-m4216-lv#technical-specifications
  • Name: NET CAMERA M4216-LV DOME/02113-001 AXIS
  • Category Code: FNC
  • Model: M4216-LV
  • Form factor: Dome
  • Mounting type: Ceiling/wall
  • Product colour: White
  • Housing material: Aluminium/Polycarbonate (PC)
  • International Protection (IP) code: IP42
  • IK code: IK08
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Indoor
  • PTZ modes: Digital PTZ
  • Wide Dynamic Range (WDR): Yes
  • Day/night mode: Yes
  • Infrared (IR) cut-off filter: Yes
  • Languages support: English/French/German/Italian/Japanese/Korean/Portuguese/Russian/Simplified Chinese/Spanish/Traditional Chinese
  • Number of languages: 11
  • Camera pan control: Yes
  • Camera tilt control: Yes
  • Minimum illumination: 0.18
  • Tilt angle range: -40 - 65
  • Pan range: -180 - 180
  • Camera shutter speed: 1/37500 - 1/5
  • Number of sensors: 1
  • Optical sensor size: 1/2.7
  • Progressive scan: Yes
  • Sensor type: CMOS
  • Zoom capability: Yes
  • Number of lenses: 1
  • Focal length range: 3 - 6
  • Night vision: Yes
  • Night vision distance: 20
  • LED type: IR
  • Infra-red wavelength: 855
  • Maximum resolution: 2304 x 1728
  • Total megapixels: 4
  • Video compression formats: H.264/H.265
  • Supported video modes: 1080p/720p
  • Frame rate: 30
  • Video streaming: Yes
  • Flip & mirror: Yes
  • Privacy masking: Yes
  • Text caption overlay: Yes
  • Ethernet LAN: Yes
  • Networking standards: IEEE 802.1x/IEEE 802.3af/IEEE 802.3at
  • Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSb , TLSb , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, HDMI, LLDP
  • Quality of Service (QoS) support: Yes
  • Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC/SD
  • Flash memory: 512
  • Internal memory: 1024
  • Ethernet LAN (RJ-45) ports: 1
  • HDMI ports quantity: 1
  • Password protection: Yes
  • Active tampering alarm: Yes
  • Alert notification type: E-mail,Text alert message
  • HTTPS encryption: Yes
  • IP address filtering: Yes
  • Security algorithms: EAP-TLS
  • Video motion detection: Yes
  • Power source type: PoE
  • Power consumption (typical): 5
  • Power consumption (max): 9.7
  • Operating temperature (T-T): 0 - 45
  • Storage temperature (T-T): -40 - 65
  • Operating relative humidity (H-H): 10 - 85
  • Storage relative humidity (H-H): 5 - 95
  • Windows operating systems supported: Yes
  • Height: 71
  • Diameter: 121
  • Weight: 375
  • Number of cameras: 1
  • Doesnt contain: BFR/PVC
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.001248
  • Unit Calculated Weight: 0.5
Specifications
Active tampering alarmYes
Alert notification typeE-mail,Text alert message
Camera pan controlYes
Camera shutter speed1/37500 - 1/5
Camera tilt controlYes
Compatible memory cardsMicroSD (TransFlash)/MicroSDHC/MicroSDXC/SD
Connectivity technologyWired
Day/night modeYes
Diameter121
Doesn\'t containBFR/PVC
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Flash memory512
Flip & mirrorYes
Focal length range3 - 6
Form factorDome
Frame rate30
HDMI ports quantity1
Height71
Housing materialAluminium/Polycarbonate (PC)
HTTPS encryptionYes
IK codeIK08
Infra-red wavelength855
Infrared (IR) cut-off filterYes
Internal memory1024
International Protection (IP) codeIP42
IP address filteringYes
Languages supportEnglish/French/German/Italian/Japanese/Korean/Portuguese/Russian/Simplified Chinese/Spanish/Traditional Chinese
LED typeIR
Maximum resolution2304 x 1728
Minimum illumination0.18
Mounting typeCeiling/wall
Networking standardsIEEE 802.1x/IEEE 802.3af/IEEE 802.3at
Night visionYes
Night vision distance20
Number of cameras1
Number of languages11
Number of lenses1
Number of sensors1
Operating relative humidity (H-H)10 - 85
Operating temperature (T-T)0 - 45
Optical sensor size1/2.7
Pan range-180 - 180
Password protectionYes
Placement supportedIndoor
Power consumption (max)9.7
Power consumption (typical)5
Power source typePoE
Privacy maskingYes
Product colourWhite
Progressive scanYes
PTZ modesDigital PTZ
Quality of Service (QoS) supportYes
Security algorithmsEAP-TLS
Sensor typeCMOS
Storage relative humidity (H-H)5 - 95
Storage temperature (T-T)-40 - 65
SummaryAxis 02113-001. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Minimum illumination: 0.18 lx, Tilt angle range: -40 - 65°, Pan range: -180 - 180°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Focal length range: 3 - 6 mm
Supported network protocolsIPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSb , TLSb , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, HDMI, LLDP
Supported video modes1080p/720p
Text caption overlayYes
Tilt angle range-40 - 65
Total megapixels4
TypeIP security camera
Video compression formatsH.264/H.265
Video motion detectionYes
Video streamingYes
Weight375
Wide Dynamic Range (WDR)Yes
Windows operating systems supportedYes
Zoom capabilityYes
Specs
Category CodeFNC
Description

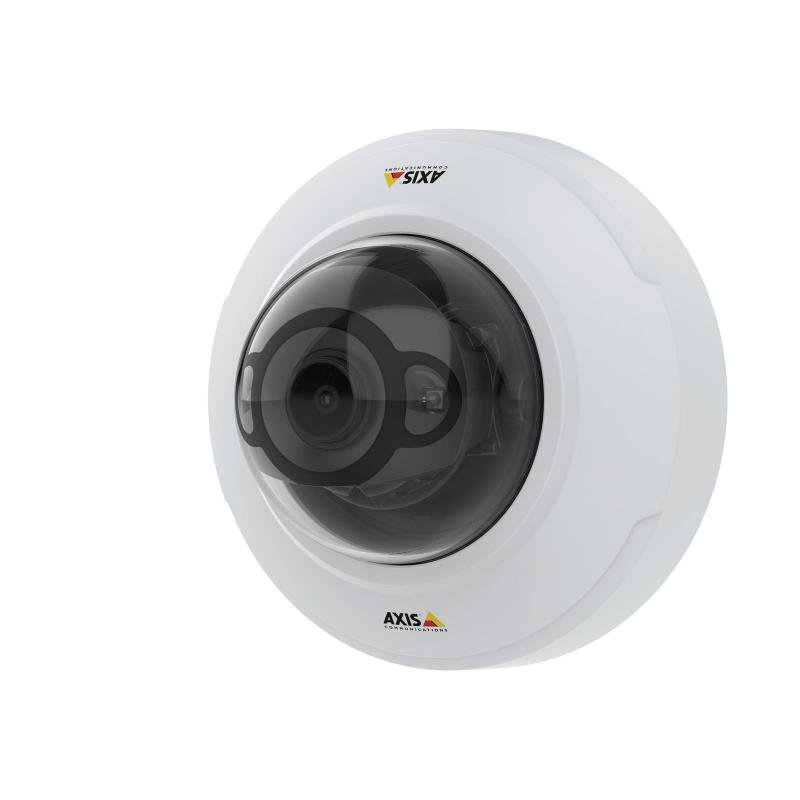

The compact and discreet AXIS M4216-LV delivers great images, day and night. With a deep learning processing unit (DLPU), it’s possible to take advantage of intelligent applications based on deep learning on the edge. Furthermore, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network. Designed to blend seamlessly into any environment, the camera can be repainted and offers a wide range of accessories for discreet monitoring. It features an HDMI port and offers the flexibility to add audio and I/O connectivity using accessories.

  • Great image quality in 4 MP; HDMI output for public viewing monitors; Support for analytics with deep learning; Varifocal lens with remote zoom and focus; WDR, Lightfinder and OptimizedIR

ModelM4216-LV
NameNET CAMERA M4216-LV DOME/02113-001 AXIS
PictureUrlhttps://static.elko.cloud/ProductImages/8559b7d6-66c9-4bf3-bf7e-272bae905195.Jpeg
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/8559b7d6-66c9-4bf3-bf7e-272bae905195.Jpeg
Unit Calculated Volume0.001248
Unit Calculated Weight0.5
Units per Shipping Box1
Vendor Homepagehttps://www.axis.com/products/axis-m4216-lv#technical-specifications
