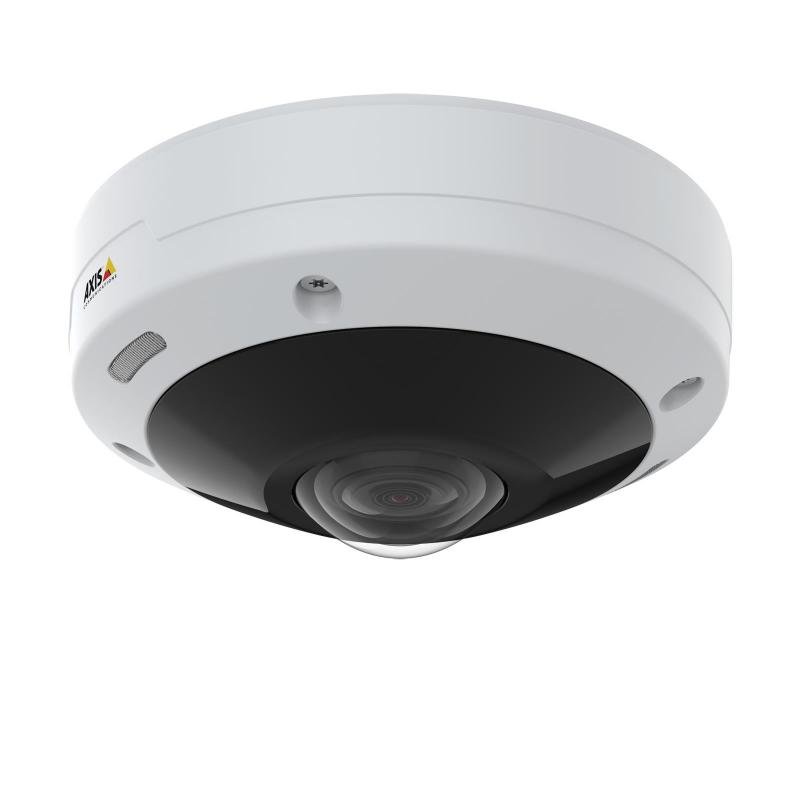

NET CAMERA M4308-PLE DOME/02100-001 AXIS

NET CAMERA M4308-PLE DOME/02100-001 AXIS
NET CAMERA M4308-PLE DOME/02100-001 AXIS
  • Connectivity technology: Wired
  • Zoom capability: Yes
  • Maximum resolution: 2880 x 2880
  • Total megapixels: 12
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
71,082ден.
  • Достапност:
  • Бренд: AXIS
  • Шифра: 354783
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Axis 02100-001. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Minimum illumination: 0.04 lx, Field of view (FOV) angle: 183°, Lens viewing angle, horizontal: 183°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.7 mm (1 / 1.7"). Focal length range: 1.3 mm
  • Vendor Homepage: https://www.axis.com/products/axis-m4308-ple
  • Name: NET CAMERA M4308-PLE DOME/02100-001 AXIS
  • Category Code: FNC
  • Form factor: Dome
  • Mounting type: Ceiling/wall
  • Product colour: White
  • LED indicators: Yes
  • Housing material: Aluminium
  • Protection features: Dust resistant/Water resistant
  • International Protection (IP) code: IP66
  • IK code: IK10
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Indoor & outdoor
  • PTZ modes: Digital PTZ
  • Wide Dynamic Range (WDR): Yes
  • Day/night mode: Yes
  • Infrared (IR) cut-off filter: Yes
  • Alarm input/output: Yes
  • Languages support: English/French/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Traditional Chinese
  • Number of languages: 12
  • Certification: EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, RCM AS/NZS CISPR 32 Class A, KS C9832 Class A, KS C9835
  • Camera pan control: Yes
  • Camera tilt control: Yes
  • Minimum illumination: 0.04
  • Field of view (FOV) angle: 183
  • Lens viewing angle, horizontal: 183
  • Camera shutter speed: 1/22000 - 1
  • Number of sensors: 1
  • Optical sensor size: 1/1.7
  • Progressive scan: Yes
  • Sensor type: CMOS
  • Zoom capability: Yes
  • Number of lenses: 1
  • Focal length range: 1.3
  • Fixed focus: Yes
  • Night vision: Yes
  • LED type: IR
  • Maximum resolution: 2880 x 2880
  • Total megapixels: 12
  • Video recording: Yes
  • Frame rate: 30
  • Video streaming: Yes
  • Image quality adjustment: Brightness/Contrast
  • Privacy masking: Yes
  • Audio formats supported: AAC-LC/ADPCM/G.711/G.726/LPCM/OPUS
  • Built-in microphone: Yes
  • Audio detection: Yes
  • Ethernet LAN: Yes
  • Networking standards: IEEE 802.3at
  • Quality of Service (QoS) support: Yes
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
  • Flash memory: 1000
  • Internal memory: 2000
  • Ethernet LAN (RJ-45) ports: 1
  • Active tampering alarm: Yes
  • Alert notification type: E-mail,Text alert message
  • Digest authentication: Yes
  • HTTPS encryption: Yes
  • IP address filtering: Yes
  • Pixel counter: Yes
  • Security algorithms: 802.1x RADIUS/HTTPS
  • Power source type: PoE
  • Power consumption (typical): 7.9
  • Power consumption (max): 15.5
  • Operating temperature (T-T): -40 - 50
  • Storage temperature (T-T): -40 - 65
  • Operating relative humidity (H-H): 10 - 100
  • Storage relative humidity (H-H): 5 - 95
  • Height: 69
  • Diameter: 149
  • Weight: 850
  • Number of cameras: 1
  • Mounting kit: Yes
  • Mounting brackets included: Yes
  • Drilling template included: Yes
  • Manual: Yes
  • Harmonized System (HS) code: 85258900
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.002599
  • Unit Calculated Weight: 1.06
Specifications
Active tampering alarmYes
Alarm input/outputYes
Alert notification typeE-mail,Text alert message
Audio detectionYes
Audio formats supportedAAC-LC/ADPCM/G.711/G.726/LPCM/OPUS
Built-in microphoneYes
Camera pan controlYes
Camera shutter speed1/22000 - 1
Camera tilt controlYes
Card reader integratedYes
CertificationEN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, RCM AS/NZS CISPR 32 Class A, KS C9832 Class A, KS C9835
Compatible memory cardsMicroSD (TransFlash)/MicroSDHC/MicroSDXC
Connectivity technologyWired
Day/night modeYes
Diameter149
Digest authenticationYes
Drilling template includedYes
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Field of view (FOV) angle183
Fixed focusYes
Flash memory1000
Focal length range1.3
Form factorDome
Frame rate30
Harmonized System (HS) code85258900
Height69
Housing materialAluminium
HTTPS encryptionYes
IK codeIK10
Image quality adjustmentBrightness/Contrast
Infrared (IR) cut-off filterYes
Internal memory2000
International Protection (IP) codeIP66
IP address filteringYes
Languages supportEnglish/French/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Traditional Chinese
LED indicatorsYes
LED typeIR
Lens viewing angle, horizontal183
ManualYes
Maximum resolution2880 x 2880
Minimum illumination0.04
Mounting brackets includedYes
Mounting kitYes
Mounting typeCeiling/wall
Networking standardsIEEE 802.3at
Night visionYes
Number of cameras1
Number of languages12
Number of lenses1
Number of sensors1
Operating relative humidity (H-H)10 - 100
Operating temperature (T-T)-40 - 50
Optical sensor size1/1.7
Pixel counterYes
Placement supportedIndoor & outdoor
Power consumption (max)15.5
Power consumption (typical)7.9
Power source typePoE
Privacy maskingYes
Product colourWhite
Progressive scanYes
Protection featuresDust resistant/Water resistant
PTZ modesDigital PTZ
Quality of Service (QoS) supportYes
Security algorithms802.1x RADIUS/HTTPS
Sensor typeCMOS
Storage relative humidity (H-H)5 - 95
Storage temperature (T-T)-40 - 65
SummaryAxis 02100-001. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Minimum illumination: 0.04 lx, Field of view (FOV) angle: 183°, Lens viewing angle, horizontal: 183°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.7 mm (1 / 1.7"). Focal length range: 1.3 mm
Total megapixels12
TypeIP security camera
Video recordingYes
Video streamingYes
Weight850
Wide Dynamic Range (WDR)Yes
Zoom capabilityYes
Specs
Category CodeFNC
Description

AXIS M4308-PLE is a discreet, outdoor-ready mini dome designed to blend seamlessly into any environment. With a 12 MP sensor and stereographic lens, it offers outstanding images and complete 360° panoramic overview. Thanks to Sharpdome 360, this panoramic camera delivers greater sharpness at the edges of the image. AXIS Object Analytics is included and a deep learning processing unit (DLPU) enables unique opportunities to take advantage of analytics based on deep learning on the edge. It includes Axis Lightfinder and Axis Forensic WDR for true colors and great details in challenging light or near darkness. Plus, Axis OptimizedIR for surveillance in pitch darkness. Four built-in microphones and voice enhancer offers audio capture with great noise suppression.

  • 12 MP sensor with 360° overview; 4 microphones with voice enhancer; Lightfinder, Forensic WDR, OptimizedIR; Stereographic lens and Sharpdome 360; Support for analytics with deep learning

NameNET CAMERA M4308-PLE DOME/02100-001 AXIS
PictureUrlhttps://static.elko.cloud/ProductImages/00fe2faa-8e49-4fb4-b386-c34e8f60106e.Jpeg
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/00fe2faa-8e49-4fb4-b386-c34e8f60106e.Jpeg
Unit Calculated Volume0.002599
Unit Calculated Weight1.06
Units per Shipping Box1
Vendor Homepagehttps://www.axis.com/products/axis-m4308-ple
