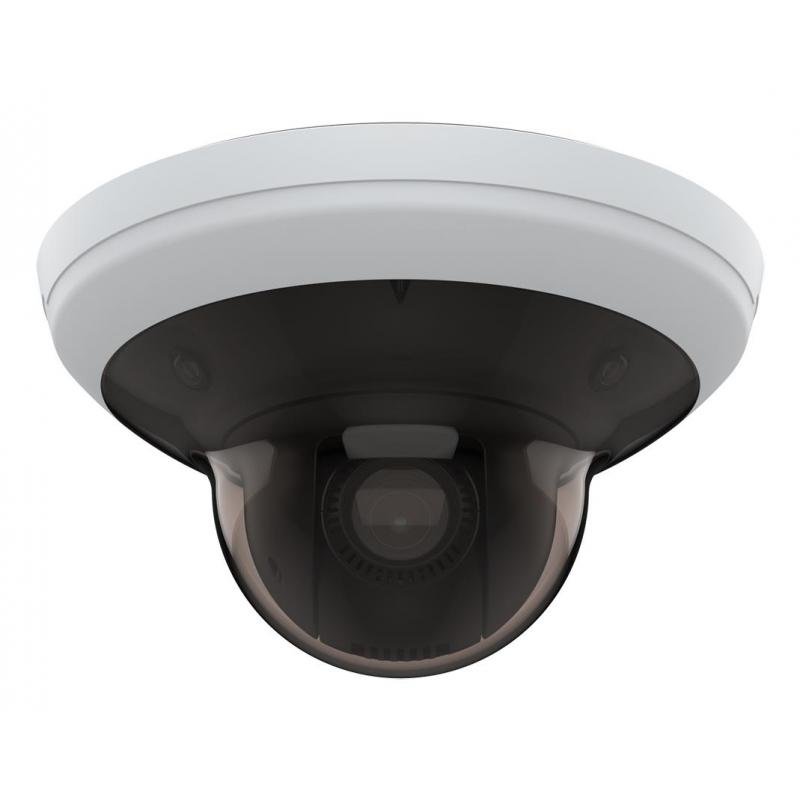

NET CAMERA M5000-G PTZ/02187-002 AXIS

NET CAMERA M5000-G PTZ/02187-002 AXIS
NET CAMERA M5000-G PTZ/02187-002 AXIS
  • Connectivity technology: Wired & Wireless
  • Zoom capability: Yes
  • Maximum resolution: 1920 x 1080
  • Total megapixels: 5
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
83,955ден.
  • Достапност:
  • Бренд: AXIS
  • Шифра: 396023
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Axis 02187-002. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired & Wireless. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.1 lx, Tilt angle range: 0 - 180°, Pan range: 0 - 360°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Focal length range (panoramic camera): 4.7 - 47 mm, Viewing angle, vertical (panoramic camera): 36.3°, Viewing angle, horizontal (panoramic camera): 61.8°
  • Vendor Homepage: https://www.axis.com/products/axis-m5000-g
  • Name: NET CAMERA M5000-G PTZ/02187-002 AXIS
  • Category Code: FNC
  • Model: M5000-G
  • Form factor: Dome
  • Mounting type: Ceiling/wall
  • Product colour: Black/White
  • International Protection (IP) code: IP51
  • Type: IP security camera
  • Connectivity technology: Wired & Wireless
  • Placement supported: Indoor & outdoor
  • PTZ control: Yes
  • Wide Dynamic Range (WDR): Yes
  • Day/night mode: Yes
  • Languages support: English/French/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Traditional Chinese
  • Number of languages: 12
  • Certification: EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, VCCI Class A, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A)
  • Camera pan control: Yes
  • Camera tilt control: Yes
  • Minimum illumination: 0.1
  • Tilt angle range: 0 - 180
  • Pan range: 0 - 360
  • Camera shutter speed: 1/66500 - 2
  • Number of sensors: 1
  • Optical sensor size: 1/2.8
  • Progressive scan: Yes
  • Focal length range (panoramic camera): 4.7 - 47
  • Sensor type: CMOS
  • Viewing angle, horizontal (panoramic camera): 61.8
  • Viewing angle, vertical (panoramic camera): 36.3
  • Zoom capability: Yes
  • Optical zoom: 10
  • Digital zoom: 12
  • Number of lenses: 3
  • Night vision: Yes
  • Maximum resolution: 1920 x 1080
  • Total megapixels: 5
  • Video formats supported: H.264/H.265/M-JPEG
  • Frame rate: 30
  • Video streaming: Yes
  • Gain control type: Auto
  • Bit rate control: Variable Bit Rate (VBR)
  • Image quality adjustment: Brightness/Contrast/Saturation/Sharpness
  • Privacy masking: Yes
  • Audio detection: Yes
  • Ethernet LAN: Yes
  • Networking standards: IEEE 802.1x/IEEE 802.3af/IEEE 802.3at
  • Quality of Service (QoS) support: Yes
  • Compatible memory cards: SD/SDHC/SDXC
  • Flash memory: 512
  • Internal memory: 2048
  • Ethernet LAN (RJ-45) ports: 1
  • Terminal block port: Yes
  • Password protection: Yes
  • Alert notification type: E-mail
  • Digest authentication: Yes
  • HTTPS encryption: Yes
  • IP address filtering: Yes
  • Pixel counter: Yes
  • Security algorithms: 802.1x RADIUS
  • Video motion detection: Yes
  • Power source type: PoE
  • Power consumption (typical): 7.6
  • Power consumption (max): 13.4
  • Operating temperature (T-T): 0 - 40
  • Storage temperature (T-T): 10 - 85
  • Operating relative humidity (H-H): -40 - 65
  • Storage relative humidity (H-H): 5 - 95
  • Height: 138
  • Diameter: 247
  • Weight: 1950
  • Number of cameras: 1
  • Drilling template included: Yes
  • Manual: Yes
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.0189
  • Unit Calculated Weight: 2
Specifications
Alert notification typeE-mail
Audio detectionYes
Bit rate controlVariable Bit Rate (VBR)
Camera pan controlYes
Camera shutter speed1/66500 - 2
Camera tilt controlYes
CertificationEN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, VCCI Class A, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A)
Compatible memory cardsSD/SDHC/SDXC
Connectivity technologyWired & Wireless
Day/night modeYes
Diameter247
Digest authenticationYes
Digital zoom12
Drilling template includedYes
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Flash memory512
Focal length range (panoramic camera)4.7 - 47
Form factorDome
Frame rate30
Gain control typeAuto
Height138
HTTPS encryptionYes
Image quality adjustmentBrightness/Contrast/Saturation/Sharpness
Internal memory2048
International Protection (IP) codeIP51
IP address filteringYes
Languages supportEnglish/French/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Traditional Chinese
ManualYes
Maximum resolution1920 x 1080
Minimum illumination0.1
Mounting typeCeiling/wall
Networking standardsIEEE 802.1x/IEEE 802.3af/IEEE 802.3at
Night visionYes
Number of cameras1
Number of languages12
Number of lenses3
Number of sensors1
Operating relative humidity (H-H)-40 - 65
Operating temperature (T-T)0 - 40
Optical sensor size1/2.8
Optical zoom10
Pan range0 - 360
Password protectionYes
Pixel counterYes
Placement supportedIndoor & outdoor
Power consumption (max)13.4
Power consumption (typical)7.6
Power source typePoE
Privacy maskingYes
Product colourBlack/White
Progressive scanYes
PTZ controlYes
Quality of Service (QoS) supportYes
Security algorithms802.1x RADIUS
Sensor typeCMOS
Storage relative humidity (H-H)5 - 95
Storage temperature (T-T)10 - 85
SummaryAxis 02187-002. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired & Wireless. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.1 lx, Tilt angle range: 0 - 180°, Pan range: 0 - 360°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Focal length range (panoramic camera): 4.7 - 47 mm, Viewing angle, vertical (panoramic camera): 36.3°, Viewing angle, horizontal (panoramic camera): 61.8°
Terminal block portYes
Tilt angle range0 - 180
Total megapixels5
TypeIP security camera
Video formats supportedH.264/H.265/M-JPEG
Video motion detectionYes
Video streamingYes
Viewing angle, horizontal (panoramic camera)61.8
Viewing angle, vertical (panoramic camera)36.3
Weight1950
Wide Dynamic Range (WDR)Yes
Zoom capabilityYes
Specs
Category CodeFNC
Description

AXIS M5000-G PTZ Camera features three 5 MP sensors and one PTZ camera with 10x optical zoom for total situational awareness of indoor areas up to 400 m2 (4300 ft2). With everything displayed on one monitor, you can move from overview to detailed views in a single click. It offers wireless I/O connectivity with Z-Wave Plus® devices to communicate with up to six devices in a system setup for instance monitor temperatures in freezers or turn lights on/off. With AXIS M5000-G, you get the benefits of four cameras while installing just one camera.

  • 10x optical zoom with HDTV 1080p; 3x 5 MP sensors for situational awareness; Covers indoor areas up to 400 m2 (4300 ft2); Total overview, zoomed-in details; Z-Wave for smart home devices

ModelM5000-G
NameNET CAMERA M5000-G PTZ/02187-002 AXIS
PictureUrlhttps://static.elko.cloud/ProductImages/c8c1f57f-39b5-425f-af2f-a4ec249fe2eb.Jpeg
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/c8c1f57f-39b5-425f-af2f-a4ec249fe2eb.Jpeg
Unit Calculated Volume0.0189
Unit Calculated Weight2
Units per Shipping Box1
Vendor Homepagehttps://www.axis.com/products/axis-m5000-g
