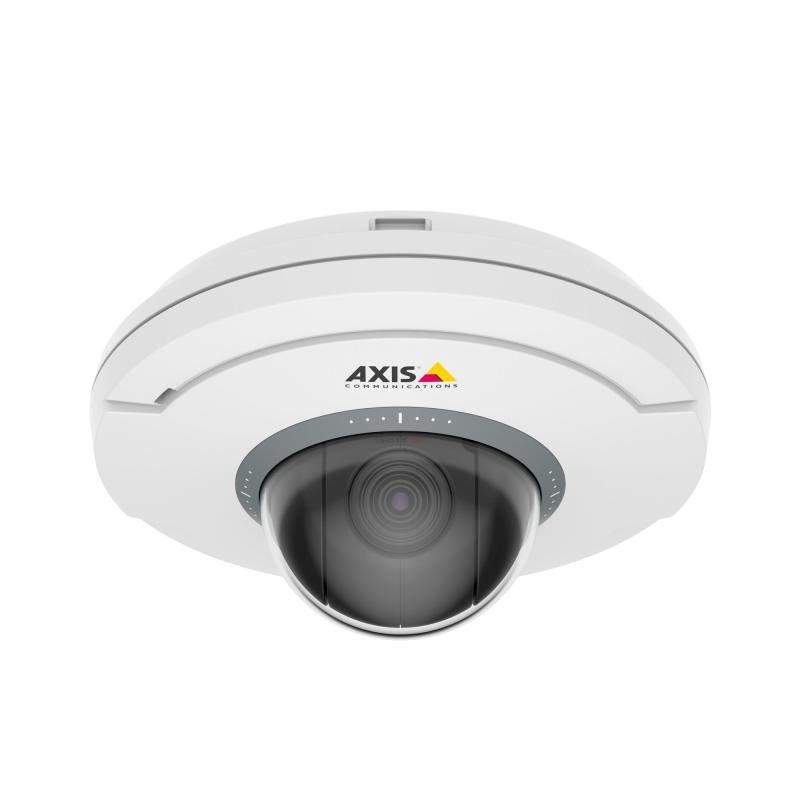

NET CAMERA M5074 PTZ/02345-001 AXIS

NET CAMERA M5074 PTZ/02345-001 AXIS
NET CAMERA M5074 PTZ/02345-001 AXIS
  • Connectivity technology: Wired
  • Zoom capability: Yes
  • Maximum resolution: 1280 x 720
  • Total megapixels: 1
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
39,980ден.
  • Достапност:
  • Бренд: AXIS
  • Шифра: 396001
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Axis 02345-001. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Minimum illumination: 0.1 lx, Tilt angle range: 0 - 90°, Tilt speed: 100 °/sec. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 5x, Digital zoom: 12x, Focal length range: 2.2 - 11.0 mm
  • Vendor Homepage: https://www.axis.com/products/axis-m5074#technical-specifications
  • Name: NET CAMERA M5074 PTZ/02345-001 AXIS
  • Category Code: FNC
  • Model: M5074
  • Form factor: Dome
  • Mounting type: Ceiling/wall
  • Product colour: White
  • Housing material: Polyvinyl chloride (PVC)
  • International Protection (IP) code: IP51
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Indoor
  • PTZ control: Yes
  • PTZ modes: Digital PTZ
  • Day/night mode: Yes
  • Processor model: ARTPEC-7
  • Languages support: English/French/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Traditional Chinese
  • Number of languages: 12
  • Certification: EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A, VCCI Class A CAN/CSA C22.2 No. 62368-1, IEC/EN/UL 62368-1, IS 13252 IEC/EN 60529 IP51 NIS
  • Camera pan control: Yes
  • Camera tilt control: Yes
  • Minimum illumination: 0.1
  • Tilt angle range: 0 - 90
  • Tilt speed: 100
  • Pan range: -179 - 179
  • Pan speed: 100
  • Camera shutter speed: 1/17000 - 2
  • Number of sensors: 1
  • Optical sensor size: 1/2.8
  • Progressive scan: Yes
  • Sensor type: CMOS
  • Zoom capability: Yes
  • Optical zoom: 5
  • Digital zoom: 12
  • Number of lenses: 1
  • Focal length range: 2.2 - 11.0
  • Auto focus: Yes
  • Maximum resolution: 1280 x 720
  • Total megapixels: 1
  • Video formats supported: M-JPEG
  • Video compression formats: H.264/H.265
  • Supported video modes: 720p
  • Video recording: Yes
  • Frame rate: 60
  • Video streaming: Yes
  • Bit rate: Configurable bit rate
  • Digital Wide Dynamic Range (DWDR): Yes
  • Privacy masking: Yes
  • Audio system: 1-way
  • Audio formats supported: AAC-LC/ADPCM/LPCM/OPUS/PCM
  • Built-in microphone: Yes
  • Audio detection: Yes
  • Ethernet LAN: Yes
  • Networking standards: IEEE 802.3af
  • Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa , HTTP/2, TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTCP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SOCKS, SS
  • Quality of Service (QoS) support: Yes
  • Card reader integrated: Yes
  • Flash memory: 512
  • Internal memory: 1024
  • Password protection: Yes
  • Active tampering alarm: Yes
  • Alert notification type: E-mail
  • HTTPS encryption: Yes
  • IP address filtering: Yes
  • Security algorithms: EAP-TLS/HTTPS/SNMP
  • Video motion detection: Yes
  • Power source type: PoE
  • Power consumption (typical): 4.2
  • Power consumption (max): 9.3
  • Operating temperature (T-T): 0 - 45
  • Storage temperature (T-T): -30 - 60
  • Operating relative humidity (H-H): 10 - 90
  • Storage relative humidity (H-H): 5 - 95
  • Diameter: 130
  • Length: 63
  • Weight: 380
  • Number of cameras: 1
  • Mounting kit: Yes
  • Manual: Yes
  • Harmonized System (HS) code: 85258900
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.001792
  • Unit Calculated Weight: 1
Specifications
Active tampering alarmYes
Alert notification typeE-mail
Audio detectionYes
Audio formats supportedAAC-LC/ADPCM/LPCM/OPUS/PCM
Audio system1-way
Auto focusYes
Bit rateConfigurable bit rate
Built-in microphoneYes
Camera pan controlYes
Camera shutter speed1/17000 - 2
Camera tilt controlYes
Card reader integratedYes
CertificationEN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A, VCCI Class A CAN/CSA C22.2 No. 62368-1, IEC/EN/UL 62368-1, IS 13252 IEC/EN 60529 IP51 NIS
Connectivity technologyWired
Day/night modeYes
Diameter130
Digital Wide Dynamic Range (DWDR)Yes
Digital zoom12
Ethernet LANYes
Flash memory512
Focal length range2.2 - 11.0
Form factorDome
Frame rate60
Harmonized System (HS) code85258900
Housing materialPolyvinyl chloride (PVC)
HTTPS encryptionYes
Internal memory1024
International Protection (IP) codeIP51
IP address filteringYes
Languages supportEnglish/French/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Traditional Chinese
ManualYes
Maximum resolution1280 x 720
Minimum illumination0.1
Mounting kitYes
Mounting typeCeiling/wall
Networking standardsIEEE 802.3af
Number of cameras1
Number of languages12
Number of lenses1
Number of sensors1
Operating relative humidity (H-H)10 - 90
Operating temperature (T-T)0 - 45
Optical sensor size1/2.8
Optical zoom5
Pan range-179 - 179
Pan speed100
Password protectionYes
Placement supportedIndoor
Power consumption (max)9.3
Power consumption (typical)4.2
Power source typePoE
Privacy maskingYes
Processor modelARTPEC-7
Product colourWhite
Progressive scanYes
PTZ controlYes
PTZ modesDigital PTZ
Quality of Service (QoS) supportYes
Security algorithmsEAP-TLS/HTTPS/SNMP
Sensor typeCMOS
Storage relative humidity (H-H)5 - 95
Storage temperature (T-T)-30 - 60
SummaryAxis 02345-001. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Minimum illumination: 0.1 lx, Tilt angle range: 0 - 90°, Tilt speed: 100 °/sec. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 5x, Digital zoom: 12x, Focal length range: 2.2 - 11.0 mm
Supported network protocolsIPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa , HTTP/2, TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTCP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SOCKS, SS
Supported video modes720p
Tilt angle range0 - 90
Tilt speed100
Total megapixels1
TypeIP security camera
Video compression formatsH.264/H.265
Video formats supportedM-JPEG
Video motion detectionYes
Video recordingYes
Video streamingYes
Weight380
Zoom capabilityYes
Specs
Category CodeFNC
Description

AXIS M5074 is a discreet, palm-sized PTZ camera designed to fit in anywhere. It delivers sharp, detailed video in HDTV 720p/1MP resolution. Thanks to PTZ functionality with 5x optical zoom and 12x digital zoom you can benefit from sweeping overviews and zoom in to get the details. Featuring a built-in microphone, this plug & play solution also includes analytics such as scream detection to alert you whenever a scream is detected in the camera's proximity. Furthermore, built-in cybersecurity features help prevent unauthorized access and safeguard your system.

  • Autofocus and WDR; Built-in analytics; Built-in cybersecurity features; PTZ with 5x optical zoom, 12x digital zoom; Zipstream with H.264/H.265

Length63
ModelM5074
NameNET CAMERA M5074 PTZ/02345-001 AXIS
PictureUrlhttps://static.elko.cloud/ProductImages/ae306d41-e434-49fc-a032-661572c7b79a.Jpeg
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/ae306d41-e434-49fc-a032-661572c7b79a.Jpeg
Unit Calculated Volume0.001792
Unit Calculated Weight1
Units per Shipping Box1
Vendor Homepagehttps://www.axis.com/products/axis-m5074#technical-specifications
