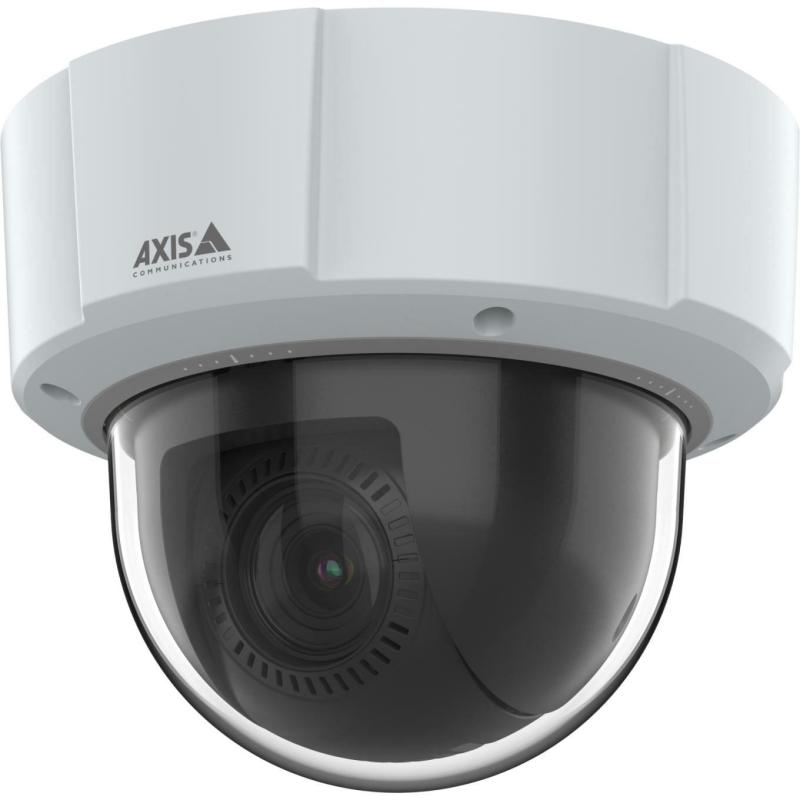

NET CAMERA M5526-E 4MP PTZ/DOME 4PACK 02768-021 AXIS

NET CAMERA M5526-E 4MP PTZ/DOME 4PACK 02768-021 AXIS
NET CAMERA M5526-E 4MP PTZ/DOME 4PACK 02768-021 AXIS
  • Connectivity technology: Wired
  • Zoom capability: Yes
  • Maximum resolution: 2688 x 1512
  • Total megapixels: 4
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
270,121ден.
  • Достапност:
  • Бренд: AXIS
  • Шифра: 434402
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Axis M5526-E 50 Hz. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.01 lx, Lens viewing angle, horizontal: 59.1 - 6.5°, Lens viewing angle, vertical: 35 - 3.67°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3"). Optical zoom: 10x, Digital zoom: 12x, Focal length range: 4.7 - 47 mm
  • Vendor Homepage: https://www.axis.com/products/axis-m5526-e
  • Name: NET CAMERA M5526-E 4MP PTZ/DOME 4PACK 02768-021 AXIS
  • Category Code: FNC
  • Model: 02768-001
  • Form factor: Dome
  • Mounting type: Ceiling
  • Product colour: Black/White
  • Housing material: Plastic/Polycarbonate (PC)
  • International Protection (IP) code: IP66
  • IK code: IK09
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Indoor & outdoor
  • PTZ control: Yes
  • Preset points: Yes
  • Wide Dynamic Range (WDR): Yes
  • Day/night mode: Yes
  • Infrared (IR) cut-off filter: Yes
  • Certification: CSA, UL/cUL, BIS, UKCA, CE, KC, EAC, VCCI, RCM
  • Camera pan control: Yes
  • Camera tilt control: Yes
  • Minimum illumination: 0.01
  • Lens viewing angle, horizontal: 59.1 - 6.5
  • Lens viewing angle, vertical: 35 - 3.67
  • Tilt angle range: 0 - 90
  • Tilt speed: 150
  • Pan range: 0 - 360
  • Pan speed: 150
  • Camera pixel size: 1.998
  • Camera shutter speed: 1/27000 - 0.2
  • Number of sensors: 1
  • Optical sensor size: 1/3
  • Sensor type: CMOS
  • Zoom capability: Yes
  • Optical zoom: 10
  • Digital zoom: 12
  • Number of lenses: 1
  • Focal length range: 4.7 - 47
  • Auto focus: Yes
  • Maximum aperture number: 3
  • Minimum aperture number: 1.6
  • Detect distance (tele): 938
  • Detect distance (wide): 96
  • Identify distance (tele): 93
  • Identify distance (wide): 10
  • Observe distance (tele): 373
  • Observe distance (wide): 38
  • Recognize distance (tele): 186
  • Recognize distance (wide): 19
  • Maximum resolution: 2688 x 1512
  • Total megapixels: 4
  • Video formats supported: AVC/H.264/H.265/HEVC/M-JPEG/MPEG4
  • Supported graphics resolutions: 160 x 120/1600 x 1200 (UXGA)/320 x 180
  • Frame rate: 60
  • Video streaming: Yes
  • Noise reduction: Yes
  • Noise reduction technology: 2D noise reduction,3D noise reduction
  • Gain control type: Auto
  • Image quality adjustment: Brightness/Contrast/Saturation/Sharpness
  • Privacy masking: Yes
  • Text caption overlay: Yes
  • Audio system: 2-way
  • Audio system full duplex: Yes
  • Audio formats supported: AAC-LC/G.711/LPCM/PCM
  • Sample rate: 48
  • Signal-to-Noise Ratio (SNR): 55
  • Audio detection: Yes
  • Ethernet LAN: Yes
  • Ethernet interface type: Fast Ethernet
  • Networking standards: IEEE 802.3af/IEEE 802.3at
  • Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, UPnP , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SSH, LLDP,
  • Quality of Service (QoS) support: Yes
  • Streaming method: Multicast
  • Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
  • Flash memory: 8192
  • ROM capacity: 1024
  • Ethernet LAN (RJ-45) ports: 1
  • Microphone in: Yes
  • Terminal block port: Yes
  • DC-in jack: Yes
  • Active tampering alarm: Yes
  • Alert notification type: E-mail
  • Human and vehicle targets classification: Yes
  • Intelligent Video Surveillance (IVS) system features: Face detection/Human detection/Line crossing detection/Moving object/Vehicle detection
  • Pixel counter: Yes
  • Security algorithms: 802.1x RADIUS/EAP-TLS/HTTPS/MSCHAPv2/PEAP/TLS
  • Video motion detection: Yes
  • Power source type: PoE
  • Power consumption: 3.8
  • Power consumption (typical): 4.2
  • Power consumption (max): 11.7
  • Power consumption (Power over Ethernet (PoE)): 12.95
  • Operating temperature (T-T): -20 - 50
  • Storage temperature (T-T): -40 - 65
  • Operating relative humidity (H-H): 15 - 100
  • Storage relative humidity (H-H): 5 - 95
  • Width: 165
  • Depth: 165
  • Height: 150
  • Weight: 1000
  • License plate recognition: Yes
  • Compliance certificates: REACH/RoHS
  • Number of cameras: 4
  • Manual: Yes
  • Doesnt contain: PVC/BFR
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.0272
  • Unit Calculated Weight: 5.28
Specifications
Active tampering alarmYes
Alert notification typeE-mail
Audio detectionYes
Audio formats supportedAAC-LC/G.711/LPCM/PCM
Audio system2-way
Audio system full duplexYes
Auto focusYes
Camera pan controlYes
Camera pixel size1.998
Camera shutter speed1/27000 - 0.2
Camera tilt controlYes
CertificationCSA, UL/cUL, BIS, UKCA, CE, KC, EAC, VCCI, RCM
Compatible memory cardsMicroSD (TransFlash)/MicroSDHC/MicroSDXC
Compliance certificatesREACH/RoHS
Connectivity technologyWired
Day/night modeYes
DC-in jackYes
Depth165
Detect distance (tele)938
Detect distance (wide)96
Digital zoom12
Doesn\'t containPVC/BFR
Ethernet interface typeFast Ethernet
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Flash memory8192
Focal length range4.7 - 47
Form factorDome
Frame rate60
Gain control typeAuto
Height150
Housing materialPlastic/Polycarbonate (PC)
Human and vehicle targets classificationYes
Identify distance (tele)93
Identify distance (wide)10
IK codeIK09
Image quality adjustmentBrightness/Contrast/Saturation/Sharpness
Infrared (IR) cut-off filterYes
Intelligent Video Surveillance (IVS) system featuresFace detection/Human detection/Line crossing detection/Moving object/Vehicle detection
International Protection (IP) codeIP66
Lens viewing angle, horizontal59.1 - 6.5
Lens viewing angle, vertical35 - 3.67
License plate recognitionYes
ManualYes
Maximum aperture number3
Maximum resolution2688 x 1512
Microphone inYes
Minimum aperture number1.6
Minimum illumination0.01
Mounting typeCeiling
Networking standardsIEEE 802.3af/IEEE 802.3at
Noise reductionYes
Noise reduction technology2D noise reduction,3D noise reduction
Number of cameras4
Number of lenses1
Number of sensors1
Observe distance (tele)373
Observe distance (wide)38
Operating relative humidity (H-H)15 - 100
Operating temperature (T-T)-20 - 50
Optical sensor size1/3
Optical zoom10
Pan range0 - 360
Pan speed150
Pixel counterYes
Placement supportedIndoor & outdoor
Power consumption (max)11.7
Power consumption (Power over Ethernet (PoE))12.95
Power consumption (typical)4.2
Power source typePoE
Preset pointsYes
Privacy maskingYes
Product colourBlack/White
PTZ controlYes
Quality of Service (QoS) supportYes
Recognize distance (tele)186
Recognize distance (wide)19
ROM capacity1024
Sample rate48
Security algorithms802.1x RADIUS/EAP-TLS/HTTPS/MSCHAPv2/PEAP/TLS
Sensor typeCMOS
Signal-to-Noise Ratio (SNR)55
Storage relative humidity (H-H)5 - 95
Storage temperature (T-T)-40 - 65
Streaming methodMulticast
SummaryAxis M5526-E 50 Hz. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.01 lx, Lens viewing angle, horizontal: 59.1 - 6.5°, Lens viewing angle, vertical: 35 - 3.67°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3"). Optical zoom: 10x, Digital zoom: 12x, Focal length range: 4.7 - 47 mm
Supported graphics resolutions160 x 120/1600 x 1200 (UXGA)/320 x 180
Supported network protocolsIPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, UPnP , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SSH, LLDP,
Terminal block portYes
Text caption overlayYes
Tilt angle range0 - 90
Tilt speed150
Total megapixels4
TypeIP security camera
Video formats supportedAVC/H.264/H.265/HEVC/M-JPEG/MPEG4
Video motion detectionYes
Video streamingYes
Weight1000
Wide Dynamic Range (WDR)Yes
Width165
Zoom capabilityYes
Specs
Category CodeFNC
Description

AXIS M5526-E PTZ Camera

Ideal both indoors and out, this affordably priced camera offers great image quality in 4 MP with 10x optical zoom. And, with a deep learning processing unit, it enables advanced features and powerful analytics that run on the edge.

Don’t miss a thing
AXIS M5526-E delivers great image quality in 4 MP. It offers a continuous 360° pan and with 10x optical zoom, you can benefit from sweeping overviews and zoom-in to get the details. Thanks to autofocus it ensures detailed, sharp images—every time. Plus, day/night functionality provides high-quality black-and-white video with improved sensitivity in even lower light. Furthermore, it includes Forensic WDR for clarity when there’s both dark and light areas in the scene.

Flexible installations—indoors and out

AXIS M5526-E is compatible with all Axis PTZ mounts and can be mounted both indoors and out. It comes with three scene profiles (indoor, outdoor, and forensic) with different image settings optimized to suit specific scenarios. Plus, privacy masking with mosaic lets you pixelate whole areas such as a neighboring property. Built on ARTPEC 8, the latest Axis system-on-chip (SoC), it includes a deep learning processing unit (DLPU) enabling improved processing and storage capabilities. And thanks to AXIS Object Analytics, it can detect and classify humans, vehicles, and types of vehicles—all tailored to your specific needs.

Enjoy more for less

This affordably priced camera offers great value for money. It delivers great image quality in 4MP. And with audio and I/O connectivity, you can integrate peripheral equipment for instance a microphone to extend the value of your system. Axis Zipstream with H.264 significantly lowers bandwidth and storage requirements without compromising image quality. Furthermore, Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access.

  • 4 MP and 10x optical zoom
  • Continuous 360° pan
  • Support for analytics with deep learning
  • Compact design
  • 24V with audio and I/O connectivity

Model02768-001
NameNET CAMERA M5526-E 4MP PTZ/DOME 4PACK 02768-021 AXIS
PictureUrlhttps://static.elko.cloud/ProductImages/7ac001b4-798c-4221-8a34-5931f0bc85ec.Jpeg
Power consumption3.8
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/7ac001b4-798c-4221-8a34-5931f0bc85ec.Jpeg
Unit Calculated Volume0.0272
Unit Calculated Weight5.28
Units per Shipping Box1
Vendor Homepagehttps://www.axis.com/products/axis-m5526-e
