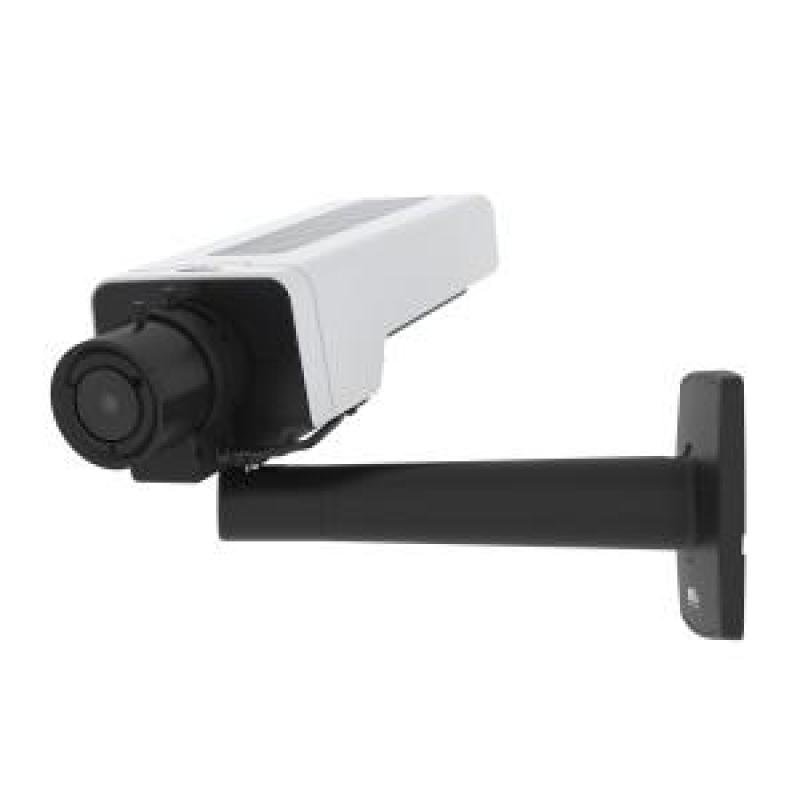

NET CAMERA P1377 5MP/01808-001 AXIS

NET CAMERA P1377 5MP/01808-001 AXIS
NET CAMERA P1377 5MP/01808-001 AXIS
  • Connectivity technology: Wired
  • Zoom capability: Yes
  • Maximum resolution: 2592 x 1944
  • Total megapixels: 5
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
55,172ден.
  • Достапност:
  • Бренд: AXIS
  • Шифра: 288124
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Axis 01808-001. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Box. Minimum illumination: 0.03 lx, Lens viewing angle, horizontal: 111°, Lens viewing angle, vertical: 81°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Focal length range: 2.8 - 8 mm
  • Vendor Homepage: https://www.axis.com/en-gb/products/axis-p1377/
  • Name: NET CAMERA P1377 5MP/01808-001 AXIS
  • Category Code: FNC
  • Form factor: Box
  • Mounting type: Ceiling/wall
  • Product colour: Black/White
  • Housing material: Zinc
  • Fog proof: Yes
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Indoor
  • PTZ control: Yes
  • PTZ modes: Digital PTZ
  • PTZ protocols: Pelco-D
  • Wide Dynamic Range (WDR): Yes
  • Day/night mode: Yes
  • Infrared (IR) cut-off filter: Yes
  • Alarm input/output: Yes
  • Languages support: English/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Traditional Chinese
  • Certification: EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 32 Class A, KCC KN32 Class A, KN35, IEC/EN/UL 62368-1, NIST SP 500-267
  • Camera pan control: Yes
  • Camera tilt control: Yes
  • Minimum illumination: 0.03
  • Lens viewing angle, horizontal: 111
  • Lens viewing angle, vertical: 81
  • Camera shutter speed: 1/33500 - 1/5
  • Number of sensors: 1
  • Optical sensor size: 1/2.7
  • Progressive scan: Yes
  • Sensor type: CMOS
  • Zoom capability: Yes
  • Focal length range: 2.8 - 8
  • Maximum aperture number: 1.2
  • Maximum resolution: 2592 x 1944
  • Total megapixels: 5
  • Video compression formats: H.264/H.265/MPEG
  • Supported graphics resolutions: 1280 x 720 (HD 720)/2592 x 1944/2688 x 1512
  • Supported video modes: 720p
  • Frame rate: 30
  • Video streaming: Yes
  • Image stabilizer: Yes
  • Audio system: 2-way
  • Audio system full duplex: Yes
  • Audio formats supported: AAC-LC/ADPCM/LPCM/PCM
  • Built-in microphone: Yes
  • Voice codecs: G.711/G.726
  • Ethernet LAN: Yes
  • Ethernet interface type: Gigabit Ethernet
  • Networking standards: IEEE 802.3af/IEEE 802.3at
  • Supported network protocols: IPv4, IPv6 USGv6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP
  • Quality of Service (QoS) support: Yes
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
  • Flash memory: 512
  • Internal memory: 1024
  • Ethernet LAN (RJ-45) ports: 1
  • RS-422 ports: 1
  • RS-485 ports: 1
  • Microphone in: Yes
  • Headphone outputs: 1
  • Terminal block port: Yes
  • DC-in jack: Yes
  • Password protection: Yes
  • Active tampering alarm: Yes
  • Alert notification type: E-mail
  • HTTPS encryption: Yes
  • IP address filtering: Yes
  • Security algorithms: EAP-TLS
  • Video motion detection: Yes
  • Power source type: DC,PoE
  • Power consumption (typical): 5.3
  • Power consumption (max): 9.7
  • Power consumption (Power over Ethernet (PoE)): 10.7
  • DC output voltage: 28,12
  • Operating temperature (T-T): -10 - 55
  • Storage temperature (T-T): -40 - 65
  • Operating relative humidity (H-H): 10 - 85
  • Storage relative humidity (H-H): 5 - 95
  • Width: 80
  • Depth: 214
  • Height: 57
  • Weight: 750
  • Number of cameras: 1
  • Manual: Yes
  • Iris: Yes
  • Lens mount interface: CS mount
  • Harmonized System (HS) code: 85258900
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.005356
  • Unit Calculated Weight: 1.3
Specifications
Active tampering alarmYes
Alarm input/outputYes
Alert notification typeE-mail
Audio formats supportedAAC-LC/ADPCM/LPCM/PCM
Audio system2-way
Audio system full duplexYes
Built-in microphoneYes
Camera pan controlYes
Camera shutter speed1/33500 - 1/5
Camera tilt controlYes
Card reader integratedYes
CertificationEN 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 32 Class A, KCC KN32 Class A, KN35, IEC/EN/UL 62368-1, NIST SP 500-267
Compatible memory cardsMicroSD (TransFlash)/MicroSDHC/MicroSDXC
Connectivity technologyWired
Day/night modeYes
DC output voltage28,12
DC-in jackYes
Depth214
Ethernet interface typeGigabit Ethernet
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Flash memory512
Focal length range2.8 - 8
Fog proofYes
Form factorBox
Frame rate30
Harmonized System (HS) code85258900
Headphone outputs1
Height57
Housing materialZinc
HTTPS encryptionYes
Image stabilizerYes
Infrared (IR) cut-off filterYes
Internal memory1024
IP address filteringYes
IrisYes
Languages supportEnglish/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Traditional Chinese
Lens mount interfaceCS mount
Lens viewing angle, horizontal111
Lens viewing angle, vertical81
ManualYes
Maximum aperture number1.2
Maximum resolution2592 x 1944
Microphone inYes
Minimum illumination0.03
Mounting typeCeiling/wall
Networking standardsIEEE 802.3af/IEEE 802.3at
Number of cameras1
Number of sensors1
Operating relative humidity (H-H)10 - 85
Operating temperature (T-T)-10 - 55
Optical sensor size1/2.7
Password protectionYes
Placement supportedIndoor
Power consumption (max)9.7
Power consumption (Power over Ethernet (PoE))10.7
Power consumption (typical)5.3
Power source typeDC,PoE
Product colourBlack/White
Progressive scanYes
PTZ controlYes
PTZ modesDigital PTZ
PTZ protocolsPelco-D
Quality of Service (QoS) supportYes
RS-422 ports1
RS-485 ports1
Security algorithmsEAP-TLS
Sensor typeCMOS
Storage relative humidity (H-H)5 - 95
Storage temperature (T-T)-40 - 65
SummaryAxis 01808-001. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Box. Minimum illumination: 0.03 lx, Lens viewing angle, horizontal: 111°, Lens viewing angle, vertical: 81°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Focal length range: 2.8 - 8 mm
Supported graphics resolutions1280 x 720 (HD 720)/2592 x 1944/2688 x 1512
Supported network protocolsIPv4, IPv6 USGv6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP
Supported video modes720p
Terminal block portYes
Total megapixels5
TypeIP security camera
Video compression formatsH.264/H.265/MPEG
Video motion detectionYes
Video streamingYes
Voice codecsG.711/G.726
Weight750
Wide Dynamic Range (WDR)Yes
Width80
Zoom capabilityYes
Specs
Category CodeFNC
Description

AXIS P1377 is a high-performance network camera that offers excellent 5 MP resolution. Featuring Axis Lightfinder and Axis Forensic WDR it delivers true colors and great details in challenging light or near darkness. It offers P-Iris for images with better contrast, clarity, resolution and depth of field. Designed as a deterrent, it includes electronic image stabilization for stable images as well as enhanced security features, shock detection and scene profiles. Axis Zipstream supporting H.264/H.265 provides exceptional savings on bandwidth and storage. Plus, with CS mount and support for motorized i-CS, you can easily change lens to meet your requirements.

  • 30 fps in 5 MP or up to 180 fps in HDTV 720p; Electronic image stabilization; Lightfinder and Forensic WDR; Signed firmware and secure boot; Zipstream supporting H.264 and H.265

NameNET CAMERA P1377 5MP/01808-001 AXIS
PictureUrlhttps://static.elko.cloud/ProductImages/3ee72e34-48ff-44f3-b84e-27c43f70282d.Jpeg
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/3ee72e34-48ff-44f3-b84e-27c43f70282d.Jpeg
Unit Calculated Volume0.005356
Unit Calculated Weight1.3
Units per Shipping Box1
Vendor Homepagehttps://www.axis.com/en-gb/products/axis-p1377/
