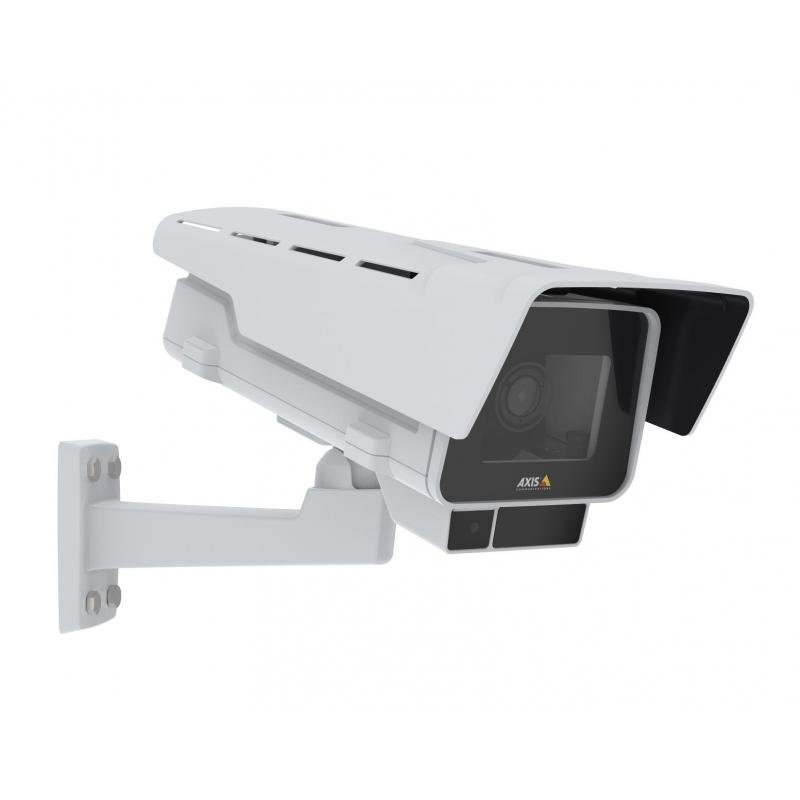

NET CAMERA P1377-LE 5MP/BAREBONE 01809-031 AXIS

NET CAMERA P1377-LE 5MP/BAREBONE 01809-031 AXIS
NET CAMERA P1377-LE 5MP/BAREBONE 01809-031 AXIS
  • Connectivity technology: Wired
  • Zoom capability: Yes
  • Maximum resolution: 2592 x 1944
  • Total megapixels: 5
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
69,792ден.
  • Достапност:
  • Бренд: AXIS
  • Шифра: 304795
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Axis 01809-031. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Box. Minimum illumination: 0.03 lx, Lens viewing angle, horizontal: 90°, Lens viewing angle, vertical: 67°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Maximum resolution: 2592 x 1944 pixels, Total megapixels: 5 MP, Video compression formats: H.264, H.265, MPEG
  • Vendor Homepage: https://www.axis.com/en-gb/products/axis-p1377-le
  • Name: NET CAMERA P1377-LE 5MP/BAREBONE 01809-031 AXIS
  • Category Code: FNC
  • Form factor: Box
  • Mounting type: Ceiling/wall
  • Product colour: Black/White
  • International Protection (IP) code: IP66, IP67
  • IK code: IK10
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Outdoor
  • PTZ control: Yes
  • PTZ modes: Digital PTZ
  • PTZ protocols: Pelco-D
  • Wide Dynamic Range (WDR): Yes
  • Day/night mode: Yes
  • Infrared (IR) cut-off filter: Yes
  • Alarm input/output: Yes
  • Languages support: English/French/German/Italian/Japanese/Korean/Portuguese/Russian/Simplified Chinese/Spanish/Traditional Chinese
  • Certification: EN 55032 Class A,EN 50121-4, IEC 62236-4, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 32 ClassA, KCC KN32 Class A, KN35, IEC/EN/UL 62368-1, IEC/EN/UL 609
  • Minimum illumination: 0.03
  • Lens viewing angle, horizontal: 90
  • Lens viewing angle, vertical: 67
  • Camera shutter speed: 1/33500 - 1/5
  • Number of sensors: 1
  • Optical sensor size: 1/2.7
  • Progressive scan: Yes
  • Sensor type: CMOS
  • Zoom capability: Yes
  • Maximum resolution: 2592 x 1944
  • Total megapixels: 5
  • Video compression formats: H.264/H.265/MPEG
  • Supported graphics resolutions: 1280 x 720 (HD 720)/2592 x 1944/2688 x 1512
  • Supported video modes: 720p
  • Frame rate: 30
  • Video streaming: Yes
  • Image stabilizer: Yes
  • Audio system: 2-way
  • Audio system full duplex: Yes
  • Audio formats supported: AAC-LC/ADPCM/LPCM/PCM
  • Built-in microphone: Yes
  • Voice codecs: G.711/G.726
  • Ethernet LAN: Yes
  • Ethernet interface type: Gigabit Ethernet
  • Networking standards: IEEE 802.3af/IEEE 802.3at
  • Supported network protocols: IPv4, IPv6 USGv6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
  • Flash memory: 512
  • Internal memory: 1024
  • Ethernet LAN (RJ-45) ports: 1
  • RS-422 ports: 1
  • RS-485 ports: 1
  • Microphone in: Yes
  • Headphone outputs: 1
  • Terminal block port: Yes
  • DC-in jack: Yes
  • Password protection: Yes
  • Active tampering alarm: Yes
  • Alert notification type: E-mail
  • HTTPS encryption: Yes
  • IP address filtering: Yes
  • Security algorithms: EAP-TLS
  • Video motion detection: Yes
  • Operating temperature (T-T): -40 - 60
  • Storage temperature (T-T): -40 - 65
  • Operating relative humidity (H-H): 10 - 100
  • Storage relative humidity (H-H): 5 - 95
  • Width: 159
  • Depth: 404
  • Height: 168
  • Number of cameras: 1
  • Manual: Yes
  • Iris: Yes
  • Lens mount interface: CS mount
  • Harmonized System (HS) code: 85258900
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.02257
  • Unit Calculated Weight: 3
Specifications
Active tampering alarmYes
Alarm input/outputYes
Alert notification typeE-mail
Audio formats supportedAAC-LC/ADPCM/LPCM/PCM
Audio system2-way
Audio system full duplexYes
Built-in microphoneYes
Camera shutter speed1/33500 - 1/5
Card reader integratedYes
CertificationEN 55032 Class A,EN 50121-4, IEC 62236-4, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 32 ClassA, KCC KN32 Class A, KN35, IEC/EN/UL 62368-1, IEC/EN/UL 609
Compatible memory cardsMicroSD (TransFlash)/MicroSDHC/MicroSDXC
Connectivity technologyWired
Day/night modeYes
DC-in jackYes
Depth404
Ethernet interface typeGigabit Ethernet
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Flash memory512
Form factorBox
Frame rate30
Harmonized System (HS) code85258900
Headphone outputs1
Height168
HTTPS encryptionYes
IK codeIK10
Image stabilizerYes
Infrared (IR) cut-off filterYes
Internal memory1024
International Protection (IP) codeIP66, IP67
IP address filteringYes
IrisYes
Languages supportEnglish/French/German/Italian/Japanese/Korean/Portuguese/Russian/Simplified Chinese/Spanish/Traditional Chinese
Lens mount interfaceCS mount
Lens viewing angle, horizontal90
Lens viewing angle, vertical67
ManualYes
Maximum resolution2592 x 1944
Microphone inYes
Minimum illumination0.03
Mounting typeCeiling/wall
Networking standardsIEEE 802.3af/IEEE 802.3at
Number of cameras1
Number of sensors1
Operating relative humidity (H-H)10 - 100
Operating temperature (T-T)-40 - 60
Optical sensor size1/2.7
Password protectionYes
Placement supportedOutdoor
Product colourBlack/White
Progressive scanYes
PTZ controlYes
PTZ modesDigital PTZ
PTZ protocolsPelco-D
RS-422 ports1
RS-485 ports1
Security algorithmsEAP-TLS
Sensor typeCMOS
Storage relative humidity (H-H)5 - 95
Storage temperature (T-T)-40 - 65
SummaryAxis 01809-031. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Box. Minimum illumination: 0.03 lx, Lens viewing angle, horizontal: 90°, Lens viewing angle, vertical: 67°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Maximum resolution: 2592 x 1944 pixels, Total megapixels: 5 MP, Video compression formats: H.264, H.265, MPEG
Supported graphics resolutions1280 x 720 (HD 720)/2592 x 1944/2688 x 1512
Supported network protocolsIPv4, IPv6 USGv6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH
Supported video modes720p
Terminal block portYes
Total megapixels5
TypeIP security camera
Video compression formatsH.264/H.265/MPEG
Video motion detectionYes
Video streamingYes
Voice codecsG.711/G.726
Wide Dynamic Range (WDR)Yes
Width159
Zoom capabilityYes
Specs
Category CodeFNC
Description

With a robust design, AXIS P1377-LE offers excellent 5 MP video and can withstand extreme temperatures ranging from -40 °C to 60 °C (-40 °F to 140 °F). For extra protection an optional weathershield is available. It delivers great details in challenging or low light and includes Axis OptimizedIR for surveillance in pitch darkness. Designed as a deterrent, it includes electronic image stabilization, shock detection, tampering alarm and video streaming indicator. Axis Zipstream supporting H.264/H.265 provides exceptional savings on bandwidth and storage. Plus, with CS mount and support for motorized i-CS, you can easily change lens to meet your requirements.

  • 30 fps in 5 MP or up to 180 fps in HDTV 720p; Electronic image stabilization; OptimizedIR and Forensic WDR; Signed firmware and secure boot; Zipstream supporting H.264 and H.265

NameNET CAMERA P1377-LE 5MP/BAREBONE 01809-031 AXIS
PictureUrlhttps://static.elko.cloud/ProductImages/9cbf0406-459b-4510-b4f2-cc36302df2a8.Jpeg
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/9cbf0406-459b-4510-b4f2-cc36302df2a8.Jpeg
Unit Calculated Volume0.02257
Unit Calculated Weight3
Units per Shipping Box1
Vendor Homepagehttps://www.axis.com/en-gb/products/axis-p1377-le
