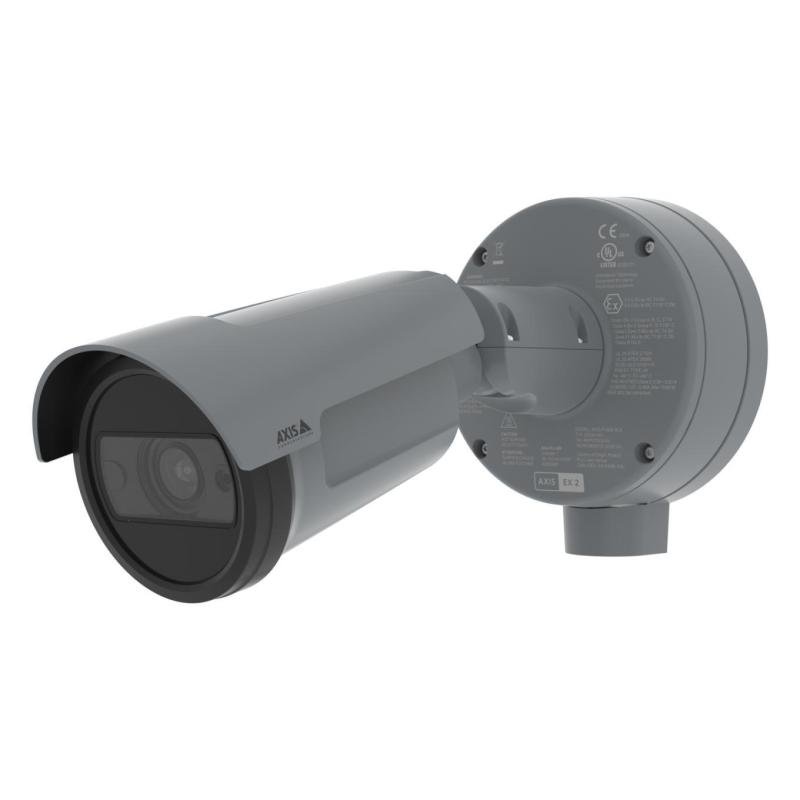

NET CAMERA P1468-XLE IR BULLET/02534-001 AXIS

NET CAMERA P1468-XLE IR BULLET/02534-001 AXIS
NET CAMERA P1468-XLE IR BULLET/02534-001 AXIS
  • Connectivity technology: Wired
  • Zoom capability: Yes
  • Maximum resolution: 3840 x 2160
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
195,593ден.
  • Достапност:
  • Бренд: AXIS
  • Шифра: 399290
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Axis 02534-001. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Grey, Form factor: Bullet. Minimum illumination: 0.07 lx, Camera shutter speed: 1/66500 - 2 s. Sensor type: CMOS, Optical sensor size: 25.4 / 1.2 mm (1 / 1.2"). Optical zoom: 2.08x, Focal length range: 6.2–12.9
  • Vendor Homepage: https://www.axis.com/products/axis-p1468-xle
  • Name: NET CAMERA P1468-XLE IR BULLET/02534-001 AXIS
  • Category Code: FNC
  • Model: P1468-XLE
  • Form factor: Bullet
  • Mounting type: Ceiling/wall
  • Product colour: Grey
  • Housing material: Aluminium/Polycarbonate (PC)
  • International Protection (IP) code: IP66, IP67
  • IK code: IK10
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Indoor & outdoor
  • PTZ modes: Digital PTZ
  • Wide Dynamic Range (WDR): Yes
  • Day/night mode: Yes
  • Infrared (IR) cut-off filter: Yes
  • Languages support: English/French/German/Italian/Japanese/Korean/Portuguese/Russian/Simplified Chinese/Spanish/Traditional Chinese
  • Number of languages: 11
  • Certification: CE, EN 55032 Class A, EN 50121-4, IEC 62236-4, EN 55035, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, RCM AS/NZS CISPR 32 Class A
  • Minimum illumination: 0.07
  • Camera shutter speed: 1/66500 - 2
  • Number of sensors: 1
  • Optical sensor size: 1/1.2
  • Progressive scan: Yes
  • Sensor type: CMOS
  • Zoom capability: Yes
  • Optical zoom: 2.08
  • Number of lenses: 1
  • Focal length range: 6.2-12.9
  • Night vision: Yes
  • Night vision distance: 40
  • LED type: IR
  • Infra-red wavelength: 850
  • Maximum resolution: 3840 x 2160
  • Video compression formats: H.264/H.265/M-JPEG
  • Supported graphics resolutions: 1280 x 720 (HD 720)
  • Video recording: Yes
  • Frame rate: 60
  • Video intelligence analytic: Yes
  • Video streaming: Yes
  • Bit rate: Configurable bit rate
  • Bit rate control: Variable Bit Rate (VBR)
  • Flip & mirror: Yes
  • Privacy masking: Yes
  • Text caption overlay: Yes
  • Audio system: 2-way
  • Audio formats supported: AAC-LC/ADPCM/G.711/G.726/LPCM/OPUS/PCM
  • Audio detection: Yes
  • Ethernet LAN: Yes
  • Networking standards: IEEE 802.1x/IEEE 802.3af/IEEE 802.3at
  • Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa , HTTP/2, TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTCP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SSH, LLDP
  • Quality of Service (QoS) support: Yes
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
  • Flash memory: 8192
  • Internal memory: 2048
  • Ethernet LAN (RJ-45) ports: 1
  • Terminal block port: Yes
  • Password protection: Yes
  • Active tampering alarm: Yes
  • Alert notification type: E-mail
  • Digest authentication: Yes
  • HTTPS encryption: Yes
  • IP address filtering: Yes
  • Pixel counter: Yes
  • Security algorithms: 256-bit AES-XTS/EAP-TLS
  • Video motion detection: Yes
  • Power source type: PoE
  • Power consumption (typical): 7.7
  • Power consumption (max): 12.95
  • Operating temperature (T-T): -40 - 60
  • Storage temperature (T-T): -40 - 65
  • Operating relative humidity (H-H): 10 - 100
  • Storage relative humidity (H-H): 5 - 95
  • Width: 280
  • Diameter: 132
  • Weight: 1200
  • Number of cameras: 1
  • Mounting brackets included: Yes
  • Drilling template included: Yes
  • Manual: Yes
  • Doesnt contain: BFR/PVC
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.006786
  • Unit Calculated Weight: 2
Specifications
Active tampering alarmYes
Alert notification typeE-mail
Audio detectionYes
Audio formats supportedAAC-LC/ADPCM/G.711/G.726/LPCM/OPUS/PCM
Audio system2-way
Bit rateConfigurable bit rate
Bit rate controlVariable Bit Rate (VBR)
Camera shutter speed1/66500 - 2
Card reader integratedYes
CertificationCE, EN 55032 Class A, EN 50121-4, IEC 62236-4, EN 55035, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, RCM AS/NZS CISPR 32 Class A
Compatible memory cardsMicroSD (TransFlash)/MicroSDHC/MicroSDXC
Connectivity technologyWired
Day/night modeYes
Diameter132
Digest authenticationYes
Doesn\'t containBFR/PVC
Drilling template includedYes
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Flash memory8192
Flip & mirrorYes
Focal length range6.2-12.9
Form factorBullet
Frame rate60
Housing materialAluminium/Polycarbonate (PC)
HTTPS encryptionYes
IK codeIK10
Infra-red wavelength850
Infrared (IR) cut-off filterYes
Internal memory2048
International Protection (IP) codeIP66, IP67
IP address filteringYes
Languages supportEnglish/French/German/Italian/Japanese/Korean/Portuguese/Russian/Simplified Chinese/Spanish/Traditional Chinese
LED typeIR
ManualYes
Maximum resolution3840 x 2160
Minimum illumination0.07
Mounting brackets includedYes
Mounting typeCeiling/wall
Networking standardsIEEE 802.1x/IEEE 802.3af/IEEE 802.3at
Night visionYes
Night vision distance40
Number of cameras1
Number of languages11
Number of lenses1
Number of sensors1
Operating relative humidity (H-H)10 - 100
Operating temperature (T-T)-40 - 60
Optical sensor size1/1.2
Optical zoom2.08
Password protectionYes
Pixel counterYes
Placement supportedIndoor & outdoor
Power consumption (max)12.95
Power consumption (typical)7.7
Power source typePoE
Privacy maskingYes
Product colourGrey
Progressive scanYes
PTZ modesDigital PTZ
Quality of Service (QoS) supportYes
Security algorithms256-bit AES-XTS/EAP-TLS
Sensor typeCMOS
Storage relative humidity (H-H)5 - 95
Storage temperature (T-T)-40 - 65
SummaryAxis 02534-001. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Grey, Form factor: Bullet. Minimum illumination: 0.07 lx, Camera shutter speed: 1/66500 - 2 s. Sensor type: CMOS, Optical sensor size: 25.4 / 1.2 mm (1 / 1.2"). Optical zoom: 2.08x, Focal length range: 6.2–12.9
Supported graphics resolutions1280 x 720 (HD 720)
Supported network protocolsIPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa , HTTP/2, TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTCP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SSH, LLDP
Terminal block portYes
Text caption overlayYes
TypeIP security camera
Video compression formatsH.264/H.265/M-JPEG
Video intelligence analyticYes
Video motion detectionYes
Video recordingYes
Video streamingYes
Weight1200
Wide Dynamic Range (WDR)Yes
Width280
Zoom capabilityYes
Specs
Category CodeFNC
Description

This sturdy 4K camera is the world’s first explosion-protected camera designed for Zone/Division 2. Ideal for health and safety applications as well as operational efficiency, it supports deep-learning based analytics that run on the edge.

A camera that’s fit for its purpose
Designed and certified for Zone and Division 2 hazardous locations (Zone 2,22 and Class I/II/III Division 2 according to ATEX/IECEx/cULus), this multitasking camera provides many benefits within health and safety applications as well as operational efficiency. For instance, smoke alert analytics monitors for signs of smoke or fire in potentially combustible environments. In operational efficiency applications, it can help increase efficiency, maintain peak operability, and maximize uptime. For instance, you can gain deeper understanding and awareness by creating an advanced data-driven sensory network that integrates with existing sensors and systems.

Deep learning-based analytics run on the edge
Built on ARTPEC-8, it includes a deep learning processing unit (DLPU) enabling advanced features and powerful analytics that run on the edge. For instance, by connecting the camera to the process control system and continuously monitoring a process, you can fine-tune the process in real-time to maximize throughput. Plus, you’ll be able to extract and send metadata, which can be used for trend monitoring and predictive maintenance.

Excellent image quality day or night
AXIS P1468-XLE offers outstanding 4K resolution at up to 60 fps. Thanks to Lightfinder 2.0 and Forensic WDR, it delivers true colors and great forensic detail in challenging light or near darkness. And, with a large 1/1.2" sensor it ensures great light sensitivity. OptimizedIR enables surveillance in total darkness up to 40 m (131 ft) without the need for extra lighting. Plus, motion-adaptive exposure reduces the motion blur from approaching or nearby objects. Furthermore, Zipstream with support for H.264 and H.265 significantly reduces bandwidth and storage requirements without compromising image quality.

Secure and sturdy in hazardous areas
Compact and lightweight in design, this explosion-protected camera is easy to install. It offers built-in cybersecurity features to help prevent unauthorized access and safeguard your system. For instance, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis products on your network. Furthermore, this sturdy, impact-resistant camera is IP66/67, NEMA 4X, and IK10-rated for protection against dust, rain, snow, and impacts. Plus, it can withstand winds up to 50 m/s.

  • Certified for Zone and Division 2
  • Deep learning-based analytics
  • Excellent video quality with 4K at 60 fps
  • Detailed images in any light conditions
  • Impact- and weather-resistant

ModelP1468-XLE
NameNET CAMERA P1468-XLE IR BULLET/02534-001 AXIS
PictureUrlhttps://static.elko.cloud/ProductImages/5df2f387-1b66-488a-8a66-5aa92c0a7f7f.Jpeg
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/5df2f387-1b66-488a-8a66-5aa92c0a7f7f.Jpeg
Unit Calculated Volume0.006786
Unit Calculated Weight2
Units per Shipping Box1
Vendor Homepagehttps://www.axis.com/products/axis-p1468-xle
