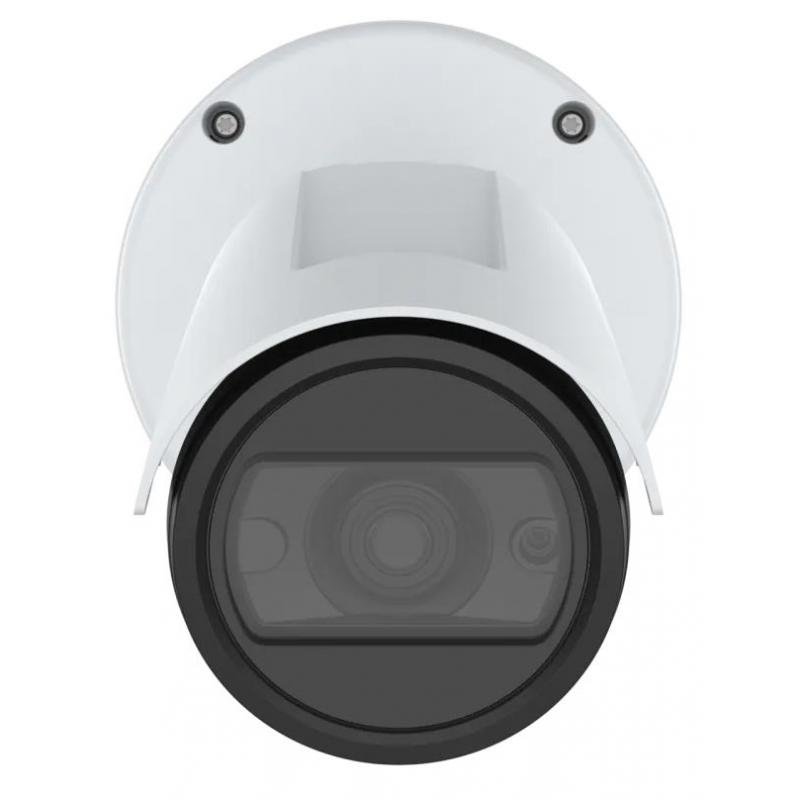

NET CAMERA P1485-LE 28MM/LPV KIT 03619-001 AXIS

NET CAMERA P1485-LE 28MM/LPV KIT 03619-001 AXIS
NET CAMERA P1485-LE 28MM/LPV KIT 03619-001 AXIS
  • Connectivity technology: Wired
  • Zoom capability: Yes
  • Maximum resolution: 1920 x 1080
  • Total megapixels: 2
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
95,924ден.
  • Достапност:
  • Бренд: AXIS
  • Шифра: 464559
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Axis P1485-LE Kit License Plate Verifier. Type: ANPR camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: White, Form factor: Bullet. Lens viewing angle, horizontal: 29.4 - 11°, Lens viewing angle, vertical: 16.5 - 6.3°, Camera pixel size: 2.9 µm. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 2.61x, Focal length range: 10.8 - 28.2 mm, Focus: Motorized
  • Vendor Homepage: https://www.axis.com/products/axis-p1485-le-kit
  • Name: NET CAMERA P1485-LE 28MM/LPV KIT 03619-001 AXIS
  • Category Code: FNC
  • Form factor: Bullet
  • Mounting type: Ceiling/Wall/Pole
  • Product colour: White
  • Housing material: Aluminium/Polycarbonate (PC)
  • Protection features: Vandal proof
  • International Protection (IP) code: IP66, IP67
  • IK code: IK10
  • Type: ANPR camera
  • Connectivity technology: Wired
  • Placement supported: Outdoor
  • PTZ control: Yes
  • Wide Dynamic Range (WDR): Yes
  • Day/night mode: Yes
  • Built-in processor: Yes
  • Processor model: ARTPEC-9
  • Dynamic range: 120
  • Languages support: Multi
  • Camera pan control: Yes
  • Camera tilt control: Yes
  • Minimum illumination: 0
  • Lens viewing angle, horizontal: 29.4 - 11
  • Lens viewing angle, vertical: 16.5 - 6.3
  • Camera pixel size: 2.9
  • Camera shutter speed: 1/37000 - 2
  • Optical sensor size: 1/2.8
  • Sensor type: CMOS
  • Zoom capability: Yes
  • Optical zoom: 2.61
  • Number of lenses: 1
  • Focal length range: 10.8 - 28.2
  • Auto focus: Yes
  • Focus: Motorized
  • Maximum aperture number: 1.7
  • Minimum aperture number: 1.76
  • Closest focusing distance: 2.5
  • Night vision: Yes
  • Night vision distance: 45
  • LED type: IR
  • Infra-red wavelength: 850
  • Maximum resolution: 1920 x 1080
  • Total megapixels: 2
  • Video formats supported: AV1
  • Video compression formats: AV1/H.264/H.265
  • Supported graphics resolutions: 1280 x 800 (WXGA)/1440 x 1080/160 x 120/1920 x 1080 (HD 1080)/640 x 360
  • Supported video modes: 1080p/360p/800p
  • Frame rate: 60
  • Video streaming: Yes
  • Noise reduction: Yes
  • Noise reduction technology: 2D noise reduction,3D noise reduction
  • Gain control type: Auto
  • Image quality adjustment: Brightness/Contrast/Mirror/Saturation/Sharpness/White balance
  • Image stabilizer: Yes
  • Privacy masking: Yes
  • Audio system: 2-way
  • Audio system full duplex: Yes
  • Audio formats supported: AAC-LC/ADPCM/G.711/G.726/LPCM/OPUS
  • Signal-to-Noise Ratio (SNR): 55
  • Ethernet LAN: Yes
  • Ethernet interface type: Fast Ethernet/Gigabit Ethernet
  • Networking standards: IEEE 802.1AE/IEEE 802.1ar/IEEE 802.1x/IEEE 802.3af/IEEE 802.3at
  • Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS2 , HTTP/ 2, TLS2 , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, PTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHC
  • Cabling technology: 10/100/1000Base-T(X)
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
  • Flash memory: 8000
  • RAM capacity: 2000
  • Ethernet LAN (RJ-45) ports: 1
  • Microphone in: Yes
  • Detection distance: 20
  • Pixel counter: Yes
  • Video motion detection: Yes
  • Management software: AXIS Camera Station Edge, AXIS Camera Station Pro, AXIS Camera Station 5
  • Power source type: DC,PoE
  • Power consumption: 25
  • Power consumption (typical): 6.1
  • Power consumption (max): 13
  • Power consumption (Power over Ethernet (PoE)): 4.63
  • DC output voltage: 12
  • Waste Electrical and Electronic Equipment (WEEE) compliance: Yes
  • Operating temperature (T-T): -40 - 60
  • Storage temperature (T-T): -40 - 65
  • Operating relative humidity (H-H): 10 - 100
  • Storage relative humidity (H-H): 5 - 95
  • Diameter: 134
  • Length: 287
  • Weight: 1380
  • Capture speed range: 0 - 105
  • Compliance certificates: CE/Federal Communications Commission (FCC)/ICES/KC/RCM/REACH/RoHS/VCCI
  • Number of cameras: 1
  • Quick installation guide: Yes
  • Packaging content: weathershield, terminal block connector, connector guard, cable gaskets, owner authentication key
  • Data transfer rate: 1000
  • Doesnt contain: Cadmium/CFR/Lead/Mercury/PVC/BFR
  • Iris: Yes
  • Warranty period: 5
  • Units per Pallet: 0
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.006493
  • Unit Calculated Weight: 1.7
Specifications
Audio formats supportedAAC-LC/ADPCM/G.711/G.726/LPCM/OPUS
Audio system2-way
Audio system full duplexYes
Auto focusYes
Built-in processorYes
Cabling technology10/100/1000Base-T(X)
Camera pan controlYes
Camera pixel size2.9
Camera shutter speed1/37000 - 2
Camera tilt controlYes
Capture speed range0 - 105
Card reader integratedYes
Closest focusing distance2.5
Compatible memory cardsMicroSD (TransFlash)/MicroSDHC/MicroSDXC
Compliance certificatesCE/Federal Communications Commission (FCC)/ICES/KC/RCM/REACH/RoHS/VCCI
Connectivity technologyWired
Day/night modeYes
DC output voltage12
Detection distance20
Diameter134
Doesn\'t containCadmium/CFR/Lead/Mercury/PVC/BFR
Dynamic range120
Ethernet interface typeFast Ethernet/Gigabit Ethernet
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Flash memory8000
Focal length range10.8 - 28.2
FocusMotorized
Form factorBullet
Frame rate60
Gain control typeAuto
Housing materialAluminium/Polycarbonate (PC)
IK codeIK10
Image quality adjustmentBrightness/Contrast/Mirror/Saturation/Sharpness/White balance
Image stabilizerYes
Infra-red wavelength850
International Protection (IP) codeIP66, IP67
IrisYes
Languages supportMulti
LED typeIR
Lens viewing angle, horizontal29.4 - 11
Lens viewing angle, vertical16.5 - 6.3
Management softwareAXIS Camera Station Edge, AXIS Camera Station Pro, AXIS Camera Station 5
Maximum aperture number1.7
Maximum resolution1920 x 1080
Microphone inYes
Minimum aperture number1.76
Minimum illumination0
Mounting typeCeiling/Wall/Pole
Networking standardsIEEE 802.1AE/IEEE 802.1ar/IEEE 802.1x/IEEE 802.3af/IEEE 802.3at
Night visionYes
Night vision distance45
Noise reductionYes
Noise reduction technology2D noise reduction,3D noise reduction
Number of cameras1
Number of lenses1
Operating relative humidity (H-H)10 - 100
Operating temperature (T-T)-40 - 60
Optical sensor size1/2.8
Optical zoom2.61
Packaging contentweathershield, terminal block connector, connector guard, cable gaskets, owner authentication key
Pixel counterYes
Placement supportedOutdoor
Power consumption (max)13
Power consumption (Power over Ethernet (PoE))4.63
Power consumption (typical)6.1
Power source typeDC,PoE
Privacy maskingYes
Processor modelARTPEC-9
Product colourWhite
Protection featuresVandal proof
PTZ controlYes
Quick installation guideYes
RAM capacity2000
Sensor typeCMOS
Signal-to-Noise Ratio (SNR)55
Storage relative humidity (H-H)5 - 95
Storage temperature (T-T)-40 - 65
SummaryAxis P1485-LE Kit License Plate Verifier. Type: ANPR camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: White, Form factor: Bullet. Lens viewing angle, horizontal: 29.4 - 11°, Lens viewing angle, vertical: 16.5 - 6.3°, Camera pixel size: 2.9 µm. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 2.61x, Focal length range: 10.8 - 28.2 mm, Focus: Motorized
Supported graphics resolutions1280 x 800 (WXGA)/1440 x 1080/160 x 120/1920 x 1080 (HD 1080)/640 x 360
Supported network protocolsIPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS2 , HTTP/ 2, TLS2 , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, PTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHC
Supported video modes1080p/360p/800p
Total megapixels2
TypeANPR camera
Video compression formatsAV1/H.264/H.265
Video formats supportedAV1
Video motion detectionYes
Video streamingYes
Warranty period5
Waste Electrical and Electronic Equipment (WEEE) complianceYes
Weight1380
Wide Dynamic Range (WDR)Yes
Zoom capabilityYes
Specs
Category CodeFNC
Data transfer rate1000
Description

Built for free-flow traffic, this robust, all-in-one LPR kit offers a highly efficient way to capture license plates and other vehicle details. Purpose-tuned and easy to deploy, it seamlessly integrates with Axis and third-party VMSs.

All-in-one kit for LPR and vehicle details
AXIS P1485-LE Kit License Plate Verifier offers a 2 MP bullet camera with AXIS License Plate Verifier preinstalled. Ideal for free-flow traffic in cities, access roads, and campuses, it’s purpose-tuned for highly reliable license plate capture of vehicles travelling up to 105 km/h (65 mph). With a powerful deep learning processing unit (DLPU), it can recognize vehicle details under optimal conditions, including type, color, make, and model – no external servers required. Advanced search and filtering make it quick and easy to locate specific vehicles. What’s more, with a 28 mm tele lens, and corridor format, it allows for sharp license plates reading from 7 to 20 m (20-65 ft).

Capture sharp images 24/7 in all environments
This robust bullet camera kit with a built-in weather shield operates in temperatures from -40 to 60°C (-40 to 140°F). With 2 MP resolution at 25/30 fps, it delivers the image clarity and frame rate needed for accurate and highly reliable license plate recognition. Thanks to Lightfinder 2.0 and OptimizedIR, it captures sharp, high-contrast images and maintains license plate readability 24/7 – even in challenging light such as strong headlights and pitch darkness. Electronic image stabilization ensures smooth video no matter where it’s mounted. And shock detection notifies you if there’s any attempts to interfere with the camera.

Effortless LPR setup and scalable integration
This all-in-one kit is fast and easy to deploy. You can have your system up and running with minimal adjustments thanks to features like remote zoom and focus, and automatic focusing tools. And traffic camera installation assistant makes it easy to align and configure the camera. Built on open APIs, this scalable solution integrates seamlessly with Axis and third-party VMSs. Additionally, the application’s open APIs lets you add tailor-made applications for more complex requirements. With its intuitive user interface, AXIS Camera Station Pro provides all the necessary features for effective surveillance and total control over your license plate recognition.

Things to consider for license plate capture
Learn how to optimize your setup for the best results

  • AXIS License Plate Verifier preinstalled
  • Purpose-tuned for license plate recognition
  • Recognizes vehicle type, color, make, and model
  • Robust design withstands tough weather
  • Easily integrate with Axis and third-party VMSs

Length287
NameNET CAMERA P1485-LE 28MM/LPV KIT 03619-001 AXIS
PictureUrlhttps://static.elko.cloud/ProductImages/96071df4-6edd-445a-bdae-6f1923efe7f0.Jpeg
Power consumption25
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/96071df4-6edd-445a-bdae-6f1923efe7f0.Jpeg
Unit Calculated Volume0.006493
Unit Calculated Weight1.7
Units per Pallet0
Units per Shipping Box1
Vendor Homepagehttps://www.axis.com/products/axis-p1485-le-kit
