- Connectivity technology: Wired
- Maximum resolution: 3840 x 2160
- Total megapixels: 8.3
- Ethernet LAN: Yes
- Достапност:
- Бренд: AXIS
- Шифра: 341318
- Гарантен рок: 12 месеци
- Достава: 13-16 дена
Technical Specifications

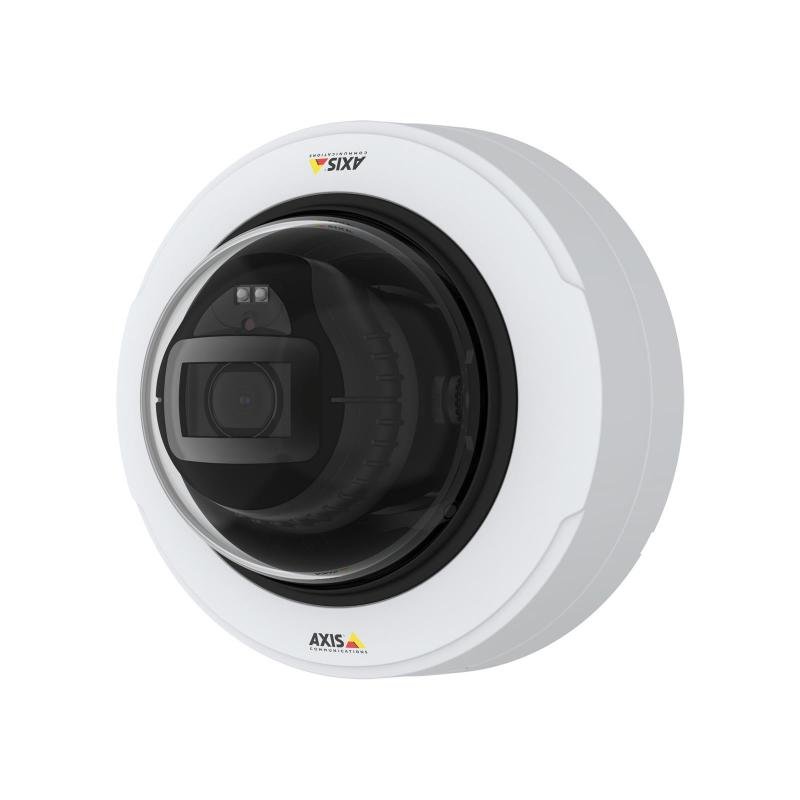

- Summary: Axis P3248-LV. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.14 lx, Angle of rotation: 350°, Tilt angle range: -75 - 75°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Focal length range: 4.3 - 8.6 mm
- Vendor Homepage: https://www.axis.com/products/axis-p3248-lv
- Name: NET CAMERA P3248-LV DOME/01597-001 AXIS
- Category Code: FNC
- Form factor: Dome
- Mounting type: Ceiling/wall
- Product colour: Black/White
- International Protection (IP) code: IP56
- IK code: IK10
- Type: IP security camera
- Connectivity technology: Wired
- Placement supported: Outdoor
- PTZ control: Yes
- Camera pan control: Yes
- Camera tilt control: Yes
- Minimum illumination: 0.14
- Angle of rotation: 350
- Tilt angle range: -75 - 75
- Pan range: -180 - 180
- Camera shutter speed: 1/8500 - 1/5
- Adjustment shutter speed: Auto
- Number of sensors: 1
- Optical sensor size: 1/1.8
- Sensor type: CMOS
- Number of lenses: 1
- Focal length range: 4.3 - 8.6
- Maximum resolution: 3840 x 2160
- Total megapixels: 8.3
- Video formats supported: H.264/H.265/M-JPEG
- Video compression formats: H.264/H.265
- Supported graphics resolutions: 3840 x 2160
- Supported video modes: 2160p
- Frame rate: 30
- Audio system full duplex: Yes
- Audio formats supported: ADPCM/LPCM/PCM
- Ethernet LAN: Yes
- Networking standards: IEEE 802.1x
- Supported network protocols: IPv4, IPv6 USGv6, HTTP, HTTP/2, HTTPSa , SSL/TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, SIP, LLDP, MQTT v3.1.
- Flash memory: 512
- Internal memory: 2048
- Power source type: PoE
- Power consumption (max): 11.4
- Power consumption (Power over Ethernet (PoE)): 8.2
- Operating temperature (T-T): 0 - 50
- Storage temperature (T-T): -40 - 65
- Operating relative humidity (H-H): 10 - 85
- Storage relative humidity (H-H): 5 - 95
- Height: 103
- Diameter: 149
- Weight: 720
- Number of cameras: 1
- Manual: Yes
- Harmonized System (HS) code: 85258900
- Units per Shipping Box: 1
- Unit Calculated Volume: 0.00392
- Unit Calculated Weight: 0.96
| Specifications | |
| Adjustment shutter speed | Auto |
| Angle of rotation | 350 |
| Audio formats supported | ADPCM/LPCM/PCM |
| Audio system full duplex | Yes |
| Camera pan control | Yes |
| Camera shutter speed | 1/8500 - 1/5 |
| Camera tilt control | Yes |
| Connectivity technology | Wired |
| Diameter | 149 |
| Ethernet LAN | Yes |
| Flash memory | 512 |
| Focal length range | 4.3 - 8.6 |
| Form factor | Dome |
| Frame rate | 30 |
| Harmonized System (HS) code | 85258900 |
| Height | 103 |
| IK code | IK10 |
| Internal memory | 2048 |
| International Protection (IP) code | IP56 |
| Manual | Yes |
| Maximum resolution | 3840 x 2160 |
| Minimum illumination | 0.14 |
| Mounting type | Ceiling/wall |
| Networking standards | IEEE 802.1x |
| Number of cameras | 1 |
| Number of lenses | 1 |
| Number of sensors | 1 |
| Operating relative humidity (H-H) | 10 - 85 |
| Operating temperature (T-T) | 0 - 50 |
| Optical sensor size | 1/1.8 |
| Pan range | -180 - 180 |
| Placement supported | Outdoor |
| Power consumption (max) | 11.4 |
| Power consumption (Power over Ethernet (PoE)) | 8.2 |
| Power source type | PoE |
| Product colour | Black/White |
| PTZ control | Yes |
| Sensor type | CMOS |
| Storage relative humidity (H-H) | 5 - 95 |
| Storage temperature (T-T) | -40 - 65 |
| Summary | Axis P3248-LV. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.14 lx, Angle of rotation: 350°, Tilt angle range: -75 - 75°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Focal length range: 4.3 - 8.6 mm |
| Supported graphics resolutions | 3840 x 2160 |
| Supported network protocols | IPv4, IPv6 USGv6, HTTP, HTTP/2, HTTPSa , SSL/TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, SIP, LLDP, MQTT v3.1. |
| Supported video modes | 2160p |
| Tilt angle range | -75 - 75 |
| Total megapixels | 8.3 |
| Type | IP security camera |
| Video compression formats | H.264/H.265 |
| Video formats supported | H.264/H.265/M-JPEG |
| Weight | 720 |
| Specs | |
| Category Code | FNC |
| Description | AXIS P3248-LV is a robust fixed dome camera that delivers brilliant 4K resolution in any light. This streamlined camera offers cost-efficient installation making it ideal for various surveillance situations, such as in data centers, logistic centers and high-end retail stores.
|
| Name | NET CAMERA P3248-LV DOME/01597-001 AXIS |
| PictureUrl | https://static.elko.cloud/ProductImages/9328b08c-0cd8-4a46-86b5-8b43aa968b4e.Jpeg |
| thumbnailImagePath | https://static.elko.cloud/ProductImagesThumbs/9328b08c-0cd8-4a46-86b5-8b43aa968b4e.Jpeg |
| Unit Calculated Volume | 0.00392 |
| Unit Calculated Weight | 0.96 |
| Units per Shipping Box | 1 |
| Vendor Homepage | https://www.axis.com/products/axis-p3248-lv |
