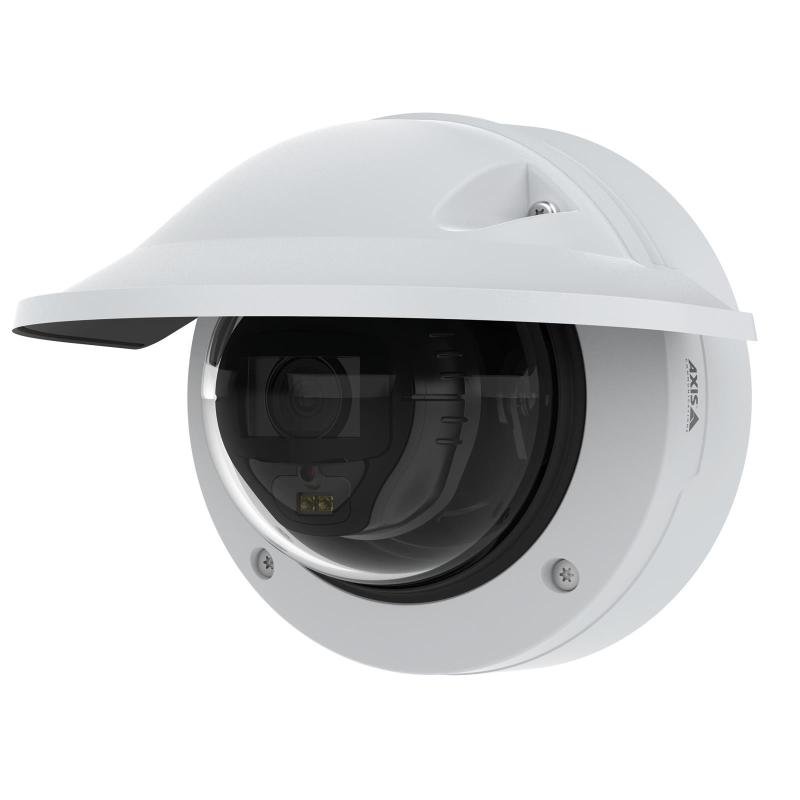

NET CAMERA P3267-LVE DOME/02330-001 AXIS

NET CAMERA P3267-LVE DOME/02330-001 AXIS
NET CAMERA P3267-LVE DOME/02330-001 AXIS
  • Connectivity technology: Wired
  • Zoom capability: Yes
  • Maximum resolution: 2592 x 1944
  • Total megapixels: 5
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
66,707ден.
  • Достапност:
  • Бренд: AXIS
  • Шифра: 370652
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Axis 02330-001. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Minimum illumination: 0.13 lx, Angle of rotation: 190°, Tilt angle range: -10 - 80°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Focal length range: 3 - 8 mm, Normal focusing range: 1 m
  • Vendor Homepage: https://www.axis.com/products/axis-p3267-lve
  • Name: NET CAMERA P3267-LVE DOME/02330-001 AXIS
  • Category Code: FNC
  • Model: P3267-LVE
  • Form factor: Dome
  • Mounting type: Ceiling/wall
  • Product colour: White
  • Housing material: Polycarbonate (PC)
  • International Protection (IP) code: IP66
  • IK code: IK10
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Outdoor
  • PTZ modes: Digital PTZ
  • Wide Dynamic Range (WDR): Yes
  • Day/night mode: Yes
  • Infrared (IR) cut-off filter: Yes
  • Languages support: English/French/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Traditional Chinese
  • Number of languages: 12
  • Certification: EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A, VCCI Class A
  • Camera pan control: Yes
  • Camera tilt control: Yes
  • Minimum illumination: 0.13
  • Angle of rotation: 190
  • Tilt angle range: -10 - 80
  • Pan range: -190 - 190
  • Camera shutter speed: 1/33500 - 1/5
  • Number of sensors: 1
  • Optical sensor size: 1/2.7
  • Progressive scan: Yes
  • Sensor type: CMOS
  • Zoom capability: Yes
  • Number of lenses: 1
  • Focal length range: 3 - 8
  • Normal focusing range: 1
  • Night vision: Yes
  • Night vision distance: 40
  • LED type: IR
  • Infra-red wavelength: 850
  • Maximum resolution: 2592 x 1944
  • Total megapixels: 5
  • Video compression formats: H.264/H.265/M-JPEG
  • Video recording: Yes
  • Frame rate: 30
  • Video streaming: Yes
  • Gain control type: Auto
  • Bit rate control: Variable Bit Rate (VBR)
  • Flip & mirror: Yes
  • Image quality adjustment: Brightness/Contrast/Saturation/Sharpness
  • Privacy masking: Yes
  • Smart IR: Yes
  • Text caption overlay: Yes
  • Audio detection: Yes
  • Ethernet LAN: Yes
  • Networking standards: IEEE 802.1x/IEEE 802.3af/IEEE 802.3at
  • Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa , HTTP/2, TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTCP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SSH, SIP,
  • Quality of Service (QoS) support: Yes
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
  • Flash memory: 8192
  • Internal memory: 2048
  • Ethernet LAN (RJ-45) ports: 1
  • Terminal block port: Yes
  • Password protection: Yes
  • Active tampering alarm: Yes
  • Alert notification type: E-mail
  • HTTPS encryption: Yes
  • IP address filtering: Yes
  • Video motion detection: Yes
  • Power source type: PoE
  • Power consumption (typical): 6.4
  • Power consumption (max): 12.1
  • Operating temperature (T-T): -40 - 50
  • Storage temperature (T-T): -40 - 65
  • Operating relative humidity (H-H): 10 - 100
  • Storage relative humidity (H-H): 5 - 95
  • Height: 107
  • Diameter: 149
  • Weight: 900
  • Number of cameras: 1
  • Drilling template included: Yes
  • Manual: Yes
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.00588
  • Unit Calculated Weight: 1.18
Specifications
Active tampering alarmYes
Alert notification typeE-mail
Angle of rotation190
Audio detectionYes
Bit rate controlVariable Bit Rate (VBR)
Camera pan controlYes
Camera shutter speed1/33500 - 1/5
Camera tilt controlYes
Card reader integratedYes
CertificationEN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A, VCCI Class A
Compatible memory cardsMicroSD (TransFlash)/MicroSDHC/MicroSDXC
Connectivity technologyWired
Day/night modeYes
Diameter149
Drilling template includedYes
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Flash memory8192
Flip & mirrorYes
Focal length range3 - 8
Form factorDome
Frame rate30
Gain control typeAuto
Height107
Housing materialPolycarbonate (PC)
HTTPS encryptionYes
IK codeIK10
Image quality adjustmentBrightness/Contrast/Saturation/Sharpness
Infra-red wavelength850
Infrared (IR) cut-off filterYes
Internal memory2048
International Protection (IP) codeIP66
IP address filteringYes
Languages supportEnglish/French/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Traditional Chinese
LED typeIR
ManualYes
Maximum resolution2592 x 1944
Minimum illumination0.13
Mounting typeCeiling/wall
Networking standardsIEEE 802.1x/IEEE 802.3af/IEEE 802.3at
Night visionYes
Night vision distance40
Normal focusing range1
Number of cameras1
Number of languages12
Number of lenses1
Number of sensors1
Operating relative humidity (H-H)10 - 100
Operating temperature (T-T)-40 - 50
Optical sensor size1/2.7
Pan range-190 - 190
Password protectionYes
Placement supportedOutdoor
Power consumption (max)12.1
Power consumption (typical)6.4
Power source typePoE
Privacy maskingYes
Product colourWhite
Progressive scanYes
PTZ modesDigital PTZ
Quality of Service (QoS) supportYes
Sensor typeCMOS
Smart IRYes
Storage relative humidity (H-H)5 - 95
Storage temperature (T-T)-40 - 65
SummaryAxis 02330-001. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Minimum illumination: 0.13 lx, Angle of rotation: 190°, Tilt angle range: -10 - 80°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Focal length range: 3 - 8 mm, Normal focusing range: 1 m
Supported network protocolsIPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa , HTTP/2, TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTCP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SSH, SIP,
Terminal block portYes
Text caption overlayYes
Tilt angle range-10 - 80
Total megapixels5
TypeIP security camera
Video compression formatsH.264/H.265/M-JPEG
Video motion detectionYes
Video recordingYes
Video streamingYes
Weight900
Wide Dynamic Range (WDR)Yes
Zoom capabilityYes
Specs
Category CodeFNC
Description

Featuring Lightfinder 2.0, Forensic WDR, and OptimizedIR, AXIS P3267-LVE delivers excellent image quality under any light conditions. Based on the latest Axis system-on-chip (SoC), it includes a deep learning processing unit enabling advanced features and powerful analytics based on deep learning on the edge. Thanks to AXIS Object Analytics, it offers detection and classification of humans, vehicles, and types of vehicles—all tailored to your specific needs. Featuring audio and I/O connectivity, you can integrate equipment and extend the value of your system. Furthermore, this robust, IK10-rated, outdoor-ready camera includes built-in cybersecurity to help prevent unauthorized access and safeguard your system.

  • Analytics with deep learning; Audio and I/O connectivity; Built-in cybersecurity features; Excellent image quality in 5 MP; Lightfinder 2.0, Forensic WDR, and OptimizedIR

ModelP3267-LVE
NameNET CAMERA P3267-LVE DOME/02330-001 AXIS
PictureUrlhttps://static.elko.cloud/ProductImages/df7a588a-dfb4-4581-a0c4-73a83da85f51.Jpeg
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/df7a588a-dfb4-4581-a0c4-73a83da85f51.Jpeg
Unit Calculated Volume0.00588
Unit Calculated Weight1.18
Units per Shipping Box1
Vendor Homepagehttps://www.axis.com/products/axis-p3267-lve
