NET CAMERA P3268-SLVE DOME/02710-001 AXIS

NET CAMERA P3268-SLVE DOME/02710-001 AXIS
NET CAMERA P3268-SLVE DOME/02710-001 AXIS
  • Connectivity technology: Wired
  • Zoom capability: Yes
  • Maximum resolution: 3840 x 2160
  • Total megapixels: 8
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
92,820ден.
  • Достапност:
  • Бренд: AXIS
  • Шифра: 456606
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Axis P3268-SLVE. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, Silver, Form factor: Dome. Angle of rotation: 380°, Tilt angle range: -10 - 80°, Pan range: -190 - 190°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Focal length range: 4.3 - 8.6 mm, Closest focusing distance: 0.5 m
  • Vendor Homepage: https://www.axis.com/products/axis-p3268-slve#overview
  • Name: NET CAMERA P3268-SLVE DOME/02710-001 AXIS
  • Category Code: FNC
  • Form factor: Dome
  • Mounting type: Ceiling/wall
  • Product colour: Black/Silver
  • Housing material: Polycarbonate (PC)/Stainless steel
  • International Protection (IP) code: IP66, IP67, IP68
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Indoor
  • PTZ control: Yes
  • Preset points: Yes
  • Wide Dynamic Range (WDR): Yes
  • Day/night mode: Yes
  • Infrared (IR) cut-off filter: Yes
  • Built-in processor: Yes
  • Processor model: ARTPEC-8
  • Camera pan control: Yes
  • Camera tilt control: Yes
  • Minimum illumination: 0
  • Angle of rotation: 380
  • Tilt angle range: -10 - 80
  • Pan range: -190 - 190
  • Camera shutter type: Electronic
  • Camera shutter speed: 1/8500
  • Number of sensors: 1
  • Optical sensor size: 1/1.8
  • Progressive scan: Yes
  • Sensor type: CMOS
  • Zoom capability: Yes
  • Number of lenses: 1
  • Focal length range: 4.3 - 8.6
  • Closest focusing distance: 0.5
  • Night vision: Yes
  • Night vision distance: 40
  • LED type: IR
  • Infra-red wavelength: 850
  • Maximum resolution: 3840 x 2160
  • Total megapixels: 8
  • Video formats supported: MPEG4
  • Video compression formats: H.264/H.265/M-JPEG
  • Frame rate: 30
  • Video streaming: Yes
  • Gain control type: Auto
  • Image quality adjustment: Brightness/Contrast/Mirror/Saturation/Sharpness
  • Text caption overlay: Yes
  • Audio system: 2-way
  • Audio formats supported: AAC-LC/G.711/G.726/LPCM
  • Ethernet LAN: Yes
  • Ethernet interface type: Fast Ethernet
  • Networking standards: IEEE 802.3af/IEEE 802.3at
  • Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa , HTTP/2, TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTCP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
  • Flash memory: 8192
  • RAM capacity: 2048
  • Ethernet LAN (RJ-45) ports: 1
  • Microphone in: Yes
  • IP address filtering: Yes
  • Security algorithms: EAP-TLS/HTTPS
  • Web-based management: Yes
  • Remotely operated: Yes
  • Power source type: PoE
  • Power consumption (typical): 5.5
  • Power consumption (max): 11.2
  • Operating temperature (T-T): -40 - 50
  • Storage temperature (T-T): -40 - 65
  • Operating relative humidity (H-H): 10 - 100
  • Storage relative humidity (H-H): 5 - 95
  • Height: 112
  • Diameter: 166
  • Weight: 1760
  • Compliance certificates: BIS/CE/cUL/KC/NSF/RCM/Trade Agreements Act (TAA)/UKCA/UL/VCCI/WEEE
  • Number of cameras: 1
  • Screws included: Yes
  • Manual: Yes
  • Units per Pallet: 0
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.004569
  • Unit Calculated Weight: 2.04
Specifications
Angle of rotation380
Audio formats supportedAAC-LC/G.711/G.726/LPCM
Audio system2-way
Built-in processorYes
Camera pan controlYes
Camera shutter speed1/8500
Camera shutter typeElectronic
Camera tilt controlYes
Card reader integratedYes
Closest focusing distance0.5
Compatible memory cardsMicroSD (TransFlash)/MicroSDHC/MicroSDXC
Compliance certificatesBIS/CE/cUL/KC/NSF/RCM/Trade Agreements Act (TAA)/UKCA/UL/VCCI/WEEE
Connectivity technologyWired
Day/night modeYes
Diameter166
Ethernet interface typeFast Ethernet
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Flash memory8192
Focal length range4.3 - 8.6
Form factorDome
Frame rate30
Gain control typeAuto
Height112
Housing materialPolycarbonate (PC)/Stainless steel
Image quality adjustmentBrightness/Contrast/Mirror/Saturation/Sharpness
Infra-red wavelength850
Infrared (IR) cut-off filterYes
International Protection (IP) codeIP66, IP67, IP68
IP address filteringYes
LED typeIR
ManualYes
Maximum resolution3840 x 2160
Microphone inYes
Minimum illumination0
Mounting typeCeiling/wall
Networking standardsIEEE 802.3af/IEEE 802.3at
Night visionYes
Night vision distance40
Number of cameras1
Number of lenses1
Number of sensors1
Operating relative humidity (H-H)10 - 100
Operating temperature (T-T)-40 - 50
Optical sensor size1/1.8
Pan range-190 - 190
Placement supportedIndoor
Power consumption (max)11.2
Power consumption (typical)5.5
Power source typePoE
Preset pointsYes
Processor modelARTPEC-8
Product colourBlack/Silver
Progressive scanYes
PTZ controlYes
RAM capacity2048
Remotely operatedYes
Screws includedYes
Security algorithmsEAP-TLS/HTTPS
Sensor typeCMOS
Storage relative humidity (H-H)5 - 95
Storage temperature (T-T)-40 - 65
SummaryAxis P3268-SLVE. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, Silver, Form factor: Dome. Angle of rotation: 380°, Tilt angle range: -10 - 80°, Pan range: -190 - 190°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Focal length range: 4.3 - 8.6 mm, Closest focusing distance: 0.5 m
Supported network protocolsIPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa , HTTP/2, TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTCP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP
Text caption overlayYes
Tilt angle range-10 - 80
Total megapixels8
TypeIP security camera
Video compression formatsH.264/H.265/M-JPEG
Video formats supportedMPEG4
Video streamingYes
Web-based managementYes
Weight1760
Wide Dynamic Range (WDR)Yes
Zoom capabilityYes
Specs
Category CodeFNC
Description

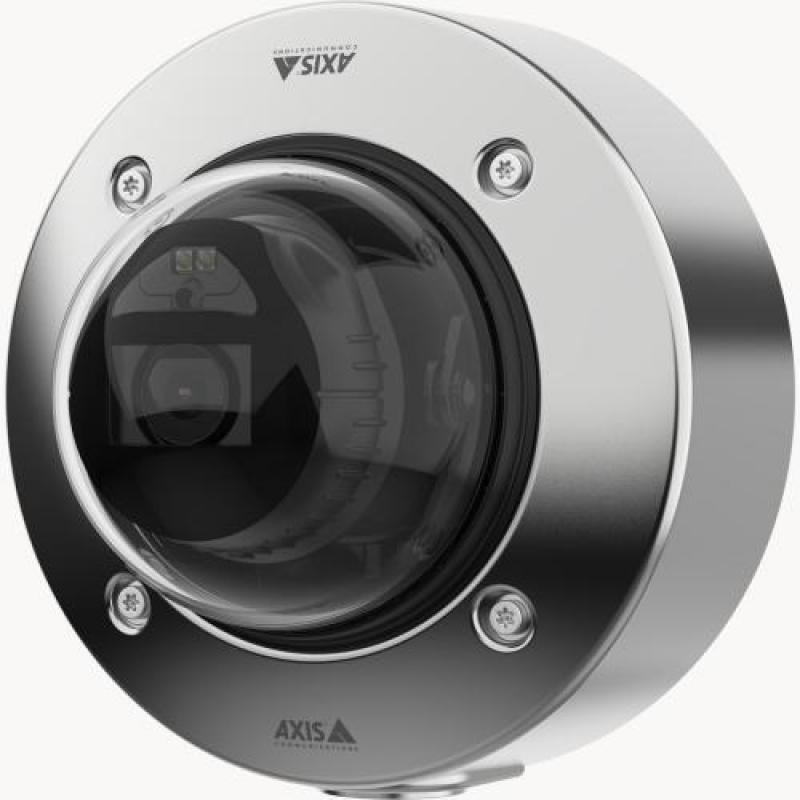

Certified for use in food processing facilities, this robust camera is enclosed in an marine-grade stainless steel (SS 316L) casing. It offers excellent image quality in 4K and supports advanced analytics based on deep learning on the edge.

Maintenance-friendly and robust
Enclosed in an electropolished, marine-grade stainless steel (SS 316L) casing, DNV-certified, this robust camera can withstand the corrosive effects of seawater as well as cleaning chemicals. Easy to clean and maintain, it’s certified by NSF/ANSI to Standard 169 (Special Purpose Food Equipment and Devices) for use in food processing facilities. Furthermore, this IK11-, NEMA 4X-, and IP66/67/68-rated camera is both weather-proof and impact-resistant. And it can withstand extreme temperatures between -40 °C to 50 °C (-40 °F to 122 °F).

Excellent image quality
AXIS P3268-SLVE delivers excellent image quality and forensic details in 8 MP at up to 30 fps. Plus, it offers a wide field of view of up to 100°. Thanks to Lightfinder 2.0 and Forensic WDR, you’ll enjoy true colors and great detail in challenging light or near darkness. And OptimizedIR ensures sharp, clear footage in complete darkness up to 40 m (130 ft) without the need for extra lighting.

Deep learning analytics on the edge
Built on ARTPEC-8, the latest Axis system-on-chip (SoC), this high-performance camera includes a deep learning processing unit (DLPU). This enables improved processing and storage capabilities allowing you to collect and analyze even more data than before—on the edge. Additionally, with support for ACAP version 4, you can add value to your system with tailor-made applications based on deep learning on the edge. Furthermore, it includes Axis Edge Vault, a hardware-based cybersecurity platform that guarantees the device’s integrity and protects it from unauthorized access.

  • Marine-grade stainless steel casing
  • NSF/ANSI Standard 169 certified
  • DNV-certified for maritime environments
  • Excellent image quality in 4K
  • Support for analytics with deep learning

NameNET CAMERA P3268-SLVE DOME/02710-001 AXIS
PictureUrlhttps://static.elko.cloud/ProductImages/c6e669c6-8d25-4707-a8ac-0ac258a02888.Jpeg
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/c6e669c6-8d25-4707-a8ac-0ac258a02888.Jpeg
Unit Calculated Volume0.004569
Unit Calculated Weight2.04
Units per Pallet0
Units per Shipping Box1
Vendor Homepagehttps://www.axis.com/products/axis-p3268-slve#overview
