NET CAMERA P3278-LV DOME/03154-001 AXIS

NET CAMERA P3278-LV DOME/03154-001 AXIS
NET CAMERA P3278-LV DOME/03154-001 AXIS
  • Connectivity technology: Wired
  • Maximum resolution: 3840 x 2160
  • Total megapixels: 8
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
69,792ден.
  • Достапност:
  • Бренд: AXIS
  • Шифра: 451512
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Axis P3278-LV. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.03 lx, Angle of rotation: 190°, Lens viewing angle, horizontal: 103°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Signal-to-Noise Ratio (SNR) (panoramic camera): 55 dB
  • Vendor Homepage: https://www.axis.com/products/axis-p3278-lv
  • Name: NET CAMERA P3278-LV DOME/03154-001 AXIS
  • Category Code: FNC
  • Model: P3278-LV
  • Form factor: Dome
  • Mounting type: Ceiling/wall
  • Product colour: Black/White
  • LED indicators: Yes
  • Housing material: Plastic/Polycarbonate (PC)
  • Protection features: Impact resistant/Vandal proof
  • International Protection (IP) code: IP54
  • IK code: IK10
  • Weatherproof: Yes
  • Fog proof: Yes
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Indoor & outdoor
  • PTZ control: Yes
  • Auto-tracking: Yes
  • Tour recording: Yes
  • People counting function: Yes
  • Wide Dynamic Range (WDR): Yes
  • Day/night mode: Yes
  • Infrared (IR) cut-off filter: Yes
  • Camera pan control: Yes
  • Camera tilt control: Yes
  • Minimum illumination: 0.03
  • Angle of rotation: 190
  • Lens viewing angle, horizontal: 103
  • Lens viewing angle, vertical: 56
  • Tilt angle range: -50 - 80
  • Pan range: -190 - 190
  • Camera shutter speed: 1/66500 - 2
  • Signal-to-Noise Ratio (SNR) (panoramic camera): 55
  • Number of sensors: 1
  • Optical sensor size: 1/1.8
  • Progressive scan: Yes
  • Sensor type: CMOS
  • Number of lenses: 1
  • Lens diameter: 10
  • Focal length range: 4.4 - 14.6
  • Auto focus: Yes
  • Maximum aperture number: 3.65
  • Minimum aperture number: 1.65
  • Closest focusing distance: 1
  • Detect distance (tele): 292
  • Detect distance (wide): 88
  • Identify distance (tele): 29
  • Identify distance (wide): 9
  • Observe distance (tele): 116
  • Observe distance (wide): 35
  • Recognize distance (tele): 58
  • Recognize distance (wide): 18
  • Night vision: Yes
  • Night vision distance: 40
  • LED type: IR
  • Infra-red wavelength: 850
  • Maximum resolution: 3840 x 2160
  • Total megapixels: 8
  • Video formats supported: AV1/AVC/H.264/H.265/HEVC/M-JPEG/MPEG4
  • Supported graphics resolutions: 2560 x 1600 (WQXGA)/2592 x 1944/3840 x 2160
  • Frame rate: 30
  • Video streaming: Yes
  • Noise reduction technology: 2D noise reduction,3D noise reduction
  • Gain control type: Auto
  • Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
  • Flip & mirror: Yes
  • Image quality adjustment: Brightness/Contrast/Saturation/Sharpness
  • Text caption overlay: Yes
  • Audio system: 2-way
  • Audio system full duplex: Yes
  • Audio formats supported: AAC-LC/ADPCM/G.711/G.726/LPCM/OPUS/PCM
  • Audio detection: Yes
  • Ethernet LAN: Yes
  • Ethernet interface type: Fast Ethernet
  • Networking standards: IEEE 802.1AE/IEEE 802.1x/IEEE 802.3af
  • Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/ 2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/ v6,
  • Quality of Service (QoS) support: Yes
  • Streaming method: Multicast
  • Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
  • Flash memory: 8
  • Internal memory: 2000
  • Microphone in: Yes
  • Terminal block port: Yes
  • Human and vehicle targets classification: Yes
  • Intelligent Video Surveillance (IVS) system features: Line crossing detection/Moving object
  • Privacy protection: Yes
  • Security algorithms: 256-bit AES-XTS/EAP-TLS/MSCHAPv2/PEAP
  • Power source type: PoE
  • Power consumption (typical): 5.5
  • Power consumption (max): 12.9
  • Operating temperature (T-T): -40 - 50
  • Storage temperature (T-T): -40 - 65
  • Operating relative humidity (H-H): 10 - 100
  • Storage relative humidity (H-H): 5 - 95
  • Width: 149
  • Depth: 149
  • Height: 107
  • Weight: 810
  • Compliance certificates: CE/cUL/EAC/Electromagnetic Compatibility (EMC)/Federal Communications Commission (FCC)/ICES/KC/RCM/REACH/RoHS/Trade Agreements Act (TAA)/UKCA/UL/VCCI
  • Number of cameras: 1
  • Manual: Yes
  • Doesnt contain: BFR/PVC
  • Units per Pallet: 0
  • Units per Shipping Box: 8
  • Unit Calculated Volume: 0.004165
  • Unit Calculated Weight: 1.06
Specifications
Angle of rotation190
Audio detectionYes
Audio formats supportedAAC-LC/ADPCM/G.711/G.726/LPCM/OPUS/PCM
Audio system2-way
Audio system full duplexYes
Auto focusYes
Auto-trackingYes
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Camera pan controlYes
Camera shutter speed1/66500 - 2
Camera tilt controlYes
Closest focusing distance1
Compatible memory cardsMicroSD (TransFlash)/MicroSDHC/MicroSDXC
Compliance certificatesCE/cUL/EAC/Electromagnetic Compatibility (EMC)/Federal Communications Commission (FCC)/ICES/KC/RCM/REACH/RoHS/Trade Agreements Act (TAA)/UKCA/UL/VCCI
Connectivity technologyWired
Day/night modeYes
Depth149
Detect distance (tele)292
Detect distance (wide)88
Doesn\'t containBFR/PVC
Ethernet interface typeFast Ethernet
Ethernet LANYes
Flash memory8
Flip & mirrorYes
Focal length range4.4 - 14.6
Fog proofYes
Form factorDome
Frame rate30
Gain control typeAuto
Height107
Housing materialPlastic/Polycarbonate (PC)
Human and vehicle targets classificationYes
Identify distance (tele)29
Identify distance (wide)9
IK codeIK10
Image quality adjustmentBrightness/Contrast/Saturation/Sharpness
Infra-red wavelength850
Infrared (IR) cut-off filterYes
Intelligent Video Surveillance (IVS) system featuresLine crossing detection/Moving object
Internal memory2000
International Protection (IP) codeIP54
LED indicatorsYes
LED typeIR
Lens diameter10
Lens viewing angle, horizontal103
Lens viewing angle, vertical56
ManualYes
Maximum aperture number3.65
Maximum resolution3840 x 2160
Microphone inYes
Minimum aperture number1.65
Minimum illumination0.03
Mounting typeCeiling/wall
Networking standardsIEEE 802.1AE/IEEE 802.1x/IEEE 802.3af
Night visionYes
Night vision distance40
Noise reduction technology2D noise reduction,3D noise reduction
Number of cameras1
Number of lenses1
Number of sensors1
Observe distance (tele)116
Observe distance (wide)35
Operating relative humidity (H-H)10 - 100
Operating temperature (T-T)-40 - 50
Optical sensor size1/1.8
Pan range-190 - 190
People counting functionYes
Placement supportedIndoor & outdoor
Power consumption (max)12.9
Power consumption (typical)5.5
Power source typePoE
Privacy protectionYes
Product colourBlack/White
Progressive scanYes
Protection featuresImpact resistant/Vandal proof
PTZ controlYes
Quality of Service (QoS) supportYes
Recognize distance (tele)58
Recognize distance (wide)18
Security algorithms256-bit AES-XTS/EAP-TLS/MSCHAPv2/PEAP
Sensor typeCMOS
Signal-to-Noise Ratio (SNR) (panoramic camera)55
Storage relative humidity (H-H)5 - 95
Storage temperature (T-T)-40 - 65
Streaming methodMulticast
SummaryAxis P3278-LV. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.03 lx, Angle of rotation: 190°, Lens viewing angle, horizontal: 103°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Signal-to-Noise Ratio (SNR) (panoramic camera): 55 dB
Supported graphics resolutions2560 x 1600 (WQXGA)/2592 x 1944/3840 x 2160
Supported network protocolsIPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/ 2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/ v6,
Terminal block portYes
Text caption overlayYes
Tilt angle range-50 - 80
Total megapixels8
Tour recordingYes
TypeIP security camera
Video formats supportedAV1/AVC/H.264/H.265/HEVC/M-JPEG/MPEG4
Video streamingYes
WeatherproofYes
Weight810
Wide Dynamic Range (WDR)Yes
Width149
Specs
Category CodeFNC
Description

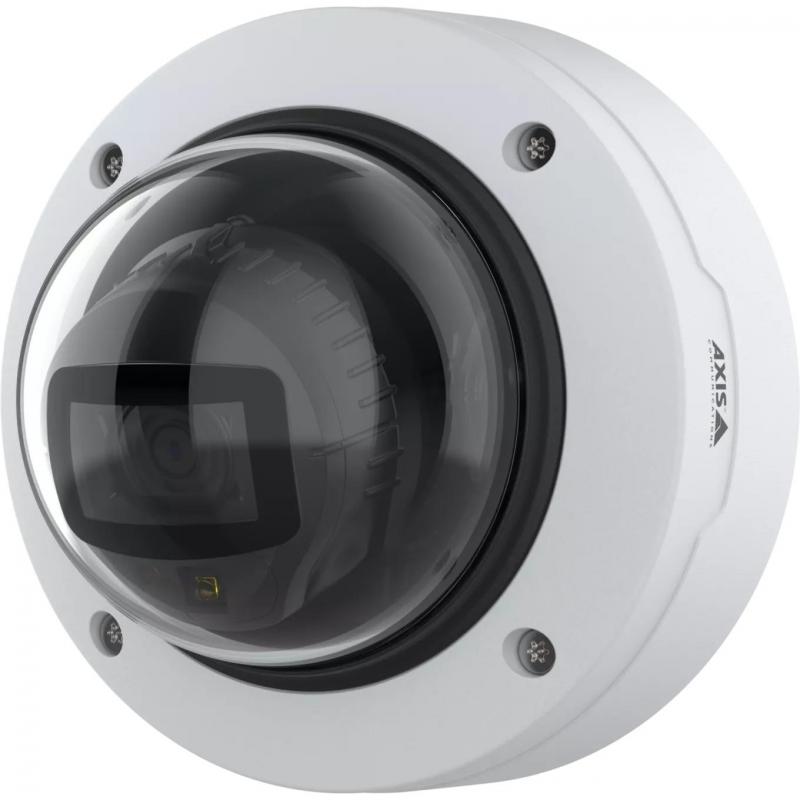

AXIS P3278-LV Dome Camera

Built on ARTPEC-9, this indoor AI-powered dome camera with support for AV1 codec delivers excellent 8 MP image quality in any light conditions. It offers accelerated performance to run impressive analytics applications on the edge.

Excellent image quality

AXIS P3278-LV offers excellent image quality and forensic details in 8 MP under any light conditions. Thanks to Lightfinder 2.0 and Forensic WDR, it ensures true colors and great detail in near darkness or challenging light. And OptimizedIR enables surveillance in pitch darkness without the need for extra lighting. Axis Zipstream with support for AV1, H.264, and H.265 significantly reduces bandwidth and storage requirements without compromising image quality. Furthermore, this dome camera features a built-in audio jack, so it’s possible to connect a microphone for audio support.

Powerful analytics

Featuring a deep learning processing unit (DLPU), this AI-based camera runs advanced features and powerful analytics on the edge. It comes with AXIS Object Analytics to detect, classify, track, and count humans. Now combined with ARTPEC 9, this application offers enhanced performance with greater accuracy. In addition, AXIS Image Health Analytics comes preinstalled, so you’ll be notified if your image is blocked, degraded, under-exposed, or redirected. And, with AXIS Live Privacy Shield, it’s easy to remotely monitor activities while protecting privacy.

Robust with strong security

This robust, IK10- and NEMA 4X-rated camera is both vandal- and impact-resistant. And a built-in intrusion switch can detect tampering. Axis Edge Vault, our hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. It also offers secure key storage with FIPS 140-3 Level 3 certified secure cryptographic key storage and operations. What’s more, this dome camera is easy to install, maintain, and operate.


  • Excellent image quality in 8 MP
  • Next-generation AI-powered analytics
  • Lightfinder 2.0 and Forensic WDR
  • Audio and I/O connectivity
  • Built-in cybersecurity with Axis Edge Vault
