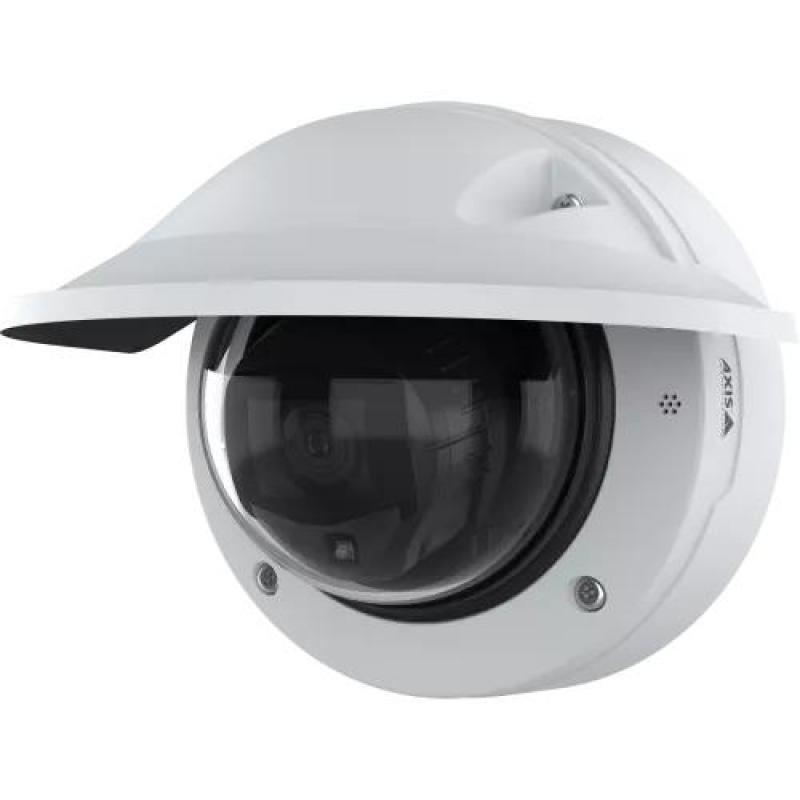

NET CAMERA P3287-LVE DOME/02984-001 AXIS

NET CAMERA P3287-LVE DOME/02984-001 AXIS
NET CAMERA P3287-LVE DOME/02984-001 AXIS
  • Connectivity technology: Wired
  • Zoom capability: Yes
  • Maximum resolution: 2592 x 1944
  • Total megapixels: 5
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
69,792ден.
  • Достапност:
  • Бренд: AXIS
  • Шифра: 463677
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Axis P3287-LVE Dome. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.02 lx, Angle of rotation: 190°, Lens viewing angle, horizontal: 34°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Lens diameter: 2.9 cm, Focal length range: 3 - 8.5 mm, Detect distance (wide): 60 m
  • Vendor Homepage: https://www.axis.com/products/axis-p3287-lve
  • Name: NET CAMERA P3287-LVE DOME/02984-001 AXIS
  • Category Code: FNC
  • Form factor: Dome
  • Mounting type: Ceiling/wall
  • Product colour: Black/White
  • LED indicators: Yes
  • Housing material: Plastic/Polycarbonate (PC)
  • Protection features: Impact resistant/Vandal proof
  • International Protection (IP) code: IP66
  • IK code: IK10
  • Weatherproof: Yes
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Indoor & outdoor
  • PTZ control: Yes
  • PTZ modes: Digital PTZ
  • Auto-tracking: Yes
  • Tour recording: Yes
  • Wide Dynamic Range (WDR): Yes
  • Day/night mode: Yes
  • Certification: UL/cUL, CE, KC, EAC, VCCI, RCM, ICES, UKCA, FCC
  • Camera pan control: Yes
  • Camera tilt control: Yes
  • Minimum illumination: 0.02
  • Angle of rotation: 190
  • Lens viewing angle, horizontal: 34
  • Lens viewing angle, vertical: 26
  • Tilt angle range: -45 - 80
  • Pan range: -190 - 190
  • Camera pixel size: 2
  • Camera shutter speed: 1/30500 - 2
  • Number of sensors: 1
  • Optical sensor size: 1/2.8
  • Sensor type: CMOS
  • Zoom capability: Yes
  • Number of lenses: 1
  • Lens diameter: 29
  • Focal length range: 3 - 8.5
  • Auto focus: Yes
  • Maximum aperture number: 1.76
  • Minimum aperture number: 1.7
  • Detect distance (tele): 170
  • Detect distance (wide): 60
  • Identify distance (tele): 17
  • Identify distance (wide): 6
  • Observe distance (tele): 67
  • Observe distance (wide): 24
  • Recognize distance (tele): 34
  • Recognize distance (wide): 12
  • Night vision: Yes
  • Night vision distance: 45
  • LED type: IR
  • Infra-red wavelength: 850
  • Maximum resolution: 2592 x 1944
  • Total megapixels: 5
  • Video formats supported: AV1/AVC/H.264/H.265/HEVC/M-JPEG/MPEG4
  • Supported graphics resolutions: 1280 x 800 (WXGA)/1440 x 1080/1920 x 1080 (HD 1080)/2592 x 1944
  • Frame rate: 30
  • Video streaming: Yes
  • Noise reduction technology: 2D noise reduction,3D noise reduction
  • Bit rate control: Variable Bit Rate (VBR)
  • Flip & mirror: Yes
  • Image quality adjustment: Brightness/Contrast/Saturation/Sharpness
  • Text caption overlay: Yes
  • Signal-to-Noise Ratio (SNR): 55
  • Audio detection: Yes
  • Ethernet LAN: Yes
  • Ethernet interface type: Fast Ethernet
  • Networking standards: IEEE 802.1AE/IEEE 802.1x/IEEE 802.3af/IEEE 802.3at
  • Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/ 2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/ v6,
  • Streaming method: Multicast
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
  • Flash memory: 8000
  • RAM capacity: 2000
  • Ethernet LAN (RJ-45) ports: 1
  • Terminal block port: Yes
  • Active tampering alarm: Yes
  • Alert notification type: E-mail
  • Human and vehicle targets classification: Yes
  • Pixel counter: Yes
  • Privacy protection: Yes
  • Security algorithms: 256-bit AES-XTS/EAP-TLS/HTTPS/MSCHAPv2/PEAP
  • Video motion detection: Yes
  • Behavior analysis: Line crossing detection
  • Power source type: PoE
  • Power consumption (typical): 4.7
  • Power consumption (max): 12.6
  • Operating temperature (T-T): 0 - 50
  • Storage temperature (T-T): -40 - 65
  • Operating relative humidity (H-H): 10 - 85
  • Storage relative humidity (H-H): 5 - 95
  • Weight: 820
  • Compliance certificates: REACH/RoHS/Trade Agreements Act (TAA)
  • Number of cameras: 1
  • Sun shield included: Yes
  • Manual: Yes
  • Doesnt contain: CFR/PVC/PVC/BFR
  • Units per Pallet: 0
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.00646
  • Unit Calculated Weight: 1.2
Specifications
Active tampering alarmYes
Alert notification typeE-mail
Angle of rotation190
Audio detectionYes
Auto focusYes
Auto-trackingYes
Behavior analysisLine crossing detection
Bit rate controlVariable Bit Rate (VBR)
Camera pan controlYes
Camera pixel size2
Camera shutter speed1/30500 - 2
Camera tilt controlYes
Card reader integratedYes
CertificationUL/cUL, CE, KC, EAC, VCCI, RCM, ICES, UKCA, FCC
Compatible memory cardsMicroSD (TransFlash)/MicroSDHC/MicroSDXC
Compliance certificatesREACH/RoHS/Trade Agreements Act (TAA)
Connectivity technologyWired
Day/night modeYes
Detect distance (tele)170
Detect distance (wide)60
Doesn\'t containCFR/PVC/PVC/BFR
Ethernet interface typeFast Ethernet
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Flash memory8000
Flip & mirrorYes
Focal length range3 - 8.5
Form factorDome
Frame rate30
Housing materialPlastic/Polycarbonate (PC)
Human and vehicle targets classificationYes
Identify distance (tele)17
Identify distance (wide)6
IK codeIK10
Image quality adjustmentBrightness/Contrast/Saturation/Sharpness
Infra-red wavelength850
International Protection (IP) codeIP66
LED indicatorsYes
LED typeIR
Lens diameter29
Lens viewing angle, horizontal34
Lens viewing angle, vertical26
ManualYes
Maximum aperture number1.76
Maximum resolution2592 x 1944
Minimum aperture number1.7
Minimum illumination0.02
Mounting typeCeiling/wall
Networking standardsIEEE 802.1AE/IEEE 802.1x/IEEE 802.3af/IEEE 802.3at
Night visionYes
Night vision distance45
Noise reduction technology2D noise reduction,3D noise reduction
Number of cameras1
Number of lenses1
Number of sensors1
Observe distance (tele)67
Observe distance (wide)24
Operating relative humidity (H-H)10 - 85
Operating temperature (T-T)0 - 50
Optical sensor size1/2.8
Pan range-190 - 190
Pixel counterYes
Placement supportedIndoor & outdoor
Power consumption (max)12.6
Power consumption (typical)4.7
Power source typePoE
Privacy protectionYes
Product colourBlack/White
Protection featuresImpact resistant/Vandal proof
PTZ controlYes
PTZ modesDigital PTZ
RAM capacity2000
Recognize distance (tele)34
Recognize distance (wide)12
Security algorithms256-bit AES-XTS/EAP-TLS/HTTPS/MSCHAPv2/PEAP
Sensor typeCMOS
Signal-to-Noise Ratio (SNR)55
Storage relative humidity (H-H)5 - 95
Storage temperature (T-T)-40 - 65
Streaming methodMulticast
SummaryAxis P3287-LVE Dome. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.02 lx, Angle of rotation: 190°, Lens viewing angle, horizontal: 34°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Lens diameter: 2.9 cm, Focal length range: 3 - 8.5 mm, Detect distance (wide): 60 m
Sun shield includedYes
Supported graphics resolutions1280 x 800 (WXGA)/1440 x 1080/1920 x 1080 (HD 1080)/2592 x 1944
Supported network protocolsIPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/ 2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/ v6,
Terminal block portYes
Text caption overlayYes
Tilt angle range-45 - 80
Total megapixels5
Tour recordingYes
TypeIP security camera
Video formats supportedAV1/AVC/H.264/H.265/HEVC/M-JPEG/MPEG4
Video motion detectionYes
Video streamingYes
WeatherproofYes
Weight820
Wide Dynamic Range (WDR)Yes
Zoom capabilityYes
Specs
Category CodeFNC
Description

Built on ARTPEC-9, this robust AI-powered dome camera with support for AV1 codec delivers excellent 5 MP image quality in any light conditions. It offers accelerated performance to run impressive analytics applications on the edge.

  • Excellent image quality in 5 MP
  • Next-generation AI-powered analytics
  • Lightfinder 2.0 and Forensic WDR
  • AXIS Audio Analytics preinstalled
  • Built-in cybersecurity with Axis Edge Vault

NameNET CAMERA P3287-LVE DOME/02984-001 AXIS
PictureUrlhttps://static.elko.cloud/ProductImages/ce7c0af8-9c84-466c-9a7e-67e7819bbf8e.Jpeg
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/ce7c0af8-9c84-466c-9a7e-67e7819bbf8e.Jpeg
Unit Calculated Volume0.00646
Unit Calculated Weight1.2
Units per Pallet0
Units per Shipping Box1
Vendor Homepagehttps://www.axis.com/products/axis-p3287-lve
