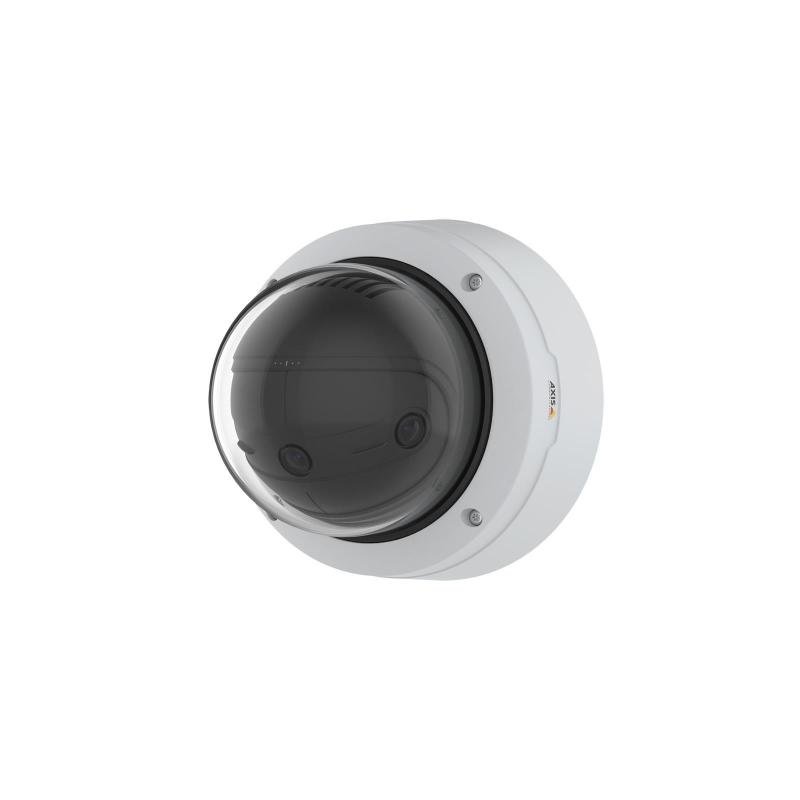

NET CAMERA P3818-PVE/02060-001 AXIS

NET CAMERA P3818-PVE/02060-001 AXIS
NET CAMERA P3818-PVE/02060-001 AXIS
  • Connectivity technology: Wired
  • Maximum resolution: 5120 x 2560
  • Total megapixels: 13
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
130,339ден.
  • Достапност:
  • Бренд: AXIS
  • Шифра: 364387
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Axis 02060-001. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Housing material: Aluminium, Polycarbonate (PC). Minimum illumination: 0.05 lx, Lens viewing angle, horizontal: 180°, Lens viewing angle, vertical: 90°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Fixed focal length: 3.2 mm
  • Vendor Homepage: https://www.axis.com/
  • Name: NET CAMERA P3818-PVE/02060-001 AXIS
  • Category Code: FNC
  • Model: P3818-PVE
  • Mounting type: Ceiling/wall
  • Product colour: White
  • Housing material: Aluminium/Polycarbonate (PC)
  • International Protection (IP) code: IP66, IP67
  • IK code: IK10
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Outdoor
  • Wide Dynamic Range (WDR): Yes
  • Day/night mode: Yes
  • Infrared (IR) cut-off filter: Yes
  • Languages support: English/French/German/Italian/Japanese/Korean/Portuguese/Russian/Simplified Chinese/Spanish/Traditional Chinese
  • Number of languages: 11
  • Certification: EAC, EN 55032 A, EN 55035, EN 50121-4, IEC 62236-4, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC 15 B A, ICES-3(A)/NMB-3(A), VCCI A, RCM AS/NZS CISPR 32 A, KC KN32 A, KC KN35, CISPR 24, CISPR 35 IEC/EN/UL 60950-22, IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-
  • Camera pan control: Yes
  • Camera tilt control: Yes
  • Minimum illumination: 0.05
  • Lens viewing angle, horizontal: 180
  • Lens viewing angle, vertical: 90
  • Tilt angle range: 0 - 50
  • Pan range: -180 - 180
  • Camera shutter speed: 1/91000 - 1/25, 1/50000 - 1/25
  • Optical sensor size: 1/2.8
  • Progressive scan: Yes
  • Sensor type: CMOS
  • Maximum aperture number: 2
  • Fixed focal length: 3.2
  • Maximum resolution: 5120 x 2560
  • Total megapixels: 13
  • Video compression formats: AVC/H.264/H.265/HEVC/M-JPEG/MPEG4
  • Frame rate: 30
  • Video streaming: Yes
  • Noise reduction: Yes
  • Image quality adjustment: Brightness/Contrast/Saturation/Sharpness
  • Audio system: 2-way
  • Voice codecs: G.711/G.726/OPUS
  • Ethernet LAN: Yes
  • Ethernet interface type: Gigabit Ethernet
  • Networking standards: IEEE 802.1x/IEEE 802.3at
  • Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTP/2, HTTPS , TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, LLDP, CD
  • Quality of Service (QoS) support: Yes
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
  • Flash memory: 512
  • Ethernet LAN (RJ-45) ports: 1
  • Microphone in: Yes
  • Password protection: Yes
  • HTTPS encryption: Yes
  • IP address filtering: Yes
  • Security algorithms: EAP-TLS/FIPS 140-2
  • Web-based management: Yes
  • Power source type: PoE
  • Power consumption (typical): 11
  • Power consumption (max): 18
  • Operating temperature (T-T): -40 - 50
  • Storage temperature (T-T): -40 - 65
  • Operating relative humidity (H-H): 10 - 100
  • Storage relative humidity (H-H): 5 - 95
  • Width: 206
  • Height: 221
  • Weight: 2200
  • Number of cameras: 1
  • Harmonized System (HS) code: 85258900
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.01428
  • Unit Calculated Weight: 3
Specifications
Audio system2-way
Camera pan controlYes
Camera shutter speed1/91000 - 1/25, 1/50000 - 1/25
Camera tilt controlYes
Card reader integratedYes
CertificationEAC, EN 55032 A, EN 55035, EN 50121-4, IEC 62236-4, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC 15 B A, ICES-3(A)/NMB-3(A), VCCI A, RCM AS/NZS CISPR 32 A, KC KN32 A, KC KN35, CISPR 24, CISPR 35 IEC/EN/UL 60950-22, IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-
Compatible memory cardsMicroSD (TransFlash)/MicroSDHC/MicroSDXC
Connectivity technologyWired
Day/night modeYes
Ethernet interface typeGigabit Ethernet
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Fixed focal length3.2
Flash memory512
Frame rate30
Harmonized System (HS) code85258900
Height221
Housing materialAluminium/Polycarbonate (PC)
HTTPS encryptionYes
IK codeIK10
Image quality adjustmentBrightness/Contrast/Saturation/Sharpness
Infrared (IR) cut-off filterYes
International Protection (IP) codeIP66, IP67
IP address filteringYes
Languages supportEnglish/French/German/Italian/Japanese/Korean/Portuguese/Russian/Simplified Chinese/Spanish/Traditional Chinese
Lens viewing angle, horizontal180
Lens viewing angle, vertical90
Maximum aperture number2
Maximum resolution5120 x 2560
Microphone inYes
Minimum illumination0.05
Mounting typeCeiling/wall
Networking standardsIEEE 802.1x/IEEE 802.3at
Noise reductionYes
Number of cameras1
Number of languages11
Operating relative humidity (H-H)10 - 100
Operating temperature (T-T)-40 - 50
Optical sensor size1/2.8
Pan range-180 - 180
Password protectionYes
Placement supportedOutdoor
Power consumption (max)18
Power consumption (typical)11
Power source typePoE
Product colourWhite
Progressive scanYes
Quality of Service (QoS) supportYes
Security algorithmsEAP-TLS/FIPS 140-2
Sensor typeCMOS
Storage relative humidity (H-H)5 - 95
Storage temperature (T-T)-40 - 65
SummaryAxis 02060-001. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Housing material: Aluminium, Polycarbonate (PC). Minimum illumination: 0.05 lx, Lens viewing angle, horizontal: 180°, Lens viewing angle, vertical: 90°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Fixed focal length: 3.2 mm
Supported network protocolsIPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTP/2, HTTPS , TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, LLDP, CD
Tilt angle range0 - 50
Total megapixels13
TypeIP security camera
Video compression formatsAVC/H.264/H.265/HEVC/M-JPEG/MPEG4
Video streamingYes
Voice codecsG.711/G.726/OPUS
Web-based managementYes
Weight2200
Wide Dynamic Range (WDR)Yes
Width206
Specs
Category CodeFNC
Description

AXIS P3818-PVE delivers a 180º panoramic overview of extensive areas with ultra-high resolution images and incredible details up to 30 fps. With 13 MP resolution and seamless stitching of all three images, it offers 180° horizontal and 90° vertical coverage with no blind spots. Including a variety of mounting options, it’s also possible to mount two cameras back-to-back for a complete 360° overview, using AXIS T94V01C Dual Camera Mount. Featuring edge-to-edge technology, it’s easy to add support for audio enabling you to listen in to transactions or incidents. Additionally, built-in cybersecurity features prevent unauthorized access and safeguard your system.

  • 13 MP multisensor camera with one IP address; 180° horizontal, 90° vertical coverage; Built-in cybersecurity features; Seamlessly stitched images; Support for audio input

ModelP3818-PVE
NameNET CAMERA P3818-PVE/02060-001 AXIS
PictureUrlhttps://static.elko.cloud/ProductImages/313f87fb-68ba-462d-9ff8-d7b6b61e76b2.Jpeg
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/313f87fb-68ba-462d-9ff8-d7b6b61e76b2.Jpeg
Unit Calculated Volume0.01428
Unit Calculated Weight3
Units per Shipping Box1
Vendor Homepagehttps://www.axis.com/
