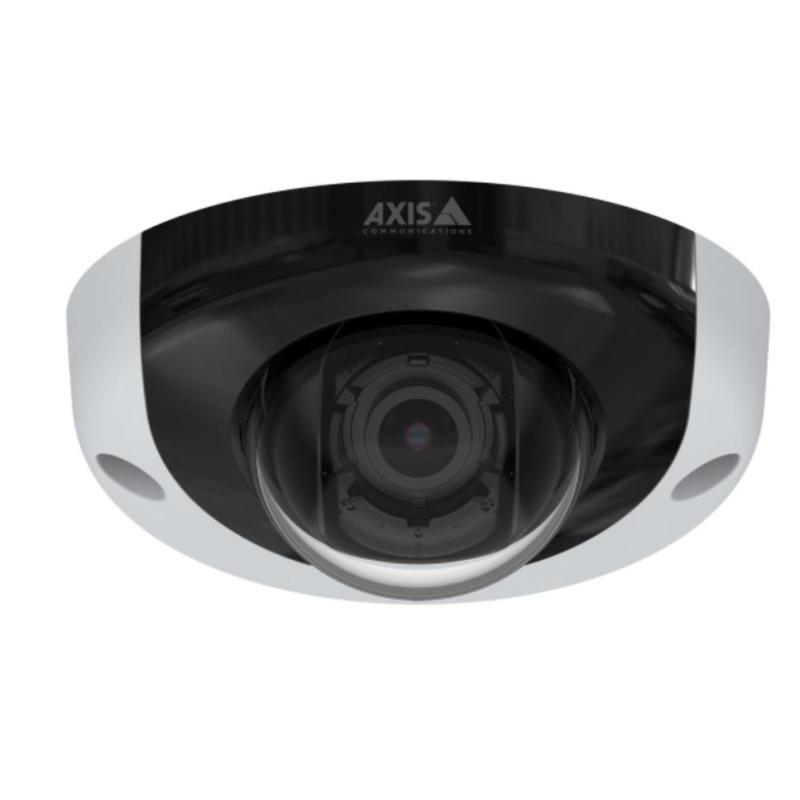

NET CAMERA P3935-LR 2MP/01919-001 AXIS

NET CAMERA P3935-LR 2MP/01919-001 AXIS
NET CAMERA P3935-LR 2MP/01919-001 AXIS
  • Connectivity technology: Wired
  • Maximum resolution: 1920 x 1080
  • Total megapixels: 2
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
38,411ден.
  • Достапност:
  • Бренд: AXIS
  • Шифра: 340822
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Axis 01919-001. Type: IP security camera, Connectivity technology: Wired, PTZ modes: Digital PTZ. Mounting type: Ceiling, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.01 lx, Angle of rotation: 350°, Lens viewing angle, horizontal: 110°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9"). Fixed focal length: 2.8 mm
  • Vendor Homepage: https://www.axis.com/products/axis-p3935-lr
  • Name: NET CAMERA P3935-LR 2MP/01919-001 AXIS
  • Category Code: FNC
  • Form factor: Dome
  • Mounting type: Ceiling
  • Product colour: Black/White
  • Housing material: Aluminium
  • International Protection (IP) code: IP66, IP67
  • IK code: IK10
  • Fog proof: Yes
  • Type: IP security camera
  • Connectivity technology: Wired
  • PTZ control: Yes
  • PTZ modes: Digital PTZ
  • Preset points: Yes
  • Wide Dynamic Range (WDR): Yes
  • Day/night mode: Yes
  • Certification: EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, RCM AS/NZS CISPR 32 Class A, KCC KN32 Class A, KN35, EN 50121-4, EN 50121-3-2, IEC 62236-4, ECE R10 rev.05 (E approval), EN 50498, IEC
  • Camera pan control: Yes
  • Camera tilt control: Yes
  • Minimum illumination: 0.01
  • Angle of rotation: 350
  • Lens viewing angle, horizontal: 110
  • Lens viewing angle, vertical: 62
  • Tilt angle range: 15 - 90
  • Pan range: -30 - 30
  • Number of sensors: 1
  • Optical sensor size: 1/2.9
  • Progressive scan: Yes
  • Sensor type: CMOS
  • Number of lenses: 1
  • Fixed focal length: 2.8
  • Maximum resolution: 1920 x 1080
  • Total megapixels: 2
  • Video compression formats: AVC/H.264/H.265/HEVC/M-JPEG/MPEG4
  • Supported graphics resolutions: 1280 x 960/160 x 120/160 x 90/1920 x 1080 (HD 1080)
  • Frame rate: 45
  • Video streaming: Yes
  • Bit rate control: Variable Bit Rate (VBR)
  • Image quality adjustment: Brightness/Contrast/Sharpness
  • Image stabilizer: Yes
  • Privacy masking: Yes
  • Text caption overlay: Yes
  • Audio system: 1-way
  • Audio formats supported: AAC-LC/G.711/LPCM/PCM
  • Sample rate: 48
  • Ethernet LAN: Yes
  • Ethernet interface type: Fast Ethernet
  • Networking standards: IEEE 802.1x/IEEE 802.3af/IEEE 802.3at
  • Supported network protocols: IPv4, IPv6 USGv6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP, MQTT
  • Number of users: 8
  • Quality of Service (QoS) support: Yes
  • Streaming method: Multicast
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
  • Flash memory: 512
  • Ethernet LAN (RJ-45) ports: 1
  • Microphone in: Yes
  • Password protection: Yes
  • Active tampering alarm: Yes
  • HTTPS encryption: Yes
  • IP address filtering: Yes
  • Video motion detection: Yes
  • Power source type: PoE
  • Power consumption (typical): 6.6
  • Power consumption (max): 11.8
  • Operating temperature (T-T): -40 - 55
  • Storage temperature (T-T): -40 - 65
  • Operating relative humidity (H-H): 10 - 95
  • Width: 110
  • Depth: 110
  • Height: 49.4
  • Weight: 400
  • Number of cameras: 1
  • Manual: Yes
  • Harmonized System (HS) code: 85258900
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.001683
  • Unit Calculated Weight: 0.54
Specifications
Active tampering alarmYes
Angle of rotation350
Audio formats supportedAAC-LC/G.711/LPCM/PCM
Audio system1-way
Bit rate controlVariable Bit Rate (VBR)
Camera pan controlYes
Camera tilt controlYes
Card reader integratedYes
CertificationEN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, RCM AS/NZS CISPR 32 Class A, KCC KN32 Class A, KN35, EN 50121-4, EN 50121-3-2, IEC 62236-4, ECE R10 rev.05 (E approval), EN 50498, IEC
Compatible memory cardsMicroSD (TransFlash)/MicroSDHC/MicroSDXC
Connectivity technologyWired
Day/night modeYes
Depth110
Ethernet interface typeFast Ethernet
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Fixed focal length2.8
Flash memory512
Fog proofYes
Form factorDome
Frame rate45
Harmonized System (HS) code85258900
Height49.4
Housing materialAluminium
HTTPS encryptionYes
IK codeIK10
Image quality adjustmentBrightness/Contrast/Sharpness
Image stabilizerYes
International Protection (IP) codeIP66, IP67
IP address filteringYes
Lens viewing angle, horizontal110
Lens viewing angle, vertical62
ManualYes
Maximum resolution1920 x 1080
Microphone inYes
Minimum illumination0.01
Mounting typeCeiling
Networking standardsIEEE 802.1x/IEEE 802.3af/IEEE 802.3at
Number of cameras1
Number of lenses1
Number of sensors1
Number of users8
Operating relative humidity (H-H)10 - 95
Operating temperature (T-T)-40 - 55
Optical sensor size1/2.9
Pan range-30 - 30
Password protectionYes
Power consumption (max)11.8
Power consumption (typical)6.6
Power source typePoE
Preset pointsYes
Privacy maskingYes
Product colourBlack/White
Progressive scanYes
PTZ controlYes
PTZ modesDigital PTZ
Quality of Service (QoS) supportYes
Sample rate48
Sensor typeCMOS
Storage temperature (T-T)-40 - 65
Streaming methodMulticast
SummaryAxis 01919-001. Type: IP security camera, Connectivity technology: Wired, PTZ modes: Digital PTZ. Mounting type: Ceiling, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.01 lx, Angle of rotation: 350°, Lens viewing angle, horizontal: 110°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9"). Fixed focal length: 2.8 mm
Supported graphics resolutions1280 x 960/160 x 120/160 x 90/1920 x 1080 (HD 1080)
Supported network protocolsIPv4, IPv6 USGv6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP, MQTT
Text caption overlayYes
Tilt angle range15 - 90
Total megapixels2
TypeIP security camera
Video compression formatsAVC/H.264/H.265/HEVC/M-JPEG/MPEG4
Video motion detectionYes
Video streamingYes
Weight400
Wide Dynamic Range (WDR)Yes
Width110
Specs
Category CodeFNC
Description

Specifically designed for onboard surveillance, AXIS P3935-LR complies with all relevant transportation industry regulations including EN50155, EN45545, and NFPA 130. Featuring Axis Lightfinder and Axis Forensic WDR, it delivers true colors and great detail in challenging light or near darkness. It includes built-in invisible IR LEDs (940 nm) for video surveillance in complete darkness. Enclosed in an IK10-, IP66-, IP67-rated metal casing, this robust, vandal-resistant camera features a built-in microphone for audio surveillance and detection. Furthermore, enhanced security features prevent unauthorized access and safeguard your system.

  • Complies with EN50155, EN45545, and NFPA 130; Enhanced security features; Invisible IR LEDs, built-in microphone, and EIS; Lightfinder and Forensic WDR; Vandal-resistant, metal casing

NameNET CAMERA P3935-LR 2MP/01919-001 AXIS
PictureUrlhttps://static.elko.cloud/ProductImages/df602620-01e2-4638-913e-3c3975105761.Jpeg
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/df602620-01e2-4638-913e-3c3975105761.Jpeg
Unit Calculated Volume0.001683
Unit Calculated Weight0.54
Units per Shipping Box1
Vendor Homepagehttps://www.axis.com/products/axis-p3935-lr
