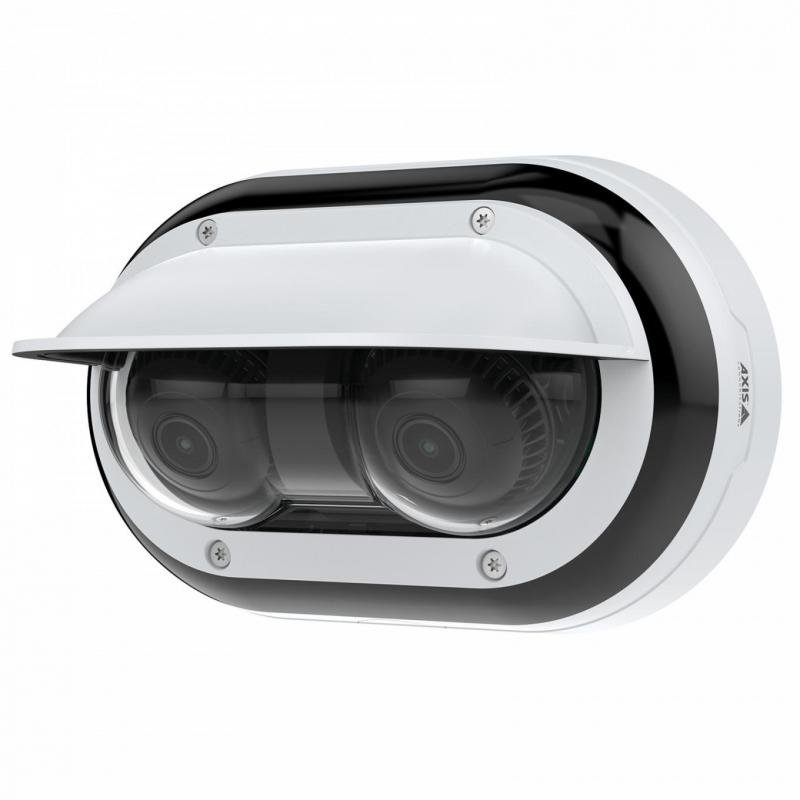

NET CAMERA P4707-PLVE 10MP/02416-001 AXIS

NET CAMERA P4707-PLVE 10MP/02416-001 AXIS
NET CAMERA P4707-PLVE 10MP/02416-001 AXIS
  • Connectivity technology: Wired
  • Zoom capability: Yes
  • Maximum resolution: 2592 x 1944
  • Total megapixels: 2.5
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
80,713ден.
  • Достапност: Има залиха
  • Бренд: AXIS
  • Шифра: 388672
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Axis 02416-001. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Bulb. Angle of rotation: 170°, Lens viewing angle, horizontal: 98 - 36°, Lens viewing angle, vertical: 69 - 27°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Sensor type (panoramic camera): CMOS, Optical sensor size (panoramic camera): 25.4 / 2.7 mm (1 / 2.7"), Camera shutter speed (panoramic camera): 1/33500 - 1/5 s
  • Vendor Homepage: https://www.axis.com/products/axis-p4707-plve
  • Name: NET CAMERA P4707-PLVE 10MP/02416-001 AXIS
  • Category Code: FNC
  • Model: P4707-PLVE
  • Form factor: Bulb
  • Mounting type: Ceiling/wall
  • Product colour: Black/White
  • International Protection (IP) code: IP66, IP67
  • IK code: IK10
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Indoor & outdoor
  • Wide Dynamic Range (WDR): Yes
  • Day/night mode: Yes
  • Angle of rotation: 170
  • Lens viewing angle, horizontal: 98 - 36
  • Lens viewing angle, vertical: 69 - 27
  • Lens viewing angle, diagonal: 133 - 46
  • Tilt angle range: -75 - 75
  • Pan range: -100 - 110
  • Camera shutter speed: 1/33500 - 1/5
  • Sensor type (panoramic camera): CMOS
  • Optical sensor size (panoramic camera): 1/2.7
  • Camera shutter speed (panoramic camera): 1/33500 - 1/5
  • Minimum illumination (panoramic camera): 0.19
  • Optical sensor size: 1/2.7
  • Focal length range (panoramic camera): 3.26 - 8.12
  • Sensor type: CMOS
  • Zoom capability: Yes
  • Number of lenses: 1
  • Focal length range: 3.26 - 8.12
  • Auto focus: Yes
  • Night vision: Yes
  • LED type: IR
  • Maximum resolution: 2592 x 1944
  • Total megapixels: 2.5
  • Video compression formats: H.264/H.265/M-JPEG
  • Supported graphics resolutions: 2560 x 1440/2592 x 1944
  • Frame rate: 30
  • Video streaming: Yes
  • Image quality adjustment: Brightness/Contrast/Sharpness
  • Privacy masking: Yes
  • Built-in speaker(s): Yes
  • Audio system: 2-way
  • Audio codecs: 24bit LPCM, AAC-LC 8/16/32/44.1/48 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, Opus 8/16/48 kHz
  • Ethernet LAN: Yes
  • Ethernet interface type: Gigabit Ethernet
  • Networking standards: IEEE 802.1x/IEEE 802.3at
  • Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa , HTTP/2, TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTCP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SSH,
  • Live view: Yes
  • Quality of Service (QoS) support: Yes
  • Card reader integrated: Yes
  • Ethernet LAN (RJ-45) ports: 1
  • Microphone in: Yes
  • Password protection: Yes
  • IP address filtering: Yes
  • Security algorithms: HTTPS
  • Power source type: PoE
  • Power consumption (Power over Ethernet (PoE)): 7.9
  • Operating temperature (T-T): -30 - 50
  • Storage temperature (T-T): -40 - 65
  • Operating relative humidity (H-H): 5 - 95
  • Width: 133
  • Depth: 208
  • Height: 88
  • Weight: 975
  • Number of cameras: 2
  • Doesnt contain: BFR/PVC
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.004912
  • Unit Calculated Weight: 1.29
Specifications
Angle of rotation170
Audio codecs24bit LPCM, AAC-LC 8/16/32/44.1/48 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, Opus 8/16/48 kHz
Audio system2-way
Auto focusYes
Built-in speaker(s)Yes
Camera shutter speed1/33500 - 1/5
Camera shutter speed (panoramic camera)1/33500 - 1/5
Card reader integratedYes
Connectivity technologyWired
Day/night modeYes
Depth208
Doesn\'t containBFR/PVC
Ethernet interface typeGigabit Ethernet
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Focal length range3.26 - 8.12
Focal length range (panoramic camera)3.26 - 8.12
Form factorBulb
Frame rate30
Height88
IK codeIK10
Image quality adjustmentBrightness/Contrast/Sharpness
International Protection (IP) codeIP66, IP67
IP address filteringYes
LED typeIR
Lens viewing angle, diagonal133 - 46
Lens viewing angle, horizontal98 - 36
Lens viewing angle, vertical69 - 27
Live viewYes
Maximum resolution2592 x 1944
Microphone inYes
Minimum illumination (panoramic camera)0.19
Mounting typeCeiling/wall
Networking standardsIEEE 802.1x/IEEE 802.3at
Night visionYes
Number of cameras2
Number of lenses1
Operating relative humidity (H-H)5 - 95
Operating temperature (T-T)-30 - 50
Optical sensor size1/2.7
Optical sensor size (panoramic camera)1/2.7
Pan range-100 - 110
Password protectionYes
Placement supportedIndoor & outdoor
Power consumption (Power over Ethernet (PoE))7.9
Power source typePoE
Privacy maskingYes
Product colourBlack/White
Quality of Service (QoS) supportYes
Security algorithmsHTTPS
Sensor typeCMOS
Sensor type (panoramic camera)CMOS
Storage temperature (T-T)-40 - 65
SummaryAxis 02416-001. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Bulb. Angle of rotation: 170°, Lens viewing angle, horizontal: 98 - 36°, Lens viewing angle, vertical: 69 - 27°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Sensor type (panoramic camera): CMOS, Optical sensor size (panoramic camera): 25.4 / 2.7 mm (1 / 2.7"), Camera shutter speed (panoramic camera): 1/33500 - 1/5 s
Supported graphics resolutions2560 x 1440/2592 x 1944
Supported network protocolsIPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa , HTTP/2, TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTCP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SSH,
Tilt angle range-75 - 75
Total megapixels2.5
TypeIP security camera
Video compression formatsH.264/H.265/M-JPEG
Video streamingYes
Weight975
Wide Dynamic Range (WDR)Yes
Width133
Zoom capabilityYes
Specs
Category CodeFNC
Description

This dual-sensor, multidirectional camera offers 2*5 MP at 30 fps. It features Lightfinder and Forensic WDR for sharp, clear images in challenging or poor light conditions. Built on ARTPEC-8, this high-performance camera includes a deep learning processing unit enabling improved processing and storage capabilities. It also allows you to collect and analyze even more data than before – on the edge. Plus, it delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. And, with flexible positioning of both varifocal camera heads plus, remote zoom and focus capabilities, it ensures fast and cost-effective installation.

  • 2*5 MP, multidirectional camera, with one IP address; 2.5x zoom; 360° IR illumination; Axis Lightfinder and Forensic WDR; Support for analytics with deep learning on both sensors

ModelP4707-PLVE
NameNET CAMERA P4707-PLVE 10MP/02416-001 AXIS
PictureUrlhttps://static.elko.cloud/ProductImages/62303e12-3f7a-4c8c-8426-5d1508ed6894.Jpeg
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/62303e12-3f7a-4c8c-8426-5d1508ed6894.Jpeg
Unit Calculated Volume0.004912
Unit Calculated Weight1.29
Units per Shipping Box1
Vendor Homepagehttps://www.axis.com/products/axis-p4707-plve
