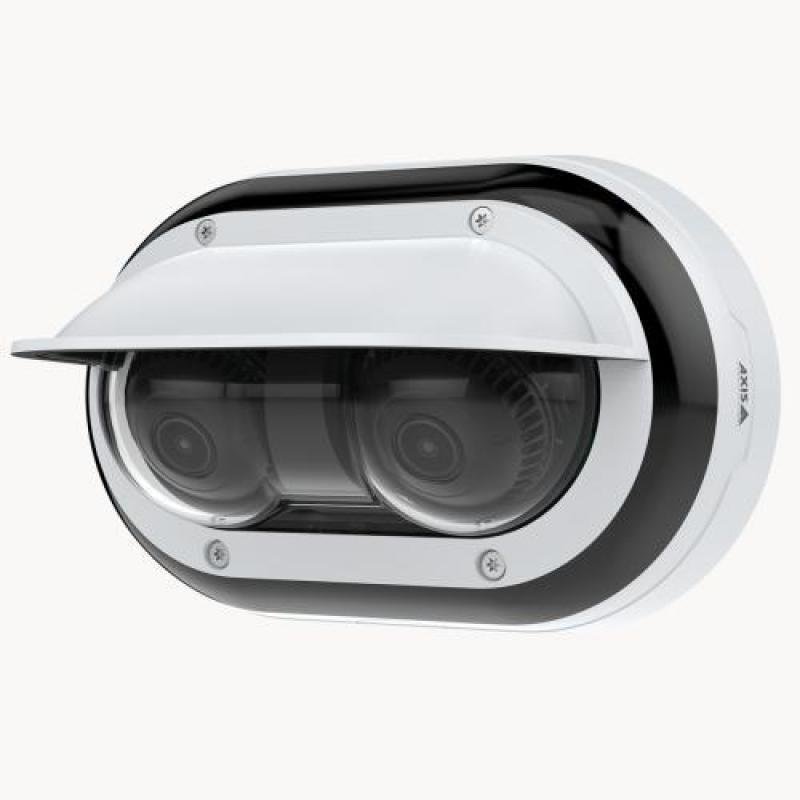

NET CAMERA P4708-PLVE 16MP/02944-001 AXIS

NET CAMERA P4708-PLVE 16MP/02944-001 AXIS
NET CAMERA P4708-PLVE 16MP/02944-001 AXIS
  • Connectivity technology: Wired
  • Zoom capability: Yes
  • Maximum resolution: 3840 x 2160
  • Total megapixels: 8
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
93,425ден.
  • Достапност:
  • Бренд: AXIS
  • Шифра: 432950
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Axis P4708-PLVE. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, Silver, Housing material: Aluminium, Plastic, Polycarbonate (PC). Angle of rotation: 240°, Tilt angle range: -75 - 75°, Pan range: -110 - 110°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Sensor type (panoramic camera): CMOS
  • Vendor Homepage: https://www.axis.com/products/axis-p4708-plve#technical-specifications
  • Name: NET CAMERA P4708-PLVE 16MP/02944-001 AXIS
  • Category Code: FNC
  • Model: 02944-001
  • Mounting type: Ceiling/wall
  • Product colour: Black/Silver
  • Housing material: Aluminium/Plastic/Polycarbonate (PC)
  • International Protection (IP) code: IP66, IP67
  • IK code: IK10
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Indoor & outdoor
  • Wide Dynamic Range (WDR): Yes
  • Day/night mode: Yes
  • Remote viewing: Yes
  • Built-in processor: Yes
  • Processor model: ARTPEC-8
  • Camera pan control: Yes
  • Camera tilt control: Yes
  • Minimum illumination: 0
  • Angle of rotation: 240
  • Tilt angle range: -75 - 75
  • Pan range: -110 - 110
  • Camera shutter type: Electronic
  • Camera shutter speed: 1/16000
  • Sensor type (panoramic camera): CMOS
  • Number of sensors: 2
  • Optical sensor size: 1/2.8
  • Sensor type: CMOS
  • Zoom capability: Yes
  • Number of lenses: 2
  • Focal length range: 3.2 - 8.1
  • Auto focus: Yes
  • Maximum aperture number: 1.9
  • Minimum aperture number: 3.2
  • Closest focusing distance: 0.5
  • Detect distance (tele): 220.1
  • Detect distance (wide): 87.8
  • Identify distance (tele): 22
  • Identify distance (wide): 8.8
  • Observe distance (tele): 87.3
  • Observe distance (wide): 34.8
  • Recognize distance (tele): 44
  • Recognize distance (wide): 17.6
  • Night vision: Yes
  • LED type: IR
  • Infra-red wavelength: 850
  • Maximum resolution: 3840 x 2160
  • Total megapixels: 8
  • Video compression formats: H.264/H.265/M-JPEG
  • Frame rate: 30
  • Video streaming: Yes
  • Noise reduction: Yes
  • Noise reduction technology: 2D noise reduction,3D noise reduction
  • Gain control type: Auto
  • Image quality adjustment: Brightness/Contrast/Mirror/Saturation/Sharpness
  • Audio system: 2-way
  • Audio formats supported: AAC-LC/ADPCM/G.711/G.726/LPCM/PCM
  • Signal-to-Noise Ratio (SNR): 55
  • Ethernet LAN: Yes
  • Ethernet interface type: Gigabit Ethernet
  • Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSb , HTTP/2, TLSb , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
  • Flash memory: 8192
  • RAM capacity: 4096
  • Ethernet LAN (RJ-45) ports: 1
  • Microphone in: Yes
  • Headphone outputs: 1
  • Privacy protection: Yes
  • Security algorithms: EAP-TLS/HTTPS/MSCHAPv2/PEAP/TLS
  • Power source type: PoE
  • Power consumption (typical): 10.2
  • Power consumption (max): 18.8
  • Operating temperature (T-T): -30 - 50
  • Storage temperature (T-T): -40 - 65
  • Operating relative humidity (H-H): 10 - 100
  • Storage relative humidity (H-H): 5 - 95
  • Width: 208
  • Depth: 127
  • Height: 133
  • Weight: 975
  • Compliance certificates: CE/cUL/EAC/Federal Communications Commission (FCC)/KC/RCM/Trade Agreements Act (TAA)/UKCA/UL/VCCI
  • Number of cameras: 1
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.005016
  • Unit Calculated Weight: 2
Specifications
Angle of rotation240
Audio formats supportedAAC-LC/ADPCM/G.711/G.726/LPCM/PCM
Audio system2-way
Auto focusYes
Built-in processorYes
Camera pan controlYes
Camera shutter speed1/16000
Camera shutter typeElectronic
Camera tilt controlYes
Card reader integratedYes
Closest focusing distance0.5
Compatible memory cardsMicroSD (TransFlash)/MicroSDHC/MicroSDXC
Compliance certificatesCE/cUL/EAC/Federal Communications Commission (FCC)/KC/RCM/Trade Agreements Act (TAA)/UKCA/UL/VCCI
Connectivity technologyWired
Day/night modeYes
Depth127
Detect distance (tele)220.1
Detect distance (wide)87.8
Ethernet interface typeGigabit Ethernet
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Flash memory8192
Focal length range3.2 - 8.1
Frame rate30
Gain control typeAuto
Headphone outputs1
Height133
Housing materialAluminium/Plastic/Polycarbonate (PC)
Identify distance (tele)22
Identify distance (wide)8.8
IK codeIK10
Image quality adjustmentBrightness/Contrast/Mirror/Saturation/Sharpness
Infra-red wavelength850
International Protection (IP) codeIP66, IP67
LED typeIR
Maximum aperture number1.9
Maximum resolution3840 x 2160
Microphone inYes
Minimum aperture number3.2
Minimum illumination0
Mounting typeCeiling/wall
Night visionYes
Noise reductionYes
Noise reduction technology2D noise reduction,3D noise reduction
Number of cameras1
Number of lenses2
Number of sensors2
Observe distance (tele)87.3
Observe distance (wide)34.8
Operating relative humidity (H-H)10 - 100
Operating temperature (T-T)-30 - 50
Optical sensor size1/2.8
Pan range-110 - 110
Placement supportedIndoor & outdoor
Power consumption (max)18.8
Power consumption (typical)10.2
Power source typePoE
Privacy protectionYes
Processor modelARTPEC-8
Product colourBlack/Silver
RAM capacity4096
Recognize distance (tele)44
Recognize distance (wide)17.6
Remote viewingYes
Security algorithmsEAP-TLS/HTTPS/MSCHAPv2/PEAP/TLS
Sensor typeCMOS
Sensor type (panoramic camera)CMOS
Signal-to-Noise Ratio (SNR)55
Storage relative humidity (H-H)5 - 95
Storage temperature (T-T)-40 - 65
SummaryAxis P4708-PLVE. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, Silver, Housing material: Aluminium, Plastic, Polycarbonate (PC). Angle of rotation: 240°, Tilt angle range: -75 - 75°, Pan range: -110 - 110°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Sensor type (panoramic camera): CMOS
Supported network protocolsIPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSb , HTTP/2, TLSb , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v
Tilt angle range-75 - 75
Total megapixels8
TypeIP security camera
Video compression formatsH.264/H.265/M-JPEG
Video streamingYes
Weight975
Wide Dynamic Range (WDR)Yes
Width208
Zoom capabilityYes
Specs
Category CodeFNC
Description

Compact in design, this dual-sensor, multidirectional camera offers two 8MP channels and a frame rate of 30 fps to deliver excellent wide-angle overviews and zoomed-in detailed coverage 24/7 - even in challenging light conditions.

See it all - 24/7
Featuring 360° IR illumination with individually controllable LEDs, this panoramic camera delivers clear images even in low light or complete darkness as well as undistorted colors during the day. And Lightfinder and Forensic WDR, ensure sharp, clear images in challenging or poor light conditions. With two 4K channels and a frame rate of 30 fps, you can capture both wide-angle and zoomed-in, detailed views. And, thanks to 2.5x zoom, it delivers wide views, and you can zoom in for all the details. Furthermore, audio input makes it possible to add audio capabilities.

Brilliant design
This compact, multidirectional camera is perfect when you need to see in two directions simultaneously. It offers flexible positioning of both varifocal camera heads, and you can control each head individually allowing you to monitor scenes in two directions in wide or zoomed-in views. The camera’s sensors can also be twisted, so two camera heads can be positioned closer together. This is the perfect setup for straight hallways or at the corners of an intersection where it can look in both directions simultaneously. In addition, this IP66- and IP67-rated device includes a weather and sun shield, so image quality isn’t impacted by sun reflections or water drops.

Support for AI analytics
Built on ARTPEC-8, this high-performance, AI-based camera enables improved processing and storage capabilities allowing you to collect and analyze even more data than before—on the edge. Plus, it delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. Thanks to AXIS Object Analytics, AXIS P4708-PLVE can detect and classify humans, vehicles, and types of vehicles—all tailored to your specific needs. In addition, with support for ACAP version 4, you can add value to your system with tailor-made applications based on deep learning on the edge.

Secure and cost-efficient
AXIS P4708-PLVE includes Axis Edge Vault, a hardware-based cybersecurity platform that safeguards the device and protects sensitive information from unauthorized access. With two camera heads in one camera, this panoramic camera offers cost-effective installation. And, thanks to remote zoom and focus capabilities, it eliminates the need for hands-on fine tuning. Furthermore, Zipstream with H.264/ H.265 significantly lowers bandwidth and storage requirements without compromising image quality. Plus, with storage profile enabled, you’ll enjoy the optimal level of Zipstream for your video storage—regardless of your VMS.

  • 2x4K, multidirectional camera, with one IP address
  • Support for AI analytics
  • 360° IR illumination and 2.5x zoom
  • Axis Lightfinder and Forensic WDR
  • Axis Edge Vault safeguards the device
