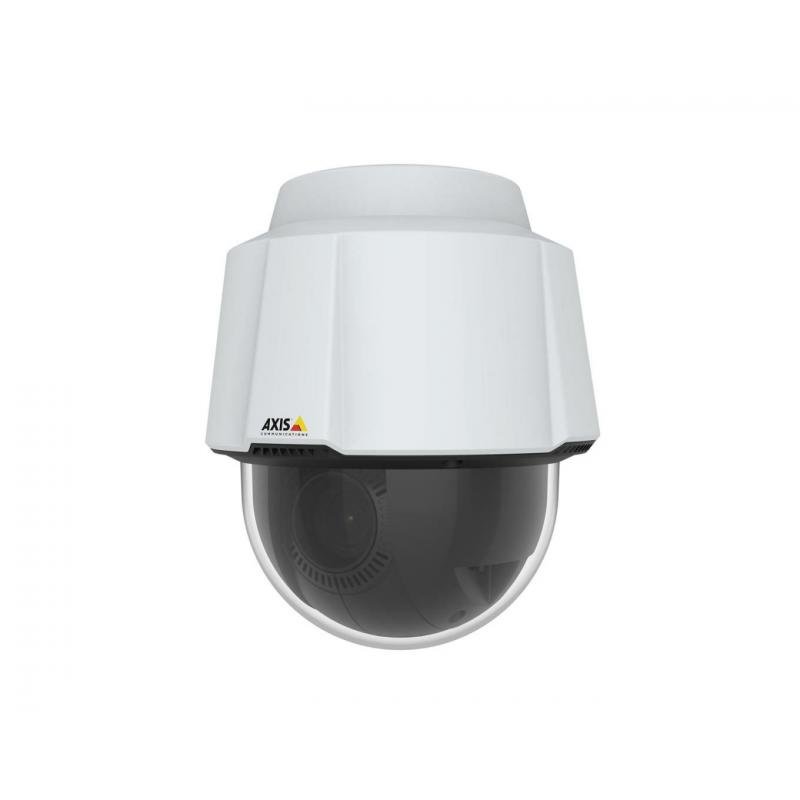

NET CAMERA P5654-E MK II PTZ/02914-001 AXIS

NET CAMERA P5654-E MK II PTZ/02914-001 AXIS
NET CAMERA P5654-E MK II PTZ/02914-001 AXIS
  • Connectivity technology: Wired
  • Zoom capability: Yes
  • Maximum resolution: 1920 x 1080
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
117,032ден.
  • Достапност:
  • Бренд: AXIS
  • Шифра: 414519
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Axis P5654-E Mk II 50HZ. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.01 lx, Lens viewing angle, horizontal: 77 - 3.6°, Lens viewing angle, vertical: 43.1 - 2°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 21x, Digital zoom: 12x, Focal length range: 4 - 84.6 mm
  • Vendor Homepage: https://www.axis.com/products/axis-p5654-e-mk-ii
  • Name: NET CAMERA P5654-E MK II PTZ/02914-001 AXIS
  • Category Code: FNC
  • Model: P5654-E Mk II
  • Form factor: Dome
  • Mounting type: Ceiling
  • Product colour: Black/White
  • Housing material: Aluminium/Polycarbonate (PC)
  • International Protection (IP) code: IP66
  • IK code: IK10
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Indoor & outdoor
  • PTZ control: Yes
  • Auto-tracking: Yes
  • Preset points: Yes
  • Wide Dynamic Range (WDR): Yes
  • Day/night mode: Yes
  • Infrared (IR) cut-off filter: Yes
  • Certification: UL/cUL, UKCA, CE, KC, EAC, RCM, TAA
  • Camera pan control: Yes
  • Camera tilt control: Yes
  • Minimum illumination: 0.01
  • Lens viewing angle, horizontal: 77 - 3.6
  • Lens viewing angle, vertical: 43.1 - 2
  • Tilt angle range: 0 - 180
  • Tilt speed: 350
  • Pan range: 0 - 360
  • Pan speed: 350
  • Camera shutter speed: 1/66500 - 2
  • Number of sensors: 1
  • Optical sensor size: 1/2.8
  • Sensor type: CMOS
  • Zoom capability: Yes
  • Optical zoom: 21
  • Digital zoom: 12
  • Number of lenses: 1
  • Focal length range: 4 - 84.6
  • Auto focus: Yes
  • Maximum aperture number: 4.5
  • Minimum aperture number: 1.6
  • Detect distance (tele): 1120
  • Detect distance (wide): 57
  • Identify distance (tele): 110
  • Identify distance (wide): 6
  • Observe distance (tele): 450
  • Observe distance (wide): 23
  • Recognize distance (tele): 225
  • Recognize distance (wide): 11
  • Maximum resolution: 1920 x 1080
  • Video formats supported: AVC/H.264/H.265/HEVC/M-JPEG/MPEG4
  • Supported graphics resolutions: 320 x 180
  • Supported video modes: 1080p
  • Frame rate: 60
  • Video streaming: Yes
  • Image quality adjustment: Brightness/Contrast/Saturation/Sharpness
  • Image stabilizer: Yes
  • Text caption overlay: Yes
  • Ethernet LAN: Yes
  • Ethernet interface type: Fast Ethernet
  • Networking standards: IEEE 802.3at
  • Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6,
  • Quality of Service (QoS) support: Yes
  • Streaming method: Multicast
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
  • Flash memory: 512
  • Internal memory: 1024
  • ROM capacity: 1024
  • Ethernet LAN (RJ-45) ports: 1
  • Alert notification type: E-mail
  • Human and vehicle targets classification: Yes
  • Intelligent Video Surveillance (IVS) system features: Crossing line/Face detection/Human detection/Moving object/Vehicle detection
  • Pixel counter: Yes
  • Security algorithms: EAP-TLS/HTTPS/TLS
  • Video motion detection: Yes
  • Power source type: PoE
  • Power consumption (typical): 8
  • Power consumption (max): 16
  • Operating temperature (T-T): -30 - 50
  • Storage temperature (T-T): -40 - 65
  • Operating relative humidity (H-H): 10 - 100
  • Storage relative humidity (H-H): 5 - 95
  • Width: 188
  • Depth: 188
  • Height: 217
  • Weight: 2500
  • License plate recognition: Yes
  • Compliance certificates: REACH/RoHS
  • Number of cameras: 1
  • Mounting kit: Yes
  • Doesnt contain: PVC
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.02227
  • Unit Calculated Weight: 3.4
Specifications
Alert notification typeE-mail
Auto focusYes
Auto-trackingYes
Camera pan controlYes
Camera shutter speed1/66500 - 2
Camera tilt controlYes
Card reader integratedYes
CertificationUL/cUL, UKCA, CE, KC, EAC, RCM, TAA
Compatible memory cardsMicroSD (TransFlash)/MicroSDHC/MicroSDXC
Compliance certificatesREACH/RoHS
Connectivity technologyWired
Day/night modeYes
Depth188
Detect distance (tele)1120
Detect distance (wide)57
Digital zoom12
Doesn\'t containPVC
Ethernet interface typeFast Ethernet
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Flash memory512
Focal length range4 - 84.6
Form factorDome
Frame rate60
Height217
Housing materialAluminium/Polycarbonate (PC)
Human and vehicle targets classificationYes
Identify distance (tele)110
Identify distance (wide)6
IK codeIK10
Image quality adjustmentBrightness/Contrast/Saturation/Sharpness
Image stabilizerYes
Infrared (IR) cut-off filterYes
Intelligent Video Surveillance (IVS) system featuresCrossing line/Face detection/Human detection/Moving object/Vehicle detection
Internal memory1024
International Protection (IP) codeIP66
Lens viewing angle, horizontal77 - 3.6
Lens viewing angle, vertical43.1 - 2
License plate recognitionYes
Maximum aperture number4.5
Maximum resolution1920 x 1080
Minimum aperture number1.6
Minimum illumination0.01
Mounting kitYes
Mounting typeCeiling
Networking standardsIEEE 802.3at
Number of cameras1
Number of lenses1
Number of sensors1
Observe distance (tele)450
Observe distance (wide)23
Operating relative humidity (H-H)10 - 100
Operating temperature (T-T)-30 - 50
Optical sensor size1/2.8
Optical zoom21
Pan range0 - 360
Pan speed350
Pixel counterYes
Placement supportedIndoor & outdoor
Power consumption (max)16
Power consumption (typical)8
Power source typePoE
Preset pointsYes
Product colourBlack/White
PTZ controlYes
Quality of Service (QoS) supportYes
Recognize distance (tele)225
Recognize distance (wide)11
ROM capacity1024
Security algorithmsEAP-TLS/HTTPS/TLS
Sensor typeCMOS
Storage relative humidity (H-H)5 - 95
Storage temperature (T-T)-40 - 65
Streaming methodMulticast
SummaryAxis P5654-E Mk II 50HZ. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.01 lx, Lens viewing angle, horizontal: 77 - 3.6°, Lens viewing angle, vertical: 43.1 - 2°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 21x, Digital zoom: 12x, Focal length range: 4 - 84.6 mm
Supported graphics resolutions320 x 180
Supported network protocolsIPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6,
Supported video modes1080p
Text caption overlayYes
Tilt angle range0 - 180
Tilt speed350
TypeIP security camera
Video formats supportedAVC/H.264/H.265/HEVC/M-JPEG/MPEG4
Video motion detectionYes
Video streamingYes
Weight2500
Wide Dynamic Range (WDR)Yes
Width188
Zoom capabilityYes
Specs
Category CodeFNC
Description

AXIS P5654-E Mk II PTZ Camera

This cost-effective PTZ camera offers great image quality in HDTV 1080p and wide area coverage with 77° field of view. Plus, Axis Edge Vault safeguards your device and protects sensitive information from unauthorized access.

Great images – anytime

AXIS P5654-E MK II delivers great image quality in HDTV 1080p with 21x optical zoom. It offers wide area coverage with a 77° field of view. So, you’ll benefit from a sharp overview and great detail even in mixed and low light conditions. Thanks to Lightfinder 2.0 and Forensic WDR, it provides true colors and great detail in challenging light or near darkness. And electronic image stabilization (EIS) ensures stable images despite vibration. Including four scene profiles with different image settings, it’s optimized to suit specific scenarios. Furthermore, focus recall gives you instant focus even in challenging light conditions.

Keeping you secure

Built on the ARTPEC 7 system-on-chip, this PTZ camera includes Axis Edge Vault, a hardware-based cybersecurity platform that safeguards the device and protects sensitive information from unauthorized access. For instance, signed firmware and secure boot guarantee that the firmware hasn’t been altered and ensures only authorized firmware is installed. And if needed, secure boot guarantees that the camera is completely free of malware after a factory default.

And there’s more…

This versatile camera offers support for advanced analytics. Thanks to Axis Object Analytics it can detect and classify people and vehicles- all tailored to specific needs. Featuring shock detection, the camera will send an alarm when it has been hit. And Advanced Gatekeeper will automatically zoom in on objects detected in pre-defined areas. Axis Zipstream technology with H.264 and H.265 significantly lowers bandwidth and storage requirements without compromising image quality. Furthermore, with IP66, NEMA 4X, and IK10 ratings, this robust and resistant camera can also handle temperatures ranging from -30°C to 50°C (-22°F to 122°F).

  • HDTV 1080p with 21x optical zoom
  • Wide 77° field of view
  • Lightfinder 2.0 and Forensic WDR
  • Support for advanced analytics
  • Axis Edge Vault safeguards the device

ModelP5654-E Mk II
NameNET CAMERA P5654-E MK II PTZ/02914-001 AXIS
PictureUrlhttps://static.elko.cloud/ProductImages/a1b91635-d5b5-46c7-80ba-4b78a0a3b7b8.Jpeg
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/a1b91635-d5b5-46c7-80ba-4b78a0a3b7b8.Jpeg
Unit Calculated Volume0.02227
Unit Calculated Weight3.4
Units per Shipping Box1
Vendor Homepagehttps://www.axis.com/products/axis-p5654-e-mk-ii
