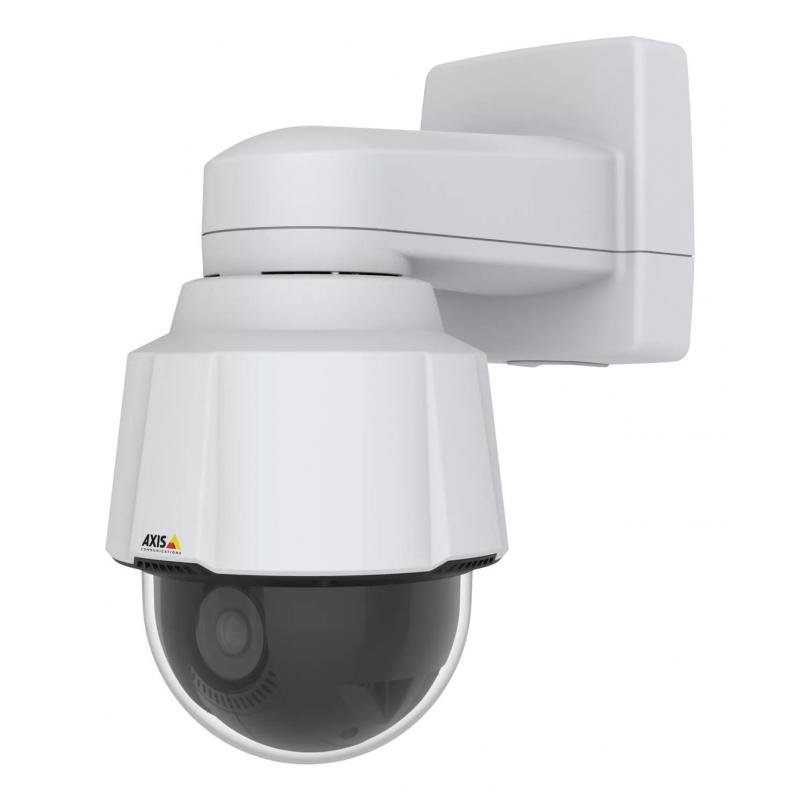

NET CAMERA P5655-E 50HZ PTZ/01681-001 AXIS

NET CAMERA P5655-E 50HZ PTZ/01681-001 AXIS
NET CAMERA P5655-E 50HZ PTZ/01681-001 AXIS
  • Connectivity technology: Wired
  • Zoom capability: Yes
  • Maximum resolution: 1920 x 1080
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
129,116ден.
  • Достапност:
  • Бренд: AXIS
  • Шифра: 275170
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Axis 01681-001. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.02 lx, Lens viewing angle, horizontal: 58.7°, Lens viewing angle, vertical: 35.7°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 32x, Digital zoom: 12x, Focal length range: 4.3 - 137.6 mm
  • Vendor Homepage: https://www.axis.com/products/axis-p5655-e
  • Name: NET CAMERA P5655-E 50HZ PTZ/01681-001 AXIS
  • Category Code: FNC
  • Form factor: Dome
  • Mounting type: Ceiling/wall
  • Product colour: Black/White
  • Housing material: Aluminium
  • Protection features: Shock resistant
  • International Protection (IP) code: IP66
  • IK code: IK10
  • Weatherproof: Yes
  • Fog proof: Yes
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Indoor & outdoor
  • PTZ control: Yes
  • Preset points: Yes
  • Wide Dynamic Range (WDR): Yes
  • Day/night mode: Yes
  • Infrared (IR) cut-off filter: Yes
  • Alarm input/output: Yes
  • Certification: NEMA 4X, EN 55032 Class A, EN 50121-4, IEC 62236-4, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 32 Class A, KC KN32 Class A, KC KN35, IEC/EN/UL 62368-1,
  • Camera pan control: Yes
  • Camera tilt control: Yes
  • Minimum illumination: 0.02
  • Lens viewing angle, horizontal: 58.7
  • Lens viewing angle, vertical: 35.7
  • Tilt angle range: 0 - 180
  • Tilt speed: 350
  • Pan range: 0 - 360
  • Pan speed: 350
  • Camera shutter speed: 1/66500 - 2
  • Number of sensors: 1
  • Optical sensor size: 1/2.8
  • Progressive scan: Yes
  • Sensor type: CMOS
  • Zoom capability: Yes
  • Optical zoom: 32
  • Digital zoom: 12
  • Number of lenses: 1
  • Focal length range: 4.3 - 137.6
  • Auto focus: Yes
  • Maximum aperture number: 4
  • Minimum aperture number: 1.4
  • Maximum resolution: 1920 x 1080
  • Video formats supported: AVC/H.264/H.265/HEVC/M-JPEG/MPEG4
  • Supported graphics resolutions: 1920 x 1080 (HD 1080)/320 x 180
  • Supported video modes: 1080p
  • Frame rate: 60
  • Video streaming: Yes
  • Bit rate control: Variable Bit Rate (VBR)
  • Image quality adjustment: Brightness/Contrast/Saturation/Sharpness
  • Image stabilizer: Yes
  • Privacy masking: Yes
  • Text caption overlay: Yes
  • Audio system: 2-way
  • Audio formats supported: ADPCM/LC-AAC/LPCM/PCM
  • Sample rate: 48
  • Audio detection: Yes
  • Ethernet LAN: Yes
  • Ethernet interface type: Fast Ethernet
  • Networking standards: IEEE 802.1x/IEEE 802.3at
  • Supported network protocols: IPv4, IPv6 USGv6, HTTP, HTTPS , SSL/TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, NTCIP, LLDP, CDP
  • Streaming method: Multicast
  • Card reader integrated: Yes
  • Compatible memory cards: SD/SDHC/SDXC
  • Flash memory: 512
  • Internal memory: 1024
  • Ethernet LAN (RJ-45) ports: 1
  • Microphone in: Yes
  • DC-in jack: Yes
  • Password protection: Yes
  • HTTPS encryption: Yes
  • IP address filtering: Yes
  • Video motion detection: Yes
  • Power source type: DC,PoE
  • Power consumption (typical): 10.5
  • Power consumption (max): 19
  • Operating temperature (T-T): -30 - 55
  • Storage temperature (T-T): -40 - 70
  • Operating relative humidity (H-H): 10 - 100
  • Width: 188
  • Depth: 188
  • Height: 217
  • Weight: 2500
  • Number of cameras: 1
  • Mounting kit: Yes
  • Manual: Yes
  • Harmonized System (HS) code: 85258900
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.01974
  • Unit Calculated Weight: 3.26
Specifications
Alarm input/outputYes
Audio detectionYes
Audio formats supportedADPCM/LC-AAC/LPCM/PCM
Audio system2-way
Auto focusYes
Bit rate controlVariable Bit Rate (VBR)
Camera pan controlYes
Camera shutter speed1/66500 - 2
Camera tilt controlYes
Card reader integratedYes
CertificationNEMA 4X, EN 55032 Class A, EN 50121-4, IEC 62236-4, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 32 Class A, KC KN32 Class A, KC KN35, IEC/EN/UL 62368-1,
Compatible memory cardsSD/SDHC/SDXC
Connectivity technologyWired
Day/night modeYes
DC-in jackYes
Depth188
Digital zoom12
Ethernet interface typeFast Ethernet
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Flash memory512
Focal length range4.3 - 137.6
Fog proofYes
Form factorDome
Frame rate60
Harmonized System (HS) code85258900
Height217
Housing materialAluminium
HTTPS encryptionYes
IK codeIK10
Image quality adjustmentBrightness/Contrast/Saturation/Sharpness
Image stabilizerYes
Infrared (IR) cut-off filterYes
Internal memory1024
International Protection (IP) codeIP66
IP address filteringYes
Lens viewing angle, horizontal58.7
Lens viewing angle, vertical35.7
ManualYes
Maximum aperture number4
Maximum resolution1920 x 1080
Microphone inYes
Minimum aperture number1.4
Minimum illumination0.02
Mounting kitYes
Mounting typeCeiling/wall
Networking standardsIEEE 802.1x/IEEE 802.3at
Number of cameras1
Number of lenses1
Number of sensors1
Operating relative humidity (H-H)10 - 100
Operating temperature (T-T)-30 - 55
Optical sensor size1/2.8
Optical zoom32
Pan range0 - 360
Pan speed350
Password protectionYes
Placement supportedIndoor & outdoor
Power consumption (max)19
Power consumption (typical)10.5
Power source typeDC,PoE
Preset pointsYes
Privacy maskingYes
Product colourBlack/White
Progressive scanYes
Protection featuresShock resistant
PTZ controlYes
Sample rate48
Sensor typeCMOS
Storage temperature (T-T)-40 - 70
Streaming methodMulticast
SummaryAxis 01681-001. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.02 lx, Lens viewing angle, horizontal: 58.7°, Lens viewing angle, vertical: 35.7°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 32x, Digital zoom: 12x, Focal length range: 4.3 - 137.6 mm
Supported graphics resolutions1920 x 1080 (HD 1080)/320 x 180
Supported network protocolsIPv4, IPv6 USGv6, HTTP, HTTPS , SSL/TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, NTCIP, LLDP, CDP
Supported video modes1080p
Text caption overlayYes
Tilt angle range0 - 180
Tilt speed350
TypeIP security camera
Video formats supportedAVC/H.264/H.265/HEVC/M-JPEG/MPEG4
Video motion detectionYes
Video streamingYes
WeatherproofYes
Weight2500
Wide Dynamic Range (WDR)Yes
Width188
Zoom capabilityYes
Specs
Category CodeFNC
Description

AXIS P5655-E PTZ Network Camera is a cost-effective, high performance PTZ with HDTV 1080p and 32x optical zoom. It features Forensic WDR for clarity even when there’s both dark and light areas in the scene. And, Lightfinder 2.0 to capture low-light images with more saturated colors and sharper images of moving objects. It offers electronic image stabilization and enhanced security features including signed firmware and secure boot. With IP66, NEMA 4X and IK10 ratings it’s resistant to both harsh weather conditions and impacts. Plus, you get two-way audio, I/O ports and extended capabilities for advanced analytics.

  • Focus recall and EIS; Forensic WDR and Lightfinder 2.0; HDTV 1080p with 32x optical zoom; Signed firmware and secure boot; Zipstream with support for H.264 and H.265

NameNET CAMERA P5655-E 50HZ PTZ/01681-001 AXIS
PictureUrlhttps://static.elko.cloud/ProductImages/c23b36a5-4e5b-4db6-ab32-99cc501452e1.Jpeg
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/c23b36a5-4e5b-4db6-ab32-99cc501452e1.Jpeg
Unit Calculated Volume0.01974
Unit Calculated Weight3.26
Units per Shipping Box1
Vendor Homepagehttps://www.axis.com/products/axis-p5655-e
