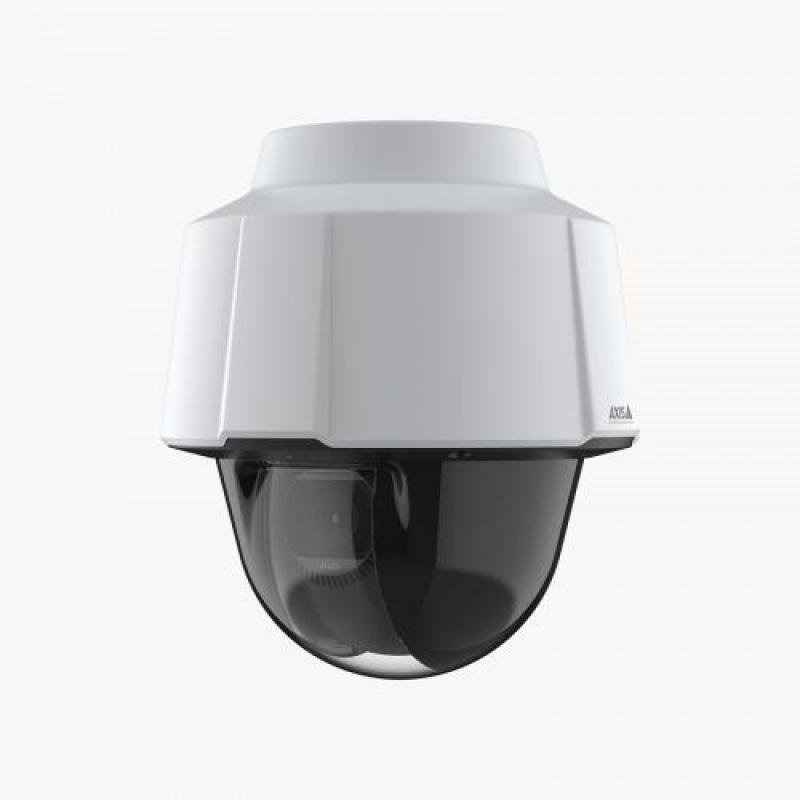

NET CAMERA P5676-LE 50HZ/02413-001 AXIS

NET CAMERA P5676-LE 50HZ/02413-001 AXIS
NET CAMERA P5676-LE 50HZ/02413-001 AXIS
  • Connectivity technology: Wired
  • Zoom capability: Yes
  • Maximum resolution: 2688 x 1512
  • Total megapixels: 4
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
142,760ден.
  • Достапност: Има залиха
  • Бренд: AXIS
  • Шифра: 392879
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Axis 02413-001. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: White, Form factor: Bulb. Minimum illumination: 0.1 lx, Field of view (FOV) angle: 57.1°, Lens viewing angle, horizontal: 57.1°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9"). Optical zoom: 30x, Digital zoom: 12x, Focal length range: 4.5 - 135 mm
  • Vendor Homepage: https://www.axis.com/products/axis-p5676-le
  • Name: NET CAMERA P5676-LE 50HZ/02413-001 AXIS
  • Category Code: FNC
  • Model: P5676-LE
  • Form factor: Bulb
  • Mounting type: Wall
  • Product colour: White
  • Housing material: Plastic
  • International Protection (IP) code: IP66
  • IK code: IK10
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Outdoor
  • PTZ control: Yes
  • PTZ modes: Preset point
  • Auto-tracking: Yes
  • Preset points: Yes
  • Wide Dynamic Range (WDR): Yes
  • Day/night mode: Yes
  • Infrared (IR) cut-off filter: Yes
  • Remote viewing: Yes
  • Built-in processor: Yes
  • Processor model: ARTPEC-4
  • Languages support: English/French/German/Italian/Japanese/Korean/Portuguese/Russian/Simplified Chinese/Spanish/Traditional Chinese
  • Number of languages: 12
  • Camera pan control: Yes
  • Camera tilt control: Yes
  • Minimum illumination: 0.1
  • Field of view (FOV) angle: 57.1
  • Lens viewing angle, horizontal: 57.1
  • Lens viewing angle, vertical: 34.4
  • Tilt angle range: 0 - 90
  • Pan range: 0 - 360
  • Camera pixel size: 2.9
  • Camera shutter type: Electronic
  • Camera shutter speed: 1/50000 - 1/5
  • Number of sensors: 1
  • Optical sensor size: 1/2.9
  • Progressive scan: Yes
  • Sensor type: CMOS
  • Zoom capability: Yes
  • Optical zoom: 30
  • Digital zoom: 12
  • Number of lenses: 1
  • Focal length range: 4.5 - 135
  • Night vision: Yes
  • Night vision distance: 200
  • LED type: IR
  • Maximum resolution: 2688 x 1512
  • Total megapixels: 4
  • Video compression formats: AVC/H.264/H.265/HEVC
  • Supported graphics resolutions: 2688 x 1512
  • Video recording: Yes
  • Frame rate: 60
  • Video intelligence analytic: Yes
  • Video streaming: Yes
  • Gain control type: Auto
  • Bit rate control: Variable Bit Rate (VBR)
  • Image quality adjustment: Brightness/Contrast/Saturation/Sharpness
  • Image stabilizer: Yes
  • Privacy masking: Yes
  • Audio system: 2-way
  • Audio input channels: 1.0
  • Audio output channels: 1.0
  • Audio formats supported: AAC-LC/ADPCM/G.711/G.726/LPCM/OPUS/PCM
  • Sample rate: 48
  • Audio detection: Yes
  • Sample rates: 8 - 48
  • Ethernet LAN: Yes
  • Networking standards: IEEE 802.1x
  • Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa , HTTP/2, TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTCP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SSH
  • Live view: Yes
  • Quality of Service (QoS) support: Yes
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSD (TransFlash)/SDHC/SDXC
  • Flash memory: 512
  • Internal memory: 1024
  • Ethernet LAN (RJ-45) ports: 1
  • Microphone in: Yes
  • DC-in jack: Yes
  • Password protection: Yes
  • Alert notification type: E-mail,Text alert message
  • Digest authentication: Yes
  • IP address filtering: Yes
  • Network access storage (NAS): Yes
  • Pixel counter: Yes
  • Security algorithms: 256-bit AES-XTS/FIPS 140-2
  • Video motion detection: Yes
  • Remotely operated: Yes
  • Power source type: DC,PoE
  • Power consumption (typical): 12
  • Power consumption (max): 30
  • DC output voltage: 10,24,28
  • Operating temperature (T-T): -30 - 50
  • Storage temperature (T-T): -40 - 65
  • Operating relative humidity (H-H): 10 - 100
  • Storage relative humidity (H-H): 5 - 95
  • Height: 242
  • Diameter: 205
  • Weight: 2500
  • Compliance certificates: REACH/RoHS
  • Sustainability compliance: Yes
  • Number of cameras: 1
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.01693
  • Unit Calculated Weight: 3
Specifications
Alert notification typeE-mail,Text alert message
Audio detectionYes
Audio formats supportedAAC-LC/ADPCM/G.711/G.726/LPCM/OPUS/PCM
Audio input channels1.0
Audio output channels1.0
Audio system2-way
Auto-trackingYes
Bit rate controlVariable Bit Rate (VBR)
Built-in processorYes
Camera pan controlYes
Camera pixel size2.9
Camera shutter speed1/50000 - 1/5
Camera shutter typeElectronic
Camera tilt controlYes
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)/SDHC/SDXC
Compliance certificatesREACH/RoHS
Connectivity technologyWired
Day/night modeYes
DC output voltage10,24,28
DC-in jackYes
Diameter205
Digest authenticationYes
Digital zoom12
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Field of view (FOV) angle57.1
Flash memory512
Focal length range4.5 - 135
Form factorBulb
Frame rate60
Gain control typeAuto
Height242
Housing materialPlastic
IK codeIK10
Image quality adjustmentBrightness/Contrast/Saturation/Sharpness
Image stabilizerYes
Infrared (IR) cut-off filterYes
Internal memory1024
International Protection (IP) codeIP66
IP address filteringYes
Languages supportEnglish/French/German/Italian/Japanese/Korean/Portuguese/Russian/Simplified Chinese/Spanish/Traditional Chinese
LED typeIR
Lens viewing angle, horizontal57.1
Lens viewing angle, vertical34.4
Live viewYes
Maximum resolution2688 x 1512
Microphone inYes
Minimum illumination0.1
Mounting typeWall
Network access storage (NAS)Yes
Networking standardsIEEE 802.1x
Night visionYes
Night vision distance200
Number of cameras1
Number of languages12
Number of lenses1
Number of sensors1
Operating relative humidity (H-H)10 - 100
Operating temperature (T-T)-30 - 50
Optical sensor size1/2.9
Optical zoom30
Pan range0 - 360
Password protectionYes
Pixel counterYes
Placement supportedOutdoor
Power consumption (max)30
Power consumption (typical)12
Power source typeDC,PoE
Preset pointsYes
Privacy maskingYes
Processor modelARTPEC-4
Product colourWhite
Progressive scanYes
PTZ controlYes
PTZ modesPreset point
Quality of Service (QoS) supportYes
Remote viewingYes
Remotely operatedYes
Sample rate48
Sample rates8 - 48
Security algorithms256-bit AES-XTS/FIPS 140-2
Sensor typeCMOS
Storage relative humidity (H-H)5 - 95
Storage temperature (T-T)-40 - 65
SummaryAxis 02413-001. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: White, Form factor: Bulb. Minimum illumination: 0.1 lx, Field of view (FOV) angle: 57.1°, Lens viewing angle, horizontal: 57.1°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9"). Optical zoom: 30x, Digital zoom: 12x, Focal length range: 4.5 - 135 mm
Supported graphics resolutions2688 x 1512
Supported network protocolsIPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa , HTTP/2, TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTCP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SSH
Sustainability complianceYes
Tilt angle range0 - 90
Total megapixels4
TypeIP security camera
Video compression formatsAVC/H.264/H.265/HEVC
Video intelligence analyticYes
Video motion detectionYes
Video recordingYes
Video streamingYes
Weight2500
Wide Dynamic Range (WDR)Yes
Zoom capabilityYes
Specs
Category CodeFNC
Description

This high-performance PTZ camera offers 4 MP image quality with 30x optical zoom and IR. Forensic WDR and Lightfinder 2.0 guarantee images with saturated colors and sharp details of moving objects even in challenging light or near darkness. It offers support for analytics and includes AXIS Object Analytics to detect and classify people and vehicles. This cost-effective camera includes built-in cybersecurity features to safeguard your system and prevent unauthorized access. Axis Zipstream with H.264/H.265 significantly lowers bandwidth and storage requirements. Furthermore, you can pop it into an AXIS Q6100-E using AXIS TP6901-E Adapter Bracket and enjoy 360° overview for total situational awareness.

  • 4 MP with 30x optical zoom; Built-in cybersecurity features; Forensic WDR, Lightfinder 2.0, IR Illumination; Support for advanced analytics; Zipstream with support for H.264/H.265

ModelP5676-LE
NameNET CAMERA P5676-LE 50HZ/02413-001 AXIS
PictureUrlhttps://static.elko.cloud/ProductImages/781b87e1-f972-4af9-84d1-ffcc033e9c59.Jpeg
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/781b87e1-f972-4af9-84d1-ffcc033e9c59.Jpeg
Unit Calculated Volume0.01693
Unit Calculated Weight3
Units per Shipping Box1
Vendor Homepagehttps://www.axis.com/products/axis-p5676-le
