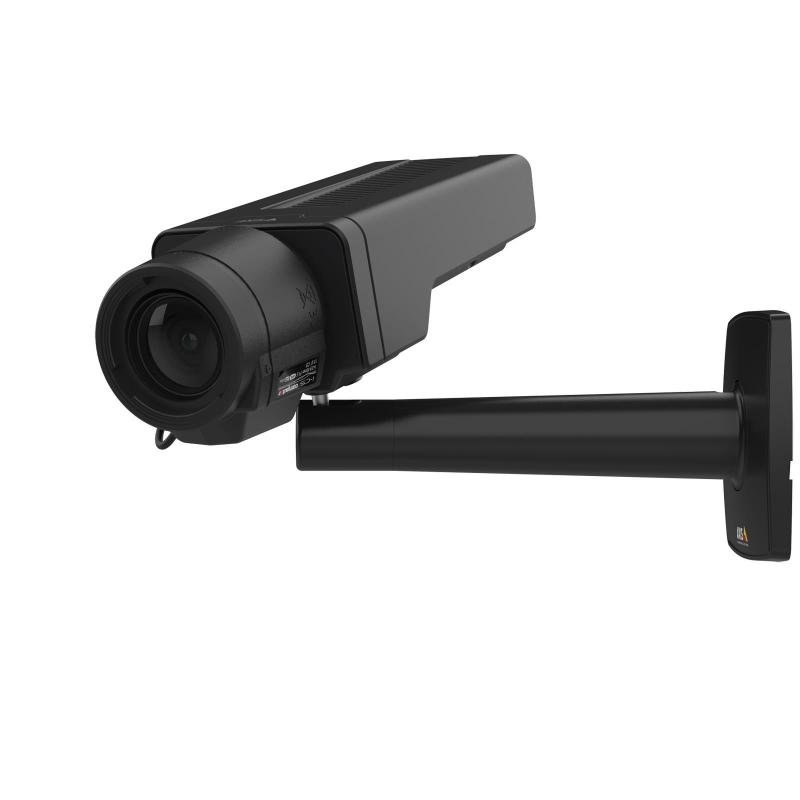

NET CAMERA Q1656 4MP BOX/02164-001 AXIS

NET CAMERA Q1656 4MP BOX/02164-001 AXIS
NET CAMERA Q1656 4MP BOX/02164-001 AXIS
  • Connectivity technology: Wired
  • Zoom capability: Yes
  • Maximum resolution: 2688 x 1512
  • Total megapixels: 4
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
94,115ден.
  • Достапност:
  • Бренд: AXIS
  • Шифра: 395996
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Axis 02164-001. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, Form factor: Dome. Minimum illumination: 0.01 lx, Lens viewing angle, horizontal: 120°, Lens viewing angle, vertical: 63°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Optical zoom: 2.5x, Focal length range: 3.9 - 10 mm, Closest focusing distance: 0.5 m
  • Vendor Homepage: https://www.axis.com/products/axis-q1656#part-numbers
  • Name: NET CAMERA Q1656 4MP BOX/02164-001 AXIS
  • Category Code: FNC
  • Form factor: Dome
  • Mounting type: Ceiling/wall
  • Product colour: Black
  • Housing material: Aluminium
  • Fog proof: Yes
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Indoor
  • PTZ modes: Digital PTZ
  • Wide Dynamic Range (WDR): Yes
  • Day/night mode: Yes
  • Infrared (IR) cut-off filter: Yes
  • Remote viewing: Yes
  • Dynamic range: 120
  • Languages support: English/French/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Traditional Chinese
  • Number of languages: 12
  • Certification: EMC CISPR 24, CISPR 35, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(B)/NMB-3(B), KS C 9832 Class A, KS C 9815, KS C 9835, KS C 9547, RCM AS/NZS CISPR 32 Class A, VCCI Class A I
  • Minimum illumination: 0.01
  • Lens viewing angle, horizontal: 120
  • Lens viewing angle, vertical: 63
  • Camera shutter speed: 1/47500 - 1
  • Number of sensors: 1
  • Optical sensor size: 1/1.8
  • Progressive scan: Yes
  • Sensor type: CMOS
  • Zoom capability: Yes
  • Optical zoom: 2.5
  • Number of lenses: 1
  • Focal length range: 3.9 - 10
  • Auto focus: Yes
  • Maximum aperture number: 1.5
  • Closest focusing distance: 0.5
  • Maximum resolution: 2688 x 1512
  • Total megapixels: 4
  • Video formats supported: H.264/H.265/M-JPEG
  • Supported graphics resolutions: 160 x 90/2688 x 1512
  • Video intelligence analytic: Yes
  • Video streaming: Yes
  • Noise reduction: Yes
  • Gain control type: Auto
  • Image stabilizer: Yes
  • Privacy masking: Yes
  • Text caption overlay: Yes
  • Audio system: 2-way
  • Audio system full duplex: Yes
  • Audio formats supported: ADPCM/LC-AAC/LPCM/PCM
  • Built-in microphone: Yes
  • Voice codecs: G.711/G.726/OPUS
  • Audio detection: Yes
  • Ethernet LAN: Yes
  • Ethernet interface type: Gigabit Ethernet
  • Networking standards: IEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3u
  • Supported network protocols: IPv4, IPv6 USGv6, HTTP, HTTPSa , HTTP/2, TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, LLDP, MQTT v3.1.1
  • Live view: Yes
  • Quality of Service (QoS) support: Yes
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
  • Flash memory: 8194
  • Internal memory: 2048
  • Ethernet LAN (RJ-45) ports: 1
  • RS-422 ports: 2
  • RS-485 ports: 2
  • Microphone in: Yes
  • Headphone outputs: 1
  • Password protection: Yes
  • Alert notification type: E-mail
  • HTTPS encryption: Yes
  • IP address filtering: Yes
  • Mirror: Yes
  • Security algorithms: EAP-TLS/FIPS 140-2/HTTPS
  • Video motion detection: Yes
  • Behavior analysis: Line crossing detection
  • Remotely operated: Yes
  • Power source type: DC,PoE
  • Power consumption (typical): 4.6
  • Power consumption (max): 7.7
  • Power consumption (Power over Ethernet (PoE)): 5.1
  • DC output voltage: 10,28
  • Operating temperature (T-T): -20 - 60
  • Storage temperature (T-T): -40 - 65
  • Operating relative humidity (H-H): 10 - 85
  • Storage relative humidity (H-H): 5 - 95
  • Windows operating systems supported: Yes
  • Width: 80
  • Depth: 214
  • Height: 68
  • Weight: 790
  • Number of cameras: 1
  • Doesnt contain: BFR/PVC
  • Harmonized System (HS) code: 85258900
  • Units per Pallet: 0
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.00567
  • Unit Calculated Weight: 1
Specifications
Alert notification typeE-mail
Audio detectionYes
Audio formats supportedADPCM/LC-AAC/LPCM/PCM
Audio system2-way
Audio system full duplexYes
Auto focusYes
Behavior analysisLine crossing detection
Built-in microphoneYes
Camera shutter speed1/47500 - 1
Card reader integratedYes
CertificationEMC CISPR 24, CISPR 35, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(B)/NMB-3(B), KS C 9832 Class A, KS C 9815, KS C 9835, KS C 9547, RCM AS/NZS CISPR 32 Class A, VCCI Class AI
Closest focusing distance0.5
Compatible memory cardsMicroSD (TransFlash)/MicroSDHC/MicroSDXC
Connectivity technologyWired
Day/night modeYes
DC output voltage10,28
Depth214
Doesn\'t containBFR/PVC
Dynamic range120
Ethernet interface typeGigabit Ethernet
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Flash memory8194
Focal length range3.9 - 10
Fog proofYes
Form factorDome
Gain control typeAuto
Harmonized System (HS) code85258900
Headphone outputs1
Height68
Housing materialAluminium
HTTPS encryptionYes
Image stabilizerYes
Infrared (IR) cut-off filterYes
Internal memory2048
IP address filteringYes
Languages supportEnglish/French/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Traditional Chinese
Lens viewing angle, horizontal120
Lens viewing angle, vertical63
Live viewYes
Maximum aperture number1.5
Maximum resolution2688 x 1512
Microphone inYes
Minimum illumination0.01
MirrorYes
Mounting typeCeiling/wall
Networking standardsIEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3u
Noise reductionYes
Number of cameras1
Number of languages12
Number of lenses1
Number of sensors1
Operating relative humidity (H-H)10 - 85
Operating temperature (T-T)-20 - 60
Optical sensor size1/1.8
Optical zoom2.5
Password protectionYes
Placement supportedIndoor
Power consumption (max)7.7
Power consumption (Power over Ethernet (PoE))5.1
Power consumption (typical)4.6
Power source typeDC,PoE
Privacy maskingYes
Product colourBlack
Progressive scanYes
PTZ modesDigital PTZ
Quality of Service (QoS) supportYes
Remote viewingYes
Remotely operatedYes
RS-422 ports2
RS-485 ports2
Security algorithmsEAP-TLS/FIPS 140-2/HTTPS
Sensor typeCMOS
Storage relative humidity (H-H)5 - 95
Storage temperature (T-T)-40 - 65
SummaryAxis 02164-001. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, Form factor: Dome. Minimum illumination: 0.01 lx, Lens viewing angle, horizontal: 120°, Lens viewing angle, vertical: 63°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Optical zoom: 2.5x, Focal length range: 3.9 - 10 mm, Closest focusing distance: 0.5 m
Supported graphics resolutions160 x 90/2688 x 1512
Supported network protocolsIPv4, IPv6 USGv6, HTTP, HTTPSa , HTTP/2, TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, LLDP, MQTT v3.1.1
Text caption overlayYes
Total megapixels4
TypeIP security camera
Video formats supportedH.264/H.265/M-JPEG
Video intelligence analyticYes
Video motion detectionYes
Video streamingYes
Voice codecsG.711/G.726/OPUS
Weight790
Wide Dynamic Range (WDR)Yes
Width80
Windows operating systems supportedYes
Zoom capabilityYes
Specs
Category CodeFNC
Description

With 4 MP resolution at up to 60 fps, a 1/1.8” sensor, and Lightfinder 2.0, AXIS Q1656 delivers exceptional video quality even in poor light conditions. Based on the latest Axis system-on-chip (SoC), it offers support for advanced features and powerful applications based on deep learning on the edge. And AXIS Object Analytics offers highly nuanced object classification. This high-performance box camera includes premium Q-line functionality and support for PoE and redundant DC power. Furthermore, built-in cybersecurity features, such as Axis Edge Vault, signed firmware and secure boot, and FIPS-certified TPM, prevent unauthorized access and safeguard your system.

  • Built-in cybersecurity features; Exceptional images with 1/1.8” sensor; Premium Axis Q-line camera functionality; Remote zoom and focus; Support for analytics with deep learning
