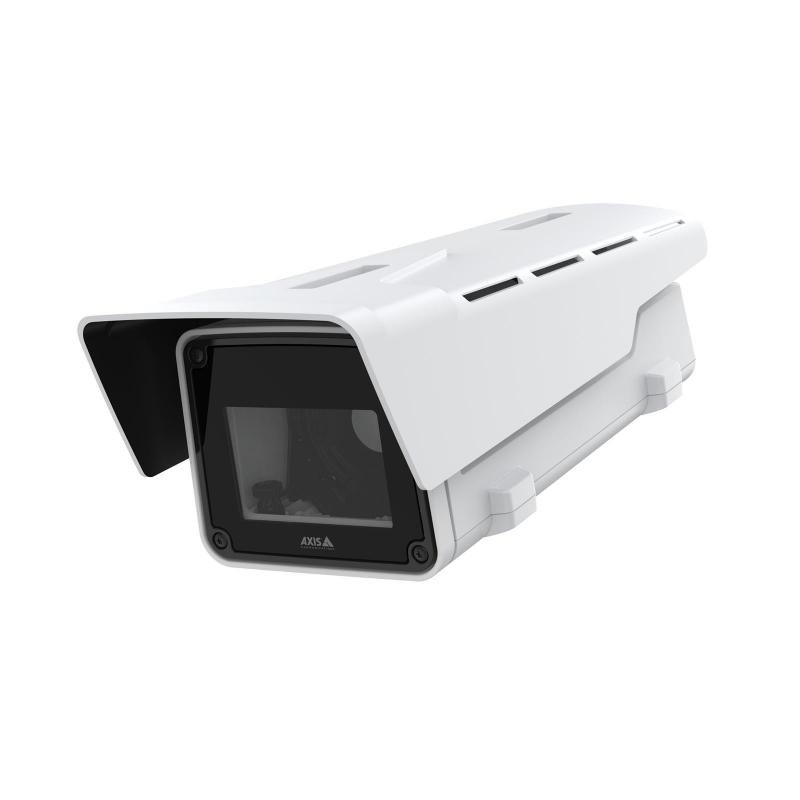

NET CAMERA Q1656-BE 4MP BOX/02168-031 AXIS

NET CAMERA Q1656-BE 4MP BOX/02168-031 AXIS
NET CAMERA Q1656-BE 4MP BOX/02168-031 AXIS
  • Connectivity technology: Wired
  • Zoom capability: Yes
  • Maximum resolution: 2688 x 1512
  • Total megapixels: 4
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
93,425ден.
  • Достапност:
  • Бренд: AXIS
  • Шифра: 416373
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Axis 02168-031. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Box. Minimum illumination: 0.05 lx, Camera shutter speed: 1/47500 - 1 s. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Maximum resolution: 2688 x 1512 pixels, Total megapixels: 4 MP, Video compression formats: H.264, H.265
  • Vendor Homepage: https://www.axis.com/products/axis-q1656-be
  • Name: NET CAMERA Q1656-BE 4MP BOX/02168-031 AXIS
  • Category Code: FNC
  • Model: Q1656-BE
  • Form factor: Box
  • Mounting type: Ceiling/wall
  • Product colour: White
  • International Protection (IP) code: IP66, IP67
  • IK code: IK10
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Indoor & outdoor
  • PTZ control: Yes
  • PTZ modes: Digital PTZ
  • Wide Dynamic Range (WDR): Yes
  • Day/night mode: Yes
  • Alarm input/output: Yes
  • Languages support: English/French/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Traditional Chinese
  • Number of languages: 12
  • Certification: CISPR 24, CISPR 35, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), EN 50121-4, IEC 62236-4, KS C 9832 Class A, KS C 9815, KS C 9835, KS C 9547, RCM AS/NZS CISPR 32 Cla
  • Camera pan control: Yes
  • Camera tilt control: Yes
  • Minimum illumination: 0.05
  • Camera shutter speed: 1/47500 - 1
  • Number of sensors: 1
  • Optical sensor size: 1/1.8
  • Progressive scan: Yes
  • Sensor type: CMOS
  • Zoom capability: Yes
  • Number of lenses: 4
  • Night vision: Yes
  • Maximum resolution: 2688 x 1512
  • Total megapixels: 4
  • Video compression formats: H.264/H.265
  • Video recording: Yes
  • Frame rate: 60
  • Video streaming: Yes
  • Bit rate control: Variable Bit Rate (VBR)
  • Image quality adjustment: Brightness/Contrast/Saturation
  • Image stabilizer: Yes
  • Privacy masking: Yes
  • Audio formats supported: AAC-LC/ADPCM/G.711/G.726/OPUS/PCM
  • Built-in microphone: Yes
  • Audio detection: Yes
  • Ethernet LAN: Yes
  • Networking standards: IEEE 802.3at
  • Quality of Service (QoS) support: Yes
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
  • Flash memory: 8194
  • Internal memory: 2048
  • Ethernet LAN (RJ-45) ports: 1
  • Password protection: Yes
  • Active tampering alarm: Yes
  • Alert notification type: E-mail
  • Digest authentication: Yes
  • HTTPS encryption: Yes
  • IP address filtering: Yes
  • Pixel counter: Yes
  • Security algorithms: 802.1x RADIUS
  • Video motion detection: Yes
  • Power source type: PoE
  • Power consumption (typical): 11.2
  • Power consumption (max): 25.5
  • Operating temperature (T-T): -40 - 60
  • Storage temperature (T-T): -40 - 65
  • Operating relative humidity (H-H): 10 - 100
  • Storage relative humidity (H-H): 5 - 95
  • Width: 404
  • Depth: 159
  • Height: 182
  • Weight: 3300
  • Number of cameras: 1
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.0257
  • Unit Calculated Weight: 4.15
Specifications
Active tampering alarmYes
Alarm input/outputYes
Alert notification typeE-mail
Audio detectionYes
Audio formats supportedAAC-LC/ADPCM/G.711/G.726/OPUS/PCM
Bit rate controlVariable Bit Rate (VBR)
Built-in microphoneYes
Camera pan controlYes
Camera shutter speed1/47500 - 1
Camera tilt controlYes
Card reader integratedYes
CertificationCISPR 24, CISPR 35, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), EN 50121-4, IEC 62236-4, KS C 9832 Class A, KS C 9815, KS C 9835, KS C 9547, RCM AS/NZS CISPR 32 Cla
Compatible memory cardsMicroSD (TransFlash)/MicroSDHC/MicroSDXC
Connectivity technologyWired
Day/night modeYes
Depth159
Digest authenticationYes
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Flash memory8194
Form factorBox
Frame rate60
Height182
HTTPS encryptionYes
IK codeIK10
Image quality adjustmentBrightness/Contrast/Saturation
Image stabilizerYes
Internal memory2048
International Protection (IP) codeIP66, IP67
IP address filteringYes
Languages supportEnglish/French/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Traditional Chinese
Maximum resolution2688 x 1512
Minimum illumination0.05
Mounting typeCeiling/wall
Networking standardsIEEE 802.3at
Night visionYes
Number of cameras1
Number of languages12
Number of lenses4
Number of sensors1
Operating relative humidity (H-H)10 - 100
Operating temperature (T-T)-40 - 60
Optical sensor size1/1.8
Password protectionYes
Pixel counterYes
Placement supportedIndoor & outdoor
Power consumption (max)25.5
Power consumption (typical)11.2
Power source typePoE
Privacy maskingYes
Product colourWhite
Progressive scanYes
PTZ controlYes
PTZ modesDigital PTZ
Quality of Service (QoS) supportYes
Security algorithms802.1x RADIUS
Sensor typeCMOS
Storage relative humidity (H-H)5 - 95
Storage temperature (T-T)-40 - 65
SummaryAxis 02168-031. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Box. Minimum illumination: 0.05 lx, Camera shutter speed: 1/47500 - 1 s. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Maximum resolution: 2688 x 1512 pixels, Total megapixels: 4 MP, Video compression formats: H.264, H.265
Total megapixels4
TypeIP security camera
Video compression formatsH.264/H.265
Video motion detectionYes
Video recordingYes
Video streamingYes
Weight3300
Wide Dynamic Range (WDR)Yes
Width404
Zoom capabilityYes
Specs
Category CodeFNC
Description

With 4 MP resolution at up to 60 fps, a 1/1.8” sensor, and Lightfinder 2.0, AXIS Q1656-BE delivers exceptional video quality even in poor light conditions. Based on the latest Axis system-on-chip (SoC), it offers support for advanced features and applications based on deep learning on the edge. And AXIS Object Analytics provides highly nuanced object classification. With built-in cybersecurity features, it prevents unauthorized access and safeguards your system. This outdoor-ready barebone unit comes without lens and mounting, but with a variety of lenses, mounting options, and IR illumination kits, you can create a unique camera to meet your needs.

  • Built-in cybersecurity features; Exceptional images with 1/1.8” sensor; Ready to customize for specific needs; Support for analytics with deep learning; Support for i-CS lens

ModelQ1656-BE
NameNET CAMERA Q1656-BE 4MP BOX/02168-031 AXIS
PictureUrlhttps://static.elko.cloud/ProductImages/202a89ab-fe21-4f09-a393-518ede09d6c4.Jpeg
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/202a89ab-fe21-4f09-a393-518ede09d6c4.Jpeg
Unit Calculated Volume0.0257
Unit Calculated Weight4.15
Units per Shipping Box1
Vendor Homepagehttps://www.axis.com/products/axis-q1656-be
