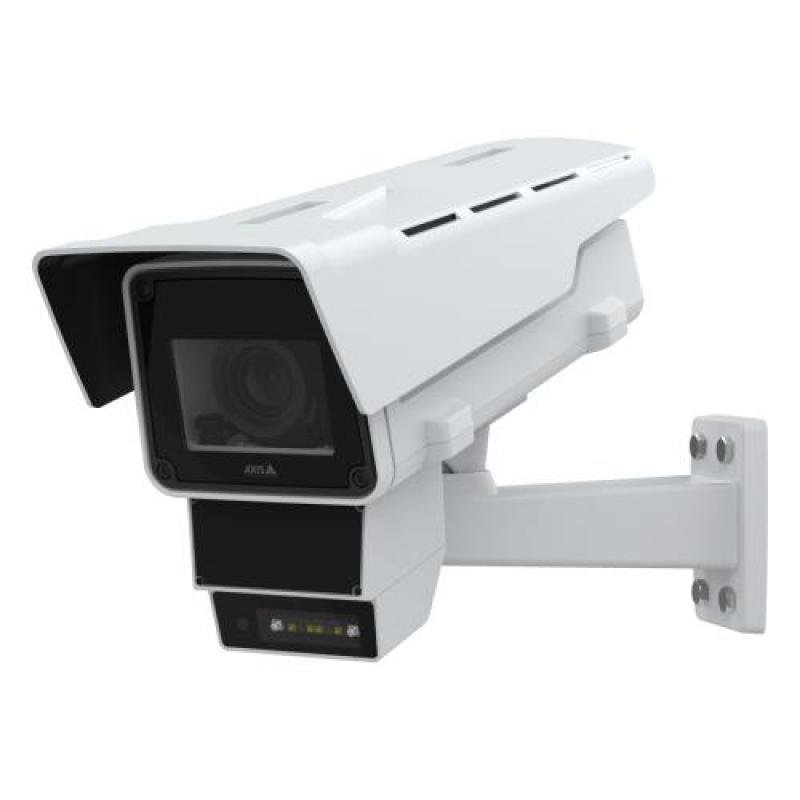

NET CAMERA Q1656-DLE/RADAR-VIDEO 02420-001 AXIS

NET CAMERA Q1656-DLE/RADAR-VIDEO 02420-001 AXIS
NET CAMERA Q1656-DLE/RADAR-VIDEO 02420-001 AXIS
  • Connectivity technology: Wired
  • Zoom capability: Yes
  • Maximum resolution: 2688 x 1512
  • Total megapixels: 4
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
168,283ден.
  • Достапност:
  • Бренд: AXIS
  • Шифра: 394287
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Axis 02420-001. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Box. Minimum illumination: 0.05 lx, Camera shutter speed: 1/47500 - 1 s. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Optical zoom: 2.5x, Focal length range: 3.9 - 10 mm, Normal focusing range: 0.5 m
  • Vendor Homepage: https://www.axis.com/products/axis-q1656-dle
  • Name: NET CAMERA Q1656-DLE/RADAR-VIDEO 02420-001 AXIS
  • Category Code: FNC
  • Model: Q1656-DLE
  • Form factor: Box
  • Mounting type: Ceiling/wall
  • Product colour: White
  • LED indicators: Yes
  • International Protection (IP) code: IP66
  • IK code: IK08
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Outdoor
  • PTZ control: Yes
  • PTZ modes: Digital PTZ
  • PTZ protocols: Pelco-D
  • Wide Dynamic Range (WDR): Yes
  • Day/night mode: Yes
  • Infrared (IR) cut-off filter: Yes
  • Alarm input/output: Yes
  • Languages support: English/French/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Traditional Chinese
  • Number of languages: 12
  • Certification: CISPR 24, CISPR 35, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(B)/NMB-3(B), EN 50121-4, IEC 62236-4, KS C 9832 Class A, KS C 9815, KS C 9835, KS C 9547, RCM AS/NZS CISPR 32 Cla
  • Camera pan control: Yes
  • Camera tilt control: Yes
  • Minimum illumination: 0.05
  • Camera shutter speed: 1/47500 - 1
  • Number of sensors: 1
  • Optical sensor size: 1/1.8
  • Progressive scan: Yes
  • Sensor type: CMOS
  • Zoom capability: Yes
  • Optical zoom: 2.5
  • Number of lenses: 4
  • Focal length range: 3.9 - 10
  • Auto focus: Yes
  • Normal focusing range: 0.5
  • Night vision: Yes
  • Night vision distance: 50
  • LED type: IR
  • Infra-red wavelength: 850
  • Maximum resolution: 2688 x 1512
  • Total megapixels: 4
  • Video compression formats: H.264/H.265
  • Video recording: Yes
  • Frame rate: 60
  • Video streaming: Yes
  • Noise reduction: Yes
  • Gain control type: Auto
  • Bit rate: Configurable bit rate
  • Flip & mirror: Yes
  • Image quality adjustment: Brightness/Contrast/Saturation
  • Privacy masking: Yes
  • Text caption overlay: Yes
  • Audio system full duplex: Yes
  • Audio formats supported: AAC-LC/ADPCM/G.711/G.726/LPCM/OPUS/PCM
  • Audio detection: Yes
  • Ethernet LAN: Yes
  • Networking standards: IEEE 802.1x/IEEE 802.3af/IEEE 802.3at
  • Supported network protocols: IPv4, IPv6 USGv6, HTTP, HTTPSa , HTTP/2, TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, LLDP, MQTT v3.1.1
  • Quality of Service (QoS) support: Yes
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC/SD
  • Flash memory: 8194
  • Internal memory: 2048
  • Ethernet LAN (RJ-45) ports: 1
  • Terminal block port: Yes
  • Password protection: Yes
  • Alert notification type: E-mail,Text alert message
  • Digest authentication: Yes
  • HTTPS encryption: Yes
  • IP address filtering: Yes
  • Pixel counter: Yes
  • Security algorithms: EAP-TLS
  • Video motion detection: Yes
  • Power source type: PoE
  • AC input voltage: 10 - 28
  • Power consumption (typical): 9.5
  • Power consumption (max): 25.5
  • Operating temperature (T-T): -40 - 60
  • Storage temperature (T-T): -40 - 65
  • Operating relative humidity (H-H): 10 - 100
  • Storage relative humidity (H-H): 5 - 95
  • Number of cameras: 1
  • Doesnt contain: BFR/PVC
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.03591
  • Unit Calculated Weight: 6
Specifications
AC input voltage10 - 28
Alarm input/outputYes
Alert notification typeE-mail,Text alert message
Audio detectionYes
Audio formats supportedAAC-LC/ADPCM/G.711/G.726/LPCM/OPUS/PCM
Audio system full duplexYes
Auto focusYes
Bit rateConfigurable bit rate
Camera pan controlYes
Camera shutter speed1/47500 - 1
Camera tilt controlYes
Card reader integratedYes
CertificationCISPR 24, CISPR 35, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(B)/NMB-3(B), EN 50121-4, IEC 62236-4, KS C 9832 Class A, KS C 9815, KS C 9835, KS C 9547, RCM AS/NZS CISPR 32 Cla
Compatible memory cardsMicroSD (TransFlash)/MicroSDHC/MicroSDXC/SD
Connectivity technologyWired
Day/night modeYes
Digest authenticationYes
Doesn\'t containBFR/PVC
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Flash memory8194
Flip & mirrorYes
Focal length range3.9 - 10
Form factorBox
Frame rate60
Gain control typeAuto
HTTPS encryptionYes
IK codeIK08
Image quality adjustmentBrightness/Contrast/Saturation
Infra-red wavelength850
Infrared (IR) cut-off filterYes
Internal memory2048
International Protection (IP) codeIP66
IP address filteringYes
Languages supportEnglish/French/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Traditional Chinese
LED indicatorsYes
LED typeIR
Maximum resolution2688 x 1512
Minimum illumination0.05
Mounting typeCeiling/wall
Networking standardsIEEE 802.1x/IEEE 802.3af/IEEE 802.3at
Night visionYes
Night vision distance50
Noise reductionYes
Normal focusing range0.5
Number of cameras1
Number of languages12
Number of lenses4
Number of sensors1
Operating relative humidity (H-H)10 - 100
Operating temperature (T-T)-40 - 60
Optical sensor size1/1.8
Optical zoom2.5
Password protectionYes
Pixel counterYes
Placement supportedOutdoor
Power consumption (max)25.5
Power consumption (typical)9.5
Power source typePoE
Privacy maskingYes
Product colourWhite
Progressive scanYes
PTZ controlYes
PTZ modesDigital PTZ
PTZ protocolsPelco-D
Quality of Service (QoS) supportYes
Security algorithmsEAP-TLS
Sensor typeCMOS
Storage relative humidity (H-H)5 - 95
Storage temperature (T-T)-40 - 65
SummaryAxis 02420-001. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Box. Minimum illumination: 0.05 lx, Camera shutter speed: 1/47500 - 1 s. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Optical zoom: 2.5x, Focal length range: 3.9 - 10 mm, Normal focusing range: 0.5 m
Supported network protocolsIPv4, IPv6 USGv6, HTTP, HTTPSa , HTTP/2, TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, LLDP, MQTT v3.1.1
Terminal block portYes
Text caption overlayYes
Total megapixels4
TypeIP security camera
Video compression formatsH.264/H.265
Video motion detectionYes
Video recordingYes
Video streamingYes
Wide Dynamic Range (WDR)Yes
Zoom capabilityYes
Specs
Category CodeFNC
Description

This unique device fuses two powerful technologies to deliver next-level detection and visualization for reliable wide-area intrusion protection 24/7. Video and radar analytics come together in AXIS Object Analytics to provide precise localization and object classification powered by deep learning and distance and speed measurements based on an object’s radar signature and movement characteristics. By default, our intelligent fusion system handles notifications in the most advantageous way depending on what best suits the circumstances. Or, if you prefer, you can choose between minimizing false notifications or never missing a thing.

  • Accurate detection 24/7; Built-in cybersecurity features; Increased scene intelligence; Premium Axis Q-line camera functionality; Two powerful technologies in one device

ModelQ1656-DLE
NameNET CAMERA Q1656-DLE/RADAR-VIDEO 02420-001 AXIS
PictureUrlhttps://static.elko.cloud/ProductImages/f9cb2568-4473-4fc0-aaa9-bf34f7945ec9.Jpeg
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/f9cb2568-4473-4fc0-aaa9-bf34f7945ec9.Jpeg
Unit Calculated Volume0.03591
Unit Calculated Weight6
Units per Shipping Box1
Vendor Homepagehttps://www.axis.com/products/axis-q1656-dle
