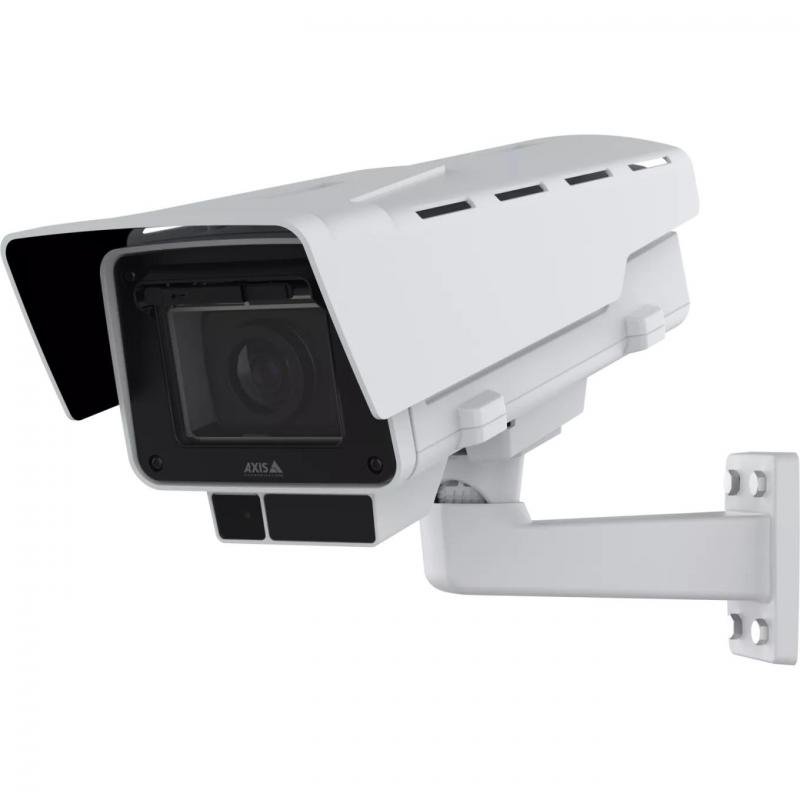

NET CAMERA Q1728-LE BOX/03210-001 AXIS

NET CAMERA Q1728-LE BOX/03210-001 AXIS
NET CAMERA Q1728-LE BOX/03210-001 AXIS
  • Connectivity technology: Wired
  • Zoom capability: Yes
  • Maximum resolution: 3840 x 2160
  • Total megapixels: 8
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
130,263ден.
  • Достапност:
  • Бренд: AXIS
  • Шифра: 455613
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Axis Q1728-LE. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: Black, White, Form factor: Box. Minimum illumination: 0.01 lx, Lens viewing angle, horizontal: 49 - 108°, Lens viewing angle, vertical: 27 - 58°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.2 mm (1 / 1.2"). Lens diameter: 1.3 cm, Focal length range: 5.9 - 13.3 mm, Detect distance (wide): 84.6 m
  • Vendor Homepage: https://www.axis.com/products/axis-q1728-le
  • Name: NET CAMERA Q1728-LE BOX/03210-001 AXIS
  • Category Code: FNC
  • Form factor: Box
  • Mounting type: Wall
  • Product colour: Black/White
  • Housing material: Aluminium/Plastic
  • International Protection (IP) code: IP66, IP67
  • IK code: IK10
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Indoor & outdoor
  • PTZ control: Yes
  • PTZ modes: Digital PTZ
  • PTZ protocols: Pelco-D
  • Auto-tracking: Yes
  • Tour recording: Yes
  • Preset points: Yes
  • Wide Dynamic Range (WDR): Yes
  • Day/night mode: Yes
  • Infrared (IR) cut-off filter: Yes
  • Certification: CE, EAC, FCC, ICES, KC, RCM, UL, VCCI, TAA
  • Minimum illumination: 0.01
  • Lens viewing angle, horizontal: 49 - 108
  • Lens viewing angle, vertical: 27 - 58
  • Camera shutter speed: 1/66500 - 2
  • Number of sensors: 1
  • Optical sensor size: 1/1.2
  • Progressive scan: Yes
  • Sensor type: CMOS
  • Zoom capability: Yes
  • Number of lenses: 1
  • Lens diameter: 13
  • Focal length range: 5.9 - 13.3
  • Auto focus: Yes
  • Maximum aperture number: 2.9
  • Minimum aperture number: 1.6
  • Closest focusing distance: 0.5
  • Detect distance (tele): 177.9
  • Detect distance (wide): 84.6
  • Identify distance (tele): 17.8
  • Identify distance (wide): 8.5
  • Observe distance (tele): 70.6
  • Observe distance (wide): 33.6
  • Recognize distance (tele): 35.6
  • Recognize distance (wide): 16.9
  • Night vision: Yes
  • Night vision distance: 50
  • LED type: IR
  • Infra-red wavelength: 850
  • Maximum resolution: 3840 x 2160
  • Total megapixels: 8
  • Video formats supported: AV1/AVC/H.264/H.265/HEVC/M-JPEG/MPEG4
  • Supported graphics resolutions: 160 x 120/2560 x 1600 (WQXGA)/2592 x 1944/3840 x 2160
  • Frame rate: 60
  • Video streaming: Yes
  • Noise reduction: Yes
  • Noise reduction technology: 2D noise reduction,3D noise reduction
  • Gain control type: Auto
  • Bit rate control: Variable Bit Rate (VBR)
  • Flip & mirror: Yes
  • Image quality adjustment: Brightness/Contrast/Saturation/Sharpness
  • Text caption overlay: Yes
  • Audio formats supported: AAC-LC/ADPCM/G.726/OPUS/PCM
  • Signal-to-Noise Ratio (SNR): 55
  • Audio detection: Yes
  • Sample rates: 8 - 48
  • Ethernet LAN: Yes
  • Ethernet interface type: Fast Ethernet/Gigabit Ethernet
  • Networking standards: IEEE 802.3af/IEEE 802.3at
  • Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/ 2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, PTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4
  • Streaming method: Multicast
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
  • Flash memory: 8000
  • RAM capacity: 4000
  • RS-485 ports: 1
  • Microphone in: Yes
  • Terminal block port: Yes
  • DC-in jack: Yes
  • Human and vehicle targets classification: Yes
  • Intelligent Video Surveillance (IVS) system features: Abandoned object/Face detection/Line crossing detection
  • Privacy protection: Yes
  • Power source type: DC,PoE
  • Power consumption (typical): 7.8
  • Power consumption (max): 25.5
  • Power consumption (Power over Ethernet (PoE)): 25.5
  • Operating temperature (T-T): -40 - 60
  • Storage temperature (T-T): -40 - 65
  • Operating relative humidity (H-H): 10 - 100
  • Storage relative humidity (H-H): 5 - 95
  • Width: 178
  • Depth: 429
  • Height: 179
  • Weight: 4800
  • Compliance certificates: REACH/RoHS
  • Number of cameras: 1
  • Wiper included: Yes
  • Doesnt contain: CFR/PVC/BFR
  • Units per Pallet: 0
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.0285
  • Unit Calculated Weight: 5.81
Specifications
Audio detectionYes
Audio formats supportedAAC-LC/ADPCM/G.726/OPUS/PCM
Auto focusYes
Auto-trackingYes
Bit rate controlVariable Bit Rate (VBR)
Camera shutter speed1/66500 - 2
Card reader integratedYes
CertificationCE, EAC, FCC, ICES, KC, RCM, UL, VCCI, TAA
Closest focusing distance0.5
Compatible memory cardsMicroSD (TransFlash)/MicroSDHC/MicroSDXC
Compliance certificatesREACH/RoHS
Connectivity technologyWired
Day/night modeYes
DC-in jackYes
Depth429
Detect distance (tele)177.9
Detect distance (wide)84.6
Doesn\'t containCFR/PVC/BFR
Ethernet interface typeFast Ethernet/Gigabit Ethernet
Ethernet LANYes
Flash memory8000
Flip & mirrorYes
Focal length range5.9 - 13.3
Form factorBox
Frame rate60
Gain control typeAuto
Height179
Housing materialAluminium/Plastic
Human and vehicle targets classificationYes
Identify distance (tele)17.8
Identify distance (wide)8.5
IK codeIK10
Image quality adjustmentBrightness/Contrast/Saturation/Sharpness
Infra-red wavelength850
Infrared (IR) cut-off filterYes
Intelligent Video Surveillance (IVS) system featuresAbandoned object/Face detection/Line crossing detection
International Protection (IP) codeIP66, IP67
LED typeIR
Lens diameter13
Lens viewing angle, horizontal49 - 108
Lens viewing angle, vertical27 - 58
Maximum aperture number2.9
Maximum resolution3840 x 2160
Microphone inYes
Minimum aperture number1.6
Minimum illumination0.01
Mounting typeWall
Networking standardsIEEE 802.3af/IEEE 802.3at
Night visionYes
Night vision distance50
Noise reductionYes
Noise reduction technology2D noise reduction,3D noise reduction
Number of cameras1
Number of lenses1
Number of sensors1
Observe distance (tele)70.6
Observe distance (wide)33.6
Operating relative humidity (H-H)10 - 100
Operating temperature (T-T)-40 - 60
Optical sensor size1/1.2
Placement supportedIndoor & outdoor
Power consumption (max)25.5
Power consumption (Power over Ethernet (PoE))25.5
Power consumption (typical)7.8
Power source typeDC,PoE
Preset pointsYes
Privacy protectionYes
Product colourBlack/White
Progressive scanYes
PTZ controlYes
PTZ modesDigital PTZ
PTZ protocolsPelco-D
RAM capacity4000
Recognize distance (tele)35.6
Recognize distance (wide)16.9
RS-485 ports1
Sample rates8 - 48
Sensor typeCMOS
Signal-to-Noise Ratio (SNR)55
Storage relative humidity (H-H)5 - 95
Storage temperature (T-T)-40 - 65
Streaming methodMulticast
SummaryAxis Q1728-LE. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: Black, White, Form factor: Box. Minimum illumination: 0.01 lx, Lens viewing angle, horizontal: 49 - 108°, Lens viewing angle, vertical: 27 - 58°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.2 mm (1 / 1.2"). Lens diameter: 1.3 cm, Focal length range: 5.9 - 13.3 mm, Detect distance (wide): 84.6 m
Supported graphics resolutions160 x 120/2560 x 1600 (WQXGA)/2592 x 1944/3840 x 2160
Supported network protocolsIPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/ 2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, PTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4
Terminal block portYes
Text caption overlayYes
Total megapixels8
Tour recordingYes
TypeIP security camera
Video formats supportedAV1/AVC/H.264/H.265/HEVC/M-JPEG/MPEG4
Video streamingYes
Weight4800
Wide Dynamic Range (WDR)Yes
Width178
Wiper includedYes
Zoom capabilityYes
Specs
Category CodeFNC
Description

AXIS Q1728-LE Block Camera

Built on ARTPEC-9, with support for AV1 codec, this AI-powered block camera offers accelerated performance and lets you run impressive analytics applications on the edge. Available with a wide or tele lens, it features a built-in wiper to withstand harsh outdoor environments.

Superior image quality

AXIS Q1728-LE offers 8 MP at 60 fps and features a large 1/1.2" sensor for consistent low-light performance. Lightfinder 2.0 and Forensic WDR provide true colors and great forensic detail in challenging light or near darkness. Axis Zipstream with support for AV1, H.264, and H.265 significantly lowers bandwidth and storage requirements. Available in two variants with a choice of lenses: a wide (6-13 mm) lens with a 76°-32° horizontal field of view for surveillance in wide, open areas, and a tele (15-48 mm) lens with a 30°-40° horizontal field of view for great details at long distances. Plus, the built-in lens with remote zoom and focus is perfectly calibrated to save you time and effort.

For harsh, outdoor environments

Ideal for any outdoor location, AXIS Q1728-LE comes with a built-in wiper and front window with carbon nanotube film heater to guarantee great images even in snow, rain, ice, and fog. It can operate in temperatures from -40 °C to 60 °C (-40 °F to 140 °F). This future-proof camera has a standardized enclosure design that can be reused with any Axis block camera. This makes it a more efficient and environmentally friendly option and ensures you get the full value from your investment. What’s more, the front glass is IK08-rated, and the enclosure is IK10-, NEMA 4X-, NEMA TS-2-, IP66-, and IP67-rated to withstand harsh weather conditions and impacts.

ARTPEC-9 for unmatched performance

ARTPEC-9 refines the remarkable features and capabilities that characterized previous generations of our in-house-designed SoC: low bitrate, AI-powered analytics, superior imaging, and built-in cybersecurity. It also introduces AV1, an open-source video encoding standard from the Alliance for Open Media. With support for AV1 and enhanced image processing, ARTPEC-9 delivers high-quality video with uncompromised detail and clarity, and best-in-class bitrate. Together with Axis Zipstream, AV1 also ensures hassle-free video both on-prem and in the cloud. What’s more, ARTPEC-9 powers advanced analytics applications that detect objects earlier and analyze events more precisely.

Powerful with strong security

Featuring a deep learning processing unit (DLPU), this AI-based camera lets you run advanced features and powerful analytics on the edge. It comes with AXIS Object Analytics preinstalled to detect, classify, track, and count humans, vehicles, and types of vehicles. With AXIS Image Health Analytics preinstalled, you’ll be notified if your image is blocked, degraded, under exposed, or redirected. Furthermore, Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and offers FIPS 140-3 Level 3 certified secure key storage and operations.



  • Superior image quality in 4K
  • Built-in wiper for harsh weather
  • Next-generation AI-powered analytics
  • Wide or tele lenses available
  • Built-in cybersecurity with Axis Edge Vault

NameNET CAMERA Q1728-LE BOX/03210-001 AXIS
PictureUrlhttps://static.elko.cloud/ProductImages/669d0ee5-dfb4-4a5a-a966-8941e3e9a0ca.Jpeg
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/669d0ee5-dfb4-4a5a-a966-8941e3e9a0ca.Jpeg
Unit Calculated Volume0.0285
Unit Calculated Weight5.81
Units per Pallet0
Units per Shipping Box1
Vendor Homepagehttps://www.axis.com/products/axis-q1728-le
