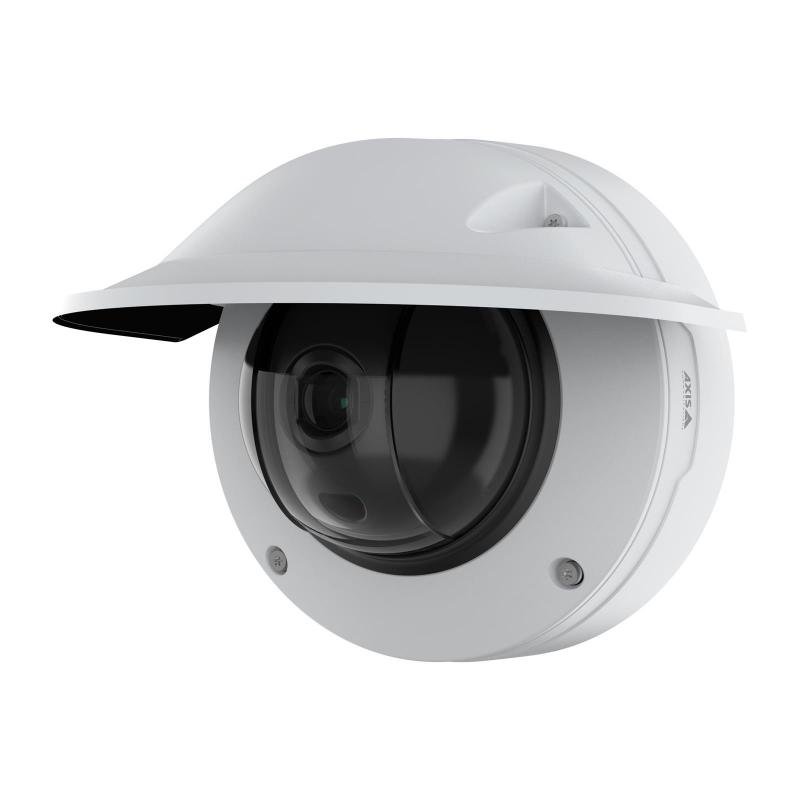

NET CAMERA Q3536-LVE DOME/02224-001 AXIS

NET CAMERA Q3536-LVE DOME/02224-001 AXIS
NET CAMERA Q3536-LVE DOME/02224-001 AXIS
  • Connectivity technology: Wired
  • Zoom capability: Yes
  • Maximum resolution: 2688 x 1512
  • Total megapixels: 4
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
87,096ден.
  • Достапност:
  • Бренд: AXIS
  • Шифра: 371771
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Axis 02224-001. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Minimum illumination: 0.08 lx, Angle of rotation: 175°, Tilt angle range: -43 - 80°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Optical zoom: 2.6x
  • Vendor Homepage: https://www.axis.com/products/axis-q3536-lve
  • Name: NET CAMERA Q3536-LVE DOME/02224-001 AXIS
  • Category Code: FNC
  • Model: 02224-001
  • Form factor: Dome
  • Mounting type: Ceiling/wall
  • Product colour: White
  • International Protection (IP) code: IP66
  • IK code: IK10+
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Indoor & outdoor
  • PTZ modes: Digital PTZ
  • Wide Dynamic Range (WDR): Yes
  • Day/night mode: Yes
  • Infrared (IR) cut-off filter: Yes
  • Languages support: English/French/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Traditional Chinese
  • Number of languages: 12
  • Certification: CISPR 35, EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A, VCCI Class A
  • Camera pan control: Yes
  • Camera tilt control: Yes
  • Minimum illumination: 0.08
  • Angle of rotation: 175
  • Tilt angle range: -43 - 80
  • Camera shutter speed: 1/91000 - 1
  • Number of sensors: 1
  • Optical sensor size: 1/1.8
  • Progressive scan: Yes
  • Sensor type: CMOS
  • Zoom capability: Yes
  • Optical zoom: 2.6
  • Number of lenses: 1
  • Night vision: Yes
  • LED type: IR
  • Maximum resolution: 2688 x 1512
  • Total megapixels: 4
  • Video compression formats: H.264/H.265
  • Video recording: Yes
  • Frame rate: 60
  • Video streaming: Yes
  • Bit rate control: Variable Bit Rate (VBR)
  • Image quality adjustment: Brightness/Contrast/Saturation/Sharpness
  • Privacy masking: Yes
  • Audio formats supported: AAC-LC/ADPCM/G.711/G.726/OPUS/PCM
  • Built-in microphone: Yes
  • Audio detection: Yes
  • Ethernet LAN: Yes
  • Networking standards: IEEE 802.3at
  • Quality of Service (QoS) support: Yes
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
  • Flash memory: 8194
  • Internal memory: 2048
  • Ethernet LAN (RJ-45) ports: 1
  • Password protection: Yes
  • Active tampering alarm: Yes
  • Alert notification type: E-mail
  • Digest authentication: Yes
  • HTTPS encryption: Yes
  • IP address filtering: Yes
  • Pixel counter: Yes
  • Security algorithms: 802.1x RADIUS
  • Power source type: PoE
  • Power consumption (typical): 9
  • Power consumption (max): 23
  • Operating temperature (T-T): -50 - 60
  • Storage temperature (T-T): -40 - 65
  • Operating relative humidity (H-H): 10 - 100
  • Storage relative humidity (H-H): 5 - 95
  • Diameter: 184
  • Weight: 2100
  • Number of cameras: 1
  • Mounting kit: Yes
  • Mounting brackets included: Yes
  • Drilling template included: Yes
  • Manual: Yes
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.013608
  • Unit Calculated Weight: 2.6
Specifications
Active tampering alarmYes
Alert notification typeE-mail
Angle of rotation175
Audio detectionYes
Audio formats supportedAAC-LC/ADPCM/G.711/G.726/OPUS/PCM
Bit rate controlVariable Bit Rate (VBR)
Built-in microphoneYes
Camera pan controlYes
Camera shutter speed1/91000 - 1
Camera tilt controlYes
Card reader integratedYes
CertificationCISPR 35, EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A, VCCI Class A
Compatible memory cardsMicroSD (TransFlash)/MicroSDHC/MicroSDXC
Connectivity technologyWired
Day/night modeYes
Diameter184
Digest authenticationYes
Drilling template includedYes
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Flash memory8194
Form factorDome
Frame rate60
HTTPS encryptionYes
IK codeIK10+
Image quality adjustmentBrightness/Contrast/Saturation/Sharpness
Infrared (IR) cut-off filterYes
Internal memory2048
International Protection (IP) codeIP66
IP address filteringYes
Languages supportEnglish/French/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Traditional Chinese
LED typeIR
ManualYes
Maximum resolution2688 x 1512
Minimum illumination0.08
Mounting brackets includedYes
Mounting kitYes
Mounting typeCeiling/wall
Networking standardsIEEE 802.3at
Night visionYes
Number of cameras1
Number of languages12
Number of lenses1
Number of sensors1
Operating relative humidity (H-H)10 - 100
Operating temperature (T-T)-50 - 60
Optical sensor size1/1.8
Optical zoom2.6
Password protectionYes
Pixel counterYes
Placement supportedIndoor & outdoor
Power consumption (max)23
Power consumption (typical)9
Power source typePoE
Privacy maskingYes
Product colourWhite
Progressive scanYes
PTZ modesDigital PTZ
Quality of Service (QoS) supportYes
Security algorithms802.1x RADIUS
Sensor typeCMOS
Storage relative humidity (H-H)5 - 95
Storage temperature (T-T)-40 - 65
SummaryAxis 02224-001. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Minimum illumination: 0.08 lx, Angle of rotation: 175°, Tilt angle range: -43 - 80°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Optical zoom: 2.6x
Tilt angle range-43 - 80
Total megapixels4
TypeIP security camera
Video compression formatsH.264/H.265
Video recordingYes
Video streamingYes
Weight2100
Wide Dynamic Range (WDR)Yes
Zoom capabilityYes
Specs
Category CodeFNC
Description

With 4 MP resolution, Lightfinder 2.0, Forensic WDR, and OptimizedIR, AXIS Q3536-LVE delivers outstanding image quality even in the harshest weather and environments. The IR-shielded dome prevents IR reflections ensuring consistently clear, sharp video. Based on the latest generation Axis system-on-chip (SoC), it offers advanced features and powerful applications based on deep learning. For instance, AXIS Object Analytics comes preinstalled offering highly nuanced object classification. This robust camera features redundant power, sensors for intrusion and shock detection, and built-in cybersecurity features such as Axis Edge Vault and a FIPS 140-2 level 2 certified Trusted Platform Module (TPM).

  • Built-in cybersecurity features; IR-shielded dome to prevent reflections; Outstanding image quality in 4 MP; Support for analytics with deep learning

Model02224-001
NameNET CAMERA Q3536-LVE DOME/02224-001 AXIS
PictureUrlhttps://static.elko.cloud/ProductImages/882ed3a0-76ab-4ddb-9c51-bf1ef5bc7d7b.Jpeg
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/882ed3a0-76ab-4ddb-9c51-bf1ef5bc7d7b.Jpeg
Unit Calculated Volume0.013608
Unit Calculated Weight2.6
Units per Shipping Box1
Vendor Homepagehttps://www.axis.com/products/axis-q3536-lve
