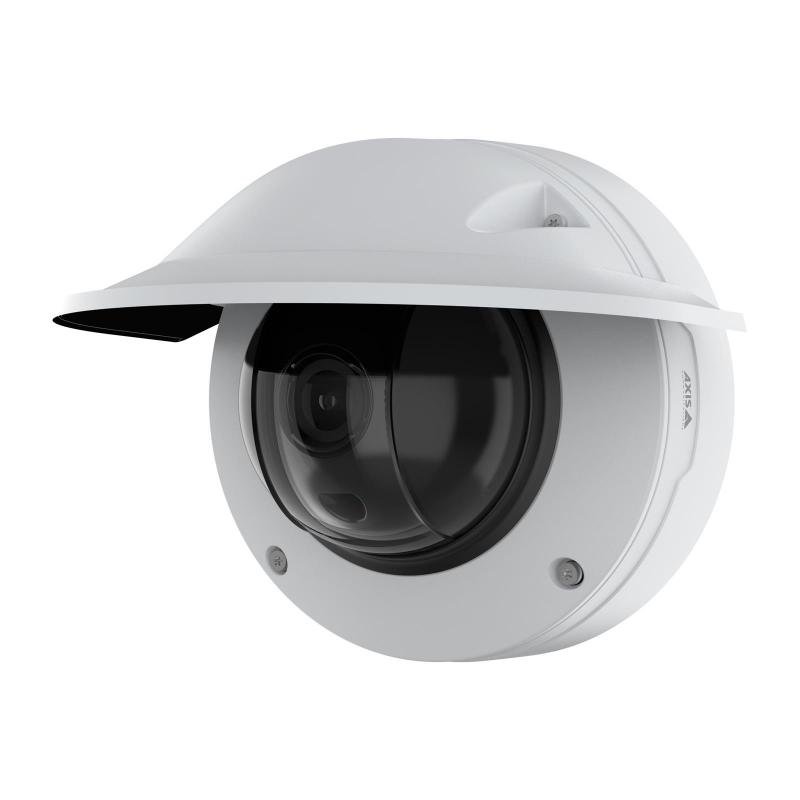

NET CAMERA Q3538-LVE DOME/02225-001 AXIS

NET CAMERA Q3538-LVE DOME/02225-001 AXIS
NET CAMERA Q3538-LVE DOME/02225-001 AXIS
  • Connectivity technology: Wired
  • Zoom capability: Yes
  • Maximum resolution: 3840 x 2160
  • Total megapixels: 8
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
105,326ден.
  • Достапност:
  • Бренд: AXIS
  • Шифра: 395892
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Axis 02225-001. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Minimum illumination: 0.07 lx, Tilt angle range: -43 - 80°, Camera shutter speed: 1/66500 - 2 s. Sensor type: CMOS, Optical sensor size: 25.4 / 1.2 mm (1 / 1.2"). Focal length range: 6.2 - 12.9 mm
  • Vendor Homepage: https://www.axis.com/products/axis-q3538-lve
  • Name: NET CAMERA Q3538-LVE DOME/02225-001 AXIS
  • Category Code: FNC
  • Model: Q3538-LVE
  • Form factor: Dome
  • Mounting type: Ceiling/wall
  • Product colour: White
  • International Protection (IP) code: IP66
  • IK code: IK10+
  • Weatherproof: Yes
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Indoor & outdoor
  • PTZ control: Yes
  • PTZ modes: Digital PTZ
  • Wide Dynamic Range (WDR): Yes
  • Day/night mode: Yes
  • Infrared (IR) cut-off filter: Yes
  • Languages support: English/French/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Traditional Chinese
  • Number of languages: 12
  • Certification: CISPR 35, EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A, VCCI Class A
  • Camera pan control: Yes
  • Camera tilt control: Yes
  • Minimum illumination: 0.07
  • Tilt angle range: -43 - 80
  • Camera shutter speed: 1/66500 - 2
  • Number of sensors: 1
  • Optical sensor size: 1/1.2
  • Progressive scan: Yes
  • Sensor type: CMOS
  • Zoom capability: Yes
  • Number of lenses: 1
  • Focal length range: 6.2 - 12.9
  • Night vision: Yes
  • LED type: IR
  • Maximum resolution: 3840 x 2160
  • Total megapixels: 8
  • Video formats supported: H.264/H.265
  • Video recording: Yes
  • Frame rate: 60
  • Video streaming: Yes
  • Image quality adjustment: Brightness/Contrast/Saturation/Sharpness
  • Privacy masking: Yes
  • Audio formats supported: AAC-LC/G.711/G.726/OPUS
  • Built-in microphone: Yes
  • Audio detection: Yes
  • Ethernet LAN: Yes
  • Networking standards: IEEE 802.3at
  • Quality of Service (QoS) support: Yes
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
  • Flash memory: 8194
  • Internal memory: 2048
  • Ethernet LAN (RJ-45) ports: 1
  • Active tampering alarm: Yes
  • Alert notification type: E-mail
  • HTTPS encryption: Yes
  • Human and vehicle targets classification: Yes
  • IP address filtering: Yes
  • Pixel counter: Yes
  • Power source type: PoE
  • Power consumption (typical): 9
  • Power consumption (max): 23
  • Operating temperature (T-T): -50 - 60
  • Storage temperature (T-T): -40 - 65
  • Operating relative humidity (H-H): 10 - 100
  • Storage relative humidity (H-H): 5 - 95
  • Height: 124
  • Diameter: 183
  • Weight: 2100
  • Number of cameras: 1
  • Mounting kit: Yes
  • Mounting brackets included: Yes
  • Drilling template included: Yes
  • Manual: Yes
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.01393
  • Unit Calculated Weight: 2
Specifications
Active tampering alarmYes
Alert notification typeE-mail
Audio detectionYes
Audio formats supportedAAC-LC/G.711/G.726/OPUS
Built-in microphoneYes
Camera pan controlYes
Camera shutter speed1/66500 - 2
Camera tilt controlYes
Card reader integratedYes
CertificationCISPR 35, EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A, VCCI Class A
Compatible memory cardsMicroSD (TransFlash)/MicroSDHC/MicroSDXC
Connectivity technologyWired
Day/night modeYes
Diameter183
Drilling template includedYes
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Flash memory8194
Focal length range6.2 - 12.9
Form factorDome
Frame rate60
Height124
HTTPS encryptionYes
Human and vehicle targets classificationYes
IK codeIK10+
Image quality adjustmentBrightness/Contrast/Saturation/Sharpness
Infrared (IR) cut-off filterYes
Internal memory2048
International Protection (IP) codeIP66
IP address filteringYes
Languages supportEnglish/French/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Traditional Chinese
LED typeIR
ManualYes
Maximum resolution3840 x 2160
Minimum illumination0.07
Mounting brackets includedYes
Mounting kitYes
Mounting typeCeiling/wall
Networking standardsIEEE 802.3at
Night visionYes
Number of cameras1
Number of languages12
Number of lenses1
Number of sensors1
Operating relative humidity (H-H)10 - 100
Operating temperature (T-T)-50 - 60
Optical sensor size1/1.2
Pixel counterYes
Placement supportedIndoor & outdoor
Power consumption (max)23
Power consumption (typical)9
Power source typePoE
Privacy maskingYes
Product colourWhite
Progressive scanYes
PTZ controlYes
PTZ modesDigital PTZ
Quality of Service (QoS) supportYes
Sensor typeCMOS
Storage relative humidity (H-H)5 - 95
Storage temperature (T-T)-40 - 65
SummaryAxis 02225-001. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Minimum illumination: 0.07 lx, Tilt angle range: -43 - 80°, Camera shutter speed: 1/66500 - 2 s. Sensor type: CMOS, Optical sensor size: 25.4 / 1.2 mm (1 / 1.2"). Focal length range: 6.2 - 12.9 mm
Tilt angle range-43 - 80
Total megapixels8
TypeIP security camera
Video formats supportedH.264/H.265
Video recordingYes
Video streamingYes
WeatherproofYes
Weight2100
Wide Dynamic Range (WDR)Yes
Zoom capabilityYes
Specs
Category CodeFNC
Description

With superior 4K resolution, Lightfinder 2.0, Forensic WDR, and OptimizedIR, AXIS Q3538-LVE delivers outstanding image quality even in the harshest weather and environments. The IR-shielded dome prevents IR reflections ensuring clear, sharp video every time. Built on ARTPEC-8, it offers advanced features and powerful applications based on deep learning. For instance, AXIS Object Analytics comes preinstalled offering highly nuanced object classification. Enclosed in a metal casing, this robust camera features redundant power, sensors for intrusion- and shock detection, and built-in cybersecurity features such as Axis Edge Vault and a FIPS 140-2 level 2 certified Trusted Platform Module (TPM).

  • Analytics with deep learning; Built-in cybersecurity features; IR-shielded dome to prevent reflections; Robust, metal casing; Superior image quality in 4K

ModelQ3538-LVE
NameNET CAMERA Q3538-LVE DOME/02225-001 AXIS
PictureUrlhttps://static.elko.cloud/ProductImages/90c70d28-83af-4dcd-845f-71000fc5f1ac.Jpeg
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/90c70d28-83af-4dcd-845f-71000fc5f1ac.Jpeg
Unit Calculated Volume0.01393
Unit Calculated Weight2
Units per Shipping Box1
Vendor Homepagehttps://www.axis.com/products/axis-q3538-lve
