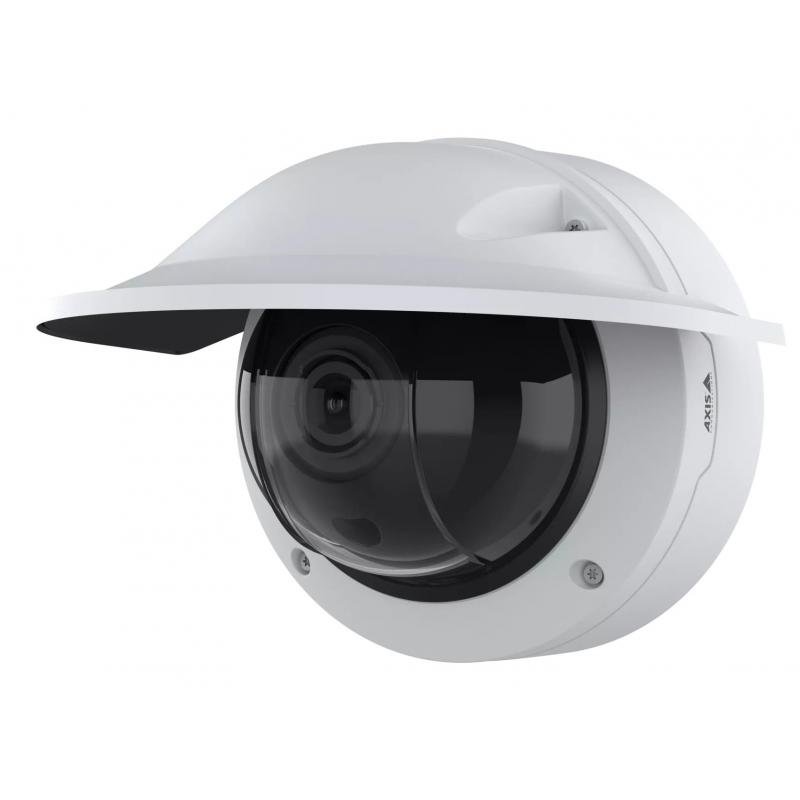

NET CAMERA Q3558-LVE DOME/03206-001 AXIS

NET CAMERA Q3558-LVE DOME/03206-001 AXIS
NET CAMERA Q3558-LVE DOME/03206-001 AXIS
  • Connectivity technology: Wired
  • Zoom capability: Yes
  • Maximum resolution: 3840 x 2160
  • Total megapixels: 8
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
105,326ден.
  • Достапност:
  • Бренд: AXIS
  • Шифра: 451033
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Axis Q3558-LVE. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: White, Form factor: Dome. Minimum illumination: 0.007 lx, Angle of rotation: 180°, Lens viewing angle, horizontal: 104 - 50°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.2 mm (1 / 1.2"). Optical zoom: 2x, Focal length range: 6.3 - 13 mm, Detect distance (wide): 88 m
  • Vendor Homepage: https://www.axis.com/products/axis-q3558-lve
  • Name: NET CAMERA Q3558-LVE DOME/03206-001 AXIS
  • Category Code: FNC
  • Form factor: Dome
  • Mounting type: Ceiling/Wall/Pole
  • Product colour: White
  • LED indicators: Yes
  • Housing material: Aluminium/Polycarbonate (PC)
  • International Protection (IP) code: IP66, IP6K9K
  • IK code: IK10
  • Weatherproof: Yes
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Outdoor
  • PTZ control: Yes
  • Tour recording: Yes
  • Wide Dynamic Range (WDR): Yes
  • Day/night mode: Yes
  • Infrared (IR) cut-off filter: Yes
  • Built-in processor: Yes
  • Processor model: ARTPEC-9
  • Dynamic range: 120
  • Camera pan control: Yes
  • Camera tilt control: Yes
  • Minimum illumination: 0.007
  • Angle of rotation: 180
  • Lens viewing angle, horizontal: 104 - 50
  • Lens viewing angle, vertical: 56 - 28
  • Tilt angle range: -42 - 80
  • Pan range: -180 - 180
  • Camera pixel size: 2.9
  • Camera shutter speed: 1/67500 - 2
  • Number of sensors: 1
  • Optical sensor size: 1/1.2
  • Progressive scan: Yes
  • Sensor type: CMOS
  • Zoom capability: Yes
  • Optical zoom: 2
  • Focal length range: 6.3 - 13
  • Auto focus: Yes
  • Maximum aperture number: 2.9
  • Minimum aperture number: 1.6
  • Detect distance (tele): 178
  • Detect distance (wide): 88
  • Identify distance (tele): 18
  • Identify distance (wide): 9
  • Observe distance (tele): 71
  • Observe distance (wide): 35
  • Recognize distance (tele): 36
  • Recognize distance (wide): 18
  • Night vision: Yes
  • Night vision distance: 60
  • LED type: IR
  • Infra-red wavelength: 850
  • Maximum resolution: 3840 x 2160
  • Total megapixels: 8
  • Video compression formats: AV1/H.264/H.265/M-JPEG
  • Video recording: Yes
  • Frame rate: 60
  • Video streaming: Yes
  • Noise reduction: Yes
  • Noise reduction technology: 2D noise reduction,3D noise reduction
  • Image quality adjustment: Brightness/Contrast/Saturation/Sharpness/White balance
  • Image stabilizer: Yes
  • Text caption overlay: Yes
  • Ethernet LAN: Yes
  • Ethernet interface type: Fast Ethernet/Gigabit Ethernet
  • Networking standards: IEEE 802.1AE/IEEE 802.1ar/IEEE 802.1x/IEEE 802.3at
  • Quality of Service (QoS) support: Yes
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
  • Flash memory: 8192
  • RAM capacity: 4096
  • Ethernet LAN (RJ-45) ports: 1
  • Terminal block port: Yes
  • DC-in jack: Yes
  • Network access storage (NAS): Yes
  • Pixel counter: Yes
  • Video motion detection: Yes
  • Cloud-managed: Yes
  • Power source type: DC,PoE
  • Power consumption (typical): 6.9
  • Power consumption (max): 25.5
  • DC output voltage: 8,9,10,12,15,16,24,28
  • Operating temperature (T-T): -50 - 55
  • Storage temperature (T-T): -40 - 65
  • Operating relative humidity (H-H): 10 - 100
  • Storage relative humidity (H-H): 5 - 95
  • Weight: 2310
  • Number of cameras: 1
  • Mounting kit: Yes
  • Manual: Yes
  • Units per Pallet: 0
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.01247
  • Unit Calculated Weight: 3
Specifications
Angle of rotation180
Auto focusYes
Built-in processorYes
Camera pan controlYes
Camera pixel size2.9
Camera shutter speed1/67500 - 2
Camera tilt controlYes
Card reader integratedYes
Cloud-managedYes
Compatible memory cardsMicroSD (TransFlash)/MicroSDHC/MicroSDXC
Connectivity technologyWired
Day/night modeYes
DC output voltage8,9,10,12,15,16,24,28
DC-in jackYes
Detect distance (tele)178
Detect distance (wide)88
Dynamic range120
Ethernet interface typeFast Ethernet/Gigabit Ethernet
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Flash memory8192
Focal length range6.3 - 13
Form factorDome
Frame rate60
Housing materialAluminium/Polycarbonate (PC)
Identify distance (tele)18
Identify distance (wide)9
IK codeIK10
Image quality adjustmentBrightness/Contrast/Saturation/Sharpness/White balance
Image stabilizerYes
Infra-red wavelength850
Infrared (IR) cut-off filterYes
International Protection (IP) codeIP66, IP6K9K
LED indicatorsYes
LED typeIR
Lens viewing angle, horizontal104 - 50
Lens viewing angle, vertical56 - 28
ManualYes
Maximum aperture number2.9
Maximum resolution3840 x 2160
Minimum aperture number1.6
Minimum illumination0.007
Mounting kitYes
Mounting typeCeiling/Wall/Pole
Network access storage (NAS)Yes
Networking standardsIEEE 802.1AE/IEEE 802.1ar/IEEE 802.1x/IEEE 802.3at
Night visionYes
Night vision distance60
Noise reductionYes
Noise reduction technology2D noise reduction,3D noise reduction
Number of cameras1
Number of sensors1
Observe distance (tele)71
Observe distance (wide)35
Operating relative humidity (H-H)10 - 100
Operating temperature (T-T)-50 - 55
Optical sensor size1/1.2
Optical zoom2
Pan range-180 - 180
Pixel counterYes
Placement supportedOutdoor
Power consumption (max)25.5
Power consumption (typical)6.9
Power source typeDC,PoE
Processor modelARTPEC-9
Product colourWhite
Progressive scanYes
PTZ controlYes
Quality of Service (QoS) supportYes
RAM capacity4096
Recognize distance (tele)36
Recognize distance (wide)18
Sensor typeCMOS
Storage relative humidity (H-H)5 - 95
Storage temperature (T-T)-40 - 65
SummaryAxis Q3558-LVE. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: White, Form factor: Dome. Minimum illumination: 0.007 lx, Angle of rotation: 180°, Lens viewing angle, horizontal: 104 - 50°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.2 mm (1 / 1.2"). Optical zoom: 2x, Focal length range: 6.3 - 13 mm, Detect distance (wide): 88 m
Terminal block portYes
Text caption overlayYes
Tilt angle range-42 - 80
Total megapixels8
Tour recordingYes
TypeIP security camera
Video compression formatsAV1/H.264/H.265/M-JPEG
Video motion detectionYes
Video recordingYes
Video streamingYes
WeatherproofYes
Weight2310
Wide Dynamic Range (WDR)Yes
Zoom capabilityYes
Specs
Category CodeFNC
Description

Built on ARTPEC-9, this robust AI-powered camera with support for AV1 codec offers accelerated performance to run impressive analytics applications on the edge. Furthermore, AXIS Audio Analytics can detect critical sounds, adding an extra layer of security.

Outstanding image quality
AXIS Q3558-LVE offers outstanding image quality and forensic details in 8 MP resolution, even in harsh weather and environments. It features OptimizedIR, and an innovative IR-shielded dome prevents IR reflections from rain and snow ensuring clear, sharp images every time. Lightfinder 2.0 and Forensic WDR ensure true colors and great detail in near darkness or challenging light. Furthermore, electronic image stabilization keeps the image steady when the camera is subject to vibrations.

ARTPEC-9 for unmatched performance
ARTPEC-9 refines the remarkable features and capabilities that characterized previous generations of our in-house-designed SoC: low bitrate, AI-powered analytics, superior imaging, and built-in cybersecurity. It also introduces AV1, an open-source video encoding standard from the Alliance for Open Media. With support for AV1 and enhanced image processing, ARTPEC-9 delivers high-quality video with uncompromised detail and clarity, and best-in-class bitrate. Together with Axis Zipstream, AV1 also ensures hassle-free video both on-prem and in the cloud. What’s more, ARTPEC-9 powers advanced analytics applications that detect objects earlier and analyze events more precisely.

Powerful video and audio analytics
Featuring a deep learning processing unit (DLPU), this AI-based camera runs advanced features and powerful analytics on the edge. It comes with AXIS Object Analytics preinstalled to detect, classify, track, and count humans, vehicles, and types of vehicles. Now combined with ARTPEC-9, this application offers enhanced performance with greater accuracy. With an acoustic sensor and support for AXIS Audio Analytics, you be notified whenever something relevant happens, even when there's no visual indication. For instance, it can detect screams, shouts, as well as changes in sound level. Additionally, AXIS Image Health Analytics comes preinstalled, so you’ll be notified if your image is blocked, degraded, under-exposed, or redirected.

Robust with strong security
Made from high-grade aluminum, this robust, IK10-, IP66-, IP6K9K- and NEMA 4X-rated outdoor-ready camera is both vandal- and impact-resistant. It has an operating temperature range from -50°C to 55 °C (-58 to 131°F). And a built-in intrusion switch can detect tampering. It can be powered with DC and PoE to ensure power redundancy. What’s more, Axis Edge Vault, our hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. It also offers secure key storage with FIPS 140-3 Level 3 certified secure cryptographic key storage and operations.

  • Outstanding image quality in 8 MP
  • Next-generation AI-powered analytics
  • R-shielded dome to prevent reflections
  • AXIS Audio Analytics preinstalled
  • Built-in cybersecurity with Axis Edge Vault

NameNET CAMERA Q3558-LVE DOME/03206-001 AXIS
PictureUrlhttps://static.elko.cloud/ProductImages/e7a73dec-fb96-4dcb-9691-9e3b4f06dc0d.Jpeg
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/e7a73dec-fb96-4dcb-9691-9e3b4f06dc0d.Jpeg
Unit Calculated Volume0.01247
Unit Calculated Weight3
Units per Pallet0
Units per Shipping Box1
Vendor Homepagehttps://www.axis.com/products/axis-q3558-lve
