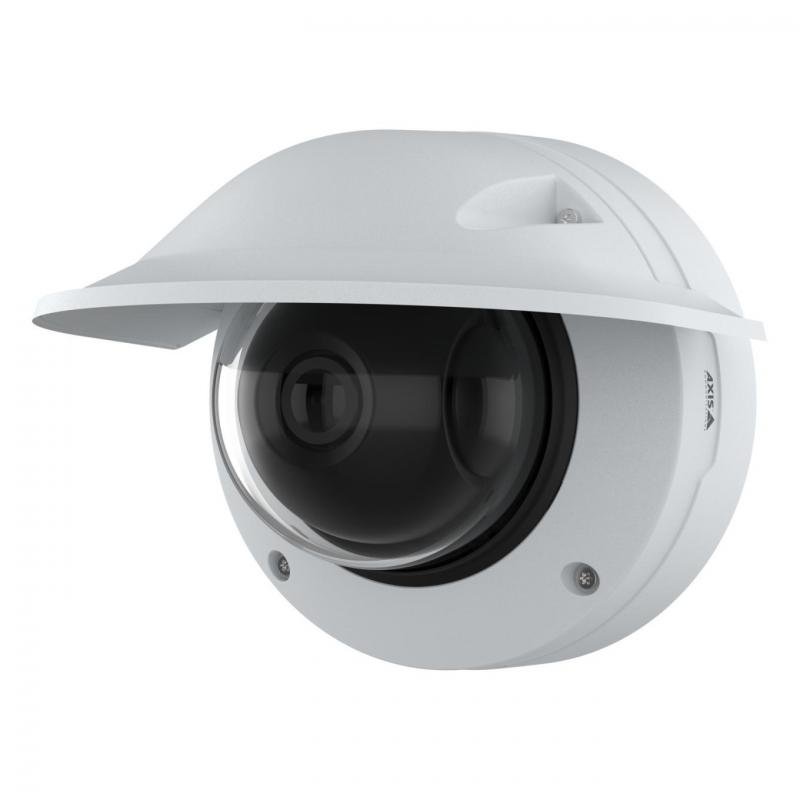

NET CAMERA Q3626-VE DOME/02616-001 AXIS

NET CAMERA Q3626-VE DOME/02616-001 AXIS
NET CAMERA Q3626-VE DOME/02616-001 AXIS
  • Connectivity technology: Wired
  • Maximum resolution: 2688 x 1512
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
98,500ден.
  • Достапност:
  • Бренд: AXIS
  • Шифра: 396006
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Axis 02616-001. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: White, Form factor: Dome. Minimum illumination: 0.06 lx, Lens viewing angle, horizontal: 103 - 52°, Lens viewing angle, vertical: 56.2 - 29.6°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Focal length range: 4.3 - 8.6 mm
  • Vendor Homepage: https://www.axis.com/products/axis-q3626-ve
  • Name: NET CAMERA Q3626-VE DOME/02616-001 AXIS
  • Category Code: FNC
  • Model: Q3626-VE
  • Form factor: Dome
  • Mounting type: Wall
  • Product colour: White
  • Housing material: Aluminium/Polycarbonate (PC)
  • International Protection (IP) code: IP66
  • IK code: IK10
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Outdoor
  • PTZ control: Yes
  • PTZ modes: Digital PTZ
  • Wide Dynamic Range (WDR): Yes
  • Day/night mode: Yes
  • Infrared (IR) cut-off filter: Yes
  • Processor model: ARTPEC-8
  • Languages support: Czech/Dutch/English/Finnish/French/German/Italian/Japanese/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Swedish/Thai/Traditional Chinese/Turkish/Vietnamese
  • Number of languages: 18
  • Minimum illumination: 0.06
  • Lens viewing angle, horizontal: 103 - 52
  • Lens viewing angle, vertical: 56.2 - 29.6
  • Tilt angle range: -8 - 75
  • Pan range: 0 - 190
  • Camera shutter speed: 1/91000 - 1
  • Number of sensors: 1
  • Optical sensor size: 1/1.8
  • Progressive scan: Yes
  • Sensor type: CMOS
  • Focal length range: 4.3 - 8.6
  • Maximum aperture number: 2.4
  • Minimum aperture number: 1.5
  • Night vision: Yes
  • Maximum resolution: 2688 x 1512
  • Video compression formats: H.264/H.265/M-JPEG
  • Supported graphics resolutions: 1280 x 800/160 x 120/160 x 90/2688 x 1512
  • Frame rate: 60
  • Video streaming: Yes
  • Image quality adjustment: Brightness/Contrast/Saturation/Sharpness
  • Image stabilizer: Yes
  • Privacy masking: Yes
  • Text caption overlay: Yes
  • Audio system: 2-way
  • Audio system full duplex: Yes
  • Audio formats supported: AAC-LC/ADPCM/G.711/G.726/LPCM/OPUS/PCM
  • Sample rate: 48
  • Voice codecs: AGC
  • Audio detection: Yes
  • Ethernet LAN: Yes
  • Networking standards: IEEE 802.1x/IEEE 802.3at
  • Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSb , HTTP/2, TLSb , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v
  • Quality of Service (QoS) support: Yes
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
  • Flash memory: 8192
  • Internal memory: 2048
  • Ethernet LAN (RJ-45) ports: 1
  • Microphone in: Yes
  • DC-in jack: Yes
  • Password protection: Yes
  • Alert notification type: E-mail
  • HTTPS encryption: Yes
  • IP address filtering: Yes
  • Video motion detection: Yes
  • Power source type: DC,PoE
  • Power consumption (typical): 7
  • Power consumption (max): 25
  • DC output voltage: 10,28
  • Operating temperature (T-T): -50 - 55
  • Storage temperature (T-T): -40 - 65
  • Operating relative humidity (H-H): 10 - 100
  • Storage relative humidity (H-H): 5 - 95
  • Height: 141
  • Diameter: 184
  • Weight: 2100
  • Number of cameras: 1
  • Mounting brackets included: Yes
  • Manual: Yes
  • Doesnt contain: BFR/PVC
  • Warranty period: 5
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.01129
  • Unit Calculated Weight: 2.81
Specifications
Alert notification typeE-mail
Audio detectionYes
Audio formats supportedAAC-LC/ADPCM/G.711/G.726/LPCM/OPUS/PCM
Audio system2-way
Audio system full duplexYes
Camera shutter speed1/91000 - 1
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)/MicroSDHC/MicroSDXC
Connectivity technologyWired
Day/night modeYes
DC output voltage10,28
DC-in jackYes
Diameter184
Doesn\'t containBFR/PVC
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Flash memory8192
Focal length range4.3 - 8.6
Form factorDome
Frame rate60
Height141
Housing materialAluminium/Polycarbonate (PC)
HTTPS encryptionYes
IK codeIK10
Image quality adjustmentBrightness/Contrast/Saturation/Sharpness
Image stabilizerYes
Infrared (IR) cut-off filterYes
Internal memory2048
International Protection (IP) codeIP66
IP address filteringYes
Languages supportCzech/Dutch/English/Finnish/French/German/Italian/Japanese/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Swedish/Thai/Traditional Chinese/Turkish/Vietnamese
Lens viewing angle, horizontal103 - 52
Lens viewing angle, vertical56.2 - 29.6
ManualYes
Maximum aperture number2.4
Maximum resolution2688 x 1512
Microphone inYes
Minimum aperture number1.5
Minimum illumination0.06
Mounting brackets includedYes
Mounting typeWall
Networking standardsIEEE 802.1x/IEEE 802.3at
Night visionYes
Number of cameras1
Number of languages18
Number of sensors1
Operating relative humidity (H-H)10 - 100
Operating temperature (T-T)-50 - 55
Optical sensor size1/1.8
Pan range0 - 190
Password protectionYes
Placement supportedOutdoor
Power consumption (max)25
Power consumption (typical)7
Power source typeDC,PoE
Privacy maskingYes
Processor modelARTPEC-8
Product colourWhite
Progressive scanYes
PTZ controlYes
PTZ modesDigital PTZ
Quality of Service (QoS) supportYes
Sample rate48
Sensor typeCMOS
Storage relative humidity (H-H)5 - 95
Storage temperature (T-T)-40 - 65
SummaryAxis 02616-001. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: White, Form factor: Dome. Minimum illumination: 0.06 lx, Lens viewing angle, horizontal: 103 - 52°, Lens viewing angle, vertical: 56.2 - 29.6°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Focal length range: 4.3 - 8.6 mm
Supported graphics resolutions1280 x 800/160 x 120/160 x 90/2688 x 1512
Supported network protocolsIPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSb , HTTP/2, TLSb , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v
Text caption overlayYes
Tilt angle range-8 - 75
TypeIP security camera
Video compression formatsH.264/H.265/M-JPEG
Video motion detectionYes
Video streamingYes
Voice codecsAGC
Warranty period5
Weight2100
Wide Dynamic Range (WDR)Yes
Specs
Category CodeFNC
Description

This top-of-the-line camera offers remote pan-tilt-roll-zoom functionality so it’s quick and easy to adjust and later readjust the camera view. Plus, it offers support for advanced analytics based on deep learning on the edge.

Remotely adjust the field of view
This advanced camera offers easy installation, maintenance, and operation. Thanks to remote pan-tilt-roll-zoom (PTRZ) functionality you can quickly adjust and later readjust the camera view remotely over the network saving time and effort. Remote PTRZ also gives you the flexibility and possibility to respond to future changes- without the need to dispatch a technician ensuring less disruption and downtime.

Outstanding image quality
AXIS Q3626-VE offers outstanding image quality and forensic details in 4 MP resolution—even in low light. Plus, Lightfinder 2.0 and Forensic WDR ensure true colors and great detail in challenging light or near darkness. Built on the latest Axis system-on-chip (SoC), it features a deep learning processing unit for improved processing capabilities. This allows you to collect and analyze even more data than before—on the edge. It also delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities. Furthermore, AXIS Object Analytics makes it possible to detect and classify moving objects.

Robust and ready for tough environments
This robust, IK10-rated, vandal-resistant camera is ideal for tough environments and rough weather. Electronic image stabilization ensures smooth video in situations where the camera is subject to vibrations. Plus, it includes sensors for shock-, vibration-, and case-open detection. And a conduit connection ensures flexible cable management. Furthermore, built-in cybersecurity features help prevent unauthorized access and safeguard your system. For instance, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis products on your network. Plus, it offers secure key storage with FIPS 140-2 level 2 certification.

  • Outstanding image quality in 4 MP
  • Remote adjustment of the camera angle
  • Analytics with deep learning
  • Electronic image stabilization
  • Axis Edge Vault

ModelQ3626-VE
NameNET CAMERA Q3626-VE DOME/02616-001 AXIS
PictureUrlhttps://static.elko.cloud/ProductImages/b8274605-c01f-4cbc-8a1b-aa274584f920.Jpeg
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/b8274605-c01f-4cbc-8a1b-aa274584f920.Jpeg
Unit Calculated Volume0.01129
Unit Calculated Weight2.81
Units per Shipping Box1
Vendor Homepagehttps://www.axis.com/products/axis-q3626-ve
