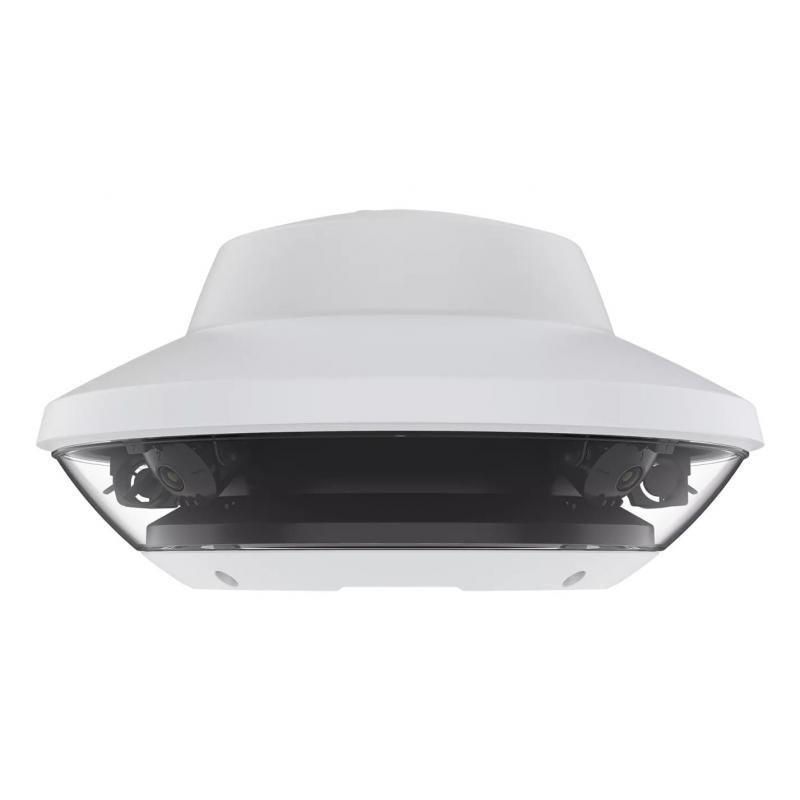

NET CAMERA Q6010-E 50HZ/PTZ DOME 01980-001 AXIS

NET CAMERA Q6010-E 50HZ/PTZ DOME 01980-001 AXIS
NET CAMERA Q6010-E 50HZ/PTZ DOME 01980-001 AXIS
  • Connectivity technology: Wired
  • Maximum resolution: 2592 x 1944
  • Total megapixels: 5
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
130,100ден.
  • Достапност:
  • Бренд: AXIS
  • Шифра: 311596
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Axis 01980-001. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Minimum illumination: 0.03 lx, Lens viewing angle, horizontal: 360°, Lens viewing angle, vertical: 84°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.5 mm (1 / 2.5"). Fixed focal length: 2.8 mm
  • Vendor Homepage: https://www.axis.com/en-dk/products/axis-q6010-e/
  • Name: NET CAMERA Q6010-E 50HZ/PTZ DOME 01980-001 AXIS
  • Category Code: FNC
  • Form factor: Dome
  • Mounting type: Ceiling
  • Product colour: White
  • Housing material: Aluminium
  • International Protection (IP) code: IP66
  • IK code: IK10
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Indoor & outdoor
  • PTZ control: Yes
  • Wide Dynamic Range (WDR): Yes
  • Day/night mode: Yes
  • Languages support: English/French/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Traditional Chinese
  • Camera pan control: Yes
  • Camera tilt control: Yes
  • Minimum illumination: 0.03
  • Lens viewing angle, horizontal: 360
  • Lens viewing angle, vertical: 84
  • Camera shutter speed: 1/32500 - 1/20
  • Number of sensors: 1
  • Optical sensor size: 1/2.5
  • Sensor type: CMOS
  • Number of lenses: 1
  • Maximum aperture number: 2
  • Fixed focal length: 2.8
  • Maximum resolution: 2592 x 1944
  • Total megapixels: 5
  • Video formats supported: AVC/H.264/H.265/HEVC/MPEG4
  • Video compression formats: AVC/H.264/H.265/HEVC/MPEG4
  • Supported graphics resolutions: 2592 x 1944/320 x 240
  • Frame rate: 20
  • Image quality adjustment: Brightness/Contrast/Saturation/Sharpness
  • Privacy masking: Yes
  • Ethernet LAN: Yes
  • Ethernet interface type: Fast Ethernet/Gigabit Ethernet
  • Supported network protocols: IPv4, IPv6 USGv6, HTTP, HTTP/2, HTTPSa , SSL/TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, NTCIP, LLDP, MQTT, Sy
  • Card reader integrated: Yes
  • Compatible memory cards: SD/SDHC/SDXC
  • Flash memory: 512
  • Internal memory: 2048
  • Ethernet LAN (RJ-45) ports: 2
  • Alert notification type: E-mail
  • IP address filtering: Yes
  • Security algorithms: 802.1x RADIUS/HTTPS
  • Video motion detection: Yes
  • Power source type: PoE
  • Power consumption (max): 22
  • Power consumption (Power over Ethernet (PoE)): 9
  • Operating temperature (T-T): -50 - 50
  • Storage temperature (T-T): -40 - 65
  • Operating relative humidity (H-H): 10 - 100
  • Storage relative humidity (H-H): 5 - 95
  • Height: 201
  • Diameter: 395
  • Weight: 4500
  • Number of cameras: 1
  • Harmonized System (HS) code: 85258900
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.05551
  • Unit Calculated Weight: 6.65
Specifications
Alert notification typeE-mail
Camera pan controlYes
Camera shutter speed1/32500 - 1/20
Camera tilt controlYes
Card reader integratedYes
Compatible memory cardsSD/SDHC/SDXC
Connectivity technologyWired
Day/night modeYes
Diameter395
Ethernet interface typeFast Ethernet/Gigabit Ethernet
Ethernet LANYes
Ethernet LAN (RJ-45) ports2
Fixed focal length2.8
Flash memory512
Form factorDome
Frame rate20
Harmonized System (HS) code85258900
Height201
Housing materialAluminium
IK codeIK10
Image quality adjustmentBrightness/Contrast/Saturation/Sharpness
Internal memory2048
International Protection (IP) codeIP66
IP address filteringYes
Languages supportEnglish/French/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Traditional Chinese
Lens viewing angle, horizontal360
Lens viewing angle, vertical84
Maximum aperture number2
Maximum resolution2592 x 1944
Minimum illumination0.03
Mounting typeCeiling
Number of cameras1
Number of lenses1
Number of sensors1
Operating relative humidity (H-H)10 - 100
Operating temperature (T-T)-50 - 50
Optical sensor size1/2.5
Placement supportedIndoor & outdoor
Power consumption (max)22
Power consumption (Power over Ethernet (PoE))9
Power source typePoE
Privacy maskingYes
Product colourWhite
PTZ controlYes
Security algorithms802.1x RADIUS/HTTPS
Sensor typeCMOS
Storage relative humidity (H-H)5 - 95
Storage temperature (T-T)-40 - 65
SummaryAxis 01980-001. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Minimum illumination: 0.03 lx, Lens viewing angle, horizontal: 360°, Lens viewing angle, vertical: 84°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.5 mm (1 / 2.5"). Fixed focal length: 2.8 mm
Supported graphics resolutions2592 x 1944/320 x 240
Supported network protocolsIPv4, IPv6 USGv6, HTTP, HTTP/2, HTTPSa , SSL/TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, NTCIP, LLDP, MQTT, Sy
Total megapixels5
TypeIP security camera
Video compression formatsAVC/H.264/H.265/HEVC/MPEG4
Video formats supportedAVC/H.264/H.265/HEVC/MPEG4
Video motion detectionYes
Weight4500
Wide Dynamic Range (WDR)Yes
Specs
Category CodeFNC
Description

With four 5 MP sensors, AXIS Q6010-E provides a complete 360° overview with great image usability both day and night. Designed for operation with current AXIS Q60-E PTZ Network Cameras, it enables one-click PTZ control and autopilot for automatic PTZ tracking within the viewing areas. And, each sensor has exchangeable lenses with autofocus and positioning calibration for maximum flexibility and accurate configuration. AXIS Q6010-E uses the same bracket, power supply and network cable as the connected AXIS Q60-E PTZ Network Camera for cost-efficient installation. Furthermore, Zipstream with support for H.264/H.265 significantly lowers bandwidth and storage requirements without compromising image quality.

  • 360° camera with one-click PTZ control; 4 x 5 MP sensors, total 20 MP resolution; Autopilot included; Exchangeable and tiltable lenses; Requires a current AXIS Q60-E PTZ Network Camera
