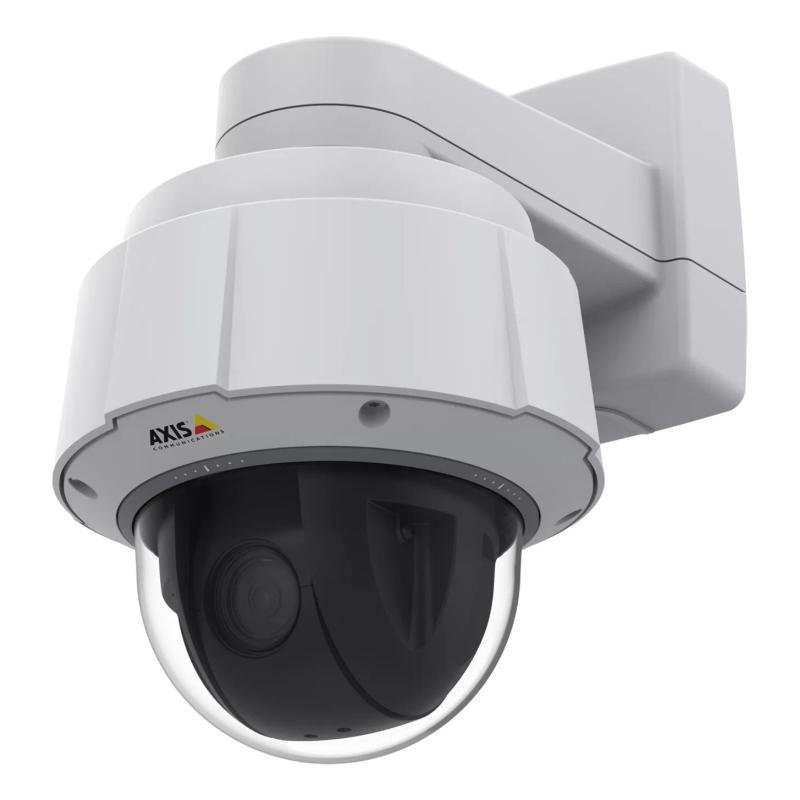

NET CAMERA Q6074-E 50HZ/PTZ DOME HDTV 01973-002 AXIS

NET CAMERA Q6074-E 50HZ/PTZ DOME HDTV 01973-002 AXIS
NET CAMERA Q6074-E 50HZ/PTZ DOME HDTV 01973-002 AXIS
  • Connectivity technology: Wired
  • Zoom capability: Yes
  • Maximum resolution: 1280 x 720
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
181,300ден.
  • Достапност:
  • Бренд: AXIS
  • Шифра: 294382
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Axis 01973-002. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.002 lx, Lens viewing angle, horizontal: 63.8°, Lens viewing angle, vertical: 38°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 30x, Digital zoom: 12x, Focal length range: 4.25 - 127.5 mm
  • Vendor Homepage: https://www.axis.com/en-ng/products/axis-q6074-e
  • Name: NET CAMERA Q6074-E 50HZ/PTZ DOME HDTV 01973-002 AXIS
  • Category Code: FNC
  • Form factor: Dome
  • Mounting type: Ceiling/wall
  • Product colour: Black/White
  • Housing material: Aluminium
  • International Protection (IP) code: IP66, IP67
  • IK code: IK10
  • Fog proof: Yes
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Indoor & outdoor
  • PTZ control: Yes
  • Tour recording: Yes
  • Preset points: Yes
  • Wide Dynamic Range (WDR): Yes
  • Day/night mode: Yes
  • Infrared (IR) cut-off filter: Yes
  • Languages support: English/French/German/Italian/Japanese/Korean/Portuguese/Russian/Simplified Chinese/Spanish/Traditional Chinese
  • Number of languages: 11
  • Certification: EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, EN 55024, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 32 Class A, KCC KN32 Class A, KN35, IEC/EN/UL 60950-1, EN 50121-4, IEC 62236-4, I
  • Camera pan control: Yes
  • Camera tilt control: Yes
  • Minimum illumination: 0.002
  • Lens viewing angle, horizontal: 63.8
  • Lens viewing angle, vertical: 38
  • Tilt angle range: 0 - 220
  • Tilt speed: 450
  • Pan range: 0 - 360
  • Pan speed: 450
  • Camera shutter speed: 1/11000 - 1/3
  • Number of sensors: 1
  • Optical sensor size: 1/2.8
  • Progressive scan: Yes
  • Sensor type: CMOS
  • Zoom capability: Yes
  • Optical zoom: 30
  • Digital zoom: 12
  • Number of lenses: 1
  • Focal length range: 4.25 - 127.5
  • Auto focus: Yes
  • Maximum aperture number: 4.2
  • Minimum aperture number: 1.6
  • Maximum resolution: 1280 x 720
  • Video compression formats: AVC/H.264/H.265/HEVC/M-JPEG/MPEG4
  • Supported graphics resolutions: 1280 x 720 (HD 720)/320 x 180
  • Supported video modes: 720p
  • Frame rate: 60
  • Video streaming: Yes
  • Back Light Compensation (BLC): Yes
  • Bit rate control: Variable Bit Rate (VBR)
  • Image quality adjustment: Brightness/Colour depth/Sharpness
  • Privacy masking: Yes
  • Text caption overlay: Yes
  • Ethernet LAN: Yes
  • Ethernet interface type: Fast Ethernet
  • Networking standards: IEEE 802.1x/IEEE 802.3at
  • Supported network protocols: IPv4, IPv6 USGv6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, NTCIP, LLDP
  • Quality of Service (QoS) support: Yes
  • Streaming method: Multicast
  • Card reader integrated: Yes
  • Compatible memory cards: SD/SDHC/SDXC
  • Flash memory: 512
  • Internal memory: 1024
  • Ethernet LAN (RJ-45) ports: 1
  • Password protection: Yes
  • Alert notification type: E-mail
  • HTTPS encryption: Yes
  • Intelligent Video Surveillance (IVS) system features: Missing object/Tripwire
  • IP address filtering: Yes
  • Video motion detection: Yes
  • Power source type: AC,PoE
  • AC input voltage: 100-240
  • Power consumption (typical): 14
  • Power consumption (max): 51
  • Storage temperature (T-T): -40 - 65
  • Operating relative humidity (H-H): 10 - 100
  • Width: 232
  • Depth: 232
  • Height: 269
  • Weight: 3750
  • Number of cameras: 1
  • Sun shield included: Yes
  • Manual: Yes
  • Harmonized System (HS) code: 85258900
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.0396
  • Unit Calculated Weight: 5.65
Specifications
AC input voltage100-240
Alert notification typeE-mail
Auto focusYes
Back Light Compensation (BLC)Yes
Bit rate controlVariable Bit Rate (VBR)
Camera pan controlYes
Camera shutter speed1/11000 - 1/3
Camera tilt controlYes
Card reader integratedYes
CertificationEN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, EN 55024, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 32 Class A, KCC KN32 Class A, KN35, IEC/EN/UL 60950-1, EN 50121-4, IEC 62236-4, I
Compatible memory cardsSD/SDHC/SDXC
Connectivity technologyWired
Day/night modeYes
Depth232
Digital zoom12
Ethernet interface typeFast Ethernet
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Flash memory512
Focal length range4.25 - 127.5
Fog proofYes
Form factorDome
Frame rate60
Harmonized System (HS) code85258900
Height269
Housing materialAluminium
HTTPS encryptionYes
IK codeIK10
Image quality adjustmentBrightness/Colour depth/Sharpness
Infrared (IR) cut-off filterYes
Intelligent Video Surveillance (IVS) system featuresMissing object/Tripwire
Internal memory1024
International Protection (IP) codeIP66, IP67
IP address filteringYes
Languages supportEnglish/French/German/Italian/Japanese/Korean/Portuguese/Russian/Simplified Chinese/Spanish/Traditional Chinese
Lens viewing angle, horizontal63.8
Lens viewing angle, vertical38
ManualYes
Maximum aperture number4.2
Maximum resolution1280 x 720
Minimum aperture number1.6
Minimum illumination0.002
Mounting typeCeiling/wall
Networking standardsIEEE 802.1x/IEEE 802.3at
Number of cameras1
Number of languages11
Number of lenses1
Number of sensors1
Operating relative humidity (H-H)10 - 100
Optical sensor size1/2.8
Optical zoom30
Pan range0 - 360
Pan speed450
Password protectionYes
Placement supportedIndoor & outdoor
Power consumption (max)51
Power consumption (typical)14
Power source typeAC,PoE
Preset pointsYes
Privacy maskingYes
Product colourBlack/White
Progressive scanYes
PTZ controlYes
Quality of Service (QoS) supportYes
Sensor typeCMOS
Storage temperature (T-T)-40 - 65
Streaming methodMulticast
SummaryAxis 01973-002. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.002 lx, Lens viewing angle, horizontal: 63.8°, Lens viewing angle, vertical: 38°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 30x, Digital zoom: 12x, Focal length range: 4.25 - 127.5 mm
Sun shield includedYes
Supported graphics resolutions1280 x 720 (HD 720)/320 x 180
Supported network protocolsIPv4, IPv6 USGv6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, NTCIP, LLDP
Supported video modes720p
Text caption overlayYes
Tilt angle range0 - 220
Tilt speed450
Tour recordingYes
TypeIP security camera
Video compression formatsAVC/H.264/H.265/HEVC/M-JPEG/MPEG4
Video motion detectionYes
Video streamingYes
Weight3750
Wide Dynamic Range (WDR)Yes
Width232
Zoom capabilityYes
Specs
Category CodeFNC
Description

AXIS Q6074-E PTZ Network Camera offers HDTV 720p and 30x optical zoom for great overviews and excellent details. This high-performance outdoor PTZ camera comes with autotracking 2 with click and track functionality, as well as an orientation aid for active object tracking and quick orientation. With Axis Lightfinder 2.0 the camera delivers low-light images with more saturated colors and sharper images of moving objects. Plus, enhanced security features such as signed firmware and secure boot ensures the integrity and authenticity of the firmware.  Furthermore, Axis Zipstream with H.264/ H.265 significantly lowers bandwidth and storage requirements.

  • Autotracking 2 and orientation aid; Axis Lightfinder 2.0; Built-in analytics; HDTV 720p with 30x optical zoom; TPM, FIPS 140-2 level 2 certified

NameNET CAMERA Q6074-E 50HZ/PTZ DOME HDTV 01973-002 AXIS
PictureUrlhttps://static.elko.cloud/ProductImages/ecc1a6c5-20d4-4163-aee0-a0633cefd312.Jpeg
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/ecc1a6c5-20d4-4163-aee0-a0633cefd312.Jpeg
Unit Calculated Volume0.0396
Unit Calculated Weight5.65
Units per Shipping Box1
Vendor Homepagehttps://www.axis.com/en-ng/products/axis-q6074-e
