NET CAMERA Q6075 50HZ/PTZ DOME HDTV 01749-002 AXIS

NET CAMERA Q6075 50HZ/PTZ DOME HDTV 01749-002 AXIS
NET CAMERA Q6075 50HZ/PTZ DOME HDTV 01749-002 AXIS
  • Connectivity technology: Wired
  • Zoom capability: Yes
  • Maximum resolution: 1920 x 1080
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
178,152ден.
  • Достапност:
  • Бренд: AXIS
  • Шифра: 301963
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Axis 01749-002. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Minimum illumination: 0.03 lx, Lens viewing angle, horizontal: 65.1°, Lens viewing angle, vertical: 39.1°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 40x, Digital zoom: 12x, Focal length range: 4.25 - 170 mm
  • Vendor Homepage: https://www.axis.com/products/axis-q6075
  • Name: NET CAMERA Q6075 50HZ/PTZ DOME HDTV 01749-002 AXIS
  • Category Code: FNC
  • Form factor: Dome
  • Mounting type: Ceiling
  • Product colour: White
  • Housing material: Aluminium
  • International Protection (IP) code: IP52
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Indoor
  • PTZ control: Yes
  • Day/night mode: Yes
  • Infrared (IR) cut-off filter: Yes
  • Languages support: English/French/German/Italian/Japanese/Korean/Portuguese/Russian/Simplified Chinese/Spanish/Traditional Chinese
  • Number of languages: 11
  • Certification: 55032 A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, EN 55024, FCC 15 B A, ICES-003 A, VCCI A, RCM AS/NZS CISPR 32 A, KCC KN32 A, KN35 IEC/EN/UL 60950-1 IEC/EN 62368-1 IEC/EN 60529 IP52, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, I
  • Camera pan control: Yes
  • Camera tilt control: Yes
  • Minimum illumination: 0.03
  • Lens viewing angle, horizontal: 65.1
  • Lens viewing angle, vertical: 39.1
  • Tilt angle range: 0 - 180
  • Tilt speed: 450
  • Pan range: 0 - 360
  • Pan speed: 450
  • Camera shutter speed: 1/11000 - 1/3
  • Number of sensors: 1
  • Optical sensor size: 1/2.8
  • Progressive scan: Yes
  • Sensor type: CMOS
  • Zoom capability: Yes
  • Optical zoom: 40
  • Digital zoom: 12
  • Number of lenses: 1
  • Focal length range: 4.25 - 170
  • Auto focus: Yes
  • Maximum aperture number: 4.95
  • Minimum aperture number: 1.6
  • Maximum resolution: 1920 x 1080
  • Video compression formats: AVC/H.264/H.265/HEVC/M-JPEG/MPEG4
  • Bit rate control: Variable Bit Rate (VBR)
  • Audio formats supported: AAC
  • Voice codecs: G.711/G.726/PCM
  • Ethernet LAN: Yes
  • Ethernet interface type: Fast Ethernet
  • Networking standards: IEEE 802.1x/IEEE 802.3at
  • Supported network protocols: IPv4, IPv6 USGv6, HTTP, HTTPSa , SSL/TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, NTCIP, LLDP
  • Quality of Service (QoS) support: Yes
  • Card reader integrated: Yes
  • Compatible memory cards: SD/SDHC/SDXC
  • Flash memory: 512
  • Internal memory: 1024
  • Ethernet LAN (RJ-45) ports: 1
  • Password protection: Yes
  • HTTPS encryption: Yes
  • IP address filtering: Yes
  • Security algorithms: EAP-TLS
  • Video motion detection: Yes
  • Power source type: AC,PoE
  • AC input voltage: 100 - 240
  • Power consumption (max): 22.4
  • Operating temperature (T-T): 0 - 50
  • Storage temperature (T-T): -40 - 65
  • Operating relative humidity (H-H): 10 - 85
  • Height: 240
  • Diameter: 198
  • Weight: 2850
  • Number of cameras: 1
  • Harmonized System (HS) code: 85258900
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.02984
  • Unit Calculated Weight: 4.9
Specifications
AC input voltage100 - 240
Audio formats supportedAAC
Auto focusYes
Bit rate controlVariable Bit Rate (VBR)
Camera pan controlYes
Camera shutter speed1/11000 - 1/3
Camera tilt controlYes
Card reader integratedYes
Certification55032 A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, EN 55024, FCC 15 B A, ICES-003 A, VCCI A, RCM AS/NZS CISPR 32 A, KCC KN32 A, KN35 IEC/EN/UL 60950-1 IEC/EN 62368-1 IEC/EN 60529 IP52, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, I
Compatible memory cardsSD/SDHC/SDXC
Connectivity technologyWired
Day/night modeYes
Diameter198
Digital zoom12
Ethernet interface typeFast Ethernet
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Flash memory512
Focal length range4.25 - 170
Form factorDome
Harmonized System (HS) code85258900
Height240
Housing materialAluminium
HTTPS encryptionYes
Infrared (IR) cut-off filterYes
Internal memory1024
International Protection (IP) codeIP52
IP address filteringYes
Languages supportEnglish/French/German/Italian/Japanese/Korean/Portuguese/Russian/Simplified Chinese/Spanish/Traditional Chinese
Lens viewing angle, horizontal65.1
Lens viewing angle, vertical39.1
Maximum aperture number4.95
Maximum resolution1920 x 1080
Minimum aperture number1.6
Minimum illumination0.03
Mounting typeCeiling
Networking standardsIEEE 802.1x/IEEE 802.3at
Number of cameras1
Number of languages11
Number of lenses1
Number of sensors1
Operating relative humidity (H-H)10 - 85
Operating temperature (T-T)0 - 50
Optical sensor size1/2.8
Optical zoom40
Pan range0 - 360
Pan speed450
Password protectionYes
Placement supportedIndoor
Power consumption (max)22.4
Power source typeAC,PoE
Product colourWhite
Progressive scanYes
PTZ controlYes
Quality of Service (QoS) supportYes
Security algorithmsEAP-TLS
Sensor typeCMOS
Storage temperature (T-T)-40 - 65
SummaryAxis 01749-002. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Minimum illumination: 0.03 lx, Lens viewing angle, horizontal: 65.1°, Lens viewing angle, vertical: 39.1°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 40x, Digital zoom: 12x, Focal length range: 4.25 - 170 mm
Supported network protocolsIPv4, IPv6 USGv6, HTTP, HTTPSa , SSL/TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, NTCIP, LLDP
Tilt angle range0 - 180
Tilt speed450
TypeIP security camera
Video compression formatsAVC/H.264/H.265/HEVC/M-JPEG/MPEG4
Video motion detectionYes
Voice codecsG.711/G.726/PCM
Weight2850
Zoom capabilityYes
Specs
Category CodeFNC
Description

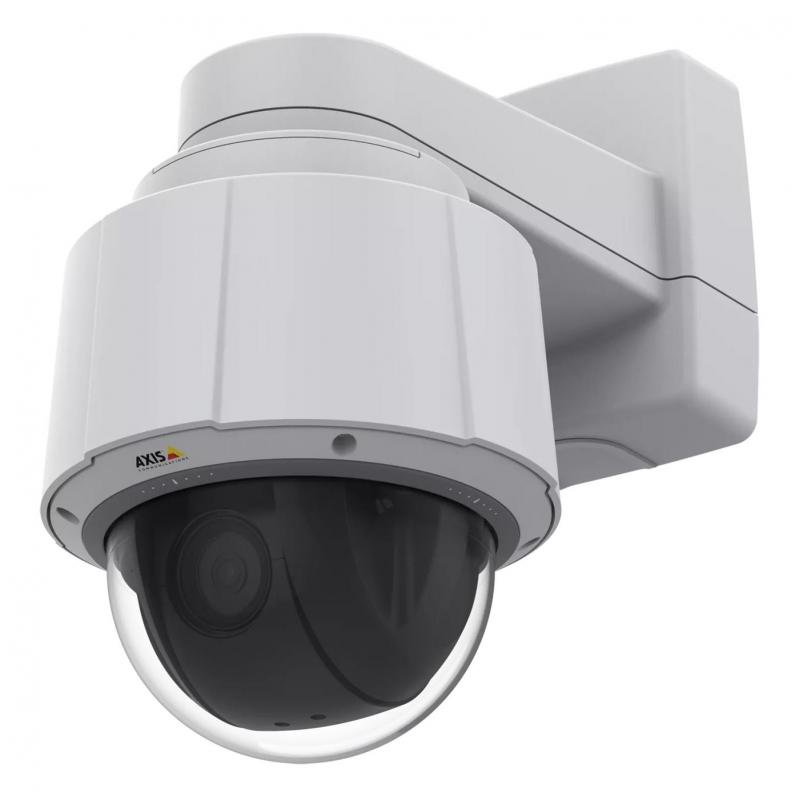

AXIS Q6075 PTZ Network Camera offers HDTV 1080p and 40x optical zoom for great overviews and excellent details. This high-performance indoor PTZ camera comes with autotracking 2 with click and track functionality, as well as an orientation aid for active object tracking and quick orientation. With Axis Lightfinder 2.0 the camera delivers low-light images with more saturated colors and sharper images of moving objects. Plus, enhanced security features such as signed firmware and secure boot ensures the integrity and authenticity of the firmware. Furthermore, Axis Zipstream with H.264/ H.265 significantly lowers bandwidth and storage requirements.

  • Autotracking 2 and orientation aid; Axis Lightfinder 2.0; Built-in analytics; HDTV 1080p with 40x optical zoom; TPM, FIPS 140-2 level 2 certified

NameNET CAMERA Q6075 50HZ/PTZ DOME HDTV 01749-002 AXIS
PictureUrlhttps://static.elko.cloud/ProductImages/228c549b-6054-4ce9-8109-0d7aa95cbf7f.Jpeg
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/228c549b-6054-4ce9-8109-0d7aa95cbf7f.Jpeg
Unit Calculated Volume0.02984
Unit Calculated Weight4.9
Units per Shipping Box1
Vendor Homepagehttps://www.axis.com/products/axis-q6075
