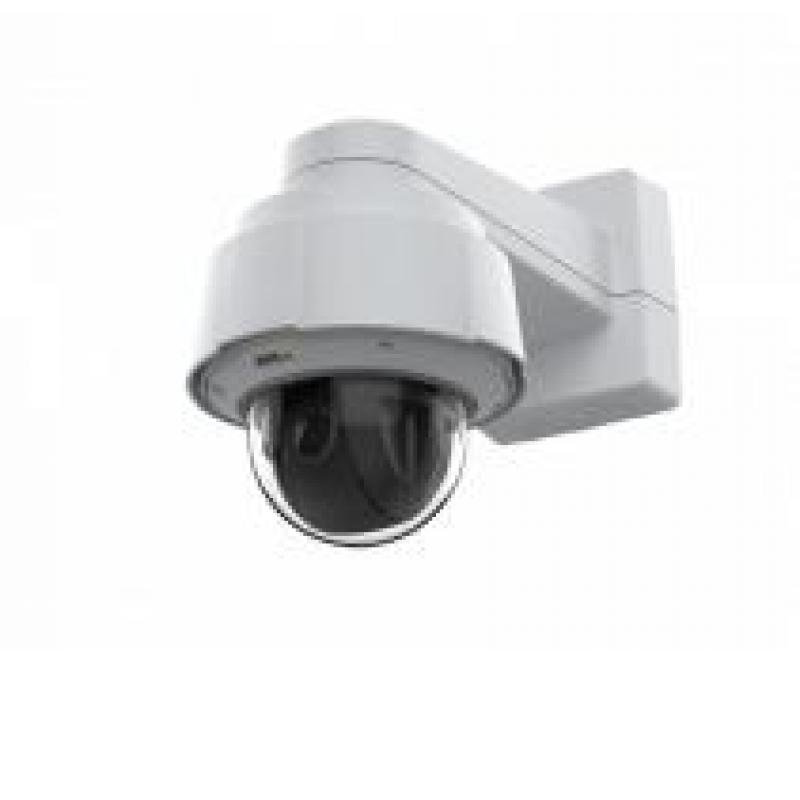

NET CAMERA Q6078-E 50HZ/PTZ DOME HDTV 02147-002 AXIS

NET CAMERA Q6078-E 50HZ/PTZ DOME HDTV 02147-002 AXIS
NET CAMERA Q6078-E 50HZ/PTZ DOME HDTV 02147-002 AXIS
  • Connectivity technology: Wired
  • Zoom capability: Yes
  • Maximum resolution: 3840 x 2160
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
224,179ден.
  • Достапност:
  • Бренд: AXIS
  • Шифра: 352642
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Axis 02147-002. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: White, Form factor: Dome. Lens viewing angle, horizontal: 68.3°, Lens viewing angle, vertical: 42.1°, Tilt angle range: 0 - 220°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.5 mm (1 / 2.5"). Optical zoom: 20x, Digital zoom: 12x, Lens diameter: 8.84 cm
  • Vendor Homepage: https://www.axis.com/en-ro/products/axis-q6078-e
  • Name: NET CAMERA Q6078-E 50HZ/PTZ DOME HDTV 02147-002 AXIS
  • Category Code: FNC
  • Form factor: Dome
  • Mounting type: Wall
  • Product colour: White
  • Housing material: Acrylonitrile styrene acrylate (ASA)/Metal/Polycarbonate (PC)
  • International Protection (IP) code: IP66, IP67
  • IK code: IK10
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Outdoor
  • PTZ control: Yes
  • PTZ modes: Preset point
  • Tour recording: Yes
  • Wide Dynamic Range (WDR): Yes
  • Languages support: English/French/German/Italian/Japanese/Korean/Portuguese/Russian/Simplified Chinese/Spanish/Traditional Chinese
  • Number of languages: 11
  • Lens viewing angle, horizontal: 68.3
  • Lens viewing angle, vertical: 42.1
  • Tilt angle range: 0 - 220
  • Tilt speed: 450
  • Pan range: 0 - 360
  • Pan speed: 450
  • Camera shutter speed: 1/10000 - 1
  • Optical sensor size: 1/2.5
  • Progressive scan: Yes
  • Sensor type: CMOS
  • Zoom capability: Yes
  • Optical zoom: 20
  • Digital zoom: 12
  • Number of lenses: 1
  • Lens diameter: 88.4
  • Focal length range: 2.0 - 3.8
  • Auto focus: Yes
  • Maximum resolution: 3840 x 2160
  • Video compression formats: H.264/H.265/M-JPEG
  • Supported graphics resolutions: 320 x 180
  • Supported video modes: 2160p
  • Video recording: Yes
  • Frame rate: 60
  • Video intelligence analytic: Yes
  • Video streaming: Yes
  • Text caption overlay: Yes
  • Time stamp overlay: Yes
  • Ethernet LAN: Yes
  • Supported network protocols: IPv4, IPv6 USGv6, HTTP, HTTP/2, HTTPSa , SSL/TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, NTCIP, LLDP,
  • Built-in HDD: Yes
  • HDD capacity: 2
  • Card reader integrated: Yes
  • Compatible memory cards: SD/SDHC/SDXC
  • Ethernet LAN (RJ-45) ports: 2
  • HTTPS encryption: Yes
  • IP address filtering: Yes
  • Pixel counter: Yes
  • Security algorithms: EAP-TLS/HTTPS
  • Power source type: AC
  • AC input voltage: 100 - 240
  • Power consumption (typical): 18
  • Power consumption (max): 66.1
  • Operating temperature (T-T): -50 - 50
  • Storage temperature (T-T): -40 - 65
  • Operating relative humidity (H-H): 10 - 100
  • Height: 271
  • Diameter: 232
  • Weight: 3750
  • Number of cameras: 2
  • Cables included: LAN (RJ-45)
  • Harmonized System (HS) code: 85258900
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.04005
  • Unit Calculated Weight: 5.75
Specifications
AC input voltage100 - 240
Auto focusYes
Built-in HDDYes
Cables includedLAN (RJ-45)
Camera shutter speed1/10000 - 1
Card reader integratedYes
Compatible memory cardsSD/SDHC/SDXC
Connectivity technologyWired
Diameter232
Digital zoom12
Ethernet LANYes
Ethernet LAN (RJ-45) ports2
Focal length range2.0 - 3.8
Form factorDome
Frame rate60
Harmonized System (HS) code85258900
HDD capacity2
Height271
Housing materialAcrylonitrile styrene acrylate (ASA)/Metal/Polycarbonate (PC)
HTTPS encryptionYes
IK codeIK10
International Protection (IP) codeIP66, IP67
IP address filteringYes
Languages supportEnglish/French/German/Italian/Japanese/Korean/Portuguese/Russian/Simplified Chinese/Spanish/Traditional Chinese
Lens diameter88.4
Lens viewing angle, horizontal68.3
Lens viewing angle, vertical42.1
Maximum resolution3840 x 2160
Mounting typeWall
Number of cameras2
Number of languages11
Number of lenses1
Operating relative humidity (H-H)10 - 100
Operating temperature (T-T)-50 - 50
Optical sensor size1/2.5
Optical zoom20
Pan range0 - 360
Pan speed450
Pixel counterYes
Placement supportedOutdoor
Power consumption (max)66.1
Power consumption (typical)18
Power source typeAC
Product colourWhite
Progressive scanYes
PTZ controlYes
PTZ modesPreset point
Security algorithmsEAP-TLS/HTTPS
Sensor typeCMOS
Storage temperature (T-T)-40 - 65
SummaryAxis 02147-002. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: White, Form factor: Dome. Lens viewing angle, horizontal: 68.3°, Lens viewing angle, vertical: 42.1°, Tilt angle range: 0 - 220°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.5 mm (1 / 2.5"). Optical zoom: 20x, Digital zoom: 12x, Lens diameter: 8.84 cm
Supported graphics resolutions320 x 180
Supported network protocolsIPv4, IPv6 USGv6, HTTP, HTTP/2, HTTPSa , SSL/TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, NTCIP, LLDP,
Supported video modes2160p
Text caption overlayYes
Tilt angle range0 - 220
Tilt speed450
Time stamp overlayYes
Tour recordingYes
TypeIP security camera
Video compression formatsH.264/H.265/M-JPEG
Video intelligence analyticYes
Video recordingYes
Video streamingYes
Weight3750
Wide Dynamic Range (WDR)Yes
Zoom capabilityYes
Specs
Category CodeFNC
Description

AXIS Q6078-E PTZ Camera offers UHD 4K with 20x optical zoom for outstanding video quality. It offers great overviews and detail with the clearest, sharpest colors. This high-performance outdoor PTZ camera comes with autotracking 2 with click and track functionality, as well as an orientation aid for active object tracking and quick orientation. Featuring built-in cybersecurity such as signed firmware and secure boot it ensures the integrity and authenticity of the firmware. Axis Zipstream with H.264/ H.265 significantly reduces bandwidth and storage requirements. Furthermore, AXIS Object Analytics offers highly granular and nuanced object classification.

  • AXIS Object Analytics; Built-in cybersecurity features; Outstanding images with great details; UHD 4K with 20x optical zoom; Zipstream with support for H.264/H.265

NameNET CAMERA Q6078-E 50HZ/PTZ DOME HDTV 02147-002 AXIS
PictureUrlhttps://static.elko.cloud/ProductImages/a56e1aaa-76d2-4826-a9f4-05871f5a6e72.Jpeg
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/a56e1aaa-76d2-4826-a9f4-05871f5a6e72.Jpeg
Unit Calculated Volume0.04005
Unit Calculated Weight5.75
Units per Shipping Box1
Vendor Homepagehttps://www.axis.com/en-ro/products/axis-q6078-e
