NET CAMERA Q6315-LE DOME 50HZ/01924-002 AXIS

NET CAMERA Q6315-LE DOME 50HZ/01924-002 AXIS
NET CAMERA Q6315-LE DOME 50HZ/01924-002 AXIS
  • Connectivity technology: Wired
  • Zoom capability: Yes
  • Maximum resolution: 1920 x 1080
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
209,886ден.
  • Достапност:
  • Бренд: AXIS
  • Шифра: 339081
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Axis 01924-002. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.001 lx, Lens viewing angle, horizontal: 60.6°, Lens viewing angle, vertical: 36.5°. Sensor type: CMOS, Optical sensor size: 25.4 / 2 mm (1 / 2"). Optical zoom: 31x, Digital zoom: 12x, Focal length range: 6.91 - 214.64 mm
  • Vendor Homepage: https://www.axis.com/th-th/products/axis-q6315-le/
  • Name: NET CAMERA Q6315-LE DOME 50HZ/01924-002 AXIS
  • Category Code: FNC
  • Form factor: Dome
  • Mounting type: Wall
  • Product colour: Black/White
  • Housing material: Aluminium/Polycarbonate (PC)
  • International Protection (IP) code: IP66, IP67
  • IK code: IK10
  • Fog proof: Yes
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Indoor & outdoor
  • PTZ control: Yes
  • Tour recording: Yes
  • Preset points: Yes
  • Wide Dynamic Range (WDR): Yes
  • Day/night mode: Yes
  • Infrared (IR) cut-off filter: Yes
  • Certification: 55032 Class A, EN 55035, IEC 62236-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, RCM AS/NZS CISPR 32 Class A, CISPR 35, EAC, EN 50121-4, KC KN32 Class A, KC KN35, IEC/EN/UL 6236
  • Minimum illumination: 0.001
  • Lens viewing angle, horizontal: 60.6
  • Lens viewing angle, vertical: 36.5
  • Tilt angle range: -90 - 20
  • Tilt speed: 550
  • Pan range: 0 - 360
  • Pan speed: 550
  • Camera shutter speed: 111000 - 1/2
  • Number of sensors: 1
  • Optical sensor size: 1/2
  • Progressive scan: Yes
  • Sensor type: CMOS
  • Zoom capability: Yes
  • Optical zoom: 31
  • Digital zoom: 12
  • Number of lenses: 1
  • Focal length range: 6.91 - 214.64
  • Auto focus: Yes
  • Maximum aperture number: 4.6
  • Minimum aperture number: 1.36
  • Night vision: Yes
  • Night vision distance: 300
  • LED type: IR
  • Infra-red wavelength: 850
  • Maximum resolution: 1920 x 1080
  • Video formats supported: AVC/H.264/H.265/HEVC/M-JPEG/MPEG4
  • Supported graphics resolutions: 1920 x 1080 (HD 1080)/320 x 180
  • Frame rate: 60
  • Video streaming: Yes
  • Bit rate control: Variable Bit Rate (VBR)
  • Image quality adjustment: Brightness/Colour depth/Sharpness
  • Image stabilizer: Yes
  • Privacy masking: Yes
  • Text caption overlay: Yes
  • Ethernet LAN: Yes
  • Ethernet interface type: Fast Ethernet/Gigabit Ethernet
  • Networking standards: IEEE 802.1x/IEEE 802.3bt
  • Supported network protocols: IPv4, IPv6 USGv6, HTTP, HTTPS , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, SFTP, TCP, RTCP, DHCP, SOCKS, SSH, NTCIP, MQTT v3.1.1, Syslog
  • Quality of Service (QoS) support: Yes
  • Streaming method: Multicast
  • Card reader integrated: Yes
  • Compatible memory cards: SD/SDHC/SDXC
  • Flash memory: 512
  • Ethernet LAN (RJ-45) ports: 1
  • Password protection: Yes
  • Digest authentication: Yes
  • HTTPS encryption: Yes
  • IP address filtering: Yes
  • Security algorithms: EAP-TLS
  • Behavior analysis: Line crossing detection
  • Power source type: AC
  • AC input voltage: 100-240
  • Power consumption (typical): 17
  • Power consumption (max): 51
  • Operating temperature (T-T): -50 - 50
  • Storage temperature (T-T): -40 - 70
  • Operating relative humidity (H-H): 10 - 100
  • Storage relative humidity (H-H): 5 - 95
  • Height: 261
  • Diameter: 239
  • Weight: 4800
  • Doesnt contain: PVC
  • Harmonized System (HS) code: 85258900
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.03176
  • Unit Calculated Weight: 4.96
Specifications
AC input voltage100-240
Auto focusYes
Behavior analysisLine crossing detection
Bit rate controlVariable Bit Rate (VBR)
Camera shutter speed111000 - 1/2
Card reader integratedYes
Certification55032 Class A, EN 55035, IEC 62236-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, RCM AS/NZS CISPR 32 Class A, CISPR 35, EAC, EN 50121-4, KC KN32 Class A, KC KN35, IEC/EN/UL 6236
Compatible memory cardsSD/SDHC/SDXC
Connectivity technologyWired
Day/night modeYes
Diameter239
Digest authenticationYes
Digital zoom12
Doesn\'t containPVC
Ethernet interface typeFast Ethernet/Gigabit Ethernet
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Flash memory512
Focal length range6.91 - 214.64
Fog proofYes
Form factorDome
Frame rate60
Harmonized System (HS) code85258900
Height261
Housing materialAluminium/Polycarbonate (PC)
HTTPS encryptionYes
IK codeIK10
Image quality adjustmentBrightness/Colour depth/Sharpness
Image stabilizerYes
Infra-red wavelength850
Infrared (IR) cut-off filterYes
International Protection (IP) codeIP66, IP67
IP address filteringYes
LED typeIR
Lens viewing angle, horizontal60.6
Lens viewing angle, vertical36.5
Maximum aperture number4.6
Maximum resolution1920 x 1080
Minimum aperture number1.36
Minimum illumination0.001
Mounting typeWall
Networking standardsIEEE 802.1x/IEEE 802.3bt
Night visionYes
Night vision distance300
Number of lenses1
Number of sensors1
Operating relative humidity (H-H)10 - 100
Operating temperature (T-T)-50 - 50
Optical sensor size1/2
Optical zoom31
Pan range0 - 360
Pan speed550
Password protectionYes
Placement supportedIndoor & outdoor
Power consumption (max)51
Power consumption (typical)17
Power source typeAC
Preset pointsYes
Privacy maskingYes
Product colourBlack/White
Progressive scanYes
PTZ controlYes
Quality of Service (QoS) supportYes
Security algorithmsEAP-TLS
Sensor typeCMOS
Storage relative humidity (H-H)5 - 95
Storage temperature (T-T)-40 - 70
Streaming methodMulticast
SummaryAxis 01924-002. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.001 lx, Lens viewing angle, horizontal: 60.6°, Lens viewing angle, vertical: 36.5°. Sensor type: CMOS, Optical sensor size: 25.4 / 2 mm (1 / 2"). Optical zoom: 31x, Digital zoom: 12x, Focal length range: 6.91 - 214.64 mm
Supported graphics resolutions1920 x 1080 (HD 1080)/320 x 180
Supported network protocolsIPv4, IPv6 USGv6, HTTP, HTTPS , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, SFTP, TCP, RTCP, DHCP, SOCKS, SSH, NTCIP, MQTT v3.1.1, Syslog
Text caption overlayYes
Tilt angle range-90 - 20
Tilt speed550
Tour recordingYes
TypeIP security camera
Video formats supportedAVC/H.264/H.265/HEVC/M-JPEG/MPEG4
Video streamingYes
Weight4800
Wide Dynamic Range (WDR)Yes
Zoom capabilityYes
Specs
Category CodeFNC
Description

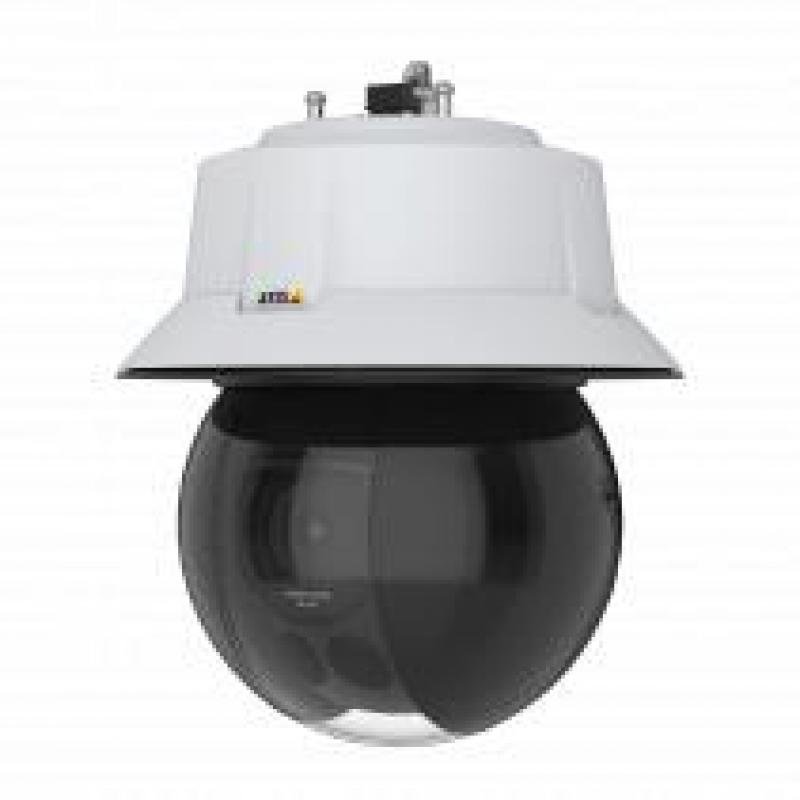

AXIS Q6315-LE is a high-speed PTZ camera offering HDTV 1080p resolution. It features IR illumination and day/night functionality for surveillance in pitch darkness. With 31x optical zoom, laser focus for precise focus and quick-zoom functionality, it allows you to easily follow fast-moving objects. It includes orientation aid and autotracking 2 with click and track functionality. Privacy masking with mosaic lets you pixelate whole areas of the scene. Plus, with chameleon masking, it automatically changes the color in the masking depending on the background color of the image. Furthermore, the TPM module ensures secure storage of all cryptographic keys and certificates.

  • 1/2" sensor with 31x optical zoom; Autotracking 2 and orientation aid; IR illumination, D/N functionality, Lightfinder 2.0; Laser focus for precise focus with quick-zoom <1 sec zoom speed; TPM, FIPS 140-2 level 2 certified

NameNET CAMERA Q6315-LE DOME 50HZ/01924-002 AXIS
PictureUrlhttps://static.elko.cloud/ProductImages/03f67af3-bf4f-4f7e-9512-83afb1c7ff29.Jpeg
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/03f67af3-bf4f-4f7e-9512-83afb1c7ff29.Jpeg
Unit Calculated Volume0.03176
Unit Calculated Weight4.96
Units per Shipping Box1
Vendor Homepagehttps://www.axis.com/th-th/products/axis-q6315-le/
