NET CAMERA Q6318-LE DOME 50HZ/02446-002 AXIS

NET CAMERA Q6318-LE DOME 50HZ/02446-002 AXIS
NET CAMERA Q6318-LE DOME 50HZ/02446-002 AXIS
  • Connectivity technology: Wired
  • Zoom capability: Yes
  • Maximum resolution: 3840 x 2160
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
224,179ден.
  • Достапност:
  • Бренд: AXIS
  • Шифра: 384041
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Axis 02446-002. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: White, Housing material: Aluminium, Polycarbonate (PC). Minimum illumination: 0.11 lx, Lens viewing angle, horizontal: 58.5°, Lens viewing angle, vertical: 34.9°. Sensor type: CMOS, Optical sensor size: 25.4 / 2 mm (1 / 2"). Optical zoom: 31x, Digital zoom: 12x, Focal length range: 6.91 - 214.64 mm
  • Vendor Homepage: https://www.axis.com/products/axis-q6318-le
  • Name: NET CAMERA Q6318-LE DOME 50HZ/02446-002 AXIS
  • Category Code: FNC
  • Model: AXIS Q6318-LE 50 Hz
  • Mounting type: Wall
  • Product colour: White
  • Housing material: Aluminium/Polycarbonate (PC)
  • International Protection (IP) code: IP66, IP67
  • IK code: IK10
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Outdoor
  • PTZ control: Yes
  • Auto-tracking: Yes
  • Tour recording: Yes
  • Wide Dynamic Range (WDR): Yes
  • Day/night mode: Yes
  • Infrared (IR) cut-off filter: Yes
  • Built-in processor: Yes
  • Processor model: ARTPEC-7
  • Languages support: Czech/Dutch/English/Finnish/French/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Swedish/Thai/Traditional Chinese/Turkish/Vietnamese
  • Number of languages: 19
  • Certification: EN 55032 Class A, EN 55035, IEC 62236-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, RCM AS/NZS CISPR 32 Class A, CISPR 35, EAC, EN 50121-4, KS C 9832 Class A, KS C 9835
  • Camera pan control: Yes
  • Camera tilt control: Yes
  • Minimum illumination: 0.11
  • Lens viewing angle, horizontal: 58.5
  • Lens viewing angle, vertical: 34.9
  • Tilt angle range: -90 - 20
  • Tilt speed: 500
  • Pan speed: 550
  • Camera shutter speed: 1/8500 - 1/5
  • Optical sensor size: 1/2
  • Progressive scan: Yes
  • Sensor type: CMOS
  • Zoom capability: Yes
  • Optical zoom: 31
  • Digital zoom: 12
  • Focal length range: 6.91 - 214.64
  • Auto focus: Yes
  • Maximum aperture number: 4.6
  • Minimum aperture number: 1.36
  • Night vision: Yes
  • Night vision distance: 200
  • LED type: IR
  • Infra-red wavelength: 850
  • Maximum resolution: 3840 x 2160
  • Video compression formats: H.264/H.265/M-JPEG
  • Video recording: Yes
  • Frame rate: 25
  • Video streaming: Yes
  • Privacy masking: Yes
  • Ethernet LAN: Yes
  • Ethernet interface type: Gigabit Ethernet
  • Networking standards: IEEE 802.1x/IEEE 802.3bt
  • Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTCP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SSH,
  • Quality of Service (QoS) support: Yes
  • Card reader integrated: Yes
  • Compatible memory cards: SD/SDHC/SDXC
  • Flash memory: 512
  • Internal memory: 2048
  • Ethernet LAN (RJ-45) ports: 1
  • Password protection: Yes
  • Digest authentication: Yes
  • HTTPS encryption: Yes
  • IP address filtering: Yes
  • Network access storage (NAS): Yes
  • Video motion detection: Yes
  • Power source type: PoE
  • AC input voltage: 100 - 240
  • Power consumption (typical): 17
  • Power consumption (max): 51
  • Operating temperature (T-T): -50 - 50
  • Storage temperature (T-T): -40 - 65
  • Operating relative humidity (H-H): 10 - 100
  • Storage relative humidity (H-H): 5 - 95
  • Height: 261
  • Diameter: 239
  • Weight: 4800
  • Number of cameras: 1
  • Manual: Yes
  • Packaging content: Windows decoder 1-user license, 60 W Midspan (including power cable), IP66 rated network connector, repaint template, paint paper
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.03028
  • Unit Calculated Weight: 4
Specifications
AC input voltage100 - 240
Auto focusYes
Auto-trackingYes
Built-in processorYes
Camera pan controlYes
Camera shutter speed1/8500 - 1/5
Camera tilt controlYes
Card reader integratedYes
CertificationEN 55032 Class A, EN 55035, IEC 62236-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, RCM AS/NZS CISPR 32 Class A, CISPR 35, EAC, EN 50121-4, KS C 9832 Class A, KS C 9835
Compatible memory cardsSD/SDHC/SDXC
Connectivity technologyWired
Day/night modeYes
Diameter239
Digest authenticationYes
Digital zoom12
Ethernet interface typeGigabit Ethernet
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Flash memory512
Focal length range6.91 - 214.64
Frame rate25
Height261
Housing materialAluminium/Polycarbonate (PC)
HTTPS encryptionYes
IK codeIK10
Infra-red wavelength850
Infrared (IR) cut-off filterYes
Internal memory2048
International Protection (IP) codeIP66, IP67
IP address filteringYes
Languages supportCzech/Dutch/English/Finnish/French/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Swedish/Thai/Traditional Chinese/Turkish/Vietnamese
LED typeIR
Lens viewing angle, horizontal58.5
Lens viewing angle, vertical34.9
ManualYes
Maximum aperture number4.6
Maximum resolution3840 x 2160
Minimum aperture number1.36
Minimum illumination0.11
Mounting typeWall
Network access storage (NAS)Yes
Networking standardsIEEE 802.1x/IEEE 802.3bt
Night visionYes
Night vision distance200
Number of cameras1
Number of languages19
Operating relative humidity (H-H)10 - 100
Operating temperature (T-T)-50 - 50
Optical sensor size1/2
Optical zoom31
Packaging contentWindows decoder 1-user license, 60 W Midspan (including power cable), IP66 rated network connector, repaint template, paint paper
Pan speed550
Password protectionYes
Placement supportedOutdoor
Power consumption (max)51
Power consumption (typical)17
Power source typePoE
Privacy maskingYes
Processor modelARTPEC-7
Product colourWhite
Progressive scanYes
PTZ controlYes
Quality of Service (QoS) supportYes
Sensor typeCMOS
Storage relative humidity (H-H)5 - 95
Storage temperature (T-T)-40 - 65
SummaryAxis 02446-002. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: White, Housing material: Aluminium, Polycarbonate (PC). Minimum illumination: 0.11 lx, Lens viewing angle, horizontal: 58.5°, Lens viewing angle, vertical: 34.9°. Sensor type: CMOS, Optical sensor size: 25.4 / 2 mm (1 / 2"). Optical zoom: 31x, Digital zoom: 12x, Focal length range: 6.91 - 214.64 mm
Supported network protocolsIPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTCP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SSH,
Tilt angle range-90 - 20
Tilt speed500
Tour recordingYes
TypeIP security camera
Video compression formatsH.264/H.265/M-JPEG
Video motion detectionYes
Video recordingYes
Video streamingYes
Weight4800
Wide Dynamic Range (WDR)Yes
Zoom capabilityYes
Specs
Category CodeFNC
Description

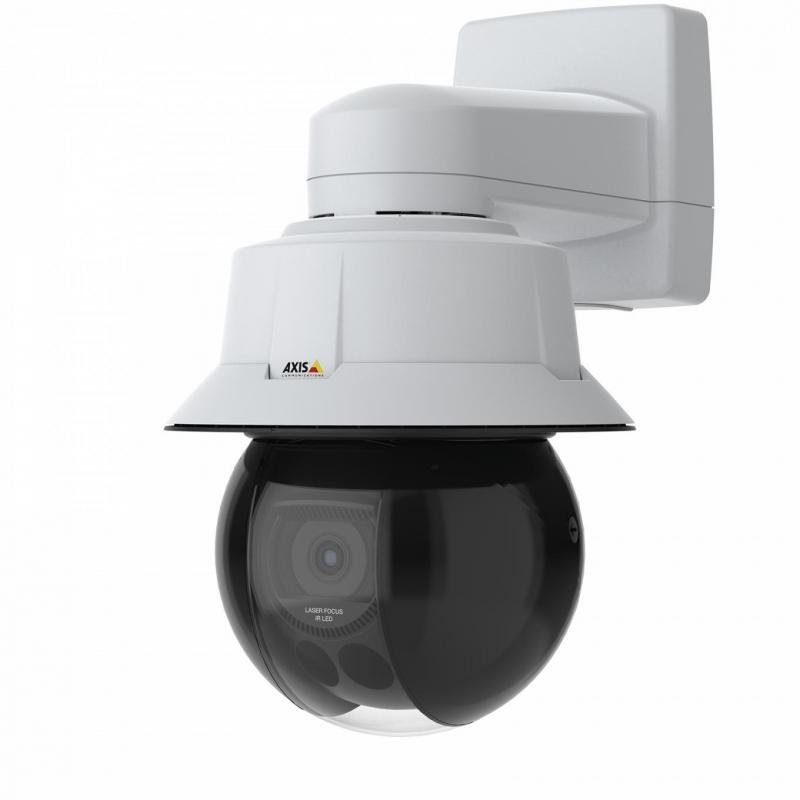

AXIS Q6318-LE offers superior 4K UHD resolution. It features IR illumination and day/night functionality for surveillance in pitch darkness. With a built-in laser, 31x optical zoom, you can easily follow fast-moving objects and quick-zoom makes it move from wide to tele view in just 1 second. This high-speed PTZ camera includes orientation aid and autotracking 2 with click and track functionality. AXIS Object Analytics lets you detect and classify humans and vehicles. Furthermore, it includes a Trusted Platform Module (TPM) that’s FIPS 140-2 level 2 certified.

  • 1/2" sensor with 31x optical zoom; AXIS Object Analytics, autotracking 2; IR illumination, D/N functionality, Lightfinder 2.0; Laser focus for precise focus; TPM, FIPS 140-2 level 2 certified

ModelAXIS Q6318-LE 50 Hz
NameNET CAMERA Q6318-LE DOME 50HZ/02446-002 AXIS
PictureUrlhttps://static.elko.cloud/ProductImages/ff592bb8-707e-4d4e-9200-5a016c20ee4c.Jpeg
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/ff592bb8-707e-4d4e-9200-5a016c20ee4c.Jpeg
Unit Calculated Volume0.03028
Unit Calculated Weight4
Units per Shipping Box1
Vendor Homepagehttps://www.axis.com/products/axis-q6318-le
