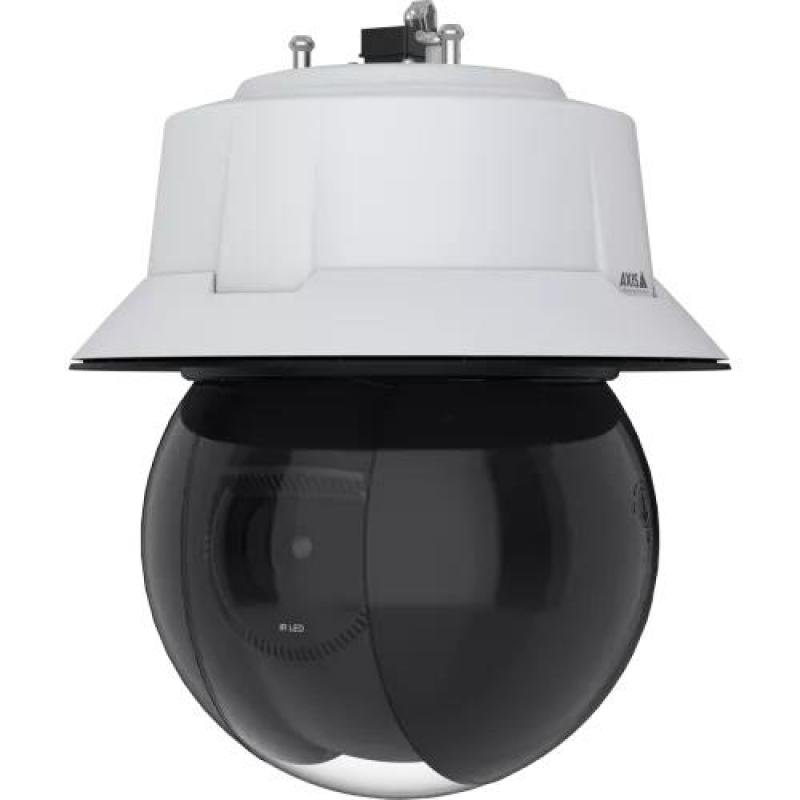

NET CAMERA Q6325-LE DOME PTZ/03313-001 AXIS

NET CAMERA Q6325-LE DOME PTZ/03313-001 AXIS
NET CAMERA Q6325-LE DOME PTZ/03313-001 AXIS
  • Connectivity technology: Wired
  • Zoom capability: Yes
  • Maximum resolution: 1920 x 1080
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
175,089ден.
  • Достапност: Има залиха
  • Бренд: AXIS
  • Шифра: 455306
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Axis Q6325-LE. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.008 lx, Lens viewing angle, horizontal: 60.6°, Lens viewing angle, vertical: 36.5°. Sensor type: CMOS, Optical sensor size: 25.4 / 2 mm (1 / 2"). Signal-to-Noise Ratio (SNR) (panoramic camera): 55 dB
  • Vendor Homepage: https://www.axis.com/products/axis-q6325-le
  • Name: NET CAMERA Q6325-LE DOME PTZ/03313-001 AXIS
  • Category Code: FNC
  • Form factor: Dome
  • Mounting type: Ceiling
  • Product colour: Black/White
  • Housing material: Aluminium
  • Protection features: Impact resistant/Weather resistant
  • International Protection (IP) code: IP66, IP67
  • IK code: IK10
  • Weatherproof: Yes
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Indoor & outdoor
  • PTZ control: Yes
  • PTZ modes: Preset point
  • Tour recording: Yes
  • Preset points: Yes
  • Wide Dynamic Range (WDR): Yes
  • Day/night mode: Yes
  • Infrared (IR) cut-off filter: Yes
  • Certification: EMC EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, CISPR 35, EAC, EN 50121-4 Australia/New Zealand: RCM AS/NZS CISPR 32 Class A Canada: ICES-3(A)/NMB-3(A) Japan: VCCI Class A Korea: KS C 9835, KS C 9832 Class A USA: FC
  • Minimum illumination: 0.008
  • Lens viewing angle, horizontal: 60.6
  • Lens viewing angle, vertical: 36.5
  • Tilt angle range: -20 - 90
  • Tilt speed: 550
  • Pan range: 0 - 360
  • Pan speed: 550
  • Camera shutter speed: 1/111000 - 1/2
  • Signal-to-Noise Ratio (SNR) (panoramic camera): 55
  • Number of sensors: 1
  • Optical sensor size: 1/2
  • Progressive scan: Yes
  • Sensor type: CMOS
  • Zoom capability: Yes
  • Optical zoom: 31
  • Digital zoom: 12
  • Number of lenses: 1
  • Zoom speed: 1
  • Focal length range: 6.91 - 214.64
  • Auto focus: Yes
  • Night vision: Yes
  • Night vision distance: 300
  • LED type: IR
  • Infra-red wavelength: 850
  • Maximum resolution: 1920 x 1080
  • Video formats supported: AVC/H.264/H.265/HEVC/M-JPEG/MPEG4
  • Supported graphics resolutions: 320 x 180
  • Frame rate: 60
  • Video streaming: Yes
  • Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
  • Image quality adjustment: Brightness/Contrast/Sharpness
  • Text caption overlay: Yes
  • Ethernet LAN: Yes
  • Ethernet interface type: Fast Ethernet/Gigabit Ethernet
  • Networking standards: IEEE 802.1AE/IEEE 802.1x/IEEE 802.3bt
  • Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/ 2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTCP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, S
  • Card reader integrated: Yes
  • Compatible memory cards: SD/SDHC/SDXC
  • Flash memory: 8192
  • Internal memory: 4096
  • Ethernet LAN (RJ-45) ports: 1
  • Intelligent Video Surveillance (IVS) system features: Line crossing detection/Moving object
  • Security algorithms: 256-bit AES-XTS/EAP-TLS/MSCHAPv2/PEAP
  • Power consumption (typical): 13.7
  • Power consumption (max): 51
  • Operating temperature (T-T): -50 - 55
  • Storage temperature (T-T): -40 - 65
  • Operating relative humidity (H-H): 10 - 100
  • Storage relative humidity (H-H): 5 - 95
  • Width: 239
  • Depth: 239
  • Height: 291
  • Weight: 4400
  • Compliance certificates: REACH/RoHS
  • Number of cameras: 1
  • Doesnt contain: CFR/PVC/BFR
  • Units per Pallet: 0
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.02761
  • Unit Calculated Weight: 5.4
Specifications
Auto focusYes
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Camera shutter speed1/111000 - 1/2
Card reader integratedYes
CertificationEMC EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, CISPR 35, EAC, EN 50121-4 Australia/New Zealand: RCM AS/NZS CISPR 32 Class A Canada: ICES-3(A)/NMB-3(A) Japan: VCCI Class A Korea: KS C 9835, KS C 9832 Class A USA: FC
Compatible memory cardsSD/SDHC/SDXC
Compliance certificatesREACH/RoHS
Connectivity technologyWired
Day/night modeYes
Depth239
Digital zoom12
Doesn\'t containCFR/PVC/BFR
Ethernet interface typeFast Ethernet/Gigabit Ethernet
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Flash memory8192
Focal length range6.91 - 214.64
Form factorDome
Frame rate60
Height291
Housing materialAluminium
IK codeIK10
Image quality adjustmentBrightness/Contrast/Sharpness
Infra-red wavelength850
Infrared (IR) cut-off filterYes
Intelligent Video Surveillance (IVS) system featuresLine crossing detection/Moving object
Internal memory4096
International Protection (IP) codeIP66, IP67
LED typeIR
Lens viewing angle, horizontal60.6
Lens viewing angle, vertical36.5
Maximum resolution1920 x 1080
Minimum illumination0.008
Mounting typeCeiling
Networking standardsIEEE 802.1AE/IEEE 802.1x/IEEE 802.3bt
Night visionYes
Night vision distance300
Number of cameras1
Number of lenses1
Number of sensors1
Operating relative humidity (H-H)10 - 100
Operating temperature (T-T)-50 - 55
Optical sensor size1/2
Optical zoom31
Pan range0 - 360
Pan speed550
Placement supportedIndoor & outdoor
Power consumption (max)51
Power consumption (typical)13.7
Preset pointsYes
Product colourBlack/White
Progressive scanYes
Protection featuresImpact resistant/Weather resistant
PTZ controlYes
PTZ modesPreset point
Security algorithms256-bit AES-XTS/EAP-TLS/MSCHAPv2/PEAP
Sensor typeCMOS
Signal-to-Noise Ratio (SNR) (panoramic camera)55
Storage relative humidity (H-H)5 - 95
Storage temperature (T-T)-40 - 65
SummaryAxis Q6325-LE. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.008 lx, Lens viewing angle, horizontal: 60.6°, Lens viewing angle, vertical: 36.5°. Sensor type: CMOS, Optical sensor size: 25.4 / 2 mm (1 / 2"). Signal-to-Noise Ratio (SNR) (panoramic camera): 55 dB
Supported graphics resolutions320 x 180
Supported network protocolsIPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/ 2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTCP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, S
Text caption overlayYes
Tilt angle range-20 - 90
Tilt speed550
Tour recordingYes
TypeIP security camera
Video formats supportedAVC/H.264/H.265/HEVC/M-JPEG/MPEG4
Video streamingYes
WeatherproofYes
Weight4400
Wide Dynamic Range (WDR)Yes
Width239
Zoom capabilityYes
Zoom speed1
Specs
Category CodeFNC
Description

Experience exceptional image quality in all lighting conditions with this PTZ camera. Reuse existing mounting accessories for a cost-efficient upgrade to the latest AI-powered analytics and Axis technologies.

Superior surveillance in all light conditions
AXIS Q6325-LE offers outstanding 2 MP and features an extremely light-sensitive ½” sensor to deliver clear, bright images and better handling of shadows. Lightfinder 2.0 and Forensic WDR provide details even in challenging light conditions. Plus, OptimizedIR enables surveillance in total darkness. With 31x optical zoom, you can easily follow fast-moving objects. And Axis Zipstream, with support for AV1, H.264, and H.265, significantly lowers bandwidth and storage requirements. Dynamic power mode, together with low power profile, reduces power demands by up to 30% in certain temperature ranges. Furthermore, this camera offers support for audio with a midspan (sold separately) and four I/O ports.

AI-powered with advanced analytics
Built on ARTPEC-9, the latest Axis system-on-chip, this AI-based camera features a deep learning processing unit (DLPU) to run advanced features and powerful analytics on the edge. It also delivers valuable metadata, facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. For instance, it comes with AXIS Object Analytics preinstalled to detect, classify, track, and count humans, vehicles, and different types of vehicles. Autotracking 2 allows for active object tracking, and an orientation aid enables dynamic text overlays for quick orientation. In addition, chameleon masking safeguards privacy.

Robust with strong cybersecurity
AXIS Q6325-LE includes Axis Edge Vault, a hardware-based cybersecurity platform that safeguards the device and protects sensitive information from unauthorized access. And it offers FIPS 140-3 Level 3 certified, secure cryptographic key storage and operations. This IP66-, IK10-, NEMA 4x, and NEMA TS2-rated device is both impact and weather-resistant. Furthermore, a midspan is available (sold separately) with support for fiber connection, PoE, audio, I/O, and smart restart, allowing for cost-effective installation and long-distance connection.

  • Clear images with ½” sensor and 31x zoom
  • Superior visibility in all lighting conditions
  • Advanced AI analytics for smarter surveillance
  • Reduced storage costs with AV1 codec
  • Built-in cybersecurity with Axis Edge Vault

NameNET CAMERA Q6325-LE DOME PTZ/03313-001 AXIS
PictureUrlhttps://static.elko.cloud/ProductImages/9d84a8a3-aaf9-4f8d-adad-46cbbd06f922.Jpeg
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/9d84a8a3-aaf9-4f8d-adad-46cbbd06f922.Jpeg
Unit Calculated Volume0.02761
Unit Calculated Weight5.4
Units per Pallet0
Units per Shipping Box1
Vendor Homepagehttps://www.axis.com/products/axis-q6325-le
