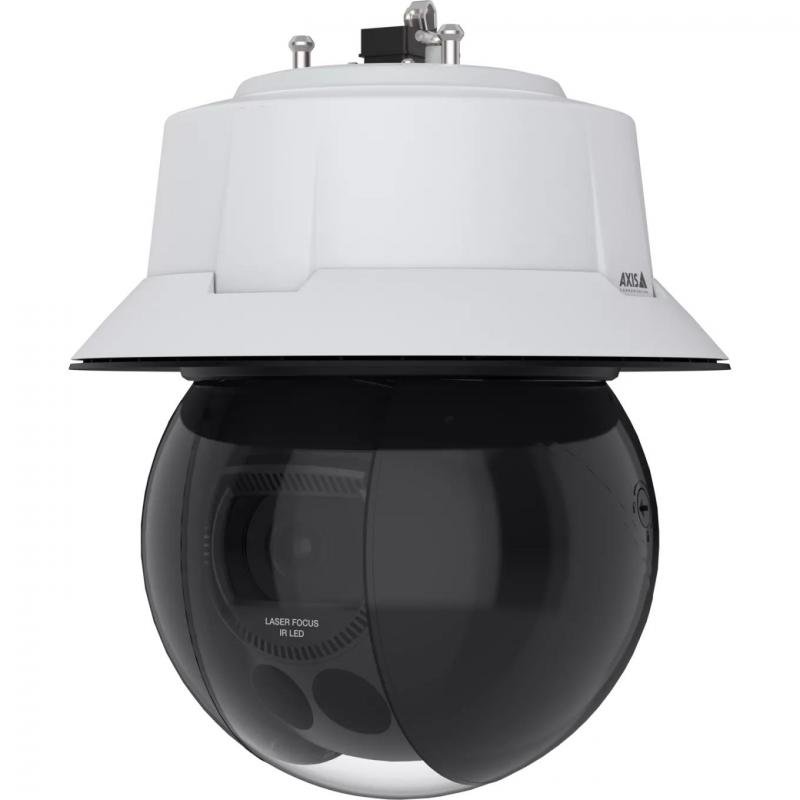

NET CAMERA Q6355-LE PTZ/02976-002 AXIS

NET CAMERA Q6355-LE PTZ/02976-002 AXIS
NET CAMERA Q6355-LE PTZ/02976-002 AXIS
  • Connectivity technology: Wired
  • Zoom capability: Yes
  • Maximum resolution: 1920 x 1080
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
209,886ден.
  • Достапност:
  • Бренд: AXIS
  • Шифра: 440806
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Axis Q6355-LE. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.008 lx, Lens viewing angle, horizontal: 60.6°, Lens viewing angle, vertical: 36.5°. Sensor type: CMOS, Optical sensor size: 25.4 / 2 mm (1 / 2"). Signal-to-Noise Ratio (SNR) (panoramic camera): 55 dB
  • Vendor Homepage: https://www.axis.com/products/axis-q6355-le
  • Name: NET CAMERA Q6355-LE PTZ/02976-002 AXIS
  • Category Code: FNC
  • Model: 02976-002
  • Form factor: Dome
  • Mounting type: Ceiling
  • Product colour: Black/White
  • Housing material: Aluminium
  • Protection features: Impact resistant/Weather resistant
  • International Protection (IP) code: IP66, IP67
  • IK code: IK10
  • Weatherproof: Yes
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Indoor & outdoor
  • PTZ control: Yes
  • PTZ modes: Preset point
  • Tour recording: Yes
  • Preset points: Yes
  • Wide Dynamic Range (WDR): Yes
  • Day/night mode: Yes
  • Infrared (IR) cut-off filter: Yes
  • Certification: EMC EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, CISPR 35, EAC, EN 50121-4 Australia/New Zealand: RCM AS/NZS CISPR 32 Class A Canada: ICES-3(A)/NMB-3(A) Japan: VCCI Class A Korea: KS C 9835, KS C 9832 Class A USA: FC
  • Minimum illumination: 0.008
  • Lens viewing angle, horizontal: 60.6
  • Lens viewing angle, vertical: 36.5
  • Tilt angle range: -20 - 90
  • Tilt speed: 550
  • Pan range: 0 - 360
  • Pan speed: 550
  • Camera shutter speed: 1/111000 - 1/2
  • Signal-to-Noise Ratio (SNR) (panoramic camera): 55
  • Number of sensors: 1
  • Optical sensor size: 1/2
  • Progressive scan: Yes
  • Sensor type: CMOS
  • Zoom capability: Yes
  • Optical zoom: 31
  • Digital zoom: 12
  • Number of lenses: 1
  • Zoom speed: 1
  • Focal length range: 6.91 - 214.64
  • Auto focus: Yes
  • Night vision: Yes
  • Night vision distance: 300
  • LED type: IR
  • Infra-red wavelength: 850
  • Maximum resolution: 1920 x 1080
  • Video formats supported: AVC/H.264/H.265/HEVC/M-JPEG/MPEG4
  • Supported graphics resolutions: 320 x 180
  • Frame rate: 60
  • Video streaming: Yes
  • Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
  • Image quality adjustment: Brightness/Contrast/Sharpness
  • Text caption overlay: Yes
  • Ethernet LAN: Yes
  • Ethernet interface type: Fast Ethernet/Gigabit Ethernet
  • Networking standards: IEEE 802.1AE/IEEE 802.1x/IEEE 802.3bt
  • Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/ 2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTCP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, S
  • Card reader integrated: Yes
  • Compatible memory cards: SD/SDHC/SDXC
  • Flash memory: 8192
  • Internal memory: 4096
  • Ethernet LAN (RJ-45) ports: 1
  • Intelligent Video Surveillance (IVS) system features: Line crossing detection/Moving object
  • Security algorithms: 256-bit AES-XTS/EAP-TLS/MSCHAPv2/PEAP
  • Power consumption (typical): 13.7
  • Power consumption (max): 51
  • Operating temperature (T-T): -50 - 55
  • Storage temperature (T-T): -40 - 65
  • Operating relative humidity (H-H): 10 - 100
  • Storage relative humidity (H-H): 5 - 95
  • Width: 239
  • Depth: 239
  • Height: 291
  • Weight: 4400
  • Compliance certificates: REACH/RoHS
  • Number of cameras: 1
  • Doesnt contain: CFR/PVC/BFR
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.03167
  • Unit Calculated Weight: 6.3
Specifications
Auto focusYes
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Camera shutter speed1/111000 - 1/2
Card reader integratedYes
CertificationEMC EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, CISPR 35, EAC, EN 50121-4 Australia/New Zealand: RCM AS/NZS CISPR 32 Class A Canada: ICES-3(A)/NMB-3(A) Japan: VCCI Class A Korea: KS C 9835, KS C 9832 Class A USA: FC
Compatible memory cardsSD/SDHC/SDXC
Compliance certificatesREACH/RoHS
Connectivity technologyWired
Day/night modeYes
Depth239
Digital zoom12
Doesn\'t containCFR/PVC/BFR
Ethernet interface typeFast Ethernet/Gigabit Ethernet
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Flash memory8192
Focal length range6.91 - 214.64
Form factorDome
Frame rate60
Height291
Housing materialAluminium
IK codeIK10
Image quality adjustmentBrightness/Contrast/Sharpness
Infra-red wavelength850
Infrared (IR) cut-off filterYes
Intelligent Video Surveillance (IVS) system featuresLine crossing detection/Moving object
Internal memory4096
International Protection (IP) codeIP66, IP67
LED typeIR
Lens viewing angle, horizontal60.6
Lens viewing angle, vertical36.5
Maximum resolution1920 x 1080
Minimum illumination0.008
Mounting typeCeiling
Networking standardsIEEE 802.1AE/IEEE 802.1x/IEEE 802.3bt
Night visionYes
Night vision distance300
Number of cameras1
Number of lenses1
Number of sensors1
Operating relative humidity (H-H)10 - 100
Operating temperature (T-T)-50 - 55
Optical sensor size1/2
Optical zoom31
Pan range0 - 360
Pan speed550
Placement supportedIndoor & outdoor
Power consumption (max)51
Power consumption (typical)13.7
Preset pointsYes
Product colourBlack/White
Progressive scanYes
Protection featuresImpact resistant/Weather resistant
PTZ controlYes
PTZ modesPreset point
Security algorithms256-bit AES-XTS/EAP-TLS/MSCHAPv2/PEAP
Sensor typeCMOS
Signal-to-Noise Ratio (SNR) (panoramic camera)55
Storage relative humidity (H-H)5 - 95
Storage temperature (T-T)-40 - 65
SummaryAxis Q6355-LE. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.008 lx, Lens viewing angle, horizontal: 60.6°, Lens viewing angle, vertical: 36.5°. Sensor type: CMOS, Optical sensor size: 25.4 / 2 mm (1 / 2"). Signal-to-Noise Ratio (SNR) (panoramic camera): 55 dB
Supported graphics resolutions320 x 180
Supported network protocolsIPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/ 2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTCP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, S
Text caption overlayYes
Tilt angle range-20 - 90
Tilt speed550
Tour recordingYes
TypeIP security camera
Video formats supportedAVC/H.264/H.265/HEVC/M-JPEG/MPEG4
Video streamingYes
WeatherproofYes
Weight4400
Wide Dynamic Range (WDR)Yes
Width239
Zoom capabilityYes
Zoom speed1
Specs
Category CodeFNC
Description

AXIS Q6355-LE PTZ Camera

Built on ARTPEC-9, this high-performance, AI-powered PTZ camera delivers unmatched image quality with great detail and high performance in all light conditions. Axis Edge Vault provides a hardware-based cybersecurity platform that safeguards the device.

Super surveillance

AXIS Q6355-LE offers excellent 2 MP and features an extremely light-sensitive ½” inch sensor to deliver clear, bright images and better handling of shadows. Lightfinder and Forensic WDR provide details even in challenging light conditions. Plus, OptimizedIR allows for surveillance in total darkness up to 300 m without the need for extra lighting. With 31x optical zoom and quick zoom, you can easily follow fast-moving objects. Plus, laser focus ensures precise focus– every time. Axis Zipstream with support for AV1, H.264, and H.265 significantly lowers bandwidth and storage requirements without compromising image quality. Furthermore, this PTZ camera offers support for audio and four I/O ports with the included AXIS TU8003 90 W Connectivity Midspan.

Secure inside and out

AXIS Q6355-LE includes Axis Edge Vault, a hardware-based cybersecurity platform that safeguards the device and protects sensitive information from unauthorized access. And it offers FIPS 140-3 Level 3 certified, secure cryptographic key storage and operations. This IP66-, IK10-, and NEMA 4x-rated device is impact- and weather-resistant. And its defog functionality ensures clear images despite fog or smog. Thanks to shock detection, you can be informed if there's any attempts to interfere with the camera. Furthermore, with support for fiber connection and PoE, it allows for cost-effective installation and long-distance connections.

ARTPEC-9 for unmatched performance

ARTPEC-9 refines the remarkable features and capabilities that characterized previous generations of our in-house-designed SoC: low bitrate, AI-powered analytics, superior imaging, and built-in cybersecurity. It also introduces AV1, an open-source video encoding standard from the Alliance for Open Media. With support for AV1 and enhanced image processing, ARTPEC-9 delivers high-quality video with uncompromised detail and clarity, and best-in-class bitrate. Together with Axis Zipstream, AV1 also ensures hassle-free video both on-prem and in the cloud. What’s more, ARTPEC-9 powers advanced analytics applications that detect objects earlier and analyze events more precisely.

AI-powered with advanced features

Featuring a deep learning processing unit (DLPU), this AI-based camera lets you run advanced features and powerful analytics on the edge. It comes with AXIS Object Analytics preinstalled to detect, classify, track, and count humans, vehicles, and types of vehicles. With AXIS Image Health Analytics preinstalled, you’ll be notified if your image is blocked, degraded, under-exposed, or redirected. It also offers autotracking 2 with click-and-track functionality for active object tracking. And an orientation aid enables dynamic text overlays with street names and a compass symbol for quick orientation. Additionally, where privacy must be kept, chameleon masking makes it possible to automatically change the color of the masking depending on the background color of the image.



Model02976-002
NameNET CAMERA Q6355-LE PTZ/02976-002 AXIS
PictureUrlhttps://static.elko.cloud/ProductImages/7d6585af-0b23-436c-931e-4a5816898203.Jpeg
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/7d6585af-0b23-436c-931e-4a5816898203.Jpeg
Unit Calculated Volume0.03167
Unit Calculated Weight6.3
Units per Shipping Box1
Vendor Homepagehttps://www.axis.com/products/axis-q6355-le
