NET CAMERA Q8752-E ZOOM MKII/30FPS 03051-001 AXIS

NET CAMERA Q8752-E ZOOM MKII/30FPS 03051-001 AXIS
NET CAMERA Q8752-E ZOOM MKII/30FPS 03051-001 AXIS
  • Connectivity technology: Wired
  • Zoom capability: Yes
  • Maximum resolution: 1920 x 1080
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
1,863,110ден.
  • Достапност:
  • Бренд: AXIS
  • Шифра: 439681
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Axis Q8752-E Mk II Zoom 30 fps. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Product colour: Black, White, Form factor: Box, Housing material: Aluminium, Glass, Thermoplastic. Minimum illumination: 0.01 lx, Vertical field of view (thermal module): 13.5°, Horizontal field of view (thermal module): 18°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"), Effective sensor resolution (thermal module): 640 x 480 pixels. Optical zoom: 32x, Digital zoom: 12x, Focal length range: 4.3 - 137.6 mm
  • Vendor Homepage: https://www.axis.com/products/axis-q8752-e-mk-ii
  • Name: NET CAMERA Q8752-E ZOOM MKII/30FPS 03051-001 AXIS
  • Category Code: FNC
  • Form factor: Box
  • Product colour: Black/White
  • Housing material: Aluminium/Glass/Thermoplastic
  • International Protection (IP) code: IP66
  • IK code: IK10
  • Fog proof: Yes
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Indoor & outdoor
  • PTZ control: Yes
  • Auto-tracking: Yes
  • Tour recording: Yes
  • Preset points: Yes
  • Thermal module: Yes
  • Wide Dynamic Range (WDR): Yes
  • Day/night mode: Yes
  • Infrared (IR) cut-off filter: Yes
  • Thermal sensitivity (NETD): 50
  • Certification: UL/cUL, CE, KC, VCCI, RCM
  • Minimum illumination: 0.01
  • Horizontal field of view (thermal module): 18
  • Vertical field of view (thermal module): 13.5
  • Lens viewing angle, horizontal: 58.5
  • Lens viewing angle, vertical: 35
  • Tilt angle range: -90 - 45
  • Tilt speed: 65
  • Pan range: 0 - 360
  • Pan speed: 120
  • Camera shutter speed: 1/66500 - 2
  • Number of Privacy masking areas: 32
  • Number of sensors: 1
  • Optical sensor size: 1/2.8
  • Effective sensor resolution (thermal module): 640 x 480
  • Progressive scan: Yes
  • Sensor type: CMOS
  • Zoom capability: Yes
  • Optical zoom: 32
  • Digital zoom: 12
  • Number of lenses: 1
  • Focal length range: 4.3 - 137.6
  • Auto focus: Yes
  • Maximum aperture number: 4
  • Minimum aperture number: 1.4
  • Aperture number (thermal module): 1.6
  • Closest focusing distance: 7
  • Maximum resolution: 1920 x 1080
  • Video formats supported: AVC/H.264/H.265/HEVC/M-JPEG/MPEG4
  • Frame rate: 60
  • Video streaming: Yes
  • Bit rate control: Variable Bit Rate (VBR)
  • Image quality adjustment: Brightness/Contrast/Saturation/Sharpness
  • Image stabilizer: Yes
  • Text caption overlay: Yes
  • Audio system: 1-way
  • Audio formats supported: AAC-LC/ADPCM/G.711/G.726/LPCM/OPUS/PCM
  • Audio detection: Yes
  • Sample rates: 8 - 48
  • Ethernet LAN: Yes
  • Ethernet interface type: Fast Ethernet/Gigabit Ethernet
  • Networking standards: IEEE 802.1AE/IEEE 802.1x
  • Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/ 2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIB-II), DNS/ DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6,
  • Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
  • Flash memory: 512
  • Internal memory: 2000
  • Microphone in: Yes
  • Terminal block port: Yes
  • Pixel counter: Yes
  • Privacy protection: Yes
  • Video motion detection: Yes
  • Power source type: DC
  • Power consumption (typical): 25
  • Power consumption (max): 185
  • Operating temperature (T-T): -40 - 60
  • Storage temperature (T-T): -40 - 65
  • Operating relative humidity (H-H): 10 - 100
  • Storage relative humidity (H-H): 5 - 95
  • Width: 229
  • Depth: 360
  • Height: 581
  • Weight: 15300
  • Compliance certificates: REACH/RoHS/Trade Agreements Act (TAA)
  • Number of cameras: 1
  • Manual: Yes
  • Wiper included: Yes
  • Doesnt contain: PVC
  • Units per Pallet: 0
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.078
  • Unit Calculated Weight: 17.3
Specifications
Aperture number (thermal module)1.6
Audio detectionYes
Audio formats supportedAAC-LC/ADPCM/G.711/G.726/LPCM/OPUS/PCM
Audio system1-way
Auto focusYes
Auto-trackingYes
Bit rate controlVariable Bit Rate (VBR)
Camera shutter speed1/66500 - 2
CertificationUL/cUL, CE, KC, VCCI, RCM
Closest focusing distance7
Compatible memory cardsMicroSD (TransFlash)/MicroSDHC/MicroSDXC
Compliance certificatesREACH/RoHS/Trade Agreements Act (TAA)
Connectivity technologyWired
Day/night modeYes
Depth360
Digital zoom12
Doesn\'t containPVC
Effective sensor resolution (thermal module)640 x 480
Ethernet interface typeFast Ethernet/Gigabit Ethernet
Ethernet LANYes
Flash memory512
Focal length range4.3 - 137.6
Fog proofYes
Form factorBox
Frame rate60
Height581
Horizontal field of view (thermal module)18
Housing materialAluminium/Glass/Thermoplastic
IK codeIK10
Image quality adjustmentBrightness/Contrast/Saturation/Sharpness
Image stabilizerYes
Infrared (IR) cut-off filterYes
Internal memory2000
International Protection (IP) codeIP66
Lens viewing angle, horizontal58.5
Lens viewing angle, vertical35
ManualYes
Maximum aperture number4
Maximum resolution1920 x 1080
Microphone inYes
Minimum aperture number1.4
Minimum illumination0.01
Networking standardsIEEE 802.1AE/IEEE 802.1x
Number of cameras1
Number of lenses1
Number of Privacy masking areas32
Number of sensors1
Operating relative humidity (H-H)10 - 100
Operating temperature (T-T)-40 - 60
Optical sensor size1/2.8
Optical zoom32
Pan range0 - 360
Pan speed120
Pixel counterYes
Placement supportedIndoor & outdoor
Power consumption (max)185
Power consumption (typical)25
Power source typeDC
Preset pointsYes
Privacy protectionYes
Product colourBlack/White
Progressive scanYes
PTZ controlYes
Sample rates8 - 48
Sensor typeCMOS
Storage relative humidity (H-H)5 - 95
Storage temperature (T-T)-40 - 65
SummaryAxis Q8752-E Mk II Zoom 30 fps. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Product colour: Black, White, Form factor: Box, Housing material: Aluminium, Glass, Thermoplastic. Minimum illumination: 0.01 lx, Vertical field of view (thermal module): 13.5°, Horizontal field of view (thermal module): 18°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"), Effective sensor resolution (thermal module): 640 x 480 pixels. Optical zoom: 32x, Digital zoom: 12x, Focal length range: 4.3 - 137.6 mm
Supported network protocolsIPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/ 2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIB-II), DNS/ DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6,
Terminal block portYes
Text caption overlayYes
Thermal moduleYes
Thermal sensitivity (NETD)50
Tilt angle range-90 - 45
Tilt speed65
Tour recordingYes
TypeIP security camera
Vertical field of view (thermal module)13.5
Video formats supportedAVC/H.264/H.265/HEVC/M-JPEG/MPEG4
Video motion detectionYes
Video streamingYes
Weight15300
Wide Dynamic Range (WDR)Yes
Width229
Wiper includedYes
Zoom capabilityYes
Specs
Category CodeFNC
Description

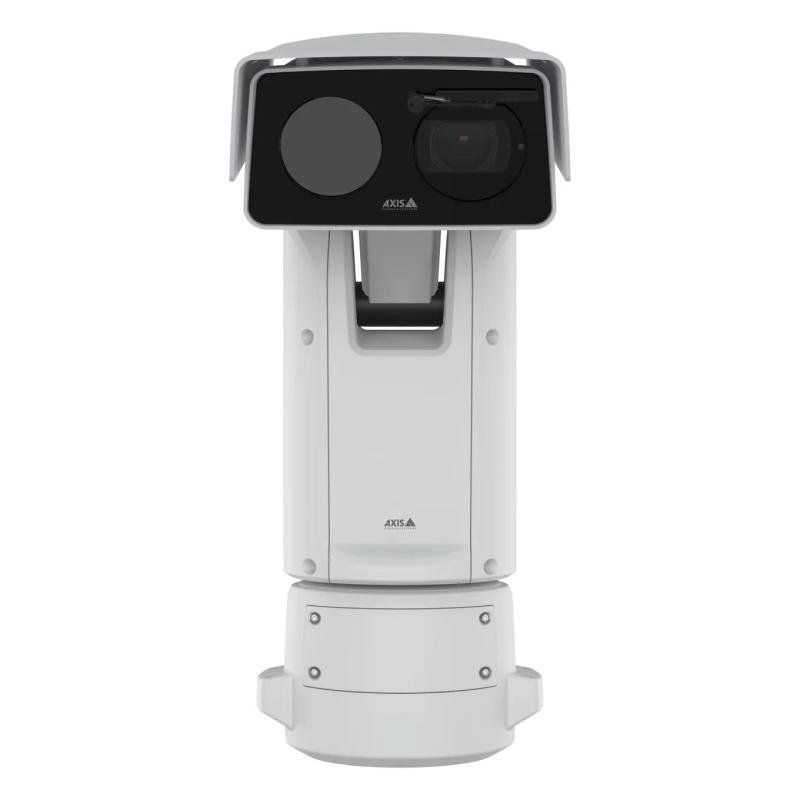

AXIS Q8752-E Mk II Bispectral PTZ Camera

Ideal for perimeter surveillance and border control, this bispectral camera offers reliable thermal detection and visual identification with 32x integrated optical zoom. It’s available in two versions with either 3x thermal zoom or without thermal zoom capabilities.

Always see what you need to see

AXIS Q8752-E Mk II gives you two excellent cameras in one: a thermal camera for reliable detection and verification around-the-clock and in all weather and light conditions, and a visual camera for outstanding visual identification purposes. It offers a ground-to-sky view with a tilt range of -90° to +45° and 360° infinite pan for fast camera repositioning and smooth tracking of objects. Thermal palettes help identify different heat sources emitting the same amount of thermal energy, making it easier and more efficient to interpret a scene. Electronic image stabilization (EIS) on both channels ensures smooth video. Furthermore, Lightfinder 2.0 and Forensic WDR ensure true colors and great detail in challenging light.

Powerful analytics platform

This top-of-the-line camera contains all the functionality you need to track and identify any type of behavior. It includes AXIS Motion Guard, AXIS Fence Guard, and AXIS Loitering Guard for proactive surveillance. Featuring audio and I/O connectivity, you can integrate peripheral equipment, for instance a microphone to extend the value of your system. And edge-to-edge technology lets you connect, for instance, a horn speaker to enable audio alarms that deter, warn, and notify. What’s more, it’s built on a powerful analytics platform, so it’s easy to add Axis as well as custom-made 3rd party analytics.

Robust and secure

This robust camera is packed with advanced security functionality to prevent unauthorized access and safeguard your system. Signed firmware and secure boot guarantee that the firmware hasn’t been compromised and ensure only authorized firmware is installed. For added peace of mind, it includes a Trusted Platform Module (TPM) that is FIPS 140-2 level 2 certified. With IP66, NEMA TS2, and IK10 ratings, you can be sure that the camera housing is resistant to both harsh weather conditions and vandalism. Plus, it’s possible to connect AXIS Q8752-E Mk II using fiber optic cabling to overcome distance and bandwidth limitations. With thermal, visual, and PTZ capabilities in one camera, it reduces the need for additional cameras to protect your premises.


  • Thermal and visual camera in one
  • 360° infinite pan
  • Dual electronic image stabilization
  • Built-in cybersecurity
  • Thermal palettes
