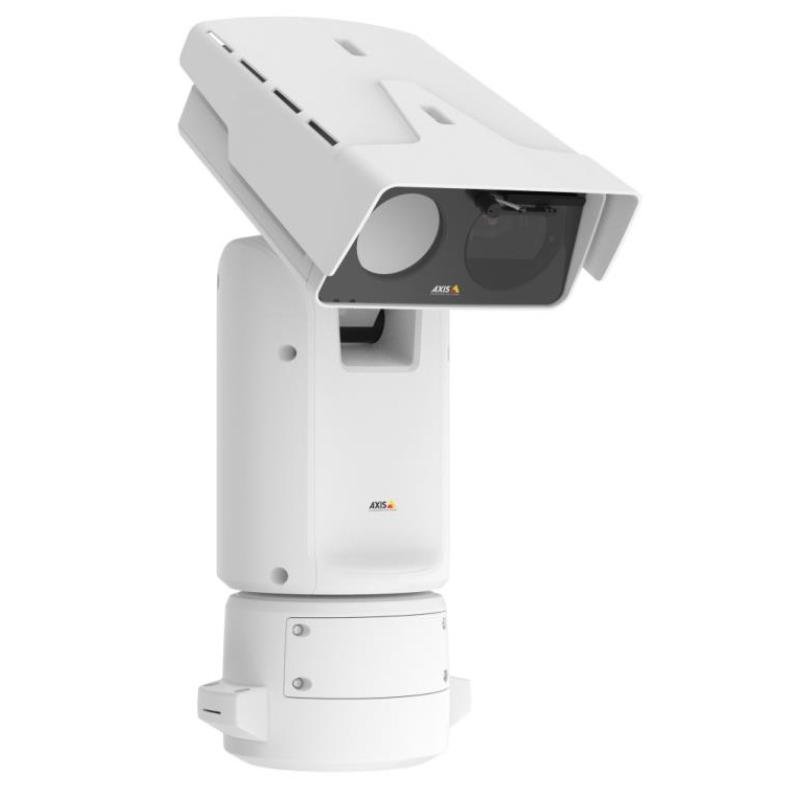

NET CAMERA Q8752-E ZOOM/30FPS 01841-001 AXIS

NET CAMERA Q8752-E ZOOM/30FPS 01841-001 AXIS
NET CAMERA Q8752-E ZOOM/30FPS 01841-001 AXIS
  • Connectivity technology: Wired
  • Zoom capability: Yes
  • Maximum resolution: 1920 x 1080
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
1,564,999ден.
  • Достапност:
  • Бренд: AXIS
  • Шифра: 338615
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Axis 01841-001. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Product colour: Black, White, Form factor: Box, Housing material: Aluminium. Minimum illumination: 0.01 lx, Field of view (FOV) angle (thermal module): 17 x 12.8°, Lens viewing angle, horizontal: 58.5°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"), Effective sensor resolution (thermal module): 640 x 480 pixels. Optical zoom: 32x, Digital zoom: 12x, Focal length range: 4.3 - 137.6 mm
  • Vendor Homepage: https://www.axis.com/en-tr/products/axis-q8752-e/
  • Name: NET CAMERA Q8752-E ZOOM/30FPS 01841-001 AXIS
  • Category Code: FNC
  • Form factor: Box
  • Product colour: Black/White
  • Housing material: Aluminium
  • International Protection (IP) code: IP66
  • IK code: IK10
  • Weatherproof: Yes
  • Fog proof: Yes
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Outdoor
  • PTZ control: Yes
  • Preset points: Yes
  • Thermal module: Yes
  • Wide Dynamic Range (WDR): Yes
  • Day/night mode: Yes
  • Infrared (IR) cut-off filter: Yes
  • Languages support: English/French/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Traditional Chinese
  • Number of languages: 12
  • Thermal sensitivity (NETD): 50
  • Certification: 55032 Class A, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, VCCI Class A ITE, ICES-3(A)/NMB-3(A), CISPR 35, RCM AS/NZS CISPR 32 Class A, EN 50121-4, IEC 62236-4, EN 50498, KC KN32 Class A, KC KN35, IEC/EN/UL 62368-1, IEC/EN/UL 6095
  • Minimum illumination: 0.01
  • Field of view (FOV) angle (thermal module): 17 x 12.8
  • Lens viewing angle, horizontal: 58.5
  • Lens viewing angle, vertical: 35
  • Tilt angle range: -90 - 45
  • Tilt speed: 65
  • Pan range: 0 - 360
  • Pan speed: 120
  • Camera shutter speed: 1/66500 - 2
  • Optical sensor size: 1/2.8
  • Effective sensor resolution (thermal module): 640 x 480
  • Progressive scan: Yes
  • Sensor type: CMOS
  • Zoom capability: Yes
  • Optical zoom: 32
  • Digital zoom: 12
  • Focal length range: 4.3 - 137.6
  • Auto focus: Yes
  • Maximum aperture number: 4
  • Minimum aperture number: 1.4
  • Aperture number (thermal module): 1.6
  • Maximum resolution: 1920 x 1080
  • Video compression formats: H.264/H.265/M-JPEG/MPEG4
  • Supported video modes: 1080p
  • Frame rate: 60
  • Video streaming: Yes
  • Image quality adjustment: Brightness/Contrast/Sharpness
  • Privacy masking: Yes
  • Text caption overlay: Yes
  • Audio formats supported: AAC-LC/ADPCM/G.711/LPCM/PCM
  • Ethernet LAN: Yes
  • Networking standards: IEEE 802.1x
  • Supported network protocols: IPv4, IPv6 USGv6, HTTP, HTTPS , HTTP/2, SSL/TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, NTCIP, LLDP, MQTT v3.1.1
  • Quality of Service (QoS) support: Yes
  • Streaming method: Multicast
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
  • Flash memory: 512
  • Internal memory: 2048
  • Ethernet LAN (RJ-45) ports: 1
  • Terminal block port: Yes
  • Password protection: Yes
  • Alert notification type: E-mail
  • HTTPS encryption: Yes
  • IP address filtering: Yes
  • Video motion detection: Yes
  • Power source type: AC,DC
  • AC input voltage: 20 - 28
  • Power consumption (typical): 16
  • Power consumption (max): 204
  • Operating temperature (T-T): -40 - 65
  • Storage temperature (T-T): -40 - 70
  • Operating relative humidity (H-H): 10 - 100
  • Width: 244
  • Depth: 360
  • Height: 582
  • Sun shield included: Yes
  • Manual: Yes
  • Doesnt contain: PVC
  • Harmonized System (HS) code: 85258900
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.09204
  • Unit Calculated Weight: 17.1
Specifications
AC input voltage20 - 28
Alert notification typeE-mail
Aperture number (thermal module)1.6
Audio formats supportedAAC-LC/ADPCM/G.711/LPCM/PCM
Auto focusYes
Camera shutter speed1/66500 - 2
Card reader integratedYes
Certification55032 Class A, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, VCCI Class A ITE, ICES-3(A)/NMB-3(A), CISPR 35, RCM AS/NZS CISPR 32 Class A, EN 50121-4, IEC 62236-4, EN 50498, KC KN32 Class A, KC KN35, IEC/EN/UL 62368-1, IEC/EN/UL 6095
Compatible memory cardsMicroSD (TransFlash)/MicroSDHC/MicroSDXC
Connectivity technologyWired
Day/night modeYes
Depth360
Digital zoom12
Doesn\'t containPVC
Effective sensor resolution (thermal module)640 x 480
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Field of view (FOV) angle (thermal module)17 x 12.8
Flash memory512
Focal length range4.3 - 137.6
Fog proofYes
Form factorBox
Frame rate60
Harmonized System (HS) code85258900
Height582
Housing materialAluminium
HTTPS encryptionYes
IK codeIK10
Image quality adjustmentBrightness/Contrast/Sharpness
Infrared (IR) cut-off filterYes
Internal memory2048
International Protection (IP) codeIP66
IP address filteringYes
Languages supportEnglish/French/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Traditional Chinese
Lens viewing angle, horizontal58.5
Lens viewing angle, vertical35
ManualYes
Maximum aperture number4
Maximum resolution1920 x 1080
Minimum aperture number1.4
Minimum illumination0.01
Networking standardsIEEE 802.1x
Number of languages12
Operating relative humidity (H-H)10 - 100
Operating temperature (T-T)-40 - 65
Optical sensor size1/2.8
Optical zoom32
Pan range0 - 360
Pan speed120
Password protectionYes
Placement supportedOutdoor
Power consumption (max)204
Power consumption (typical)16
Power source typeAC,DC
Preset pointsYes
Privacy maskingYes
Product colourBlack/White
Progressive scanYes
PTZ controlYes
Quality of Service (QoS) supportYes
Sensor typeCMOS
Storage temperature (T-T)-40 - 70
Streaming methodMulticast
SummaryAxis 01841-001. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Product colour: Black, White, Form factor: Box, Housing material: Aluminium. Minimum illumination: 0.01 lx, Field of view (FOV) angle (thermal module): 17 x 12.8°, Lens viewing angle, horizontal: 58.5°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"), Effective sensor resolution (thermal module): 640 x 480 pixels. Optical zoom: 32x, Digital zoom: 12x, Focal length range: 4.3 - 137.6 mm
Sun shield includedYes
Supported network protocolsIPv4, IPv6 USGv6, HTTP, HTTPS , HTTP/2, SSL/TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, NTCIP, LLDP, MQTT v3.1.1
Supported video modes1080p
Terminal block portYes
Text caption overlayYes
Thermal moduleYes
Thermal sensitivity (NETD)50
Tilt angle range-90 - 45
Tilt speed65
TypeIP security camera
Video compression formatsH.264/H.265/M-JPEG/MPEG4
Video motion detectionYes
Video streamingYes
WeatherproofYes
Wide Dynamic Range (WDR)Yes
Width244
Zoom capabilityYes
Specs
Category CodeFNC
Description

AXIS Q8752-E offers reliable thermal detection and visual verification in one bispectral camera. It features 360° infinite pan for fast repositioning and continuous tracking of objects. Featuring Electronic Image Stabilization (EIS) on both channels it ensures smooth video. Forensic WDR and Lightfinder 2.0 guarantees images with saturated colors and sharp details of moving objects even in challenging light or near darkness. This robust camera is packed with advanced security functionality. Built on a powerful analytics platform, it’s easy to add custom-made 3rd party analytics. Furthermore, it’s possible to connect AXIS Q8752-E using fiber optic cabling to overcome distance and bandwidth limitations.

  • 360° infinite pan; Dual Electronic Image Stabilization; Signed firmware, secure boot, and TPM 2.0; Thermal and visual camera in one; Thermal palettes
