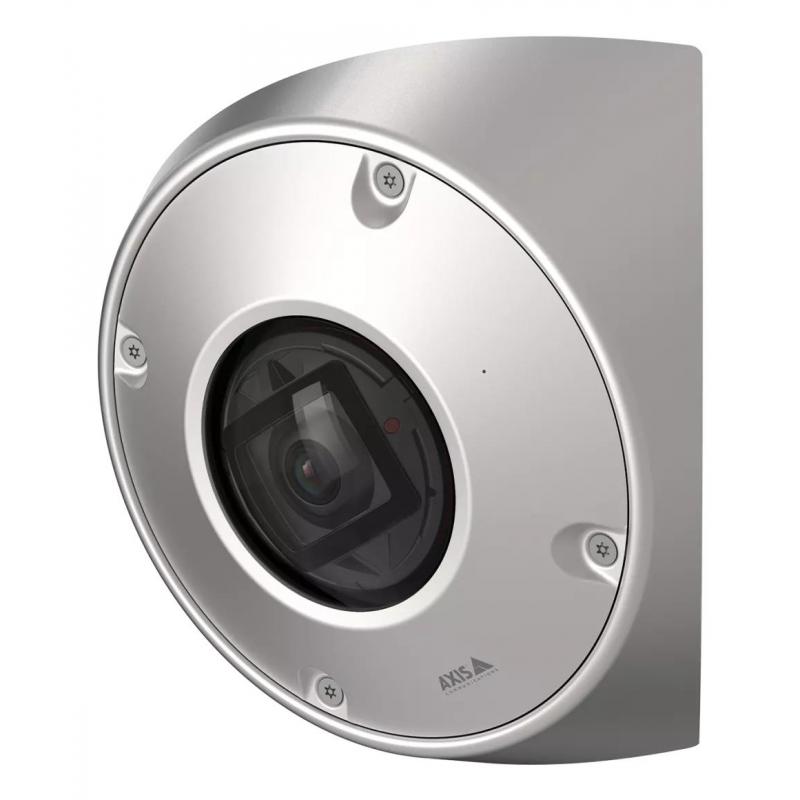

NET CAMERA Q9216-SLV H.265/01766-001 AXIS

NET CAMERA Q9216-SLV H.265/01766-001 AXIS
NET CAMERA Q9216-SLV H.265/01766-001 AXIS
  • Connectivity technology: Wired
  • Maximum resolution: 2304 x 1728
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
83,255ден.
  • Достапност:
  • Бренд: AXIS
  • Шифра: 364101
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Axis 01766-001. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Stainless steel, Form factor: Dome. Lens viewing angle, horizontal: 125°, Lens viewing angle, vertical: 95°, Camera shutter speed: 1/32500 - 1/5 s. Sensor type: CMOS, Optical sensor size: 25.4 / 2.5 mm (1 / 2.5"). Fixed focal length: 2.4 mm
  • Vendor Homepage: https://www.axis.com/products/axis-q9216-slv/
  • Name: NET CAMERA Q9216-SLV H.265/01766-001 AXIS
  • Category Code: FNC
  • Form factor: Dome
  • Mounting type: Ceiling/wall
  • Product colour: Stainless steel
  • Housing material: Stainless steel
  • International Protection (IP) code: IP66, IP69, IP69K
  • IK code: IK10+
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Outdoor
  • PTZ control: Yes
  • Wide Dynamic Range (WDR): Yes
  • Day/night mode: Yes
  • Infrared (IR) cut-off filter: Yes
  • Certification: EN 50130-4, EN 55032 A, EN 55035, IEC/EN 61000-6-1, IEC/EN 61000-6-2, FCC 15 B A, ICES-3(A)/NMB-3(A), VCCI A, KC KN-32 A, KC KN-35, RCM AS/NZS CISPR 32 A, CISPR 24, CISPR 35 IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1, IEC/EN 62471 EN 50130-5 I, IEC 6006
  • Minimum illumination: 0
  • Lens viewing angle, horizontal: 125
  • Lens viewing angle, vertical: 95
  • Camera shutter speed: 1/32500 - 1/5
  • Number of sensors: 1
  • Optical sensor size: 1/2.5
  • Progressive scan: Yes
  • Sensor type: CMOS
  • Number of lenses: 1
  • Fixed focus: Yes
  • Maximum aperture number: 2
  • Fixed focal length: 2.4
  • Night vision: Yes
  • Night vision distance: 15
  • LED type: IR
  • Infra-red wavelength: 940
  • Maximum resolution: 2304 x 1728
  • Video compression formats: AVC/H.264/H.265/HEVC/M-JPEG
  • Supported graphics resolutions: 2304 x 1728/320 x 240
  • Frame rate: 30
  • Video streaming: Yes
  • Bit rate control: Variable Bit Rate (VBR)
  • Image quality adjustment: Brightness/Contrast/Saturation/Sharpness
  • Text caption overlay: Yes
  • Audio system: 2-way
  • Audio system full duplex: Yes
  • Sample rate: 48
  • Built-in microphone: Yes
  • Voice codecs: G.711/G.726/OPUS
  • Ethernet LAN: Yes
  • Ethernet interface type: Fast Ethernet
  • Networking standards: IEEE 802.1x/IEEE 802.3af/IEEE 802.3at
  • Supported network protocols: IPv4,IPv6 USGv6, HTTP, HTTPS , SSL/TLS , QoS L3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP, SIP
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
  • Flash memory: 512
  • Internal memory: 1024
  • Ethernet LAN (RJ-45) ports: 1
  • Microphone in: Yes
  • HDMI ports quantity: 1
  • Terminal block port: Yes
  • Password protection: Yes
  • HTTPS encryption: Yes
  • IP address filtering: Yes
  • Security algorithms: EAP-TLS/FIPS 140-2
  • Video motion detection: Yes
  • Power source type: PoE
  • Power consumption (typical): 4.7
  • Power consumption (max): 10.8
  • Width: 209
  • Depth: 176
  • Height: 131
  • Weight: 1600
  • Number of cameras: 1
  • Harmonized System (HS) code: 85258900
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.006613
  • Unit Calculated Weight: 1.95
Specifications
Audio system2-way
Audio system full duplexYes
Bit rate controlVariable Bit Rate (VBR)
Built-in microphoneYes
Camera shutter speed1/32500 - 1/5
Card reader integratedYes
CertificationEN 50130-4, EN 55032 A, EN 55035, IEC/EN 61000-6-1, IEC/EN 61000-6-2, FCC 15 B A, ICES-3(A)/NMB-3(A), VCCI A, KC KN-32 A, KC KN-35, RCM AS/NZS CISPR 32 A, CISPR 24, CISPR 35 IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1, IEC/EN 62471 EN 50130-5 I, IEC 6006
Compatible memory cardsMicroSD (TransFlash)/MicroSDHC/MicroSDXC
Connectivity technologyWired
Day/night modeYes
Depth176
Ethernet interface typeFast Ethernet
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Fixed focal length2.4
Fixed focusYes
Flash memory512
Form factorDome
Frame rate30
Harmonized System (HS) code85258900
HDMI ports quantity1
Height131
Housing materialStainless steel
HTTPS encryptionYes
IK codeIK10+
Image quality adjustmentBrightness/Contrast/Saturation/Sharpness
Infra-red wavelength940
Infrared (IR) cut-off filterYes
Internal memory1024
International Protection (IP) codeIP66, IP69, IP69K
IP address filteringYes
LED typeIR
Lens viewing angle, horizontal125
Lens viewing angle, vertical95
Maximum aperture number2
Maximum resolution2304 x 1728
Microphone inYes
Minimum illumination0
Mounting typeCeiling/wall
Networking standardsIEEE 802.1x/IEEE 802.3af/IEEE 802.3at
Night visionYes
Night vision distance15
Number of cameras1
Number of lenses1
Number of sensors1
Optical sensor size1/2.5
Password protectionYes
Placement supportedOutdoor
Power consumption (max)10.8
Power consumption (typical)4.7
Power source typePoE
Product colourStainless steel
Progressive scanYes
PTZ controlYes
Sample rate48
Security algorithmsEAP-TLS/FIPS 140-2
Sensor typeCMOS
SummaryAxis 01766-001. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Stainless steel, Form factor: Dome. Lens viewing angle, horizontal: 125°, Lens viewing angle, vertical: 95°, Camera shutter speed: 1/32500 - 1/5 s. Sensor type: CMOS, Optical sensor size: 25.4 / 2.5 mm (1 / 2.5"). Fixed focal length: 2.4 mm
Supported graphics resolutions2304 x 1728/320 x 240
Supported network protocolsIPv4,IPv6 USGv6, HTTP, HTTPS , SSL/TLS , QoS L3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP, SIP
Terminal block portYes
Text caption overlayYes
TypeIP security camera
Video compression formatsAVC/H.264/H.265/HEVC/M-JPEG
Video motion detectionYes
Video streamingYes
Voice codecsG.711/G.726/OPUS
Weight1600
Wide Dynamic Range (WDR)Yes
Width209
Specs
Category CodeFNC
Description

AXIS Q9216-SLV is a compact and robust ligature-resistant (anti-ligature) corner-mount camera that delivers 4 MP video quality. It covers 125 degrees horizontally and 95 degrees vertically, with no blind spots. Featuring invisible IR illumination, it’s ideal for covert video surveillance in complete darkness. With an IK11/IP66 rated casing, it also includes a removable built-in microphone and an indication LED. The camera has polygonal privacy masking, which allows for flexible coverage and helps ensure occupant privacy is respected. Furthermore, signed firmware and a Trusted Platform Module (TPM, FIPS 140-2 level 2 certified) help prevent unauthorized access and safeguard your system.

  • Anti-ligature, robust (IK11); Compact design – easy to install; Corner camera – no blind spots; WDR and invisible IR (940 nm); Zipstream supporting H.264 and H.265

NameNET CAMERA Q9216-SLV H.265/01766-001 AXIS
PictureUrlhttps://static.elko.cloud/ProductImages/024c2343-f186-43f5-af49-eed2c80f6279.Jpeg
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/024c2343-f186-43f5-af49-eed2c80f6279.Jpeg
Unit Calculated Volume0.006613
Unit Calculated Weight1.95
Units per Shipping Box1
Vendor Homepagehttps://www.axis.com/products/axis-q9216-slv/
