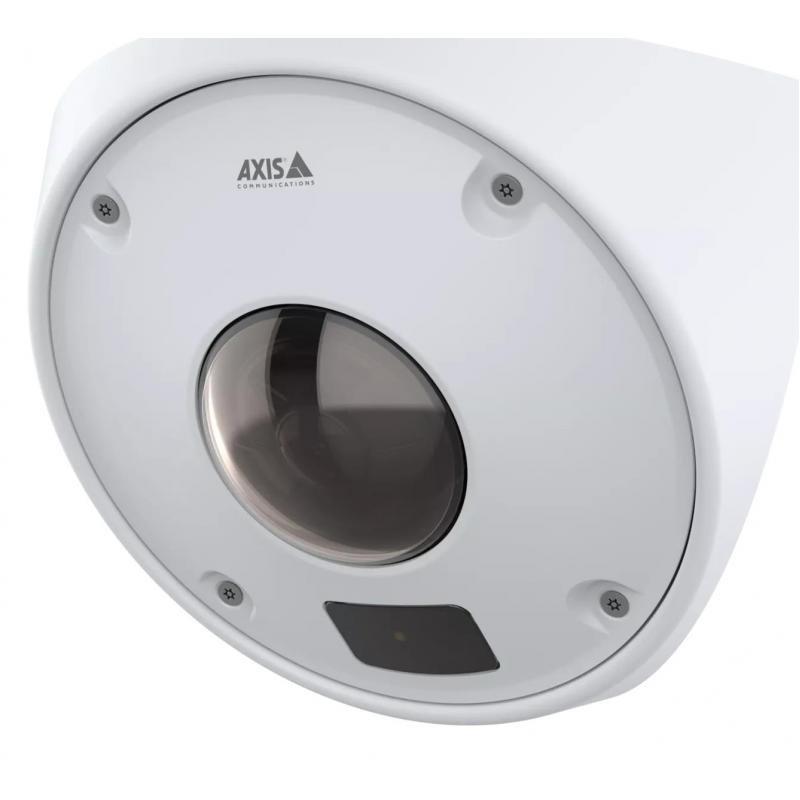

NET CAMERA Q9227-SLV CORNER/03139-001 AXIS

NET CAMERA Q9227-SLV CORNER/03139-001 AXIS
NET CAMERA Q9227-SLV CORNER/03139-001 AXIS
  • Connectivity technology: Wired
  • Maximum resolution: 2880 x 2160
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
100,982ден.
  • Достапност:
  • Бренд: AXIS
  • Шифра: 459403
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Axis Q9227-SLV. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Corner. Lens viewing angle, horizontal: 115°, Lens viewing angle, vertical: 89.2°, Tilt angle range: -10 - 10°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.7 mm (1 / 1.7"). Detect distance: 46.1 m, Observe distance: 19.4 m, Recognize distance: 10 m
  • Vendor Homepage: https://www.axis.com/products/axis-q9227-slv
  • Name: NET CAMERA Q9227-SLV CORNER/03139-001 AXIS
  • Category Code: FNC
  • Form factor: Corner
  • Mounting type: Ceiling
  • Product colour: White
  • LED indicators: Yes
  • Housing material: Polycarbonate (PC)/Stainless steel
  • International Protection (IP) code: IP66, IP69, IP6K9K
  • Fog proof: Yes
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Indoor
  • Wide Dynamic Range (WDR): Yes
  • Day/night mode: Yes
  • Infrared (IR) cut-off filter: Yes
  • Built-in light: Yes
  • Dynamic range: 120
  • Languages support: Multi
  • Certification: UL, CE, KC, VCCI, RCM, FCC, ICES, WEEE
  • Minimum illumination: 0
  • Lens viewing angle, horizontal: 115
  • Lens viewing angle, vertical: 89.2
  • Tilt angle range: -10 - 10
  • Camera shutter speed: 1/66500 - 2
  • Number of sensors: 1
  • Optical sensor size: 1/1.7
  • Sensor type: CMOS
  • Number of lenses: 1
  • Detect distance: 46.1
  • Observe distance: 19.4
  • Recognize distance: 10
  • Auto focus: Yes
  • Identify distance: 5.1
  • Maximum aperture number: 2
  • Closest focusing distance: 1
  • Fixed focal length: 3.7
  • Night vision: Yes
  • Night vision distance: 10
  • B/W night vision distance: 10
  • LED type: IR/White
  • Infra-red wavelength: 940
  • Maximum resolution: 2880 x 2160
  • Video compression formats: H.264/H.265
  • Frame rate: 30
  • Video streaming: Yes
  • Noise reduction: Yes
  • Noise reduction technology: 2D noise reduction,3D noise reduction
  • Image quality adjustment: Brightness/Contrast/Mirror/Saturation/Sharpness/White balance
  • Privacy masking: Yes
  • Built-in speaker(s): Yes
  • Audio system: 2-way
  • Audio system full duplex: Yes
  • Audio formats supported: AAC-LC/ADPCM/G.711/G.726/LPCM/OPUS/PCM
  • Frequency range: 820 - 5075
  • Signal-to-Noise Ratio (SNR): 55
  • Built-in microphone: Yes
  • Sample rates: 8 - 48
  • Ethernet LAN: Yes
  • Networking standards: IEEE 802.3af/IEEE 802.3at
  • Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS3, HTTP/ 2, TLS3, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIB- II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
  • Flash memory: 8000
  • Internal memory: 2000
  • Ethernet LAN (RJ-45) ports: 1
  • Terminal block port: Yes
  • Active tampering alarm: Yes
  • Human and vehicle targets classification: Yes
  • Intelligent Video Surveillance (IVS) system features: Crossing line/Line crossing detection
  • Network access storage (NAS): Yes
  • Pixel counter: Yes
  • Privacy protection: Yes
  • Security algorithms: EAP-TLS/MSCHAPv2
  • Video motion detection: Yes
  • Power source type: PoE
  • Power consumption (max): 3.98
  • Power consumption (Power over Ethernet (PoE)): 12.95
  • Operating temperature (T-T): -20 - 50
  • Storage temperature (T-T): -40 - 65
  • Operating relative humidity (H-H): 10 - 85
  • Storage relative humidity (H-H): 5 - 95
  • Weight: 1740
  • Package type: Box
  • Number of cameras: 1
  • Terminal block included: Yes
  • User guide: Yes
  • Iris: Yes
  • Units per Pallet: 0
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.0091
  • Unit Calculated Weight: 3
Specifications
Active tampering alarmYes
Audio formats supportedAAC-LC/ADPCM/G.711/G.726/LPCM/OPUS/PCM
Audio system2-way
Audio system full duplexYes
Auto focusYes
B/W night vision distance10
Built-in lightYes
Built-in microphoneYes
Built-in speaker(s)Yes
Camera shutter speed1/66500 - 2
Card reader integratedYes
CertificationUL, CE, KC, VCCI, RCM, FCC, ICES, WEEE
Closest focusing distance1
Compatible memory cardsMicroSD (TransFlash)/MicroSDHC/MicroSDXC
Connectivity technologyWired
Day/night modeYes
Detect distance46.1
Dynamic range120
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Fixed focal length3.7
Flash memory8000
Fog proofYes
Form factorCorner
Frame rate30
Frequency range820 - 5075
Housing materialPolycarbonate (PC)/Stainless steel
Human and vehicle targets classificationYes
Identify distance5.1
Image quality adjustmentBrightness/Contrast/Mirror/Saturation/Sharpness/White balance
Infra-red wavelength940
Infrared (IR) cut-off filterYes
Intelligent Video Surveillance (IVS) system featuresCrossing line/Line crossing detection
Internal memory2000
International Protection (IP) codeIP66, IP69, IP6K9K
IrisYes
Languages supportMulti
LED indicatorsYes
LED typeIR/White
Lens viewing angle, horizontal115
Lens viewing angle, vertical89.2
Maximum aperture number2
Maximum resolution2880 x 2160
Minimum illumination0
Mounting typeCeiling
Network access storage (NAS)Yes
Networking standardsIEEE 802.3af/IEEE 802.3at
Night visionYes
Night vision distance10
Noise reductionYes
Noise reduction technology2D noise reduction,3D noise reduction
Number of cameras1
Number of lenses1
Number of sensors1
Observe distance19.4
Operating relative humidity (H-H)10 - 85
Operating temperature (T-T)-20 - 50
Optical sensor size1/1.7
Package typeBox
Pixel counterYes
Placement supportedIndoor
Power consumption (max)3.98
Power consumption (Power over Ethernet (PoE))12.95
Power source typePoE
Privacy maskingYes
Privacy protectionYes
Product colourWhite
Recognize distance10
Sample rates8 - 48
Security algorithmsEAP-TLS/MSCHAPv2
Sensor typeCMOS
Signal-to-Noise Ratio (SNR)55
Storage relative humidity (H-H)5 - 95
Storage temperature (T-T)-40 - 65
SummaryAxis Q9227-SLV. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Corner. Lens viewing angle, horizontal: 115°, Lens viewing angle, vertical: 89.2°, Tilt angle range: -10 - 10°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.7 mm (1 / 1.7"). Detect distance: 46.1 m, Observe distance: 19.4 m, Recognize distance: 10 m
Supported network protocolsIPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS3, HTTP/ 2, TLS3, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB- II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/
Terminal block includedYes
Terminal block portYes
Tilt angle range-10 - 10
TypeIP security camera
User guideYes
Video compression formatsH.264/H.265
Video motion detectionYes
Video streamingYes
Weight1740
Wide Dynamic Range (WDR)Yes
Specs
Category CodeFNC
Description

This compact and robust ligature-resistant (anti-ligature) camera delivers outstanding 5 MP image quality. It comes with AI-powered video and audio analytics, and a hidden speaker and microphone that allows for two-way audio communication.

Two-way communication and full coverage

AXIS Q9227-SLV features a hidden speaker and microphone, complete with an on/off switch and voice enhancer, delivering clear two-way audio communication. It offers 5 MP and 115° horizontal and 89° vertical coverage with no blind spots. Ideal in prison cells and psychiatric wards, it includes 940 nm invisible IR illumination for surveillance in total darkness. Plus, a white LED ensures details in color. Thanks to Lightfinder 2.0 and Forensic WDR, this camera delivers true colors and great detail in challenging light or near darkness. What’s more, Axis Zipstream with H.264 and H.265 significantly reduces bandwidth and storage requirements.

AI-powered analytics and strong cybersecurity

Featuring a deep learning processing unit (DLPU), this corner camera can run advanced features and powerful analytics on the edge. It comes with AXIS Object Analytics preinstalled to detect, classify, track, and count humans. With AXIS Audio Analytics you’ll be notified whenever something relevant happens, even when there's no visual indication. For instance, it can detect screams, shouts and coughing fits as well as changes in sound level. Furthermore, Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. And it offers FIPS 140-3 Level 3 certified, secure cryptographic key storage and operations.

Occupant safety and privacy

With a ligature-resistant (anti-ligature) design, this robust camera can help prevent self-harm. It comes with built-in invisible IR LEDs (940 nm) for surveillance in complete darkness that doesn’t irritate or provoke the occupant*. It also includes AXIS Live Privacy Shield for AI-based dynamic masking of objects. Available in stainless steel or white colored stainless steel, this robust IK11, IP66-, IP6K9K-, and IP69-rated camera can withstand tough conditions. It’s easy to clean with detergent or graffiti remover. Plus, an indication LED makes it easy to see if the camera is active or not.

  • Compact, IK11-rated, anti-ligature design
  • Built-in speaker and microphone
  • AI-powered audio and video analytics
  • Easy to install and clean
  • Built-in cybersecurity with Axis Edge Vault
